Customer can choose XCMG, PALFINGER,UNIC, HIAB crane

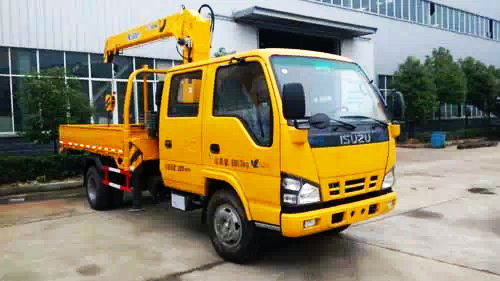

4X2 ISUZU 2~5ton Loader Boom Truck crane
------Supplying super quality Isuzu truck mounted Crane
Products Technical Specification |
| Product Name | ISUZU 4*2 Truck with crane |
| Chassis Model | NKR77PLLWCJAY |
| Fuel type | Diesel |
| Emission Standard | Euro 3 |
| Cabin / width | Double,with A/C / 1880mm |
Whole Vehicle
main dimensions (mm)
| Overall dimensions (L×W×H) | 6745*2386*3120 |
| Cargo body dimensions | 3160*1790*380 |
| Wheel base | 3815 |
| Front overhang | 1015 |
| Rear overhang | 1815 |
| Min. ground clearance | 450 |
Weight data (kg)
| G.V.W | 6485 |
| Curb weight (chassis) | 4060 |
| Max payload | 3000-5000 |
Whole vehicle
main performance
| Max. speed (km/h) | 100 |
| Max. slope of climb (%) | 30 |
Engine
| Model | 4KH1-TC |
| Maximum power | 96kw / 130hp |
| Number of cylinders | 4 |
| Displacement (L) | 2999 |
| Engine Manufacturer | Qingling Motors Co. Ltd. |
Gear box
| Model | MSB |
| Number of gears | 5 forward gears & 1 reverse |
Axle
| Front Load capacity (ton) | 2.2 |
| Rear Load capacity (ton) | 4.8 |
Suspension
| Front | 8- Leaf spring, |
| Rear | 6+5-leaf spring |
| Steering Wheel | left/right hand drive | LHD |
| Brake system | Service brake | Oil braking |
| Electric device | Rated voltage | 24V |
| Tyres & Quantity | 7.00-16 & 6+1 |
| Crane Description |
| Brand | XCMG |
| Type | folding arm crane |
| Model | SQ3.2ZK1 |
| Max Lifting Capacity (kg) | 3200 |
| Maximum lift height (m) | 8.5 |
| Working radius (m) | 5.5 |
| Max Lifting Moment (t.m) | 6.72 |
| Max Oil Flow of Hydraulic System (L/min) | 25 |
| Max Pressure of Hydraulic System (MPa) | 22 |
| Oil Tank Capacity (L) | 30 |
| Rotation Angle (°) | 370° |
| Crane Weight (kg) | 1100 |
| Installation Space (mm) | 850 |
| Working radius (m) | 3.1 / 4.15 / 5.8 |
| Lifting capacity (kg) | 3200 / 1800 / 1000 |
| Standard Equipment | Landing leg Using H-leg.
Hydraulic valve is universal in the world on the safe side;
three point floating type to protect crossbeam of the truck; all hydraulic pressure and 360°turning; new H-shape type; high precise drawn tube;24°tie-in. |
We also have Dongfeng water tank truck,Oil tank truck,Garbage truck,Van truck,Flatbed Truck,Dump truck,Truck with crane,etc
Quick Review:
1.Name: Telescopic boom crane, Truck Mounted crane, Hydraulic truck crane
2.Crane Brand:XCMG, UNIC, PALFINGER, HIAB,and other
3.Truck Chassis: JapaneseIsuzu4x2/6x4, 120Hp,130Hp, 175hp,190hp, 240hp, 300hp
4.Max Lifting Capacity:5 ton(According to customer wish, Max25Ton, Min2Ton)
5. Maximun Lifting moment: 12.5 T.M
6. Recommended power: 18 KW
7. Max Oil Flow of Hydraulic System: 32 L/min
8. Rotary angle: 360°All Rotation
9.Feature: Safety Transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope, telescopic boom coupling technology
CONTACT US
Cellphone: (+86)15271357635
Website: www.truckinchina.com
4X2 ISUZU 5ton Loader Boom Truck crane, HIAB UNIC CRANEXCMG Mounted With 5000 kg Crane can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.
Description:
4X2 ISUZU 5ton Loader Boom Truck crane, HIAB UNIC CRANE, help you loading goods on your Isuzu truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading.
4X2 ISUZU 5ton Loader Boom Truck crane, HIAB UNIC CRANEis a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.
Optional Equipment:
Chassis brand:ISUZU, HINO, UD, FOTON, DONGFENG, JAC, JMC, HOWO
Crane brand:XCMG, UNIC, PALFINGER, HIAB,and other brand
Crane type:Telescopic Boom Truck CraneorKnuckle Boom Truck Crane
Steering type:Right hand driveorRight hand drive
Crane capacity:2T, 3.2T, 4T, 5T, 6.3T, 8T, 10T, 12T, 14T, 16T, 25T
Moment limited device
Remote control equipment
Anti-overwind magnet valve
High seat on column
Super Work light
Assisatant stabilizer leg
CONTACT US
Cellphone: (+86)15271357635
Website: www.truckinchina.com
Specialize Custom Commercial Vehicle body building - semi trailer, full trailer-Spare parts
Previous Customer Builds Examples:
100P |
| QL10408EARY 1.45T | 4JB1-TC1 | 2490 |
| QL10408EWRY 1.25T | 4JB1-TC1 | 2490 |
| QL10408FARY 1.99T | 4JB1-TC1 | 2765 |
| QL10508FWRY 1.43T | 4JB1-TC1 | 2765 |
| QL10508HARY 2.75T | 4JB1-TC1 | 3360 |
| QL10408HARY 1.75T | 4JB1-TC1 | 3360 |
| QL10508HWRY 2.45T | 4JB1-TC1 | 3360 |
| QL10408HWRY 1.49T | 4JB1-TC1 | 3360 |
| 600P |
| QL1040HEARY 1.45T | 4KH1-TC | 2490 |
| QL1040HEWRY 1.25T | 4KH1-TC | 2490 |
| QL1041HEARY 1.75T | 4KH1-TC | 2490 |
| NKR77GLLACJAY 3.5T | 4KH1-TC | 2765 |
| NKR77GLNACJAY 4T | 4KH1-TC | 2765 |
| KNR77GLEACJAY 1.95T | 4KH1-TC | 2765 |
| NKR77GLCWCJAY 1.48T | 4KH1-TC | 2765 |
| KNR77LLLACJAY 3.5T | 4KH1-TC | 3360 |
| NKR77LLNACJAY 4T | 4KH1-TC | 3360 |
| NKR77LLPACJAY 4.5T | 4KH1-TC | 3360 |
| NKR77LLDACJAY 1.85T | 4KH1-TC | 3360 |
| NKR77LLGACJAY 2.5T | 4KH1-TC | 3360 |
| NKR77LLLWCJAY 3.5T | 4KH1-TC | 3360 |
| NKR77LLGWCJAY 2.5T | 4KH1-TC | 3360 |
| NKR77LLEWCJAY 1.95T | 4KH1-TC | 3360 |
| NKR77LLCWCJAY 1.75T | 4KH1-TC | 3360 |
| NKR77PLLACJAY 3.5T | 4KH1-TC | 3815 |
| NKR77PLNACJAY 4T | 4KH1-TC | 3815 |
| NKR77PLPACJAY 4.5T | 4KH1-TC | 3815 |
| NKR77PLLWCJAY 3.5T | 4KH1-TC | 3815 |
| NKR77PLNACJAKY 4T | 4KH1-TC | 3815 |
| QL1060HKARY 2.35T | 4KH1-TC | 3815 |
| 700P | QL1080TKARY/QL1090TKARY/QL1100TKARY | 4HK1-TC | 3815 |
| QL1080TLARY/QL1090TLARY/QL1100TLARY | 4HK1-TC | 4175 |
| QL1090TMARY/QL1091TMARY/QL1100TMARY | 4HK1-TC | 4475 |
| QL1090TPARY/QL1100TPARY | 4HK1-TC | 5200 |
| 700P4×4 | QL1070TKASY | 4HK1-TCN1 | 3840 |
| 700PQL1080ZKARZY/QL1080ZLARZY | 4HK1-TCN2 |
|
| FTR | 7-8 4*2 | QL1140TKFR | 4HK1-TC | 3900 |
| 7-8 4*2 | QL1140TMFR | 4HK1-TC | 4500 |
| 7-8 4*2 | QL1140TAFRY | 4HK1-TC | 4700 |
| 7-8 4*2 | QL1140TNFR | 4HK1-TC | 5000 |
| 7-8 4*2 | QL1140TQFR | 4HK1-TC | 5550 |
| 7-8 4*2 | QL5140TRFR | 4HK1-TC | 5800 |
| FVR | 7-8 4*2 | QL1150WKFR,FVR34G2 | 6HK1-TCN | 3900 |
| 7-8 4*2 | QL1150WMFR,FVR34J2 | 6HK1-TCN | 4500 |
| 7-8 4*2 | QL1160WAFRY | 6HK1-TCN | 4700 |
| 7-8 4*2 | QL1160WNFRY | 6HK1-TCN | 5000 |
| 7-8 4*2 | QL1150WQFR ,FVR34P2 | 6HK1-TCN | 5550 |
| 7-8 4*2 | QL1160WRFRY | 6HK1-TCN | 5800 |
|
| FVZ34K | 6HK1-TC | 3.4+1.3 |
|
| FVZ34N | 6HK1-TC | 4.0+1.3 |
|
|
|
| 4.35+1.3 |
| FVZ | 14-15 6*4 | QL1250RPFZ, FVZ34Q | 6HK1-TCS | 4.65+1.3 |
| 14-15 6*4 | QL1250RQFZY | 6HK1-TCS | 4.9+1.3 |
| 14-15 6*4 | QL1250RRFZ, CXA34T | 6HK1-TCS | 5.1+1.3 |
| 14-15 6*4 | QL1250RSFZY | 6HK1-TCS | 5.4+1.3 |
| 14-15 6*4 | QL1250RTFZ, FVZ34V | 6HK1-TCS | 5.7+1.3
|
Supply4X2 ISUZU 5ton Loader Boom Truck crane, HIAB UNIC CRANE, ISUZU Truck Mounted Crane for sale, ISUZU Telescopic Boom Truck Crane supplier,Japanese ISUZU Truck Loader Crane, ISUZU Hydraulic Truck Mobile Crane, ISUZU Knuckle Boom Truck Crane,ISUZU Cargo Truck with Crane expoeter.
