Dump Semi-trailer 3 axles Air suspension

Share to:

Dump Semi-trailer 3 axles Air suspension

Dump Semi-trailer 3 axles Air suspension 3 axle 60Ton tipper semi-trailer
Tipper load capacity: 60Ton
No of axle: 3 axle BPW,FUWA
Dump body volume: 30CBM
Hydraulic cylinder: HYVA or China brand are option
Suspension: Air suspension
Tire: 315/60R22.5,total 12 units

Price: $ 29000 - 36000

Discount Price: $ 24000 - 30800

FOB:	DRZ9570 DRZ9406TZX 24cbm tipper trailer 35cbm tipper trailer 3 axles Air suspension 30cbm
Availability:

Quantity:

Model: DRZ9406TZX
Brand: DRZ
Code: 87163990

Dump Semi-trailer 3 axles Air suspension 3 axle 60Ton tipper semi-trailer

Tipper load capacity:60Ton

No of axle:3 axle BPW,FUWA

Dump body volume:30CBM

Hydraulic cylinder:HYVA or China brand are option

Suspension:Air suspension

Tire:315/60R22.5,total 12 units

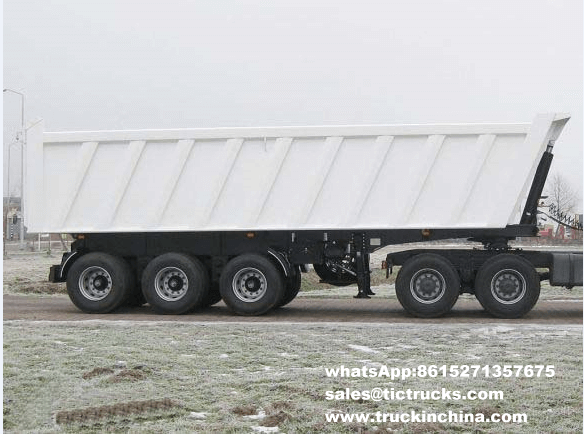

3 axle 60Ton tipper semi-trailer 2_1.png 3 axle 60Ton dumping semi-trailer air suspension_1.png

3 axles U-shape Rear Dump Semi-trailer 24cbm ,35CBM

Heavy duty U shape dumper semi-trailer 60Ton

3 axle 60Ton dumper semi trailer 7_1.jpg 60Ton U shape dumper semi-trailer 22_1.jpg

Dumper trailer 3axles trailer Cell Phone: 008615271357675

high_quality_sinotruk_howo_dump_semi_trailer_1

Dump Semi-trailer 3 axles Air suspension 3 axle 60Ton tipper semi-trailer

Tipper load capacity: 60Ton

No of axle: 3 axle BPW,FUWA

Dump body volume: 30CBM

Hydraulic cylinder: HYVA or China brand are option

Suspension: Air suspension

Tire: 315/60R22.5,total 12 units

Tipper bucket(Tipper body) specification

Tipper body material: Q345 for tipper body,16Mn for tipper trailer chassis

Tipper body volume(CBM): About 30CBM

Rated loading weight(kg): 60,000kgs

Tipper body dimension(mm): 8800x2350x1800

Tipper body hydraulic lifter: HYVA

Tipper body thickness: Side floor:8mm,end floor:10mm

Tipper trailer chassis specification

Axle: 3 axle FUWA 16Ton

Suspension: Air suspension

Landing gear: JOST double action

Kingpin: JOST 50# or 90#

3 axles U-shape Rear Dump Semi-trailer 24 cbm

Type	3 axles U-shape Rear Dump Semi-trailer
Overall dimension	8600 * 2490 * 3370 mm
Inside cargo box dimension	739924801400mm
Capacity of cargo box	24m3
Main beam	Beam height: 500mm, Upper plate: 14mm,Double Middle plate: 8 mm, Down plate: 14mm
Platform thickness	6mm
Side wall thickness	4mm
Material	High-tensile Steel, T700
Gross vehicle weight	Approximately 8500 kgs
Total weight	45000 kg
Lifting system	HYVA brand
King pin	90# (3,5 inch)
Support leg	Standard 30T, SAF Holland
Axle	FUWA brand, 3*13T
Suspension	mechanical suspension 10pcs leaf spring
Tire	Triangle brand, 11.00R-20, 13pcs
Rim	8.0-20, 13 pcs
Brake System	30/30 type on each axle
Spare wheel carrier	01 pcs
Tool box	01 pcs
Electrical System	Chinese standard 24V lighting system
Side Maker Lamp	LED lamp
Painting	Polyurethane Paint

60Ton U shape tipper semi-trailer 35cbm

U shape tipper semi-trailer is widely use in mining engineering,huge construction site,large quarry site,etc.

It have many advantageous than normal tipper truck, such as heavy load capacity, huge load box volume,more stability,etc.

It can combined work with different tractor head, so it improve the working efficiency than tipper truck.

U shape tipper semi-trailer specifications

Tipper body material	Carbon steel -Q235 or Q345 for tipper body 16Mn for tipper trailer chassis(frame and girden)
Body volume(CBM)	About 35CBM
Trailer curb weight(kg)	11,800kgs
Max.loading weight(kg)	80,000kgs
Overall dimensions(mm)	10500×2500×3950
Tipper body size (mm)	9800x2350x1800
Axle description	3 axle BPW brand,each axle 16Ton load capacity
Tire specification	Triangle brand tire,12.00R22.5,total 12 tires
Suspension type	Strengthen leaf spring suspension
Landing gear	JOST double action landing gear
Kingpin specification	JOST, 2 inch(50mm)
Electric circuit	Chinese standard 24V
Tipper body components
Main frame description	Heavy duty extra durability design,high tensile steel 16Mn
Hydraulic system	One set of HYVA hydraulic cylinder
Tipper body volume(M3)	35M3
Body thickness (mm)	Side floor:8mm,end floor:10mm,carbon steel plate
ACCESSORIES
Climb Ladder	High tensive steel,ladder located at the front side
Spare tire carrier	1 unit
Tools box	1 unit tool box fixed
TRAILER CONSTRUCTION &FIXTURE
Lighting	24 Volt electrical in accordance to Chinese standard complete with Chinese’s made LED light for brake, signal, reverse and fog light at rear, and marker light at both side of trailer, complete with ‘’3M’’ reflective tape at sides and rear
Rear Bumper	Made of Steel,manufacture Standard

3 axle 60Ton dumper semi trailer

Tipper semi-trailer also called dumper semi-trailer.This type of tipper semi-trailer composed of running gear,dump

bucket,hydraulic lifting cylinder,tool box,ladder,etc.Running gear including landing leg,tire,suspension,axle,beam.

Dump bucket material is carbon steel from WISCO.Hydraulic lifting cylinder adopted world famous HYVA brand to

ensure the stability and good seal performance.Also China made Hydraulic lifting cylinder is optional.

Tipper body material: Q345 for tipper body,16Mn for tipper trailer chassis

Tipper body volume(CBM): About 30CBM

Rated loading weight(kg): 60,000kgs

Tipper body dimension(mm): 8800x2350x1800

Tipper body hydraulic lifter: HYVA

Tipper body thickness: Side floor:8mm,end floor:10mm

Tipper trailer chassis specification

Axle: 3 axle FUWA 16Ton

Suspension: Air suspension

Landing gear: JOST double action

Kingpin: JOST 50# or 90#

Tipper bucket(Tipper body) specification

3 Axle Tipping Semi Trailer
1) One Tool Box;
2) Good quality with competitive price.

3 Axle Tipping Semi Trailer 45T Capacity Load

1. Model: DRZ9570

2. Whole Truck Dimension: 8200x2496x3300mm

3. Body Size: 7000x2300x1700mm

4. Steel Thickness of Carriage: Floor:8mm, Side:6mm

5. Axle: 3Axles, 16T

6. Tyre: 12.00R20

7. Coupling Seat Size: 3.5 inch, 90#

8. Dead Weight: 13000kg

9. Loading Capacity: 45000kg

10. Color: optional

11. One Tool Box

12. Two Spare Tires Supports

Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675

MODEL:DUMP Side SEMI-TRAILER

YEAR: NEW

LOAD CAPACITY: 40T, 50T, 60T,80T,100T

BUCKET VOLUME: 30m⊃3; , 35m⊃3;, 40m⊃3;, 45m⊃3;

AXLE: FUWA AXLE 13T (16T, 20T) OPTIONP BPW AXLE (12T, 13T), ABS 2axles Bogie type trailer

TIRE: 12.00-20 TIRE OPTION:--------------------------SPECIFICATION12.00R20 RAIL TIRE
Type: tipper semi-trailer
DIMENSION:
Overall Length: 8,500mm
Overall Width: 2,500mm
Overall height: 3,900mm

RUNNING GEAR:
Suspension : Undermount tri-axle suspension with equalizer,10 leaf plat spring.
Brake ：Dual line pneumatic brake system
Axle: BPW axle 13,000 kg capacity. X 3PCS
Wheel: 9.0-22.5 steel Disc wheel 13 pcs, made in China.
Tire: 12R22.5 Bridgestone tyre 13 pcs
King Pin : 3 " king pin,
LANDING LEG: Jost 28T

Main beam : 500/16/10/20 Q345
The box applied with Q345, Bottom 8, Side 6
The frame applied with Q235,
Cylinder:
HYVA FC214
TANK ACCESSORIES AND FITTINGS :
One tool box, one spare tyre with carrier
