3 axles U-shape Rear Dump Semi-trailer 24cbm ,35CBM

3 axles U-shape Rear Dump Semi-trailer 24cbm ,35CBM
Loading capa: 60Ton
No.of axle: 3 axle,2 axle is optional.BPW,FUWA or L1
Tipper trailer Shape: U shape
Tipper body volume: 20-35CBM are available
Hydraulic cylinder: HYVA or China famous brand
Price: $ 29000  -  32000
Discount Price: $ 24000  -  26800
FOB:
Availability:
Quantity:

  • DRZ9406TZX

  • DRZ

  • 87163990

 3 axles U-shape Rear Dump Semi-trailer 24cbm ,35CBM

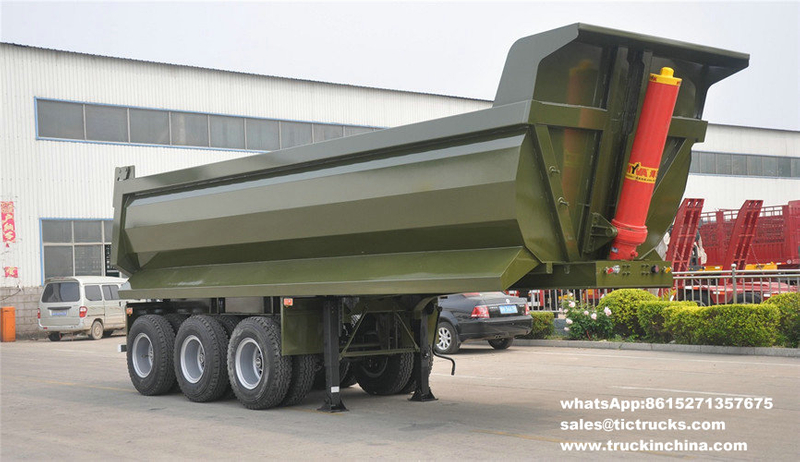

Tipping semi trailer_1

Heavy duty U shape dumper semi-trailer 60Ton

40Ton tipper semi-trailer-5_1.jpeg3 axle 60Ton dumper semi trailer 7_1.jpg60Ton U shape dumper semi-trailer 22_1.jpg3 axle 60Ton dumper semi trailer_1.jpg60Ton U shape dumper semi-trailer 2_1.png1487743570267_1.jpeg

Dumper  trailer  3axles  trailer  Cell Phone: 008615271357675

high quality SINOTRUK HOWO DUMP SEMI TRAILER_1high_quality_sinotruk_howo_dump_semi_trailer_1


3 axles U-shape Rear Dump Semi-trailer 24 cbm

    Type

3 axles U-shape Rear Dump Semi-trailer

Overall dimension

8600 * 2490 * 3370 mm

Inside cargo box dimension

7399*2480*1400mm

Capacity of cargo box

24m3

Main beam

Beam height: 500mm, Upper plate: 14mm,Double Middle plate: 8 mm, Down plate: 14mm

Platform thickness

6mm

Side wall thickness

4mm

Material

High-tensile Steel, T700

Gross vehicle weight

Approximately 8500 kgs

Total weight

45000 kg

Lifting system

HYVA brand

King pin

90# (3,5 inch)

Support leg

Standard 30T, SAF Holland

Axle

FUWA brand, 3*13T

Suspension

mechanical suspension 10pcs leaf spring

Tire

 Triangle brand, 11.00R-20, 13pcs

Rim

8.0-20, 13 pcs

Brake System

30/30 type on each axle

Spare wheel carrier

01 pcs

Tool box

01 pcs


Electrical System

Chinese standard 24V lighting system

Side Maker Lamp

LED lamp

Painting

Polyurethane Paint

 60Ton U shape tipper semi-trailer 35cbm

U shape tipper semi-trailer is widely use in mining engineering,huge construction site,large quarry site,etc.

It have many advantageous than normal tipper truck, such as heavy load capacity, huge load box volume,more stability,etc.

It can combined work with different tractor head, so it improve the working efficiency than tipper truck.

U shape tipper semi-trailer specifications



Tipper body material

Carbon steel -Q235 or Q345 for tipper body

16Mn for tipper trailer chassis(frame and girden)

Body volume(CBM)

About 35CBM

Trailer curb weight(kg)

11,800kgs

Max.loading weight(kg)

80,000kgs

Overall dimensions(mm)

10500×2500×3950

Tipper body size (mm)

9800x2350x1800

Axle description

3 axle BPW brand,each axle 16Ton load capacity

Tire specification

Triangle brand tire,12.00R22.5,total 12 tires

Suspension type

Strengthen leaf spring suspension

Landing gear

JOST double action landing gear

Kingpin specification

JOST, 2 inch(50mm)

Electric circuit

Chinese standard 24V

Tipper body components

Main frame description

Heavy duty extra durability design,high tensile steel 16Mn

Hydraulic system

One set of HYVA hydraulic cylinder

Tipper body volume(M3)

35M3

Body thickness (mm)

Side floor:8mm,end floor:10mm,carbon steel plate

ACCESSORIES

Climb Ladder

High tensive steel,ladder located at the front side

Spare tire carrier

1 unit

Tools box

1 unit tool box fixed

TRAILER CONSTRUCTION &FIXTURE

Lighting

24 Volt electrical in accordance to Chinese standard complete with Chinese’s made LED light for brake, signal, reverse and fog light at rear, and marker light at both side of trailer, complete with ‘’3M’’ reflective tape at sides and rear

Rear Bumper

Made of Steel,manufacture Standard



3 axle 60Ton dumper semi trailer



Tipper semi-trailer also called dumper semi-trailer.This type of tipper semi-trailer composed of running gear,dump

bucket,hydraulic lifting cylinder,tool box,ladder,etc.Running gear including landing leg,tire,suspension,axle,beam.

Dump bucket material is carbon steel from WISCO.Hydraulic lifting cylinder adopted world famous HYVA brand to

ensure the stability and good seal performance.Also China made Hydraulic lifting cylinder is optional.

Tipper body material:  Q345 for tipper body,16Mn for tipper trailer chassis

Tipper body volume(CBM):   About 30CBM

Rated loading weight(kg):   60,000kgs

Tipper body dimension(mm):   8800x2350x1800

Tipper body hydraulic lifter:   HYVA

Tipper body thickness:   Side floor:8mm,end floor:10mm


Tipper trailer chassis specification

Axle:   3 axle FUWA 16Ton

Suspension:   Air suspension

Landing gear:   JOST double action


Kingpin:    JOST 50# or 90#

Tipper bucket(Tipper body) specification

3 Axle Tipping Semi Trailer
1) One Tool Box;
2) Good quality with competitive price.

3 Axle Tipping Semi Trailer 45T Capacity Load



1. Model:                                                         DRZ9570



2. Whole Truck Dimension:                            8200x2496x3300mm



3. Body Size:                                                     7000x2300x1700mm



4. Steel Thickness of Carriage:                      Floor:8mm, Side:6mm



5. Axle:                                                           3Axles, 16T



6. Tyre:                                                             12.00R20



7. Coupling Seat Size:                                     3.5 inch, 90#



8. Dead Weight:                                                 13000kg



9. Loading Capacity:                                           45000kg



10. Color:                                                           optional



11. One Tool Box



12. Two Spare Tires Supports

 Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675

 MODEL:DUMP Side SEMI-TRAILER

 YEAR:                  NEW

 LOAD CAPACITY:    40T, 50T, 60T,80T,100T

 BUCKET VOLUME:    30m⊃3; , 35m⊃3;, 40m⊃3;, 45m⊃3;

 AXLE:    FUWA AXLE 13T (16T, 20T)    OPTIONP BPW AXLE (12T, 13T), ABS    2axles Bogie type trailer

 TIRE:  12.00-20 TIRE                          OPTION:--------------------------SPECIFICATION12.00R20 RAIL TIRE
 Type: tipper semi-trailer
 DIMENSION:
 Overall Length:          8,500mm
 Overall Width:            2,500mm
 Overall height:           3,900mm

 RUNNING GEAR:
 Suspension : Undermount tri-axle suspension with equalizer,10 leaf plat spring.
 Brake       :Dual line pneumatic brake system
 Axle:          BPW axle 13,000 kg capacity. X 3PCS
 Wheel:         9.0-22.5 steel Disc wheel 13 pcs, made in China.
 Tire:           12R22.5 Bridgestone  tyre 13 pcs
 King Pin :      3 " king pin,
 LANDING LEG: Jost 28T

 Main beam : 500/16/10/20  Q345
 The box applied with Q345, Bottom 8, Side 6
 The frame applied with Q235,
 Cylinder:
 HYVA FC214
 TANK ACCESSORIES AND FITTINGS :
 One tool box, one spare tyre with carrier
