ISUZU Vacuum Tanker Truck

Availability:

Quantity:



Inquire Add to Basket

Product Description

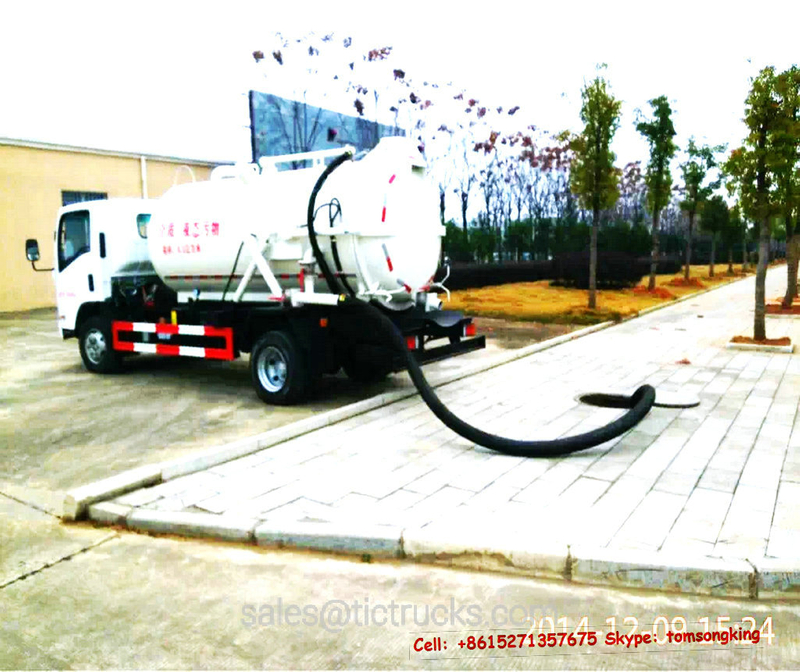

ISUZU Vacuum tanker truck
NKR77LLPACJAY 130HP 3360mm wheel base 3000L FOB $27800 ~ $31800 ; NKR77PLPACJAY 3815mm wheel base 5000L FOB $28800 ~ $33800

ISUZU-90T- Commercial Vehical truck ISUZU-31T- Commercial Vehical truck ISUZU-53T- Commercial Vehical truck ISUZU-91T- Commercial Vehical truck

Captain Product name: DTA50--GXW, suction sewage truck septik truck

Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675

NKR77LLPACJAY 4KH1-TC 130HP ;3360mm wheel base ;3000L: FOB $27800 ~ $31800 ;

NKR77PLPACJAY 130HP 3815mm wheel base ;5000L :FOB $28800 ~ $33800

Items	Descriptions	Specifications and Types
General	Truck Name	ISUZU Vacuum tanker truck
	Drive Type	4*2， left-hand drive
	Capacity	3~5cbm
	Payload Weight (kg)	5000
	Overall Dimensions LWH(mm)	590021002540
Engine	Engine Model	4KH1-TC
	Engine Brand	ISUZU
	Fuel Type	Diesel
	Power	96kw/130HP
	Emission Standard	Euro 3
	Displacement(ml)	2999
Chassis	Chassis Model	NKR77LLPACJAY
	Front/Rear Axle Load(T)	2.5/4.8
	Tire Specification	7.50-15 7.00R16
	Wheelbase (mm)	3360
	Axle/Tire No.	2/7
	Gear Box	MSB 5 speed gearbox, Manual
	Brake	Oil brake, drum brake
	Radiator	Suitable for tropical climate
	Front/rear suspension(mm)	1015/1220
	Leaf Spring No.	8/6+5
Cab	Equip with A/C，power steering

Equipment 2: ISUZU Vacuum tanker truck

Model No.	ISUZU Vacuum tanker truck	Brand	ISUZU
Overall dimension (mm)	7240× 2300× 2360	Total Weight(Kg)	7000
Length of plateform(mm)	52400/5600	Payload weight (Kg)	xx
Approaching/Deparature Angle(° )	23/11	Kerb weight (Kg)	4600
Front/Rear Track (mm)	1015/2410	Max speed (km/h)	95
VIN No.	LWLDARHG× × × × × × × × ×
Chassis Model	NKR77PLPACJAY
Engine Type	Engine Manufacturer	Displacement	Power(kw)
4KH1-TC	ISUZU Automobile CO., LTD	2999	96
Fuel Type	Diesel	Emission Standards	GB17691-2005(State Ⅲ)
Axes	2	Number of Tires	6
Wheelbase	3815	Tires Specification	7.50-15,7.50R15,7.00-16,7.00R16
Axle Load	2565/4435	Front Track	1504
Number of Leaf Spring	8/6+5	Rear Track	1425
Others	Lifting Weight: 2270kg

1.Equipped with special vacuum pump(rating rotate speed=1400r/m,min rotate speed>800r/m, max suction lift>6m, vacuum>500mmHg, clockwise)

2.Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment

3.Time for full sucktion<5min

series

cab

Models tonnage

EngineModel

Wheel Base

100P EUR 3	short	QL10408EARY 1.45T	4JB1-TC1	2490
	Double Standard	QL10408EWRY 1.25T	4JB1-TC1	2490
	short	QL10408FARY 1.99T	4JB1-TC1	2765
	Double	QL10508FWRY 1.43T	4JB1-TC1	2765
	short	QL10508HARY 2.75T	4JB1-TC1	3360
	short	QL10408HARY 1.75T	4JB1-TC1	3360
	Double	QL10508HWRY 2.45T	4JB1-TC1	3360
	Double	QL10408HWRY 1.49T	4JB1-TC1	3360
600P EUR 3	short	QL1040HEARY 1.45T	4KH1-TC	2490
	Double Standard	QL1040HEWRY 1.25T	4KH1-TC	2490
	Double Standard	QL1041HEARY 1.75T	4KH1-TC	2490
	short	NKR77GLLACJAY 3.5T	4KH1-TC	2765
		NKR77GLNACJAY 4T	4KH1-TC	2765
		KNR77GLEACJAY 1.95T	4KH1-TC	2765
	Double	NKR77GLCWCJAY 1.48T	4KH1-TC	2765
	short	KNR77LLLACJAY 3.5T	4KH1-TC	3360
		NKR77LLNACJAY 4T	4KH1-TC	3360
		NKR77LLPACJAY 4.5T	4KH1-TC	3360
		NKR77LLDACJAY 1.85T	4KH1-TC	3360
		NKR77LLGACJAY 2.5T	4KH1-TC	3360
	Double	NKR77LLLWCJAY 3.5T	4KH1-TC	3360
		NKR77LLGWCJAY 2.5T	4KH1-TC	3360
		NKR77LLEWCJAY 1.95T	4KH1-TC	3360
		NKR77LLCWCJAY 1.75T	4KH1-TC	3360
	short	NKR77PLLACJAY 3.5T	4KH1-TC	3815
		NKR77PLNACJAY 4T	4KH1-TC	3815
		NKR77PLPACJAY 4.5T	4KH1-TC	3815
	Double	NKR77PLLWCJAY 3.5T	4KH1-TC	3815
	short	NKR77PLNACJAKY 4T	4KH1-TC	3815
	short	QL1060HKARY 2.35T	4KH1-TC	3815
700P EUR 3	QL1080TKARY/QL1090TKARY/QL1100TKARY		4HK1-TC	3815
	QL1080TLARY/QL1090TLARY/QL1100TLARY		4HK1-TC	4175
	QL1090TMARY/QL1091TMARY/QL1100TMARY		4HK1-TC	4475
	QL1090TPARY/QL1100TPARY		4HK1-TC	5200
	700P 4×4	QL1070TKASY	4HK1-TCN1	3840
	700P automatic transmission QL1080ZKARZY/QL1080ZLARZY		4HK1-TCN2
FTR EUR 3	7-8 T 4*2	QL1140TKFR	4HK1-TC	3900
	7-8 T 4*2	QL1140TMFR	4HK1-TC	4500
	7-8 T 4*2	QL1140TAFRY	4HK1-TC	4700
	7-8 T 4*2	QL1140TNFR	4HK1-TC	5000
	7-8 T 4*2	QL1140TQFR	4HK1-TC	5550
	7-8 T 4*2	QL5140TRFR	4HK1-TC	5800
FVR EUR 3	7-8 T 4*2	QL1150WKFR FVR34G2	6HK1-TCN	3900
	7-8 T 4*2	QL1150WMFR 、 FVR34J2	6HK1-TCN	4500
	7-8 T 4*2	QL1160WAFRY	6HK1-TCN	4700
	7-8 T 4*2	QL1160WNFRY	6HK1-TCN	5000
	7-8 T 4*2	QL1150WQFR 、 FVR34P2	6HK1-TCN	5550
	7-8 T 4*2	QL1160WRFRY	6HK1-TCN	5800
FVZ EUR 3	14-15T 6*4	QL1250RPFZ 、 FVZ34Q	6HK1-TCS	4.65+1.3
	14-15T 6*4	QL1250RQFZY	6HK1-TCS	4.9+1.3
	14-15T 6*4	QL1250RRFZ 、 CXA34T	6HK1-TCS	5.1+1.3
	14-15T 6*4	QL1250RSFZY	6HK1-TCS	5.4+1.3
	14-15T 6*4	QL1250RTFZ 、 FVZ34V	6HK1-TCS	5.7+1.3

series	Name	Models tonnage	Engine Model	Wheel Base
100P EUR 4	short	QL10403EARY 1.99T	4JB1CN	2490
	Double Standard	QL10403EWR1Y 1.25T	4JB1CN	2490
	Double Standard	QL10403EWRY 1.75T	4JB1CN	2490
	short	QL10403FARY 1.99T	4JB1CN	2765
	Double	QL10403FWRY 1.43T	4JB1CN	2765
	Double	QL10503FWRY 1.75T	4JB1CN	2765
	short	QL10403HARY 1.95T	4JB1CN	3360
		QL10503HARY 2.75T 1.75T	4JB1CN	3360
		QL10603HARY 3.15T	4JB1CN	3360
		QL10703HARY 3.3T	4JB1CN	3360
	Double	QL10403HWRY 1.75T	4JB1CN	3360
	Double	QL10503HWRY 2.45T	4JB1CN	3360
	short	QL10703KARY 4.5T	4JB1CN	3815
	short	QL10703KAR1Y 4.4T	4JB1CN	3815
	Double	QL10703KWRY 4.3T	4JB1CN	3815
600P EUR 4	short
	Double Standard
	short
	short
	short
	Double
	short
	Double
	short
700P EUR 4	QL10809TKARY/QL10909TKARY/QL11009TKARY		4HK1-TCG40	3815
	QL10809TLARY/QL10909TLARY/QL11009TLARY		4HK1-TCG40	4175
	QL10909TMARY/QL10919TMARY/QL11009TMARY		4HK1-TCG40	4475
	QL10909TPARY/QL11009TPARY		4HK1-TCG40	5200
	700P 4×4	QL1070TKASY		3840
	700P automatic transmission QL1080ZKARZY/QL1080ZLARZY
FTR EUR 4	7-8 T 4*2	QL11409TKFR	4HK1-TCG40	3900
	7-8 T 4*2	QL11409TMFR	4HK1-TCG40	4500
	7-8 T 4*2	QL11409TAFRY	4HK1-TCG40	4700
	7-8 T 4*2	QL11409TNFR	4HK1-TCG40	5000
	7-8 T 4*2	QL11409TQFR	4HK1-TCG40	5550
	7-8 T 4*2	QL51409TRFR	4HK1-TCG40	5800
	8-10T 4*2	QL11609KFRY	4HK1-TCG40	3900
	8-10T 4*2	QL11609MFRY	4HK1-TCG40	4500
	8-10T 4*2	QL11609AFRY	4HK1-TCG40	4700
	8-10T 4*2	QL11609NFRY	4HK1-TCG40	5000
	8-10T 4*2	QL11609QFRY	4HK1-TCG40	5550
	8-10T 4*2	QL5160XXY9RFRY	4HK1-TCG40	5800
FVR EUR 4	7-8 T 4*2	QL1150AKFR	6HK1-TCNG40	3900
	7-8 T 4*2	QL1150AMFR	6HK1-TCNG40	4500
	8-10T 4*2		6HK1-TCNG40	4700
	8-10T 4*2		6HK1-TCNG40	5000
	7-8 T 4*2	QL1150AQFR	6HK1-TCNG40	5550
	8-10T 4*2		6HK1-TCNG40	5800
FVZ EUR 4	14-15T 6*4	QL1250DPFZ	6HK1-TCSG40	4.65+1.3
	14-15T 6*4		6HK1-TCSG40	4.9+1.3
	14-15T 6*4	QL1250DRFZ	6HK1-TCSG40	5.1+1.3
	14-15T 6*4		6HK1-TCSG40	5.4+1.3
	14-15T 6*4	QL1250DTFZ	6HK1-TCSG40	5.7+1.3

Cesspool Emptying Truck Camper Expedition vehicle

septik truck sewage tanker ，Cesspool Emptying Truck CAPACITY 8000 UPTO 12000 Sewage Tank，Sewer JettingTruck，Vacuum Suction tanker ， vacuum suction truck ,vacuum truck，Sewer Jet Truck ,vacuum sewage suction truck ，Septic Tank Truck ，Cesspit Emptier，suction -type sewer scavenger , high-pressure sewer flushing vehicle, suction -type sewer scavenger, suction -type tumbrel tanker,Vacuum tank ,Vacuum truck , Vacuum valve ,Suction sewage truck ,High-pressure sewer flushing vehicle,vacuum sweeper ,airplane suction sewer scavenger,cleanout and suction-type sewer scavenger,vacuum cleaning truck ,Vacuum sewage suction truck ,vacuum sewer cleaner

SEWAGE TANKER COMPLETE WITH SUCTION PUMP AND ACCESSORIES. - vacuum trucks;
- gully emptier
- slurry tankers

M:8615271357675

Weichat:King253725877 WhatsApp:8615271357675 Skype:tomsongking

TIC TRUCKS , www.truckinchina.com
