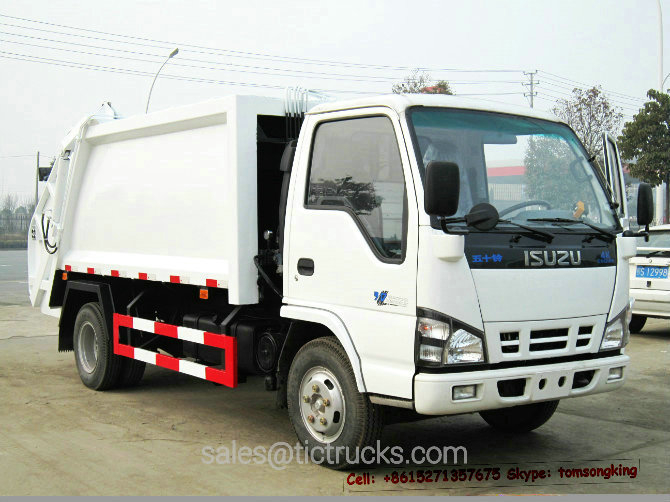

ISUZU 5~16 CBM 4x2 Isuzu Refuse Compactor Vehicle

ISUZU 5~16 CBM 4x2 Isuzu Refuse Compactor Vehicle
Availability:
Quantity:

ISUZU 4x2  Isuzu refuse compactor trash compactor truck ISUZU TRUCKS Refuse Compactor Trucks


    14 m3 Isuzu trash compactors


    4 m3 Isuzu garbage compactor





   16 m3 Isuzu domestic garbage compactor



           Model


           Manufacturer


           Special Device





           Body capacity


           16 m3


           Hopper capacity


           2.3 m3


           Operation control system


           Electrically hydraulic control


           Discharging system


           Horizontal ejection


           Loading time (one cycle)


           15 Sec


           Discharge time


           35 Sec


           Compression ratio


           1:4


           Hydraulic system Working pressure


           20 Mpa


           Plate thickness (Q235/Q345)





           Body


           Floor


           5 mm


           Roof


            4 mm


           Side


           5 mm


           Hopper


           Side (upper)


           4 mm


           Side (lower)


           5 mm


           Bottom


           6 mm


           Discharge Plate


           4 mm


           Press Plate


           6 mm


           Main Specification





           Drive type


           4x2 Left hand drive


           Wheel base


           5000 mm


           Engine





           Maker


           ISUZU


           Model


           6HK-TC


           Power


           178kw/240HP


           Transmission





           Maker


           ISUZU


           Model


           MLD 6-shift





   14 m3 Isuzu trash compactors



           Model


           Manufacturer


           Special Device





           Body capacity


           14 m3


           Hopper capacity


           2.2 m3


           Operation control system


           Electrically hydraulic control


           Discharging system


           Horizontal ejection


           Loading time (one cycle)


           15 Sec


           Discharge time


           35 Sec


           Compression ratio


           1:4


           Hydraulic system Working pressure


           20 Mpa


           Plate thickness (Q235/Q345)





           Body


           Floor


           5 mm


           Roof


            4 mm


           Side


           5 mm


           Hopper


           Side (upper)


           4 mm


           Side (lower)


           5 mm


           Bottom


           6 mm


           Discharge Plate


           4 mm


           Press Plate


           6 mm


           Main Specification





           Drive type


           4x2 Left hand drive


           Wheel base


           5000 mm


           Engine





           Maker


           ISUZU


           Model


           4HK-TC


           Power


           129kw/175HP


           Transmission





           Maker


           ISUZU


           Model


           MLD 6-shift





   12 m3 Isuzu Rear Loader Garbage Truck



           Model


           Manufacturer


           Special Device





           Body capacity


           12 m3


           Hopper capacity


           1.5 m3


           Operation control system


           Electrically hydraulic control


           Discharging system


           Horizontal ejection


           Loading time (one cycle)


           15 Sec


           Discharge time


           35 Sec


           Compression ratio


           1:4


           Hydraulic system Working pressure


           20 Mpa


           Plate thickness (Q235/Q345)





           Body


           Floor


           5 mm


           Roof


            4 mm


           Side


           5 mm


           Hopper


           Side (upper)


           4 mm


           Side (lower)


           5 mm


           Bottom


           6 mm


           Discharge Plate


           4 mm


           Press Plate


           6 mm


           Main Specification





           Drive type


           4x2 Left hand drive


           Wheel base


           4500 mm


           Engine





           Maker


           ISUZU


           Model


           4HK-TC


           Power


           129kw/175HP


           Transmission





           Maker


           ISUZU


           Model


           MLD 6-shift





   10 m3 rubbish compactor truck ISUZU chassis



           Model


           Manufacturer


           Special Device





           Body capacity


           10 m3


           Hopper capacity


           1.2 m3


           Operation control system


           Electrically hydraulic control


           Discharging system


           Horizontal ejection


           Loading time (one cycle)


           15 Sec


           Discharge time


           35 Sec


           Compression ratio


           1:4


           Hydraulic system Working pressure


           20 Mpa


           Plate thickness (Q235/Q345)





           Body


           Floor


           4 mm


           Roof


            4 mm


           Side


           5 mm


           Hopper


           Side (upper)


           4 mm


           Side (lower)


           5 mm


           Bottom


           6 mm


           Discharge Plate


           4 mm


           Press Plate


           6 mm


           Main Specification





           Drive type


           4x2 Left hand drive


           Wheel base


           4475 mm


           Engine





           Maker


           ISUZU


           Model


           4HK-TC


           Power


           129kw/175HP


           Transmission





           Maker


           ISUZU


           Model


           MLD 6-shift





   8 m3 Isuzu 700P Refuse garbage trucks



           Model


           Manufacturer


           Special Device





           Body capacity


           8 m3


           Hopper capacity


           1.2 m3


           Operation control system


           Electrically hydraulic control


           Discharging system


           Horizontal ejection


           Loading time (one cycle)


           15 Sec


           Discharge time


           35 Sec


           Compression ratio


           1:4


           Hydraulic system Working pressure


           20 Mpa


           Plate thickness (Q235/Q345)





           Body


           Floor


           3.5 mm


           Roof


            4 mm


           Side


           5 mm


           Hopper


           Side (upper)


           4 mm


           Side (lower)


           5 mm


           Bottom


           6 mm


           Discharge Plate


           4 mm


           Press Plate


           6 mm


           Main Specification





           Drive type


           4x2 Left hand drive


           Wheel base


           4175 mm


           Engine





           Maker


           ISUZU


           Model


           4HK-TC


           Power


           129kw/175HP


           Transmission





           Maker


           ISUZU


           Model


           MLD 6-shift






     7 m3 Isuzu Compressing garbage trucks



             Model


             Manufacturer


             Special Device





             Body capacity


             7 m3


             Hopper capacity


             1.1 m3


             Operation control system


             Electrically hydraulic control


             Discharging system


             Horizontal ejection


             Loading time (one cycle)


             15 Sec


             Discharge time


             35 Sec


             Compression ratio


             1:4


             Hydraulic system Working pressure


             20 Mpa


             Plate thickness (Q235/Q345)





             Body


             Floor


             3.5 mm


             Roof


              4 mm


             Side


             5 mm


             Hopper


             Side (upper)


             4 mm


             Side (lower)


             5 mm


             Bottom


             6 mm


             Discharge Plate


             4 mm


             Press Plate


             6 mm


             Main Specification





             Drive type


             4x2 Left hand drive


             Wheel base


             3815 mm


             Engine





             Maker


             ISUZU


             Model


             4HK1-TC


             Power


             96kw/130HP


             Transmission





             Maker


             ISUZU


             Model


             MSB 5-shift





     5 m3 Isuzu NKR77 rubbish garbage trucks



             Model


             Manufacturer


             Special Device





             Body capacity


             3cbm,5cbm,6cbm,8cbm


             Hopper capacity


             0.8 m3


             Operation control system


             Electrically hydraulic control


             Discharging system


             Horizontal ejection


             Loading time (one cycle)


             15 Sec


             Discharge time


             35 Sec


             Compression ratio


             1:4


             Hydraulic system Working pressure


             20 Mpa


             Plate thickness (Q235/Q345)





             Body


             Floor


             3.5 mm


             Roof


              4 mm


             Side


             5 mm


             Hopper


             Side (upper)


             4 mm


             Side (lower)


             5 mm


             Bottom


             6 mm


             Discharge Plate


             4 mm


             Press Plate


             6 mm


             Main Specification





             Drive type


             4x2 Left hand drive


             Wheel base


             3360 mm


             Engine





             Maker


             ISUZU


             Model


             4HK1-TC


             Power


             96kw/130HP


             Transmission





             Maker


             ISUZU


             Model


             MSB 5-shift





     4 m3 Isuzu garbage compactor



             Model


             Manufacturer


             Special Device





             Body capacity


             4 m3


             Hopper capacity


             0.8 m3


             Operation control system


             Electrically hydraulic control


             Discharging system


             Horizontal ejection


             Loading time (one cycle)


             15 Sec


             Discharge time


             35 Sec


             Compression ratio


             1:4


             Hydraulic system Working pressure


             20 Mpa


             Plate thickness (Q235/Q345)





             Body


             Floor


             3.5 mm


             Roof


              4 mm


             Side


             5 mm


             Hopper


             Side (upper)


             4 mm


             Side (lower)


             5 mm


             Bottom


             6 mm


             Discharge Plate


             4 mm


             Press Plate


             6 mm


             Main Specification





             Drive type


             4x2 Left hand drive


             Wheel base


             3360 mm


             Engine





             Maker


             ISUZU


             Model


             4HK1-TC


             Power


             96kw/130HP


             Transmission





             Maker


             ISUZU


             Model


             MSB 5-shift




 1.        ISUZU trash compactor truck Superstrucure: Smooth side wall with suitable reinforements in left , right and top.Front frame with stong           beams to support the main hydraulic cylinder(push-out-plate cylinder).Beams welded by sub-merge weilding machine.

 2.        Subframe: Full sub-frame with flexible mounting fixed to the truck chassis by horse bolts.Sub-frame and chassis medium with wooden plates.

 3.        Ejection Plate:Moves on rails situated inside the body with easy replaceable polyamide shoes,with one main double acting hydraulic cylinder to move the push-out-plate.


 4.        Tailgate:Tailgate connectd to body with top hinges.Rubber seal between tailgate and body to prevent dirty water leakage.Dirty water tank under the tailgate with discharge tap under the hopper.Structure consist of :one sledage,one shovel, hopper and hydraulic cylinder.

 5.        Material: Carbon steel made of Q235B


 6.        Thickness:  Body Side     3mm
                             Body Floor     4mm
                             Hopper Bottom  5mm
                             Hopper Sides   5mm
 Standard Specification


         Model          4KH1-TC
         Type          Diesel,4-cycle,6 cylinder in line, Turbocharger, Water cooled
         Piston Displacement (ml)          2999
         Max. Gross output (kw/rpm)          96/2,500
         Emission Standard          Euro 3

 TIC TRUCKS , www.truckinchina.com
