Steel Fuel Tanker Semi-trailer 4 axles, 55000L,60000L,68000L,72000L ( Crude Oil, Diesel ,Gasoline )Tank Trailer Manufacturers
Steel 4 Axle Tanker Semi-trailer
tanker semi trailer factory sale
4 Axle Fuel Tank Semi Trailer (4 Axle 55000L 55M3-72CBM Fuel Transport Tank Semi Trailer Oil Fuel Tanker Truck Trailer)

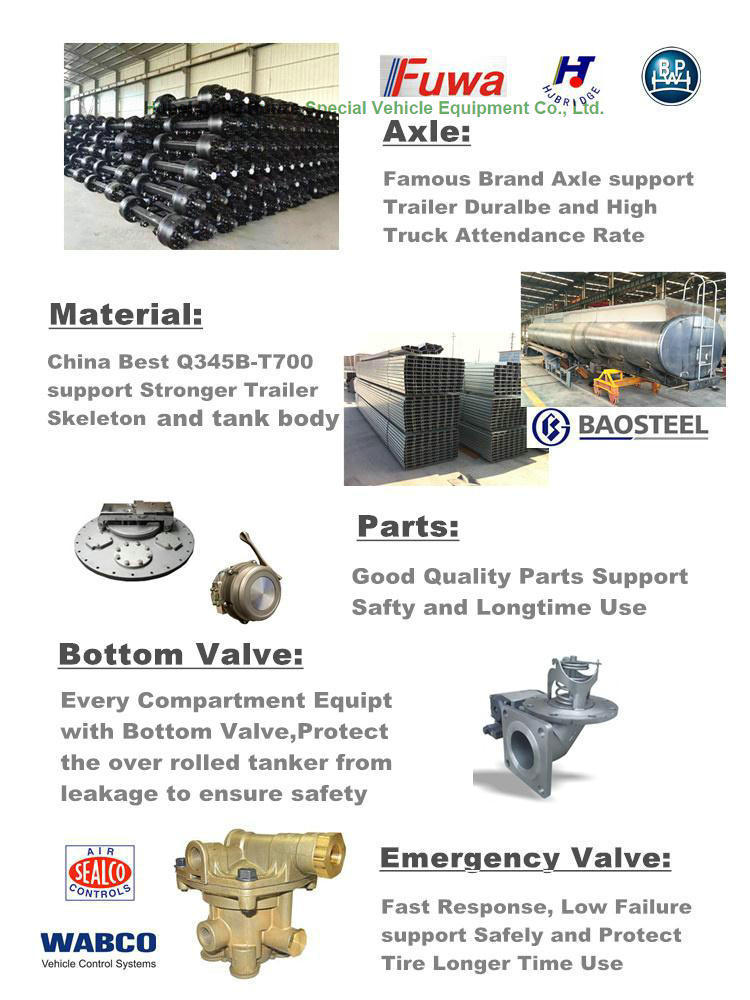

World's famous axle brand!--BPW or FUWA.

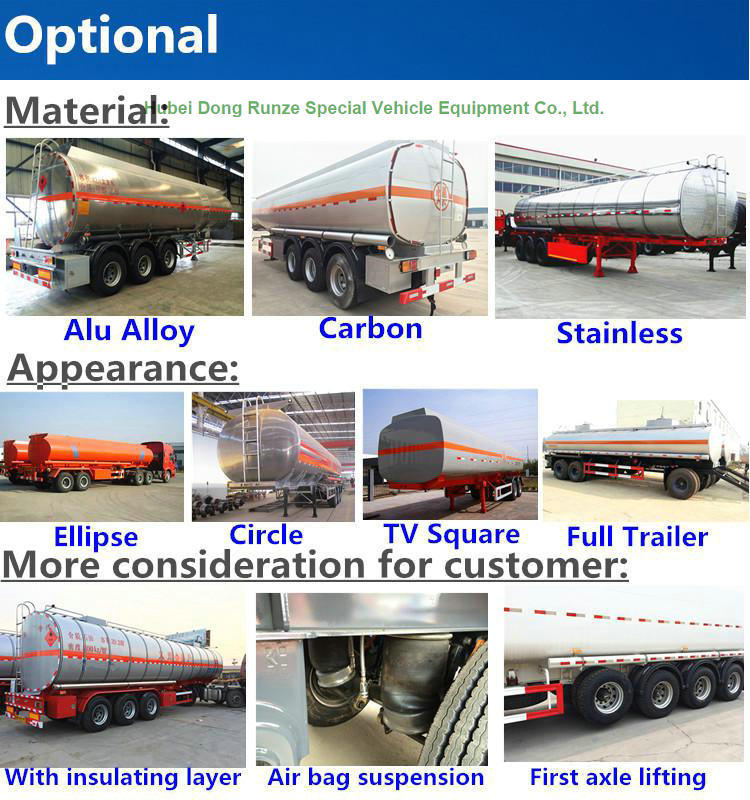

Various modes of suspension for your choice!-- air suspension, mechanical suspension, single point suspension.
Various kinds of tank material for your choice!-- Q235/carbon steel/CS/stainless steel/SS304 SS316L /aluminium alloy -5083 / 5454.
European standard device available!-- oil and gas recovery device, emergency shutoff valve, anti-overflow device, overflow alarm, loading and unloading in the bottom of the tank, exhaust pipe, anti-static zipper, API valve, flow meter.
Division compartments available!

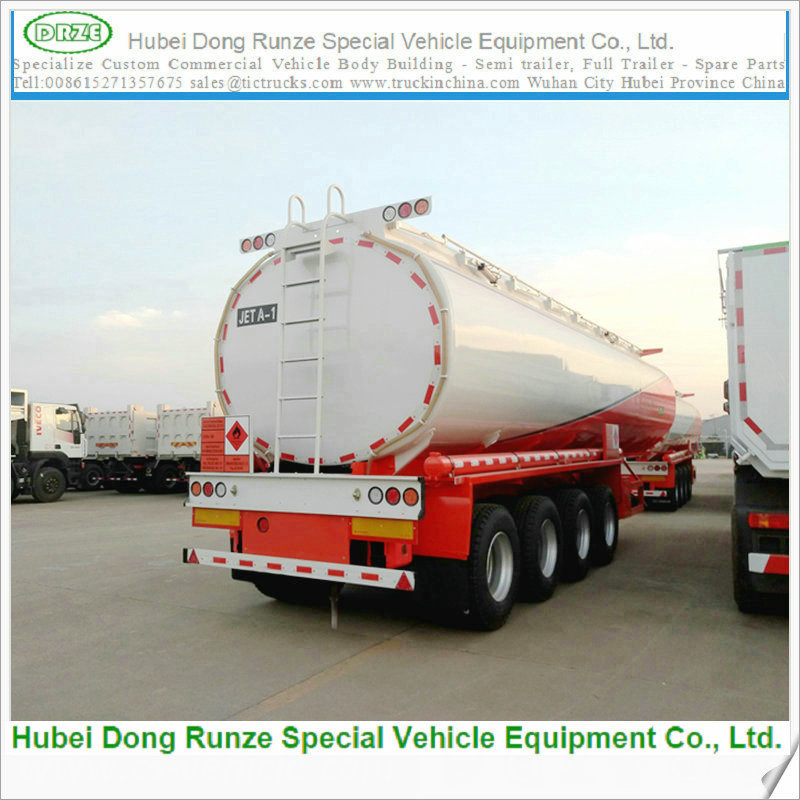

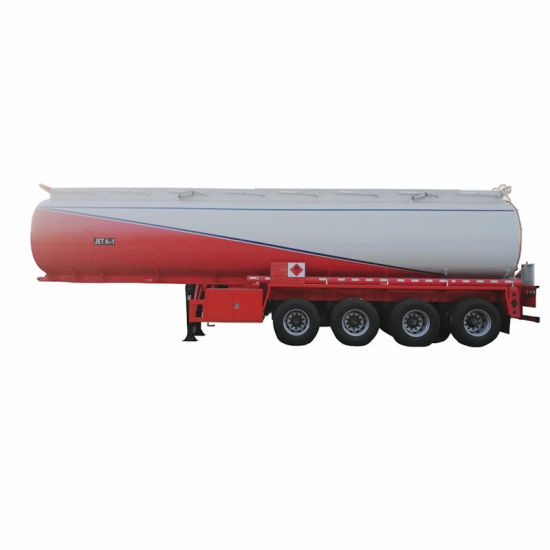

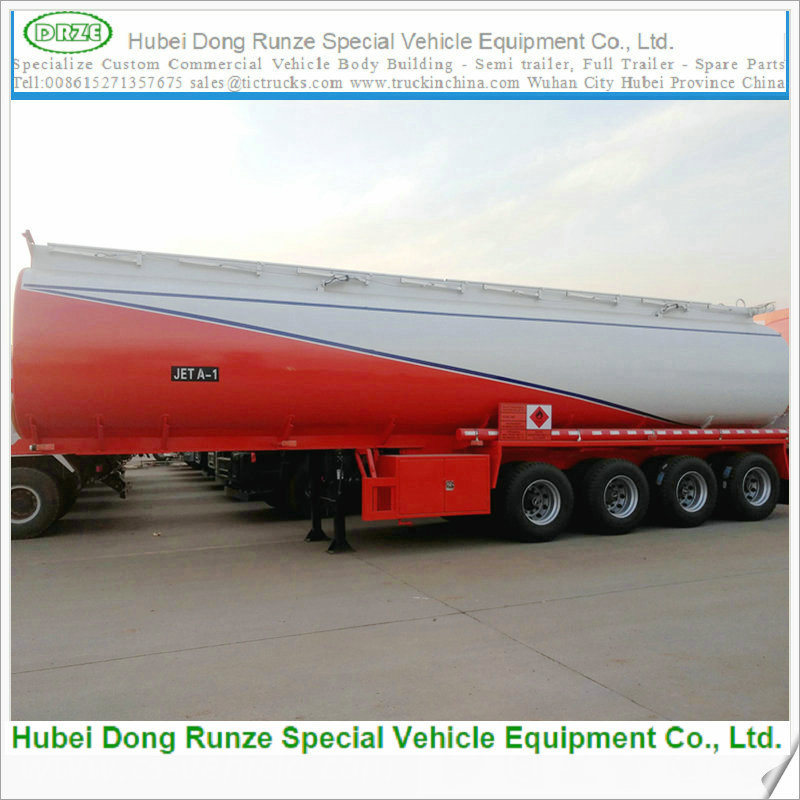

The pictures of 4 axle 60000L 60CBM 60M3 JET A-1 transport tank semi trailer oil fuel tanker trailer:
4 axle 60000L 60CBM 60M3 JET A-1 transport tank semi trailer oil fuel tanker trailer:
Main Dimensions | ||||||
Overall Length | 12800mm | |||||
Overall Width | 2500mm | |||||
Overall Height | 3880mm | |||||
Tare Weight | 13500KGS | |||||
Loading Capacity | 60m3 | |||||
Photo only for reference, final product can be made according to exact requirements | ||||||
Tank Body | ||||||
Shape | Mono block Cylinder | |||||
Total Volume(m3) | 60 CBM | |||||
Tanker Body Material | 5mm carbon steel | |||||
End plate | 6mm carbon steel | |||||
Lifting Ladder | Including Top walkway and backside steel material | |||||
Manhole cover | 2 manhole covers, DN500mm 2 sets with 2 breather valves | |||||
Bottom Valve | 1 sets of API Pneumatic Bottom Valve | |||||
Top Safety Rail | 1 Set | |||||
Discharging valve | 2 set DN100mm discharging valves | |||||
No. of Compartment | 2 | |||||
Discharging Pipe | 4"rubber hose, 2 pc, 6m long | |||||
Chassis | ||||||
Main Beams | Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation; | |||||
Axle | 4 axles | |||||
FUWA 13 Ton ,14Ton,18Ton ;BPW 14Ton, | ||||||
Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |||||
King Pin | JOST brand 2" bolt-in king pin | |||||
Suspension | German design heavy duty mechanical suspension | |||||
Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. | |||||
Wheel rim | 9.00-22.5 wheel rim, 17 pieces including one spare | |||||
Tire | 12R22.5 tubeless tire with one spare tire, 17 pieces | |||||
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint | |||||
Accessories | One standard tool box |
Liquid Fuel / Water Tank Truck Semi Trailer | |||||
Model | DRZ9375YGC | ||||
Dimension(Optional) | Axle No. | Rated Load (kg) | Tire No. | Tire Size | |
10000-30000liters/10-30cbm | 2 | 30000 | 8 | 825R20 1000R20 1100R20 1200R20 12R22.5 (Other Size / Single Super Tire Contact with Supplier) | |
30000-60000liters/30-60cbm | 3 | 40000 | 12 | ||
Above 60000liters/60cbm | 4 | 75000 | 16 | ||
Manufacture | DRZE | ||||
Wheel Base (mm) | 1310 | ||||
leaf-spring Pcs | 10 | ||||
Axle | 13/16/18 T | ||||
Suspension | Heavy Duty Mechanic Suspension with Leaf Springs | ||||
Main Beam Material | Q345B manganese plates, automatic submerged arc welded | ||||
Brake System | Dual line braking system with automatic braking system/chambers | ||||
Brake Air Chamber | Double Model | ||||
Kingpin | 2' or 3.5' Interchangeable | ||||
Landing gear | 28T loading capacity with 80T static lifting capacity. | ||||
Tanker body | 5mm , sealing end: 6mm | ||||
Brake System | Dual Lines Braking System With Automatic Air Chambers | ||||
Brake Air Chamber | Four double and two single chamber | ||||
Electrical System | 24V, 7core socket, lights according to European standards. | ||||
Mainbeam Size | Upper plate | 14mm | |||
Mid Web | 8 mm | ||||
Height | 500-520mm | ||||
Tool Box | 1 box of standard tools | ||||
Spare tire carrier | 2 sets | ||||
Color and Logo | Depends on the buyer's requirement. | ||||
Pin Height | According to the height of the tractor saddle. | ||||
Painting | Three coats painting; Any color will be available | ||||
Manhole | 2pcs | ||||
Body Material | Carbon Steel/ Stainless Steel/Aluminium | ||||
Ladders | Steel with anti slipper walking way | ||||
Fire extinguisher | 2x 4kgs | ||||
handrail | Steel, manual | ||||
Application | For liquid transportation |
Website: www.truckinchina.com
Tanker
Material Steel
Thickness of shell 5mm
Thickness of dish 6mm
Inside baffles 4mm
Compartments 5 to 7 compartments
Volume 55000L to 72000L+ 6% expansion
Tank Top Accessories
Ladders fixed on the front and rear; foldable handrail
Walkway with anti-slip material in the front of reach the manholes
Not covering the complete length of the tank.
Tank Equipments (all API Standard)
Each compartment is equipped with
Aluminum Manhole cover 16" or 20"
Aluminum Emergency Bottom valve 3" with Pneumatic switch in locker<
Aluminum Spill Valve 3" or 4",
Discharging Nylon hose 6m
Discharge and loading
Gravity discharge,
Top loading. Option: Bottom loading
Running Gear
FUWA axle 13T*4 Option: BPW axle 13T
Heavy duty spring suspension 18*16*9mm
16+1 pcs tires 315/80R22.5 Tire (9.0*R22.5 steel rims)
3.5" Jost kingpin Option: 2"
JOST 2-geared mechanical operated landing legs
Braking System
Double line air brakes Mechanical parking brake, WABCO brake valve
The first axle and the third axle with ABS System.
Electric Installation
Complete 24V system in explosion proof installation
Rear lighting with rear, stop, parking, direction, fog, reverse lights, side lights
Painting
Exterior surface treatment by shot blasting
Painting by high solid primer directly on the surface
Painting inside special paint booth with the cargo cabin color or the color chosen by the customer
Accessories
Plastic Mudguards, Side protection, 2 Fire extinguisher, 1 Spare tire carrier.
1 Tool box with standard tools, Heavy duty tail bumper
Contact to get the detail and price cell: (+86)15271357635
