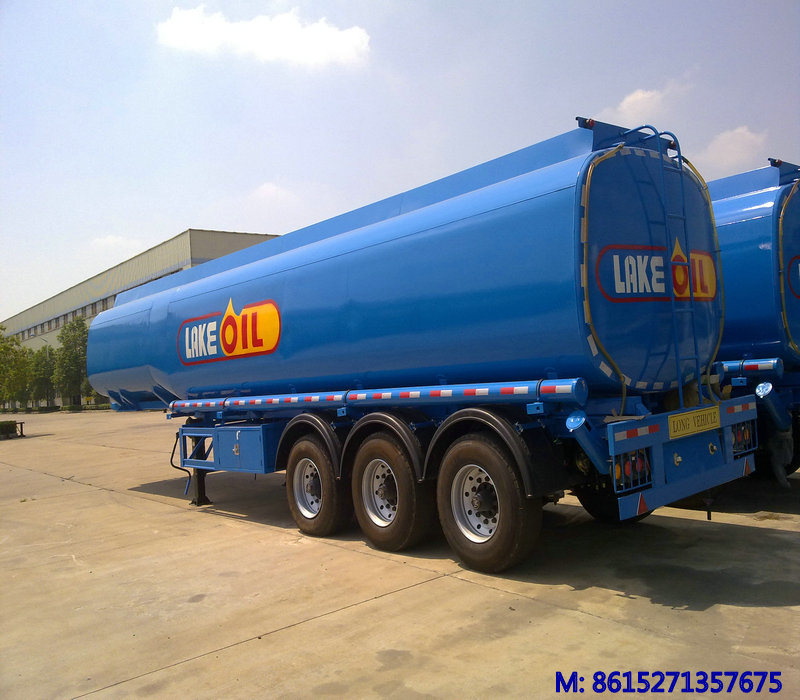

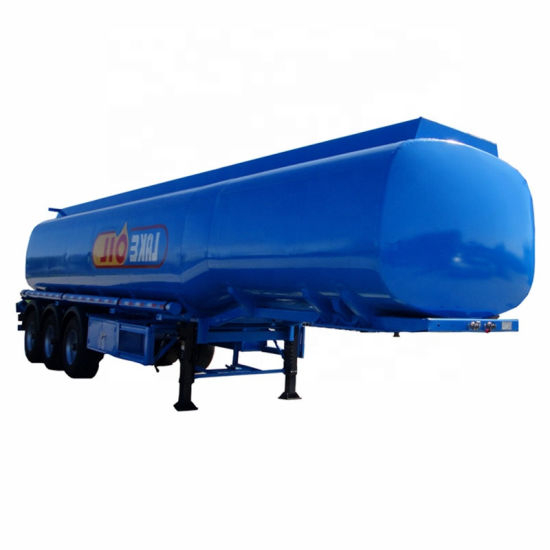

42000L Fuel Tank Trailer (Steel Fuel Tanker Semi-Trailer 3 Axles, 45000L to 54000L)
| Quantity: | |
|---|---|
- Shanghai, China
- 1000
- T/T, Western Union
42000l Fuel Tank Trailer (Steel Fuel Tanker Semi-Trailer 3 Axles, 45000L to 54000L)
3 axles, 45000L to 54000L Tank Trailer Manufacturers
45000L Steel 3 Axle Tanker Semi-trailer
tanker semi trailer factory sale Call:86-15271357675
Carbon Steel Fuel Tank Trailer
| Main Dimensions | ||||||
| Overall Length | 12000mm | |||||
| Overall Width | 2500mm | |||||
| Overall Height | 3680mm | |||||
| Tare Weight | 12500KGS | |||||
| Loading Capacity | 45m3 | |||||

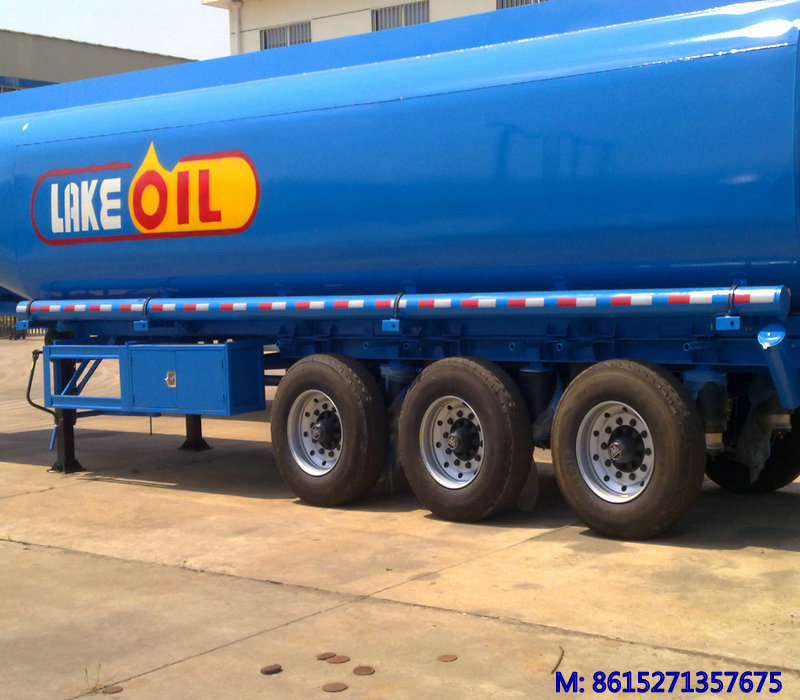

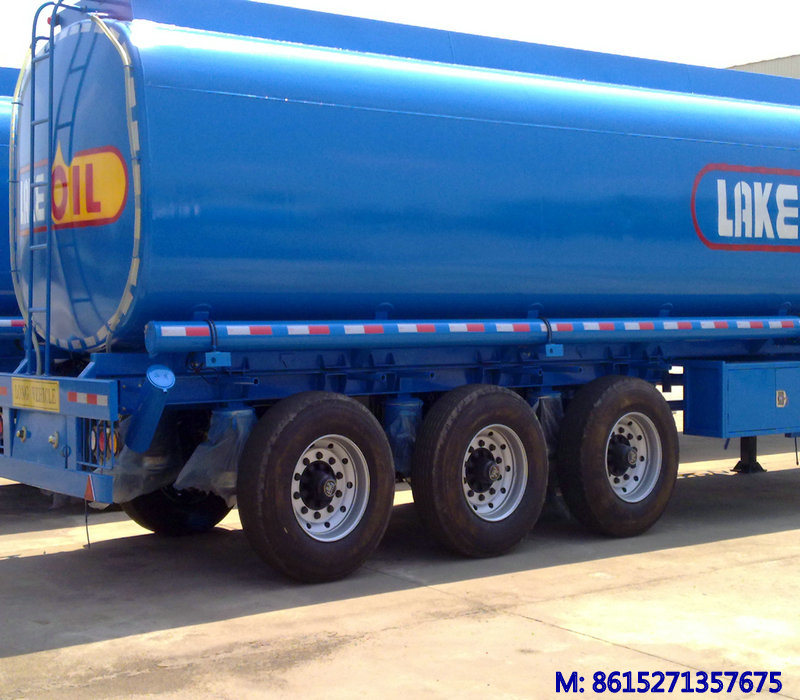

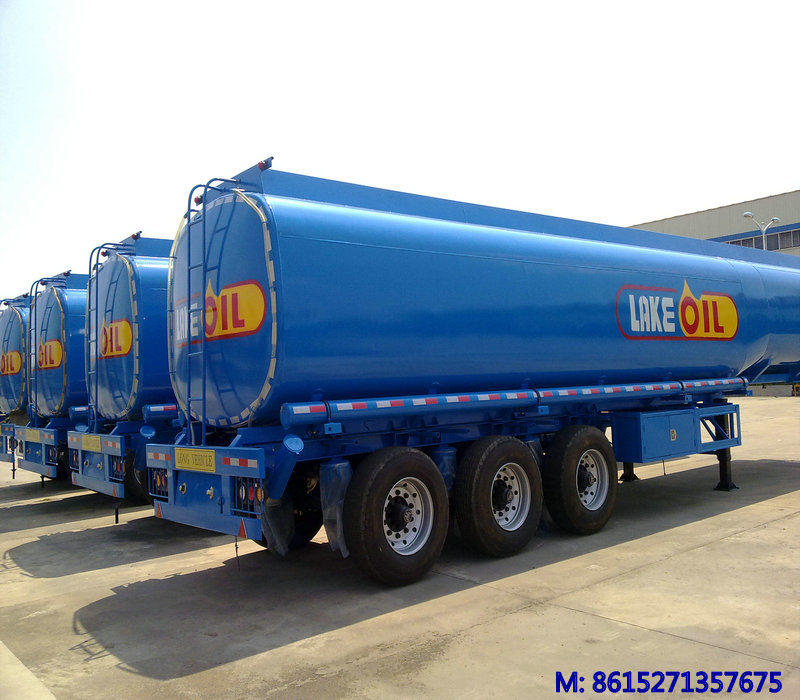

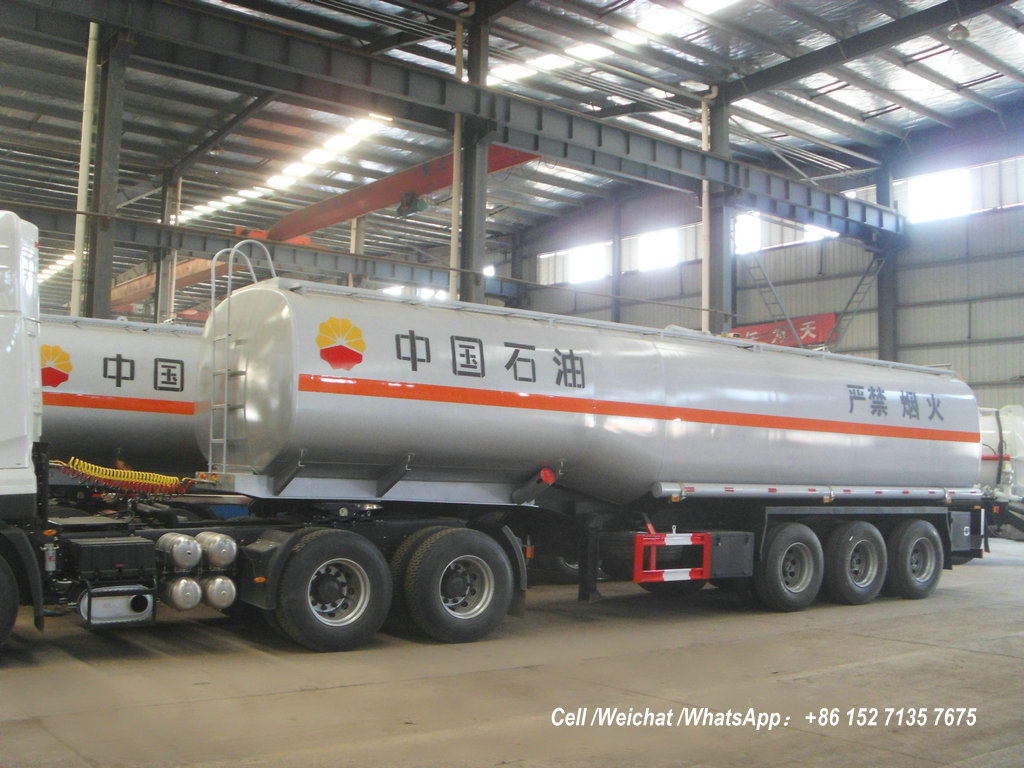

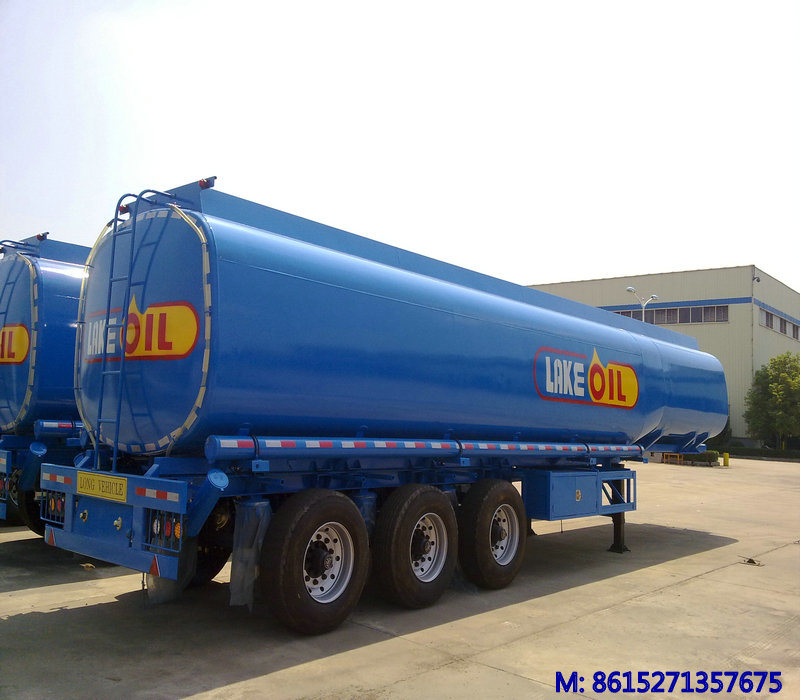

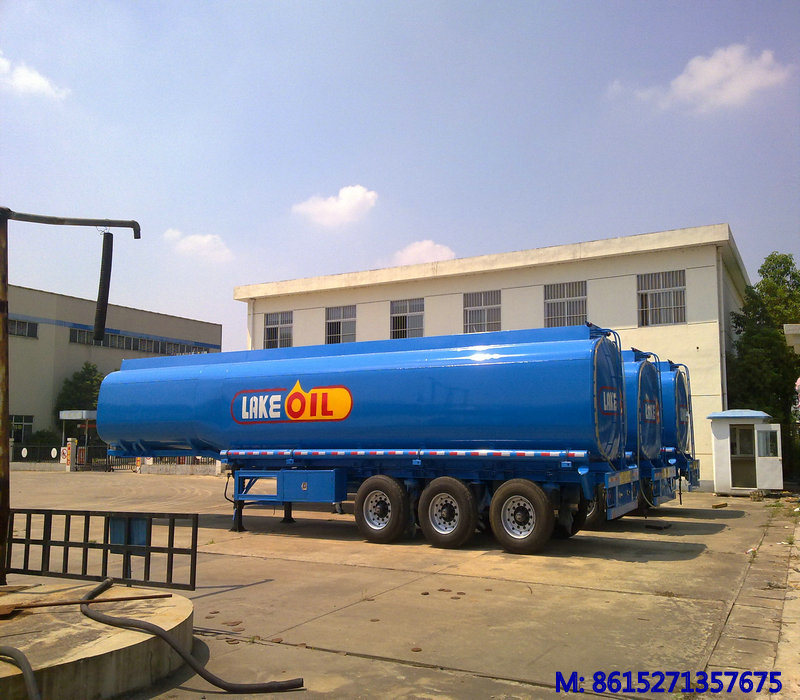

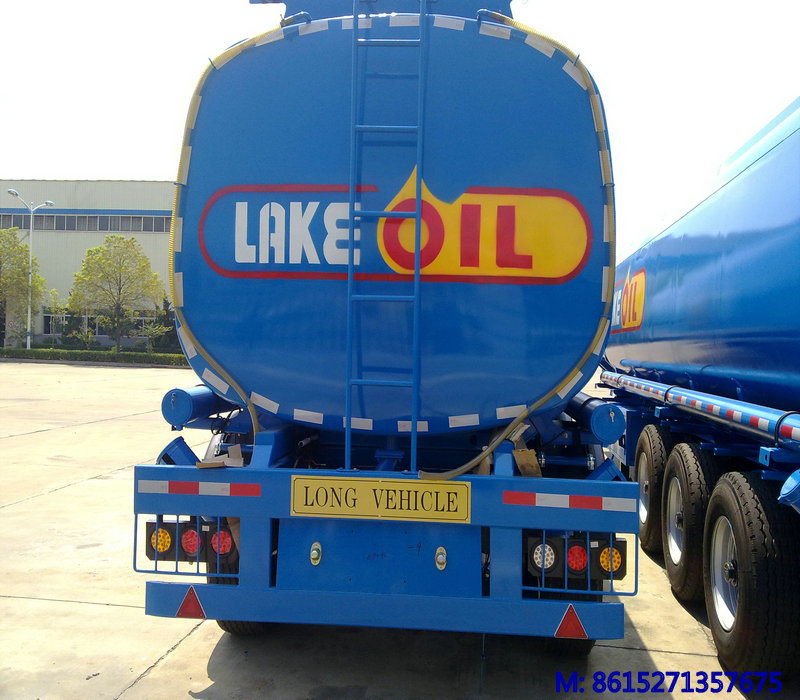

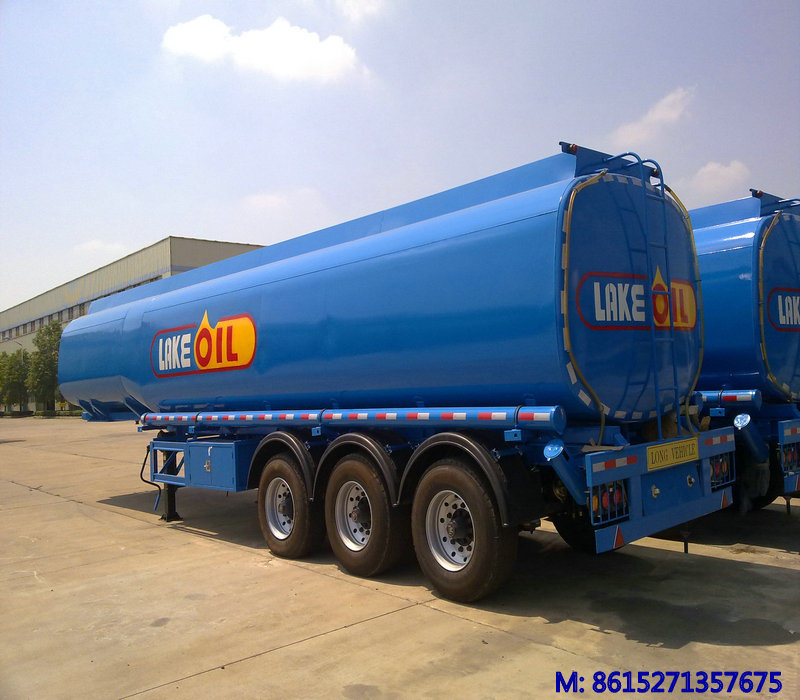

| Photo only for reference, final product can be made according to exact requirements | ||||||
| Tank Body | ||||||
| Shape | Mono block Cylinder | |||||
| Total Volume(m3) | 45 CBM | |||||
| Tanker Body Material | 5mm carbon steel | |||||
| End plate | 6mm carbon steel | |||||
| Lifting Ladder | Including Top walkway and backside steel material | |||||
| Manhole cover | 2 manhole covers, DN500mm 2 sets with 2 breather valves | |||||
| Bottom Valve | 1 sets of API Pneumatic Bottom Valve | |||||
| Top Safety Rail | 1 Set | |||||
| Discharging valve | 2 set DN100mm discharging valves | |||||
| No. of Compartment | 2 | |||||
| Discharging Pipe | 4"rubber hose, 2 pc, 6m long | |||||
| Chassis | ||||||
| Main Beams | Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation; | |||||
| Axle | 3 axles | |||||
| FUWA 13 Ton | ||||||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |||||
| King Pin | JOST brand 2" bolt-in king pin | |||||
| Suspension | German design heavy duty mechanical suspension | |||||
| Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. | |||||
| Wheel rim | 9.00-22.5 wheel rim, 13 pieces including one spare | |||||
| Tire | 12R22.5 tubeless tire with one spare tire, 13 pieces | |||||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint | |||||
| Accessories | One standard tool box | |||||

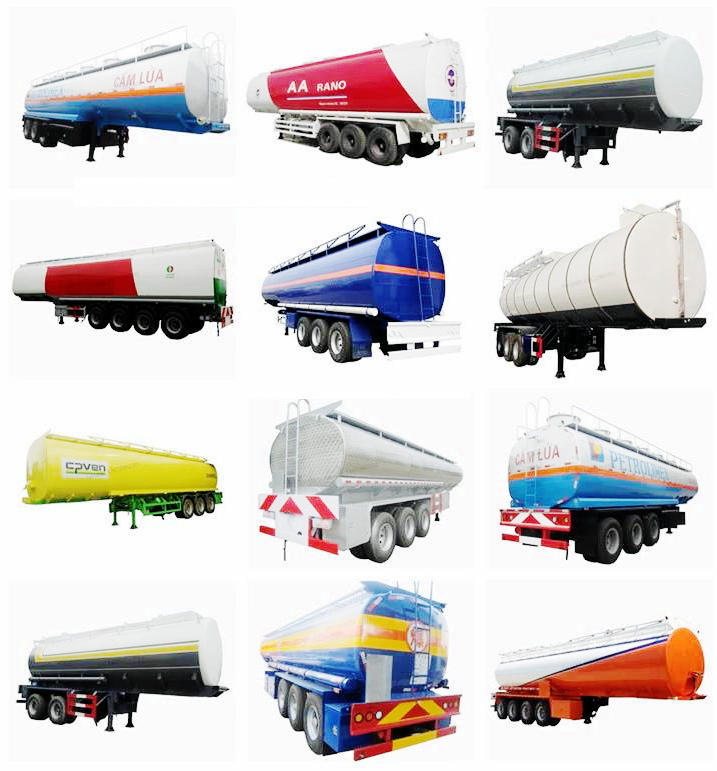

Fuel Tanker Semi Trailers From 20000 Liters To 70000 Liters. Such As Oil Tank Trailer, Fuel Tanker Trailer, Heavy Oil Tank Trailer, Fuel Oil Tank Trailer, Liquid Tanker Trailer, Gallon Fuel Tank Trailer, Diesel Oil Tank Trailer, Oil Transportation Tank Trailer, Fuel Tank Cap Trailer, Etc. And Also Support Customized.
World's Famous Axle Brand!--Bpw And Fuwa.
Various Modes Of Suspension For Your Choice!-- Air Suspension, Mechanical Suspension, Single Point Suspension.
Various Kinds Of Tank Material For Your Choice!-- Q235/Carbon Steel/Cs/Stainless Steel/Ss304/Aluminium Alloy.
European Standard Device Available!-- Oil And Gas Recovery Device, Emergency Cut- Off Valve, Anti-Overflow Device, Overflow Alarm, Loading And Unloading In The Bottom Of The Tank, Exhaust Pipe, Anti-Static Zipper, Api Valve, Flow Meter.
Division Compartments Available, Equipped With Multi-Channel Anti-Wave Partitions!
