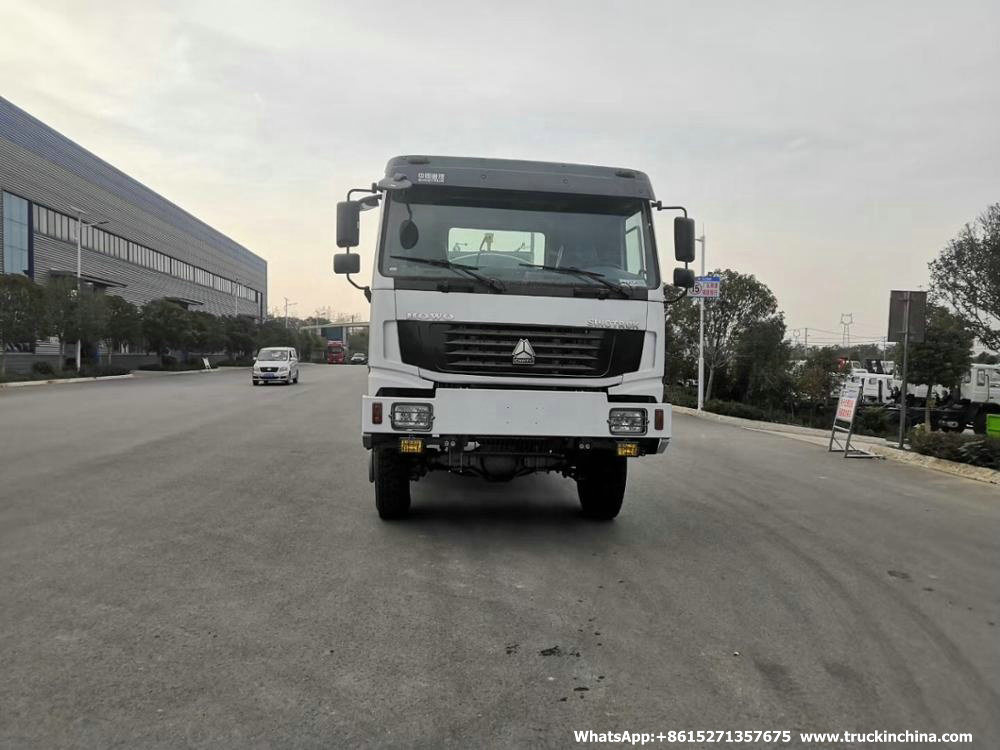

SINOTRUCK HOWO 4X4 Milk Tanker Truck with Food Grade Stainless Steel Pump off road All wheels drive
For oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil)
transportation and storage.
Capacity of tank body 8-25CBM
Ask for better price
Cell /+8615271357675
The pictures are for your reference only.

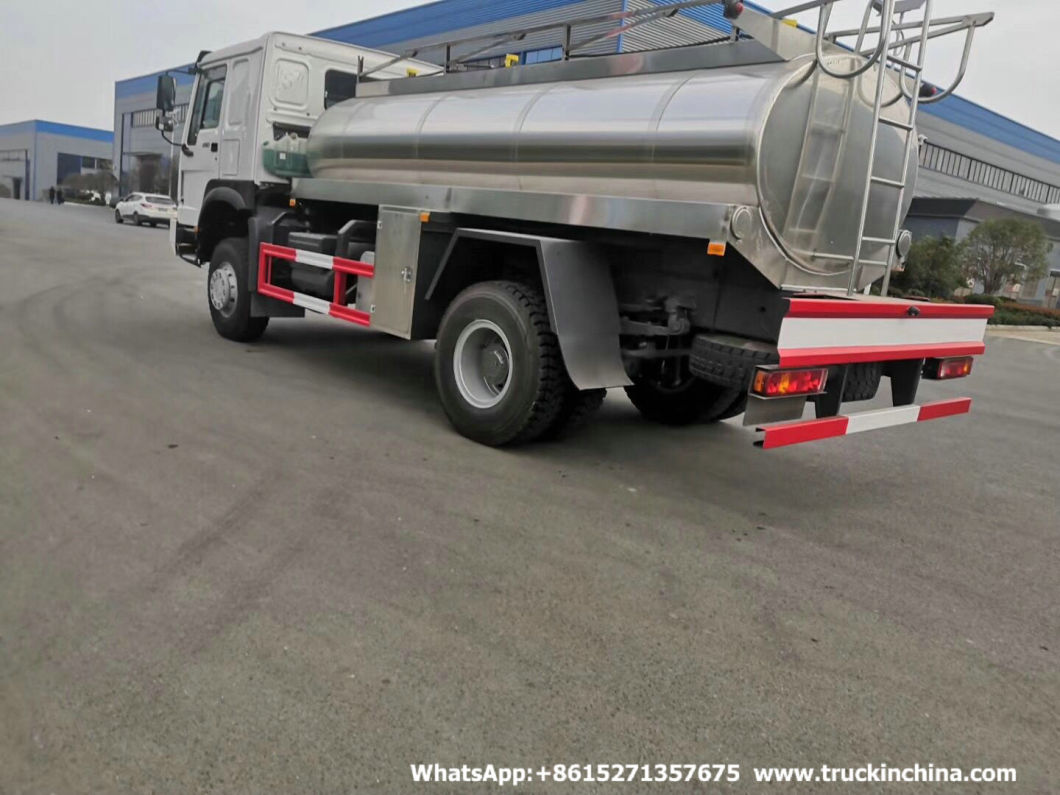

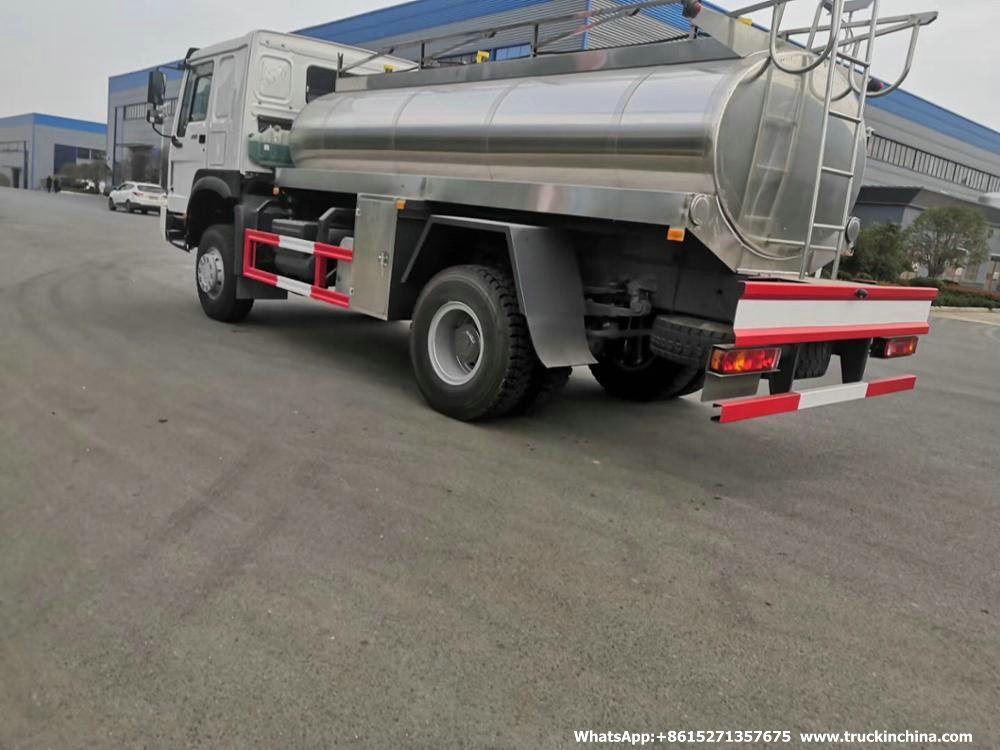

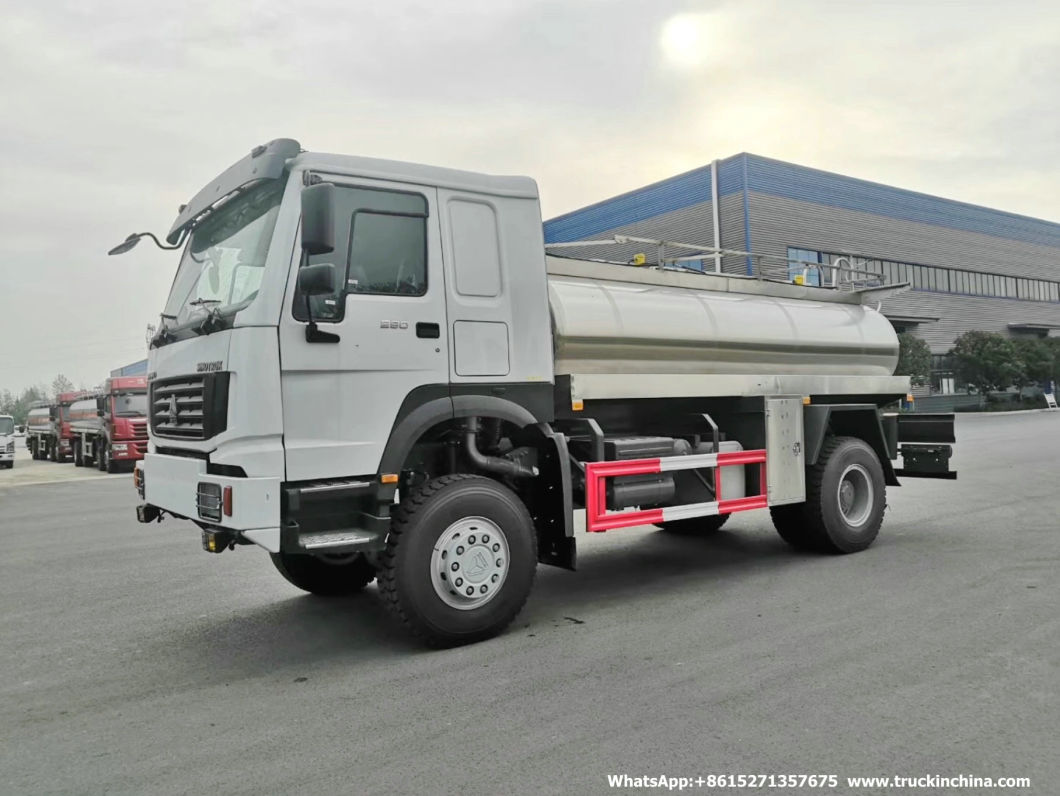

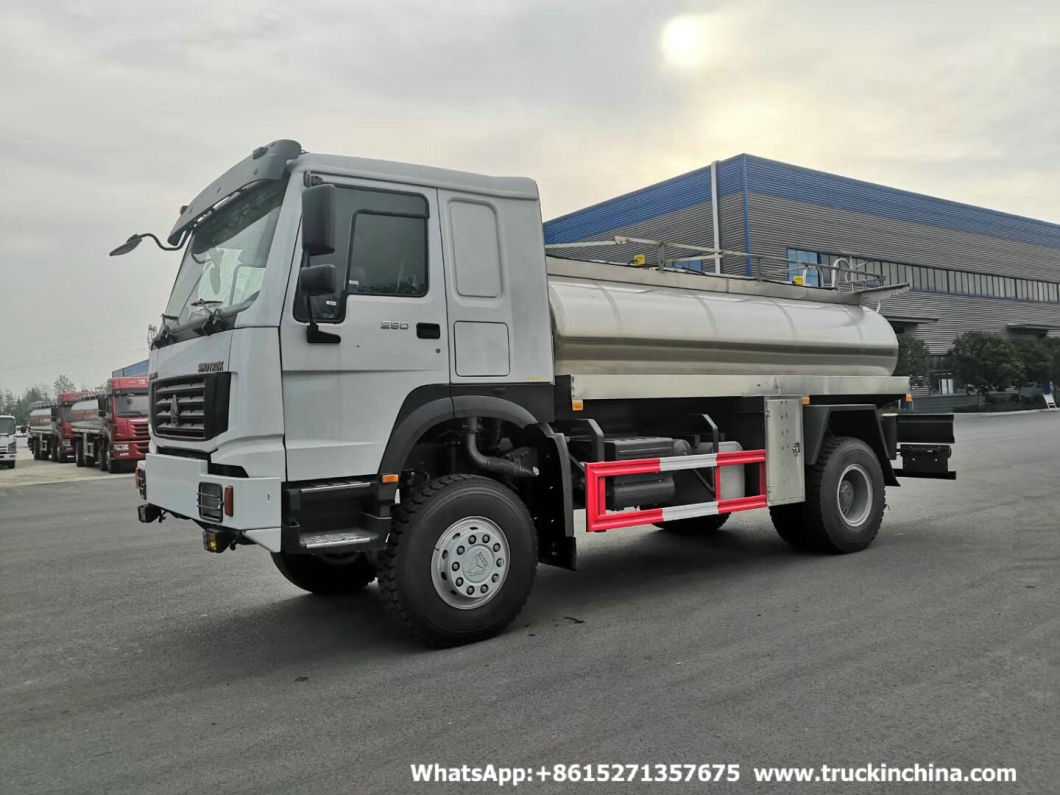

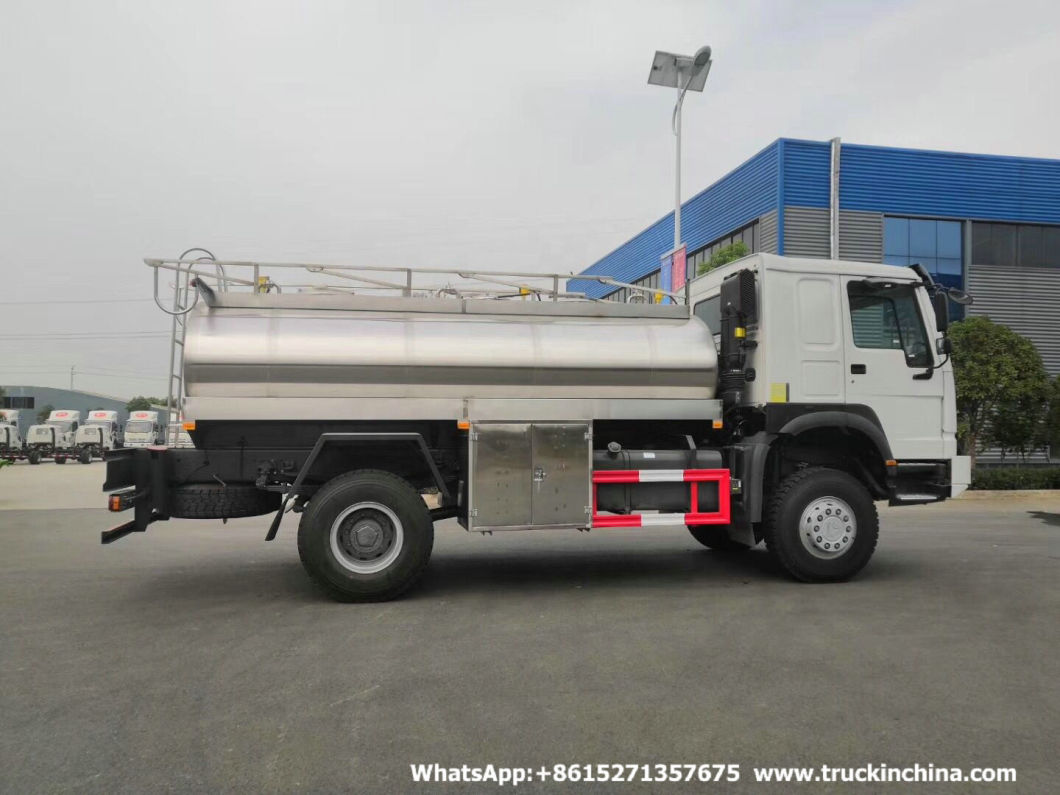

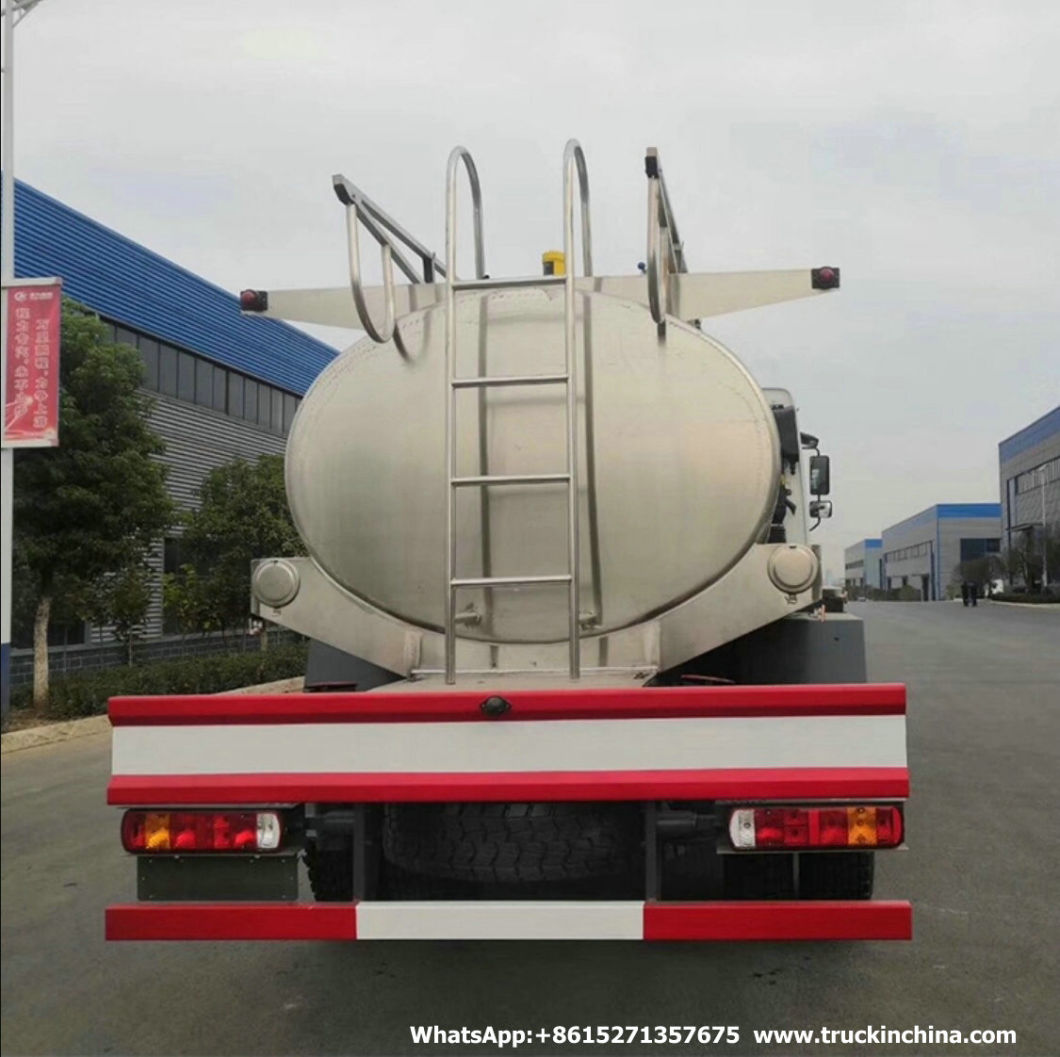

4X4 SINOTRUCK HOWO food grade stainless steel pump milk transportation truck
Stainless Steel Road Milk Tankers are of double wall construction with 100mm PUF Insulation between the inner tank and the outer tank.
The inner tank will have high degree of polish finish for Milk storage and transportation.
The tank will be elliptical in shape with single or multi compartment construction.
Each compartment will have independent manhole assembly, complete with manhole lid, Pressure vacuum relief valve, air vent and CIP cleaning arrangement. The manhole shall be additionally covered with a Stainless Steel dust cover.

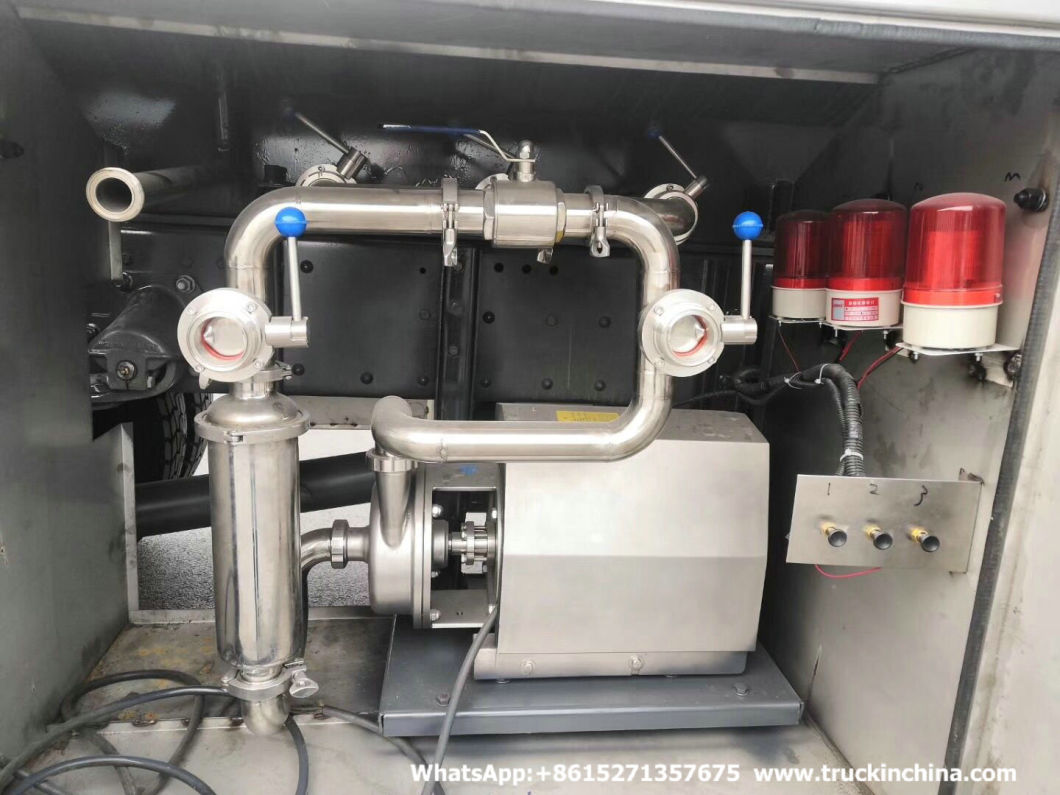

The milk discharge from the tank will be at the bottom through a discharge cup, pipe line and butterfly valves. Valve box will be located at the rear platform.
The tank will be having ladder, catwalk, and side protection rail and side protection channels.
The tank rear shall be provided with a Skirting and a platform arrangement.
PUF insulated tank is capable of transporting chilled milk at 3°C to 4°C and the average temperature drop of milk in a fully filled tank in a day will be less than 2°C.
The insulated tank will be integrated with the chassis with a trapezoidal frame and will have adequate slope towards the rear for complete drainage of milk.
CIP cleaning arrangement will be provided for regular water cleaning and maintenance of the tank.
Road Milk tanker can be supplied with single/double/triple compartments and capacity in the range of 4000L to 21000L based on therigid chassis selected,capacity in the range of 21000L to45000L based on detachable head tractor the trailer chassis selected.
Specification of tanker truck | |||
Item | Specification | Item | Specification |
General | |||
Truck Name | water / milk tanker | Overall Dimension (mm) | 8200×2500×3300 |
Truck Brand | Gross / Curb Weight (kg) | 18000/7905,7970 | |
Truck Model | DRZ5187GNY5Z | Rated Loading Weight(kg) | 9900 |
Cab | Cab Capacity | 3,2 | |
Approach / Departure Angle (°) | 19/11 | Front / Rear Overhang (mm) | 1330/2370 |
Front / Rear Axle Load (kg) | 6500/11500 | Wheelbase (mm) | 4500 |
Number of Axles | 2 | Max. Speed (km/h) | 90 |
Quantity of Tyre | 6 | Tyre Model | 10.00R20,295/80R22.5 |
Front Wheel Tread (mm) | 1940,1980 | Rear Wheel Tread (mm) | 1800,1860 |
Leaf Spring | 3/5,3/9+8,11/9+8 | Traction System | steering wheel |
Chassis | |||
Chassis Brand | HOWO | Chassis Model | ZZ1187G451DE1 |
Type of Fuel | diesel | Emission Standard | euro 3 |
Engine (Motor) | |||
Model | Displacement (ml) | Max. Power (KW/hp) | Brand |
MC05.18-50 | 4580 | 132/179 | |
Truck Body | |||
Tank Capacity (L) | 10390 | Tank Material | food grade stainless steel |
Painting | Optional |
Milk Tanker Truck ISUZU (4,000 litres) Similar Keywords: milk tanker truck, milk tanker, milk tank, milk truck tank, milk transport truck, can milk truck, milk transfer tank truck, bulk milk collection tanker, bulk milk tank, stainless steel milk tanker, dairy bulk milk tank, road milk tanker, farm milk tanker, bulk tank milk Medium: Liquid Ice-Cream; Density Of 0.7 Tonnes/Cubic Metre Tank Volume: 5 Cubic Meter Tank Outer Dimensions: 1180mm Long 4680mm Long 1730mm Short Shaft. Tank Internal Dimensions 1000mm 1500mm Long 4500mm Long Shaft Short Axis Insulation Thickness 60mm | ||
General | Vehicle Brand | DRZ |
Chassis Brand | ISUZU | |
Overall Dimension | 5995 * 2100 * 2400 mm | |
GVW / Kerb Weight | 6,500 kg / 3,500 kg | |
Cab | Cab Capacity | 2 persons allowed |
Air Conditioner | W/ air conditioner | |
Engine | Fuel Type | Diesel |
Engine Brand | ISUZU engine | |
Power | 98 Hp (72KW) | |
Displacement | 2771 ml | |
Emission Standard | Euro IV | |
Chassis | Drive Type | 4X2, left hand drive |
Transmission | 5-speed front, 1 reverse | |
Wheelbase/No. of axle | 3360 mm / 2 | |
Tyre Specification | 7.00-15 | |
Tyre Number | 6 tyres and 1 spare tyre | |
Max Speed | 100 km/h | |
Paint | Metallic paint | |
Superstructure | Tank Capacity | 4,000 Litres ( 1,000 gallons) |
Tank Material | Stainless Steel or Aluminum | |
Pump | Stainless steel pump | |
All standard accessories: English manual, tool kit... | ||
Optional | ** Tank material could be stainless steel, aluminum... | |
** It can be divided into many compartments. |
Main Specification | |
Product Name | Isuzu 700p Milk Tank Truck 8000liters |
Driving Type | 4×2,Left Hand Drive |
Color | Optional |
Weights | |
Payload (Kg) | 8000 |
Curb Weight(Kg) | 6500 |
Dimensions | |
Wheelbase (Mm) | 4175 |
Overall Dimension (Mm) | Approx.7500×2500×3250 |
Tank | 8000liters |
Engine | |
Engine Model | 4Hk1-Tcg (190Hp) |
Engine Type | 6 Cylinders , 4 Stroke, Turbocharged,Water-Cooled,Diesel |
Displacement (L) | 5.193L |
Rated Power ((Kw) | 139kw |
Emission Standard | Eruo |
Tanker Carrying Milk Called Milk Tank Car , Tank Made With Food Grade Stainless Steel Plate, Tank Insulation Layer Of External Needs Keep Fresh Milk From Spoiling, Inside The Tank, Smooth, No Sharp Corners, You Generally Need Milk In Each Cabin With Cip (Cleaning Equipment). Distance Greater Than 500km Can Consider a Small Refrigerator. Cars Motorcycles And Trailers.
Drive Line | |
Transmission | Mld 6 Forwards, 1 Reverse Gear, Manual Operation |
Steering | With Power Steering |
Brake System | Air Brake |
Cab | |
Cab | With A/C |
Tire Specification | |
Tire Specification | 8.25-16, 8.25R16,6 Tires+1 Spare Tire |
Axles | |
Front/Rear Axles | 4tons/7tons |
Specification Of Fuel Truck |
SINOTRUCK HOWO 4X4 Milk Tanker Truck with Food Grade Stainless Steel Pump off road All wheels drive
For oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil)
transportation and storage.
Capacity of tank body 8-25CBM
Ask for better price
Cell /+8615271357675
The pictures are for your reference only.
4X4 SINOTRUCK HOWO food grade stainless steel pump milk transportation truck
Stainless Steel Road Milk Tankers are of double wall construction with 100mm PUF Insulation between the inner tank and the outer tank.
The inner tank will have high degree of polish finish for Milk storage and transportation.
The tank will be elliptical in shape with single or multi compartment construction.
Each compartment will have independent manhole assembly, complete with manhole lid, Pressure vacuum relief valve, air vent and CIP cleaning arrangement. The manhole shall be additionally covered with a Stainless Steel dust cover.
The milk discharge from the tank will be at the bottom through a discharge cup, pipe line and butterfly valves. Valve box will be located at the rear platform.
The tank will be having ladder, catwalk, and side protection rail and side protection channels.
The tank rear shall be provided with a Skirting and a platform arrangement.
PUF insulated tank is capable of transporting chilled milk at 3°C to 4°C and the average temperature drop of milk in a fully filled tank in a day will be less than 2°C.
The insulated tank will be integrated with the chassis with a trapezoidal frame and will have adequate slope towards the rear for complete drainage of milk.
CIP cleaning arrangement will be provided for regular water cleaning and maintenance of the tank.
Road Milk tanker can be supplied with single/double/triple compartments and capacity in the range of 4000L to 21000L based on therigid chassis selected,capacity in the range of 21000L to45000L based on detachable head tractor the trailer chassis selected.
Specification of tanker truck | |||
Item | Specification | Item | Specification |
General | |||
Truck Name | water / milk tanker | Overall Dimension (mm) | 8200×2500×3300 |
Truck Brand | Gross / Curb Weight (kg) | 18000/7905,7970 | |
Truck Model | DRZ5187GNY5Z | Rated Loading Weight(kg) | 9900 |
Cab | Cab Capacity | 3,2 | |
Approach / Departure Angle (°) | 19/11 | Front / Rear Overhang (mm) | 1330/2370 |
Front / Rear Axle Load (kg) | 6500/11500 | Wheelbase (mm) | 4500 |
Number of Axles | 2 | Max. Speed (km/h) | 90 |
Quantity of Tyre | 6 | Tyre Model | 10.00R20,295/80R22.5 |
Front Wheel Tread (mm) | 1940,1980 | Rear Wheel Tread (mm) | 1800,1860 |
Leaf Spring | 3/5,3/9+8,11/9+8 | Traction System | steering wheel |
Chassis | |||
Chassis Brand | HOWO | Chassis Model | ZZ1187G451DE1 |
Type of Fuel | diesel | Emission Standard | euro 3 |
Engine (Motor) | |||
Model | Displacement (ml) | Max. Power (KW/hp) | Brand |
MC05.18-50 | 4580 | 132/179 | |
Truck Body | |||
Tank Capacity (L) | 10390 | Tank Material | food grade stainless steel |
Painting | Optional |
Milk Tanker Truck ISUZU (4,000 litres) Similar Keywords: milk tanker truck, milk tanker, milk tank, milk truck tank, milk transport truck, can milk truck, milk transfer tank truck, bulk milk collection tanker, bulk milk tank, stainless steel milk tanker, dairy bulk milk tank, road milk tanker, farm milk tanker, bulk tank milk Medium: Liquid Ice-Cream; Density Of 0.7 Tonnes/Cubic Metre Tank Volume: 5 Cubic Meter Tank Outer Dimensions: 1180mm Long 4680mm Long 1730mm Short Shaft. Tank Internal Dimensions 1000mm 1500mm Long 4500mm Long Shaft Short Axis Insulation Thickness 60mm | ||
General | Vehicle Brand | DRZ |
Chassis Brand | ISUZU | |
Overall Dimension | 5995 * 2100 * 2400 mm | |
GVW / Kerb Weight | 6,500 kg / 3,500 kg | |
Cab | Cab Capacity | 2 persons allowed |
Air Conditioner | W/ air conditioner | |
Engine | Fuel Type | Diesel |
Engine Brand | ISUZU engine | |
Power | 98 Hp (72KW) | |
Displacement | 2771 ml | |
Emission Standard | Euro IV | |
Chassis | Drive Type | 4X2, left hand drive |
Transmission | 5-speed front, 1 reverse | |
Wheelbase/No. of axle | 3360 mm / 2 | |
Tyre Specification | 7.00-15 | |
Tyre Number | 6 tyres and 1 spare tyre | |
Max Speed | 100 km/h | |
Paint | Metallic paint | |
Superstructure | Tank Capacity | 4,000 Litres ( 1,000 gallons) |
Tank Material | Stainless Steel or Aluminum | |
Pump | Stainless steel pump | |
All standard accessories: English manual, tool kit... | ||
Optional | ** Tank material could be stainless steel, aluminum... | |
** It can be divided into many compartments. |
Main Specification | |
Product Name | Isuzu 700p Milk Tank Truck 8000liters |
Driving Type | 4×2,Left Hand Drive |
Color | Optional |
Weights | |
Payload (Kg) | 8000 |
Curb Weight(Kg) | 6500 |
Dimensions | |
Wheelbase (Mm) | 4175 |
Overall Dimension (Mm) | Approx.7500×2500×3250 |
Tank | 8000liters |
Engine | |
Engine Model | 4Hk1-Tcg (190Hp) |
Engine Type | 6 Cylinders , 4 Stroke, Turbocharged,Water-Cooled,Diesel |
Displacement (L) | 5.193L |
Rated Power ((Kw) | 139kw |
Emission Standard | Eruo |
Tanker Carrying Milk Called Milk Tank Car , Tank Made With Food Grade Stainless Steel Plate, Tank Insulation Layer Of External Needs Keep Fresh Milk From Spoiling, Inside The Tank, Smooth, No Sharp Corners, You Generally Need Milk In Each Cabin With Cip (Cleaning Equipment). Distance Greater Than 500km Can Consider a Small Refrigerator. Cars Motorcycles And Trailers.
Drive Line | |
Transmission | Mld 6 Forwards, 1 Reverse Gear, Manual Operation |
Steering | With Power Steering |
Brake System | Air Brake |
Cab | |
Cab | With A/C |
Tire Specification | |
Tire Specification | 8.25-16, 8.25R16,6 Tires+1 Spare Tire |
Axles | |
Front/Rear Axles | 4tons/7tons |
Specification Of Fuel Truck |
