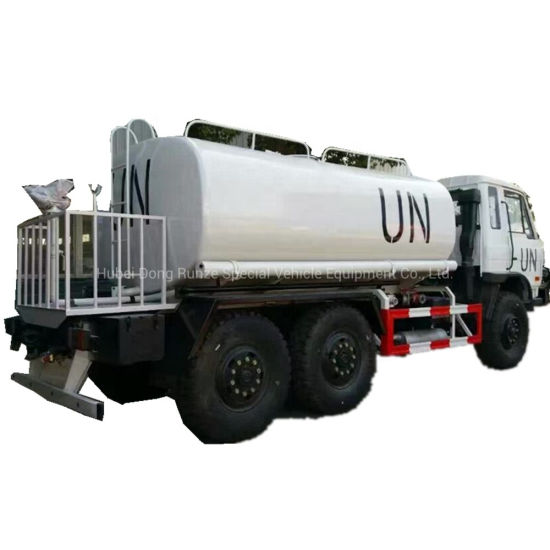

Dongfeng 6X6 off-Road 12000liter Water Tank Fire Truck

Quantity:
  • Shanghai, China
  • 10000
  • T/T
  • Water Tank Fire Truck
  • Diesel
  • 6X6 or 4X4,4*2
  • Customizing
  • New
  • DFAC
  • Nil
  • military standard.
  • China
  • 8705309000
  • Pumper
  • ISO9000, CCC
  • Customizing
  • Euro 3-5 -6 -7
  • Manual
  • Customizing
6X6All Wheel Drive Water Tank Fire Truck

4x4 Water Tanker Fire Truck Mounted with Fire Pumper LHD.RHD
Dongfeng 6X6 off-Road 12000liter Water Tank Fire Truck
Dongfeng 6X6 off-Road 12000liter Water Tank Fire Truck

Dongfeng 6X6 off-Road 12000liter Water Tank Fire Truck
Dongfeng 6X6 off-Road 12000liter Water Tank Fire Truck
Dongfeng 6X6 off-Road 12000liter Water Tank Fire Truck
Dongfeng 6X6 off-Road 12000liter Water Tank Fire Truck
Engine: YC4EG185-50; ISB190 50;... Wheelbase (mm): 3500+1250
Displacement (cc): 4730; 5900; 5900; 6700 Dimensions (mm): 7350 × 2480 × 2950
Power (kW): 136; 140; 162; 180 Gross weight (kg): 22495
Fuel type: diesel fuel Curb weight (kg): 6200

Dongfeng 6X6 off-Road 12000liter Water Tank Fire Truck
Dongfeng 6X6 off-Road 12000liter Water Tank Fire Truck Dongfeng 6X6 off-Road 12000liter Water Tank Fire Truck

Chassis model

DFS5160GLJ

Chassis brand

DONGFENG

Overall dimensions

7680X2500X2850mm

Wheel base

3500+1250mm

Front/rear wheel track

1916/1876mm

Front/rear suspension

1510/1800mm

Approach/departure angle

35/34

Maximum speed

90km/h

Chassis Manufacturer

Dongfeng Motor Company

Cab

Configuration

a row and a half cab(with sleeping berth),allowable 3 passengers, air conditioner.

Color

White, other color is optional

Engine

Model

B190 33

Emission

Euro 3

Type

6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, direct injection,diesel engine

Rated power

190hp,rated power speed 2500rpm

Displacement

6700ml

Max.torque

640N.m

Bore x stroke

102x120mm

Manufacturer

Dongfeng Cummins Engine Co.,Ltd

Tire

Size

12.5R20 steel wire tire

Number

6+1 nos

Clutch

350 diaphragm clutch

Fuel tank

350L

Front axle

4.1 tons

Rear axle

4.4 tons

Drive form

6X6

Rated voltage

24V,DC

Transmissions

6 speed forward 1 reverse

Steering device

Power assisted steering

More Details:
1.basic component :antirust tank, connecting device, special self suction sprinkler pump, pipeline, spray outlet, work platform

2. tank body adopts high quality carbon steel plate produced in WISCO, using a large machine molding, junction of the tank
head and body using advanced arc welding process.

3.standard configuration: The water truck installed the sprinkler(front, rear,and side), and the Sprinking length exceed
14 meters,the rear platform with water cannon(range be bigger than 28 meters), Installed the CLW Brand water Pump ,
with virescence sprinkler gun, the sprinkler gun can rotate 360 degrees, also can be adjusted into mist, range ≥ 15m, vertical suction process 7M.

4.functional use: widely used in sprinkler, spray, cooling, dust removal, flushing dust booties, spray pesticides,motor pump station,etc.

5.optional configuration: medicine wheel, drug pump, tank anti-corrosion rust-proof, multi-directional water joints, electromagneti
Off-road vehicle chassis Made in China
Dongfeng 6X6 off-Road 12000liter Water Tank Fire Truck

Model EQ2220GD5DJ Technical specifications
# Engine model Engine displacement Engine power Engine manufacturer
1 YC4EG185-50 4730 cc 4.7 L 289 cuin 136 kW 185 hp Guangxi Yuchai Machinery Co., Ltd.
2 ISB190 50 5900 cc 5.9 L 360 cuin 140 kW 190 hp Dongfeng Cummins Engine Co., Ltd.
3 ISB220 50 5900 cc 5.9 L 360 cuin 162 kW 220 hp Dongfeng Cummins Engine Co., Ltd.
4 ISD245 50 6700 cc 6.7 L 409 cuin 180 kW 245 hp Dongfeng Cummins Engine Co., Ltd.
Performance
Fuel diesel fuel
Maximum speed 90 km/h,
80 km/h
56 mph,
50 mph
ABS have
Weights and Ground pressure
Curb weight 6200 kg 6.2 t 13,700 lbs
Gross vehicle weight rating 22495 kg 22.5 t 49,593 lbs
Axle load distribution 7000 kg / 15495 kg ()
7 t / 15.5 t ()
15,000 lbs / 34,161 lbs ()
Dimensions
Overall length 7350 mm 24′2″
Overall width 2480 mm 8′2″
Overall height 2950 mm 9′9″
Undercarriage and Suspension
Number of axles 3
Wheelbase 3500+1250 mm 11′6″+4′2″
Front track 1876 mm 6′2″
Rear track 1870 mm / 1870 mm 6′2″ / 6′2″
Front/rear overhang 35 mm / 26 mm,
32 mm / 24 mm
0′2″ / 0′2″,
0′2″ / 0′1″
Approach / departure angle 1250 / 1350, 1430 / 1170 deg.
Leaf springs 10 / 12
Tyres and Wheels
Number of tyres 6
Tyres dimension 315/80R22.5, 12.00R20
Miscellaneous
Seating capacity 3
Steering control steering wheel

1.Tanker volume series
3000L, 4000L, 6000L, 8000L, 10000L, 12000L,
15000L,16000L,18000L, 20000L, 22000L, 24000L,
26000L, 28000L,30000L, 32000L, 35000L, 38000L,
40000L, 42000L, 45000L, 50000L, 55000L, 60000L,etc.
2.Tanker material
carbon steel, stainless steel, aluminum alloy, pure aluminum
lined rubber, rotational molding, plastic, FRP, etc..

3.Drive system of water tank truck
4*2, 4*4, 6*2, 6*4, 6*6, 8*4, 8*8,etc(2axles 3axles 4axles)

Brand: Sinotruch HOWO, JAC, FOTON, DONGFENG, JMC, IVECO, SHACMAN, NORTHBENZ, FAW, all kinds of China brand trucksDongfeng 6X6 off-Road 12000liter Water Tank Fire Truck

Dongfeng 6X6 off-Road 12000liter Water Tank Fire Truck

4. water tank truck pictures for refe,

Please contact with us if you need more information of the truck:

Similar Keywords: foam truck tanker, fire fighting tank truck, fire and rescue truck, fire appliance, fire engine, fire apparatus, fire truck tank, fire service truck, fire fighting vehicle

Structural classification
The structure of the rescue vehicle consists of the chassis of the vehicle, the bodywork of the bodywork (built-in rescue equipment), the power take-off and transmission, the generator (shaft or independent generator), winch (hydraulic or electric) Generally arm-type, behind the body), lifting lighting systems, electrical systems. According to the different uses of emergency rescue fire trucks, the specific configuration of the car is not the same, such as truck crane, winch, generator, landing lights, not necessarily all the rescue vehicles have. Emergency rescue fire trucks are divided into ordinary rescue vehicles, chemical rescue fire engines, special rescue vehicles (such as earthquake rescue vehicles, etc.).Rescue fire truck Category:
Emergency rescue fire engines can be divided into: light and heavy vehicles two types.
Light car configuration: Qingling chassis as a carrier, special features are: traction, power generation, lighting and rescue rescue tools.
Heavy-duty vehicle configuration: with Isuzu Dongfeng Chassis as a carrier, special functions are: lifting, traction, power generation, lighting and rescue rescue tools.

Function type
Car equipped with a variety of fire-fighting equipment, firefighters special protective equipment, fire dismantling tools and fire detectors, is responsible for rescue mission special fire truck.

Chassis model: EQ1168GU5
Chassis manufacturer: dongfeng motor company
Rescue crane: XCMG 5 tons, maximum hoisting of 7.4m, prewinch calibration tension of 8000kgf(3629kg)
Generator: imported Honda generator, voltage 380V, power 10kv/A, manual start/electric start
Lighting system: main lamp stand 4+1000W automatic lifting searchlight head DC12V, lifting height 7.6m, air pump AC220V, electric control box AC380V, electric remote control
Force extractor: sandwich type full power extractor
Engine: isb190-50 (190 HP)
Tire model: 9.00-20 16PR
Overall dimensions: 7360 x 2480 x 3330mm
The wheelbase: 4700 mm

Vehicle model Chassis brand Chassis model Load Overall dimensions Wheel base Engine model hp/standard Tire FOB Price
L mm mm RMB USD
DRZ5050GXFSGE DONGFENG EQ1050NJ20D3 2500 6260X1900X2750 3300 CY4102-C3F 95/Euro 3 6.15-16 135800 19980
DRZ5060GSSXFE DONGFENG EQ1060TJ20D3 5000 5980X1980X2380 3300 CY4102-C3F 95/Euro 3 7.00-16 101200 14890
DRZ5090GSSXFE DONGFENG EQ1090T9ADJ3AC 6000 6995X2285X2980 3800 CY4102-E3C 120/Euro 3 7.50R16 122300 17990
DRZ5090GXFSGE DONGFENG EQ1090T9ADJ3AC 4000 7025X2095X2840 3800 CY4102-E3C 120/Euro 3 7.50R16 170400 25060
DRZ5100GSSXFE DONGFENG EQ1100FKJ 7000 7350X2440X2990 3950 YC4E140-33 140/Euro 3 9.00-20 123300 18140
DRZ5108GSSXFE DONGFENG EQ1108KJ 9000 7450X2480X3185 3950 B170 33 170/Euro 3 9.00-20 147400 21680
DRZ5108GXFSGE DONGFENG EQ1108KJ 5000 7490X2500X2280 3950 B170 33 170/Euro 3 9.00-20 192500 28310
DRZ5126GXFSGE DONGFENG EQ1126KJ1 6000 8315X2500X3300 4700 B190 33 190/Euro 3 9.00-20 249700 36730
DRZ5141GSSXFE DONGFENG EQ1141KJ 11000 8105X2490X3250 4500 B190 33 190/Euro 3 10.00-20 159400 23450
DRZ5141GXFSGE DONGFENG EQ1141KJ 6000 8115X2500X3300 4500 B190 33 190/Euro 3 10.00-20 247700 36430
DRZ5253GSSXFE DONGFENG EQ5253GFJ2 15000 9950X2480X3750 4350+1300 B210 33 210/Euro 3 10.00-20 212600 31270
DRZ5090GXFSGPME DONGFENG EQ1090T9ADJ3AC 2400 7025X2095X2840 3800 B140 33 140/Euro 3 7.50R16 197500 29050
DRZ5070GXFSGQ ISUZU QL1070A1KWY 3000 6820X2000X2820 3815 4KH1-TCG40 120/Euro 4 7.00-16 218100 32080
DRZ5160GXFSGQ ISUZU QL1160AMFRY 6000 8360X2485X3420 4500 6HK1-TCNG40 240/Euro 4 10.00-20 457300 67250
DRZ5250GXFSGQ ISUZU QL1250DRFZY 15000 9775X2490X3560 5100+1300 6HK1-TCSG40 280/Euro 4 11.00-20 621800 91450
DRZ50703GXFSGQ ISUZU QL10703HWRY 2500 6260X1980X2780 3360 4JB1CN 98/Euro 4 7.00-15 182000 26770
DRZ51609GXFSGQ ISUZU QL11609MFRY 6000 8070X2500X3370 4500 4HK1-TCG40 190/Euro 4 10.00-20 378000 55590
DRZ5167GXFSGZ SINOTRUK ZZ1167M4617C 8000 8820X2500X3450 4600 WD615.92 266/Euro 3 11.00-20 401600 59060
DRZ5257GSSXFZ SINOTRUK ZZ1257M4641W 20000 9895X2496X2958 4325+1350 WD615.92 266/Euro 2 12.00-20 295300 43430
DRZ5257GXFSGZ SINOTRUK ZZ1257N4347C 15000 9680X2500X3650 4325+1350 WD615.69 336/Euro 3 12.00-20 476800 70120
DRZ5257GXFSGZ1 SINOTRUK ZZ1257S4647C 16000 10265X2500X3580 4600+1350 WD615.96 375/Euro 3 12.00-20 473300 69610

Special Specification:

1. Front located 4 ton wrecker shovel, equipped with highpower lifter,

can easily adjust the height of the wrecker shovel, convenient for

switching between driving and operation state of wrecker.

2. double row cab,exclude driver, also can take 2+3 person.

3. the top of the cab is equipped with professional fire warning lights.

4. available to install a full power disconnected power takeoff between

the gearbox and engine.

5. water tank volume is 4 cubic meters.

6. high-power water pumps which can spout 40-50 meters of water column.

7. available to install 2 fire fans and 2 fire fighting high-pressure water cannons.

8. can be equipped with fire extinguishers, fire hammer,

fire shovel, fire hose, fire fighting racket and other professional

fire fighting equipments
