5180TPSD2
-
HOWO
-
8705909990

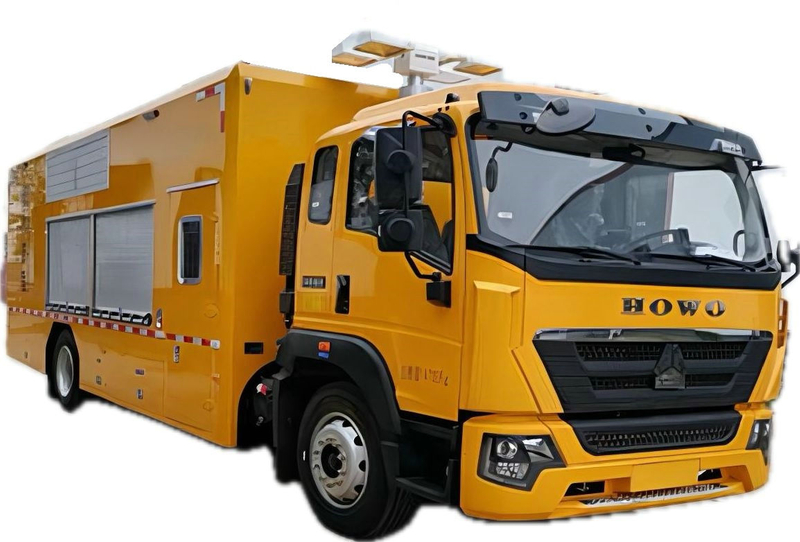

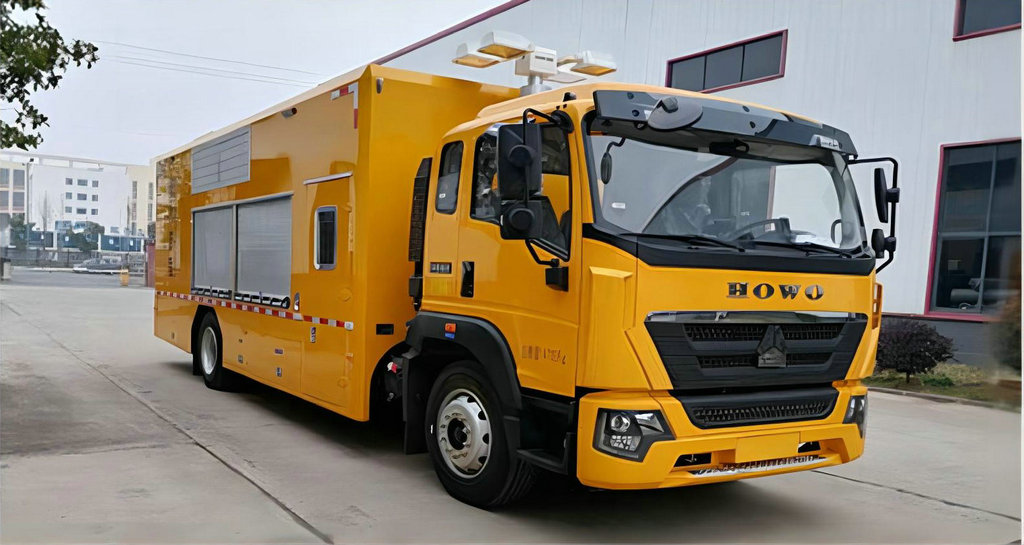

HOWO Drainage Pump Trucks for Flood Rescue Disaster Recovery Electric Pump 4000M3/h
Generator set: rated power ≥ 200kW, wiring mode: three-phase four-wire
The rated voltage should meet: line voltage 380V, phase voltage 220V; It can support the output of 220V/380V voltage to other electrical equipment.
Electric Drainage Pump Maximum Flew : ≥4000m³/h
Overall dimensions: | 8520,8720,9220×2500,2550×3200,3300,3460(mm) | Fuel Type: | Diesel oil |
Gross Weight | 14700(Kg) | ||
Net weight | 14505(Kg) | Rated load | (Kg) |
Approach Angle/Departure Angle: | 19/11 (°) | Front/rear overhang: | 1330/2690(mm) |
Fuel Type: | Diesel oil | Emission standard: | |
Axle Load: | 5070/9630 | Wheelbase: | 4200,4500,4700, 5200,5600,3800(mm) |
Axle Number | 2 | Maximum speed: | 89,95(km/h) |
Tire Number | 6(PCS) | Tire Specifications: | 9.00R20 16PR,10R22.5 16PR, 275/80R22.5 18PR, 10.00R20 18PR,295/80R22.5 18PR, 295/60R22.5 18PR |
Fuel consumption: | (L/100Km) | Suspension spring | 1/1+1,2/2+2,3/3+2,3/4+3,11/9+8, 11/10+9,8/9+8,3/9+8 |
Front wheel track: | 1940,1980(mm) | Rear wheel track: | 1800,1860(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
D45TCIF1; MC05H.23-60; MC05H.25-60; MC07.25-60; WP4.1 NQ190E61; WP4.6 NQ220E61; WP4.6 NQ220E62; WP7H245E62; WP4.6 NQ240E62; WP3NQ170E62 | Kunming Yunnei Power Co., LTD.; China Heavy Duty Automobile Group Co., LTD.; Weichai Power Co., LTD. | 4461; 4910; 4910; 6870; 4088; 4580; 4580; 6800; 4580; 2970 | 162; 166; 180; 188; 140; 162; 162; 180; 177; 125 |

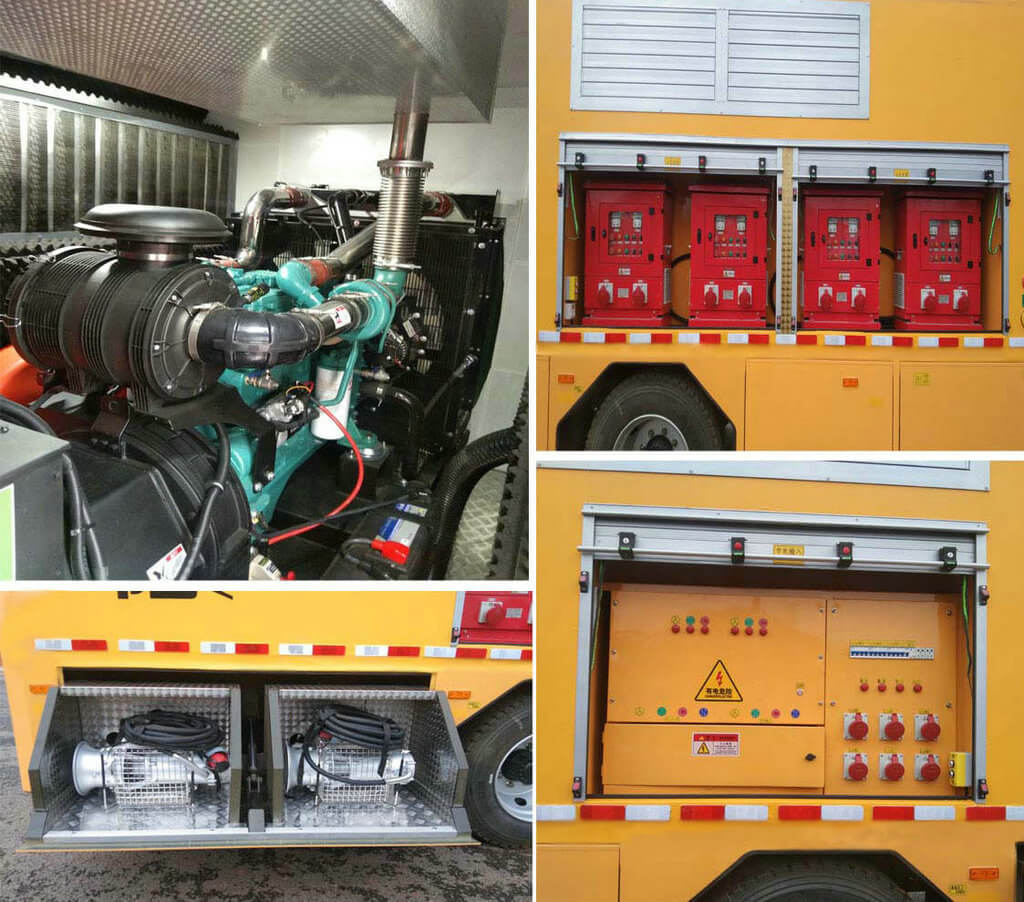

This model is used for emergency drainage operations and emergency power supply, is a special operation vehicle, equipped with special devices with large flow emergency drainage pump, control cabinet, generator set and other supporting systems. | |||
