5130XXHZS
SITRAK
8705909990

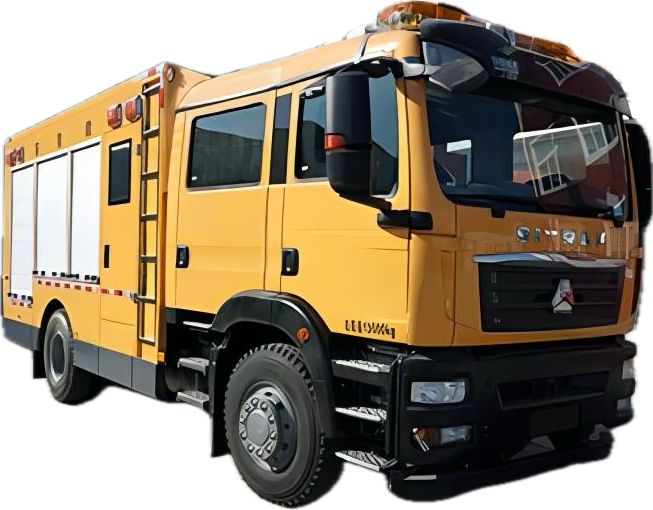

Customize SITRAK Tunnel Rescue Truck
1.Equipped with cutting machine, welding machine, portable electro-hydraulic pliers and other special equipment for rescue operations;

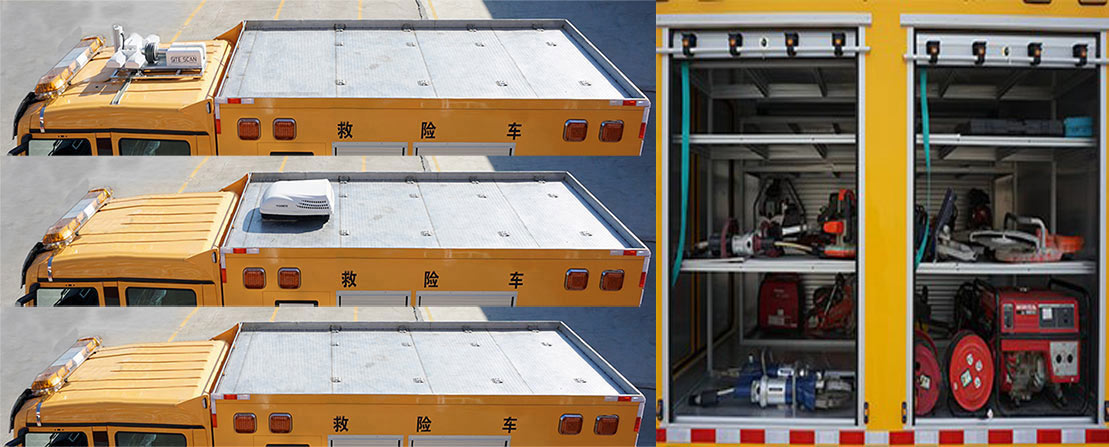

2, The truck top can be simultaneously or partially add roof platform and guardrail, overhead air conditioning, folding lift lighting system, overhead air conditioning ( vehicle height 3450mm); folding lift lighting system (vehicle height 3480mm);
3, the vehicle tail optional hydraulic tailplate style, the horizontal length of the tailplate folding state is 300mm;

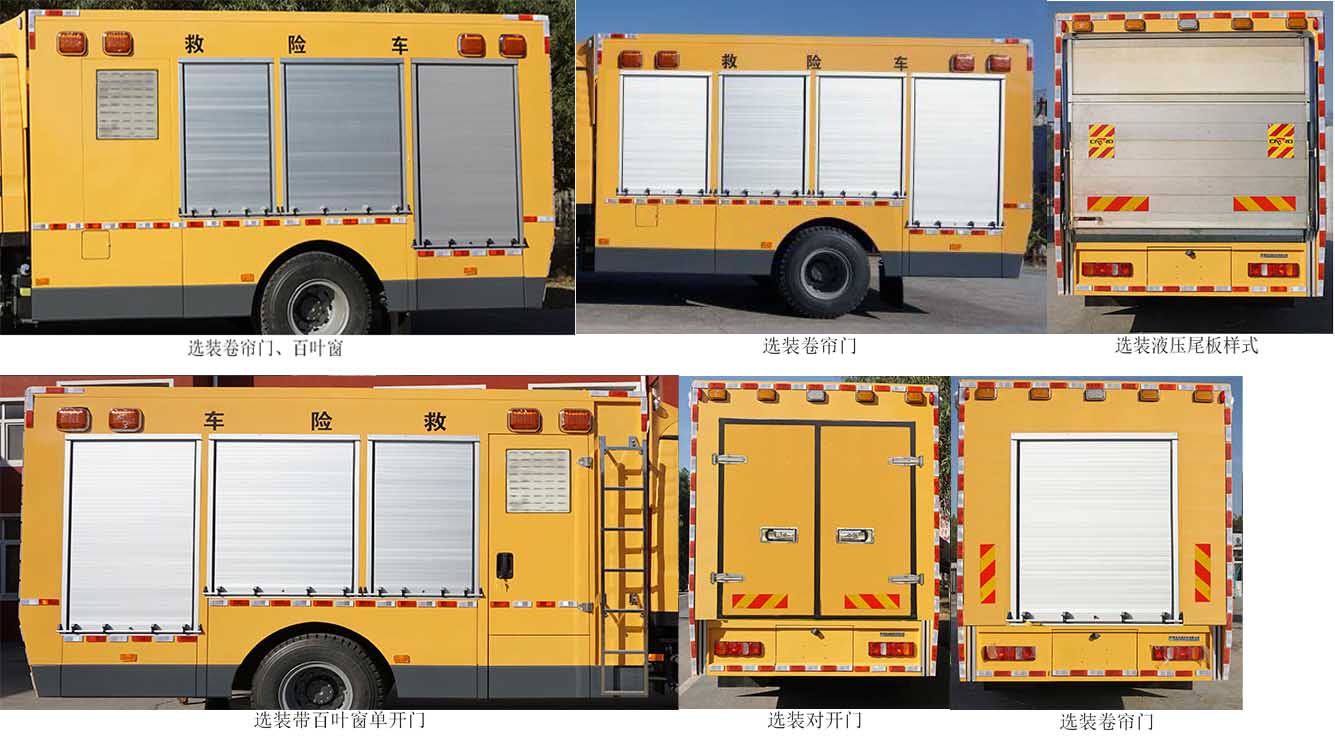

4. Side optional shutter door, shutter shutter, single door with shutter shutter, rear optional door, shutter door;
The installation position of the folding lifting lighting system is optional on the top, and the sunshade is optional on the right side of the vehicle
Overall dimensions: | 7965,8265,8465,8765,8965,9365×2500×3310,3450,3480(mm) | Fuel type | Diesel |
Gross Weight | 13000(Kg) | ||
Net weight | 12610(Kg) | Rated load | (Kg) |
Trailer : | (Kg) | Fifth wheel: | |
Cab: | Crew | 2+4 | |
Rated passenger capacity: | Anti-lock braking system: | ||
Approach Angle/Departure Angle: | 16/13(°) | Front/rear overhang: | 1430/2335(mm) |
Axle Load: | 4550/8450 | Wheelbase: | 4200,4500,4700,5000,5200,5600(mm) |
Axle Number | 2 | Maximum speed: | 110(km/h) |
Fuel consumption: | (L/100Km) | Suspension Spring : | 4/5,4/9+6,10/9+6,11/9+8,3/9+8,3/3+2 |
Number of tires: | 6(PCS) | Tire : | 11.00R20,12.00R20,295/80R22.5,315/80R22.5 |
Front wheel track: | 1998(mm) | Rear wheel track: | 1830(mm) |
The vehicle equipped with conventional communication, command, power supply, lighting, breaking and other functional systems, combined with the current situation of tunnel rescue, developed and integrated several special modules such as water supply, liquid delivery, anti-collision UAV monitoring, gas monitoring and protection. It can reduce the labor intensity of emergency repair personnel and avoid the loss of life and property, and greatly improve the work efficiency.
Functional detail

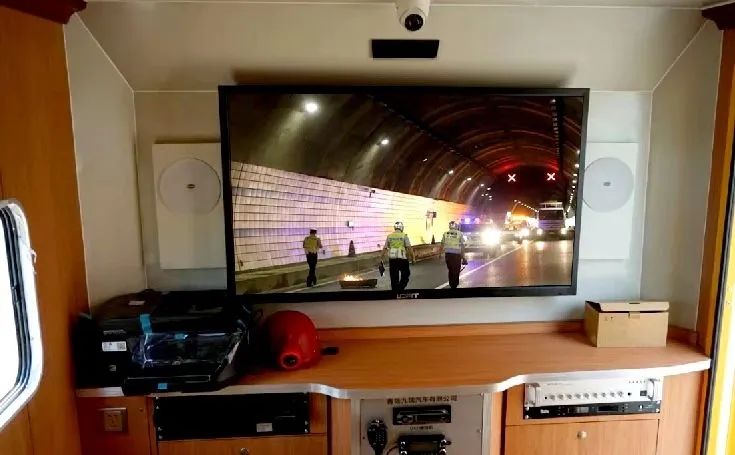

① Command and Control System
◆ 5G network ◆ Private network communication ◆ Individual soldier communication
◆ Wireless video transmission ◆ Video conferencing ◆ Broadcast system
Realize the interconnection and unified dispatch between vehicle and command center, vehicle and individual rescue personnel

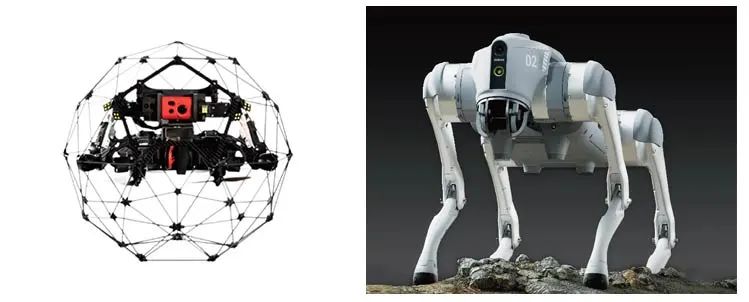

② Cage drones, Robotic dogs
◆ Collisionable drone ◆ Intelligent interactive robot dog
◆ Thermal imaging, laser radar ◆ GPS range locking
◆ Dust-proof lighting function ◆ Data acquisition and quantifiable data
③ Tunnel rescue function/Tunnel rescue function
◆ Hydraulic system ◆ Breaking system
◆ Top support system ◆ Exhaust system
◆ Welding function ◆ winch rescue
The whole vehicle with hydraulic power, to meet the emergency scene of breaking, support, exhaust, drag, welding and other rescue
④ Liquid delivery and medical rescue function/Personnel rescue function
◆ Liquid food delivery ◆ Medical assistance

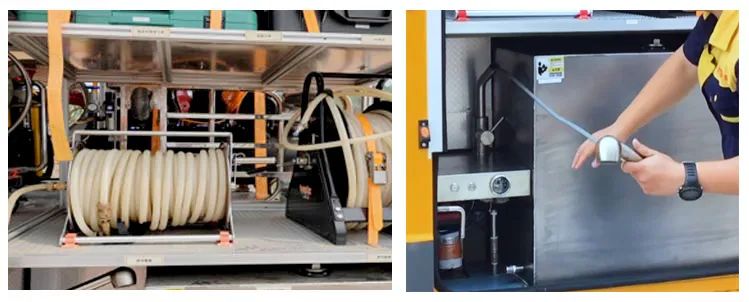

⑤ Water supply function
◆ Remote water supply function ◆ on-site shower function
◆ 60L stainless steel water tank
The vehicle water supply function provides water resources guarantee for the emergency scene

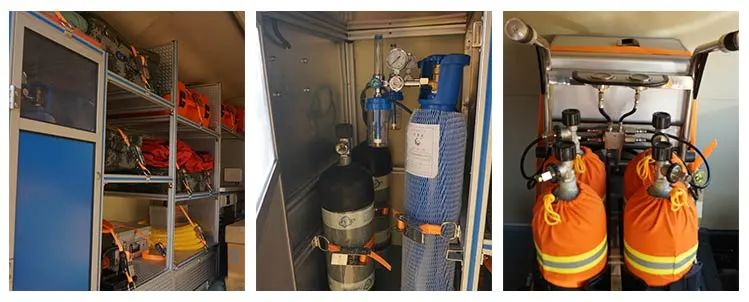

⑥ Gas protection function/Gas protection function
◆ Dangerous gas monitoring ◆ Mobile gas supply
◆ Simple rescue for the wounded ◆ First class chemical protective clothing
Dangerous gas monitoring and protection function, to avoid the accident site caused by dangerous gas chain accidents

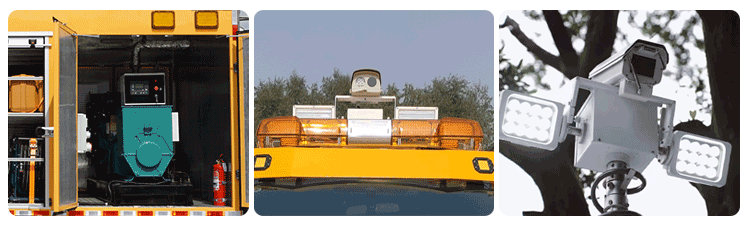

⑦ Security protection function
Power supply and distribution function
Lighting function
Alarm light warning function
◆ The vehicle is equipped with three sets of power supply and distribution systems, such as mains, generator set and ups, to ensure the power guarantee under various circumstances;
◆ Equipped with sign lights, alarms, easy to reach the accident scene quickly in emergency;
◆ Installation of site lifting lights, seamless, all-round lighting protection;
Engine | Model horsepower (ps) | Displacement (ml) | Power (kw)/ horsepower (ps) |
MC07.28-50 | China Heavy Duty Automobile Group Co., LTD | 6870 | 206/280 |
MC07.31-50 | China Heavy Duty Automobile Group Co., LTD | 6870 | 228/310 |
MC07.34-50 | China Heavy Duty Automobile Group Co., LTD | 6870 | 248/337 |
MC11.36-50 | China Heavy Duty Automobile Group Co., LTD | 10518 | 268/364 |
MC11.40-50 | China Heavy Duty Automobile Group Co., LTD | 10518 | 297/403 |
Tunnel rescue vehicle
No | Product | Specifications and models | Quantity |
1 |
Chassis | Sinotruk Shandeka double row seat, | 1 |
2 | Custom-made, chassis armor spraying | 1 | |
3 | Hydraulic Support System | Model number: CD-ZT-F60 / 350-D24; | 1 |
4 | Driving Soft Room And Car Body Modification | custom made | 1 |
5 | Body Modification | Custom-made, 5130 XXHZS | 1 |
6 | Top Work Platform Climbing Ladder | custom made | 1 |
7 | The Vehicle Is Equipped With Each Fixdevice | custom made | 1 |
8 | Car-Mounted Overhead Air-Conditioning System | Car-mounted overhead air conditioner, model: KD-35ch | 1 |
9 | Electro-Hydraulic Lifting Lifting Device | Model number, CD-QPC706 / 1004 | 1 |
10 | Samll Trolley | custom made | 1 |
11 | Intelligent Electrical Appliance Integrated Control System (Cabinet) | custom made | 1 |
12 | 220v / 380 v / 12v Power Multi-Function Conversion System | custom made | 1 |
13 | 4000va Ups Battery Pack | Model number: SPR4000-224 | 1 |
14 | Diesel Generating Set | Model number; KMS-30 | 1 |
15 | Cable Disc | Model: YL-35 YS-1150 (AC220V | 2 |
16 | Lighting System For The Inside And Outside Of The Car | custom made | 1 |
17 | Folding Lifting Lighting, Camera System | Model number: CFG182250 | 1 |
18 | Earthing Device | Auxiliary alignment, grounding steel drill and grounding wire | 1 |
19 | Gps + Reversing Monitoring System Integrated Machine: Gps Navigation, 1 Camera | Original car chassis special all-in-one machine | 1 |
20 | Multi-Functional Medical Box | Model: on-board special type ES 603 | 1 |
21 | Vehicle Fire Extinguisher | On-board 2KG | 1 |
22 | Lightning Protection And Lightning Protection System | custom made | 1 |
23 | Long Row Identification Light Lfd: Yellow Led, 100W.14 Dry Flash | Model: Interstellar TBD154121G-24V | 1 |
24 | Surrounding 1Ed Flash Alarm Light | Model number: LTE512 rectangular type | 13 |
25 | Flash Module | 16 Road | 1 |
26 | Hidden-Type Electric Winch | Model number: Winch100008 | 1 |
27 | Ag Hd Network Hard Disk Video Recorder | Model: ZY-313-W4; | 1 |
28 | A 32-Inch Liquid Product Display | Model number: 75T32A | 1 |
29 | 4G Hd Zoom Camera (Folding Lift System) | Model number: ZY-562-20X-E4 | 1 |
30 | 4G Individual Soldier Wireless Image Transmission System | Model number: ZY-256-E4 | 1 |
31 | 4G Wireless Bureau City Network | Model number: ER-800 | 1 |
32 | Notebook PC | Lenovo ThirkPadL480-608 | 1 |
33 | Spray And Paste The Marks | custom made | 1 |
34 | Air Compressor | Model number: 1.5KW * 3-100 | 1 |
35 | Arc Welder | Model number; ZX 7-3156S | 1 |
36 | Hydraulic Power Station | Model number: HP28 | 1 |
37 | Hydraulic Shear Clamp | Model number: GYJQ-28 / 150-D | 1 |
38 | Explosion-Proof Axial Flow Fan | Model number: T35-11-ND 6.3 | 2 |
39 | Hydraulic Exhaust Air And Ventilation System | Model number: VF 80 | 1 |
40 | Vehicle Water Supply System | Model number; V42-300L | 1 |
41 | Tote Explosion-Proof Lamp | Model number: T21211 | 1 |
42 | Hydraulic Hammer Drill | Model number: HD45 | 1 |
43 | Food Delivery System | Model number: PDP 19-304-F46-H | 1 |
44 | Explosion Proof Tools | Including taiping axe 1198, lever 1237,12 pound pound 1401, spade 1208, etc | 1 |
45 | Combined Service Tools | Model number: SATA85 | 1 |
46 | Folding-Type Aluminum Alloy Stretcher | Model number: YJK-A2-1 | 1 |
47 | Car Platform | Model number: IC-M330 | 1 |
48 | Model number: 10-1200 | 1 | |
49 | Explosion-Proof High-Frequency Handheld Machine | Model number: 1C-M8B | 6 |
