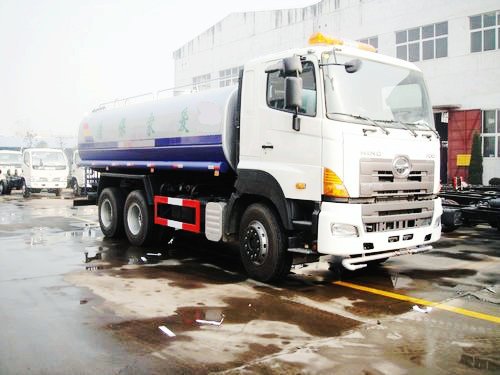

HINO 700 18cbm water truck 350HP
HINO 700 HINO
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
| HINO 700P water tanker truck（6*4 type,with 16～18 cbm） | ||||
| Emission Standard | EUR 3 /4 | |||
| Model Name | TIC1250FS2PKSSY | |||
| Chassis model | YC 1250FS2PK | |||
| Driving Type | 6×4 | |||
| Dimensions | ||||
| Wheelbase(mm) | 3300+1410 | |||
| Overall dimension(mm) | 8050×2495×3070 | |||
| Fuel tanker size (mm) | 6000×2300×1200 | |||
| Fuel tank cubage (cbm) | 16～18～ cbm | |||
| Weight parameter | ||||
| GVW(kg) | 25000 | |||
| Payload weight(kg) | 13500 | |||
| Curb weight (kg) | 11500 | |||
| Front axle load(T) | 8 T heavy duty axle | |||
| Rear axle load(T) | 13T(2 axle combined) heavy duty rear axle | |||
| Front axle span(mm) | 2060 | |||
| Rear axle span(mm) | 1855/1855 | |||
| Front/rear overhang(mm) | 1410/1210 | |||
| Approach angle(°) | 20 | |||
| Departure angle(°) | 30 | |||
| Max speed(km/h) | 90 | |||
| Min turning diameter (m) | «16m | |||
| Engine | ||||
| Engine model | P11C-UJ | |||
| Engine type | Shanghai HINO engine Type 4-cycle, direct-injection, water-cooled, in-line,turbocharged with intercooler, diesel engine | |||
| No. of cylinders | Straight-6 cylinders | |||
| Displacement(L) | 10.521 | |||
| Max. Gross output | 259kw(350hp)/2100rpm | |||
| Max. Gross torque | 1460 N·m at 1100 rpm | |||
| Engine weight (kg) | 1070kg | |||
| Engine size (mm) | 1362×1018×1029 mm | |||
| Lubrication System | Forced feed by gear pump | |||
| Cooling System | Forced circulation by centrifugal water pump | |||
| Drive Line | ||||
| Cluth | ¢430mm Dry single plate, hydraulically operated clutch Release mechanism with air-assisted booster | |||
| Steering | Recirculating ball screw type with hydraulic power assistance | |||
| Gear box/Transmission | FULLER gear box:RT11509C(Manual operation), 9 forwarder and 1 reverse gear with synchronous meshing | |||
| Front spring | Semi elliptic leaf springs | |||
| Rear Springs | Trunnion-mounted semi elliptic leaf springs with torque rods | |||
| Shock Absorbers | Telescopic type on front axle | |||
| Brake System | ||||
| Service braking | Full air brake on all wheels, dual air line system | |||
| Parking braking | Hand brake Mechanically operated by hand brake lever, internal expanding duo-servo shoe type acting on drum at rear of transmission | |||
| Auxiliar braking | Exhaust braking | |||
| Cab | ||||
| Forward control, all steel welded construction tilting cab Windshield Laminated glass,Speedometer with odometer, fuel gauge, water temperature gauge, voltmeter, air pressure gauge,oil pressure gauge. Warning lights and buzzers,low oil and air pressure warning lights,hand brake,direction and headlight beam indicators | ||||
| Standard Equipment | ||||
| Factory installed air conditioner & car heater | ||||
| CD player AM/FM radio, Power steering,etc | ||||
| Automatic windows lifting system,with 4 point suspension drivers seat | ||||
| With the PTO TP-2 | ||||
| With front all steel strong bumper that can avoid the damage to the cab | ||||
| Water tanker special function description | ||||
| Special function of water tank truck | ||||
| Water tanker material | Of high quality carbon steel (Q235A)-4mm thickness. From WISCO | |||
| Sprinkling area(m) | »20m | Vertical suction range (m) | »7m | |
| Watering pressure | 250-450Mpa | Pump style | Self-priming centrifugalpump | |
| Manhole | Man way access hole on top of tank;2 units DN500mm manhole | |||
| Front spray function | Front spray bar with fan sprayer on both sides, spray range: »20m | |||
| Man walk way | With skid resistance man walk way on top of tank | |||
| Horse reels | Two 75 ft hose reels at each side of the truck | |||
| Water pump | Water pump: Hangzhou Weilong water pump manufacture Water pump model: 80QZB(F)-60/90(N/S) Water pump flow rate(L/m): 60m3/h Head of delivery(m): 90m Suction height (m): 22.5m Efficiency(%):95% | |||
TIC TRUCKS , www.truckinchina.com
| 6x4 | 8x4 | ||
| Maximum gross weight (kg) | 25,000 | 25,000 | 31000 |
| Cab | Standard | Standard | Standard |
| Dimensions (Length x width x height) (mm) | 8050x2495x3070 | 8050x2495x3070 | 9380x2495x3130 |
| Wheelbase (mm) | 3640 + 1410 | 3640 + 1410 | 1850 + 3400 + 1410 |
| Front / rear track (mm) | 2060/1855/1855 | 2060/1855/1855 | 2060/2060/1855/1855 |
| Front / rear overhang (mm) | 1410/1590 | 1410/1591 | 1410/1310 |
| Minimum ground clearance (mm) | ≥220 | ≥220 | ≥240 |
| Minimum turning diameter (m) | ≤18.4 | ≤18.4 | ≤20 |
| Curb weight (kg) | 9200,9400 | 9200,9400 | 11000 |
| Engine Model | P11C-VK | P11C-VK | P11C-VK |
| Rated Power (PS) kW / r / min | (350) 259/1900 | (350) 259/1900 | (350) 259/1900 |
| Maximum torque Nm / r / min | 1483/1100 | 1483/1100 | 1483/1100 |
| Post-processing system | SCR | ||
| Displacement L | 10.520 | 10.520 | 10.520 |
| Clutch | Dry-type single DSF-430 | Dry-type single DSF-430 | Dry-type single DSF-430 |
| Transmission | 12JSD160TA | RT-11509C | 12JSD160TA |
| Front / rear axle | THD17 | THD17 | THD18 |
| Rear axle Save Ratio | 4.625 | 4.625 | 5.285 |
| Tire | 11.00R20 | 11.00R20 | 11.00R20 |
| Emission standards | State IV | State IV | State IV |
Our water tank truck with different chassis, eg:DFAC, DFL, SINOTRUCK, CNHTC,NORTH BENS, FOTON, ISUZU, JAC, JMC, KAMA, YUEJIN, etc.
Our water tank series:
-----water tanker truck
-----sanitation water tank truck
-----sprinkler truck
-----water wagon truck
-----insulation water tank truck
-----pesticide sprinkling truck
-----water spraying truck
-----Mild steel water tank cart
-----Stainless steel tank water truck
-----Aluminum alloy water tanker
-----RHD watering cart
-----Water tank semi trailer
-----Storage water tanker
TIC TRUCKS , www.truckinchina.com
| ater truck special function | A. Water tank capacity(L):6000L 10,000 Liters B. Sprinkling area(m):14-16m C. Suction lift(m):≥7m Water cannon range description Water cannon installed on the rear of the truck,also with operation platform,that operator can work on the platform.It can be used to clean road,trees,and also for emergency fire fighting. Water cannon range:≥60m,it can rotation with 360° degree freely | |
| Manhole size(mm) | Man way access hole on top of tank; manhole diameter:¢500mm | |
| Front spray function | Front spray bar with fan sprayer,spray range: ≥20m | |
| Man walk way | With skid resistance man walk way on top of tank | |
| Water pump model | 80QZB(F)-60/90S | |
| Flow rate(L/m) | 1000 | |
| Head of delivery(m) | 60 | |
| Shaft power | 22.5 | |
| Suction height (m) | 6.5 | |
| Efficiency(%) | 95% | |
Welcome all around world customer visit our factory.- which has excellent performance with reasonable price.
1.Strong capability, high & far throw range, wide coverage area.
2.Customizable nozzles achieve precise volume spraying, high efficiency and spray speed.
3.Flexible power: three-phase 380V and diesel generator power supply optional
4.Flexible installation, fixed on the concrete platform or diesel generator-powered vehicles optional.
5.Remove control.Easily adjust the spray angle of horizontal rotation.
6.Compare to tank car, water consumption save 70% ~80%.
1.Environmental protection: City pm2.5/10 dust control, Disinfection epidemic prevention, City Demolition,Odor control at waste disposal & landfill sites,Humidifying, cooling and dust control on construction site, etc.
2.Industry dust suppression:Open pit mining blasting/digging/ load&transport dust , Port material storage yard dust , Wharf Bulk Ships loading&unloading dust, Iron & steel plant stockpile & slag disposal dust, Power plant coal storage yard dust, Conveyor belt blanking point dust, Coal mine crushing dust,Haul roads dust,Storage and handling of bulk materials dust, etc.
3.Agriculture protection:The sprayer can used for pest control in agriculture, orchard, garden areas,farmland, forest, road greening, grassland, pasture ,etc.
