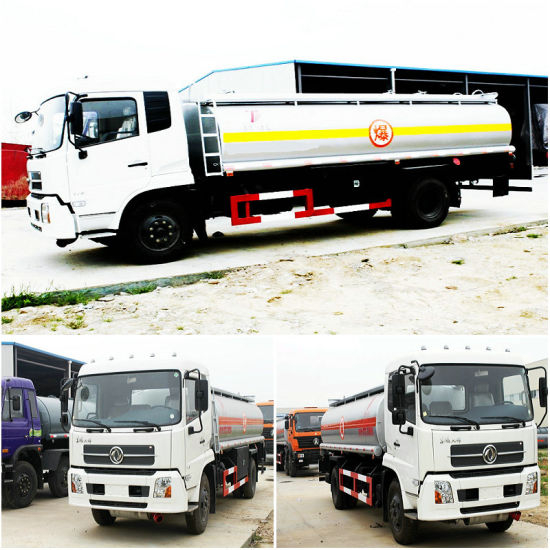

Dongfeng 10000-15000 Liters Mobile Refueling Tanker Truck (10-12T)
| Quantity: | |
|---|---|
-
1000
-
T/T, Western Union
-
Nil
15000 liters oil tanker truck
road tanker
Product | Dongfeng 10000-15000 liters mobile refueling truck(8-12T) | |
| Chassis type | DFL1160BX | |
| Cubage(L) | 10,000-15,000 liters | |
| Parameters | Overall dimension length/width/height (mm) | 8590×2380×3250 |
| Total Mass(kg) | 16000 | |
| Payload(kg) | 9650 | |
| Kerb Mass(kg) | 6155 | |
| Approach angle/ Departure angle(mm) | 19/12 | |
| Front suspension/rear suspension(mm) | 1430/2360 | |
| Fuel Type | Diesel | |
| Fuel Consumption/100 km | ||
| Max Speed | 90 | |
| Engine | Type | optional ISDe210 40 ISDe180 40 ISDe185 40 EQH180-40 ISB180 40 |
| Displacement/Power(kw) | 5900 , 180~210HP | |
| Manufacturer | Dongfeng Cummins engine Co.,Ltd | |
| Type | 4-in-line,6-cylinders,diesel engine | |
| Chassis | Drive type | 4×2 |
| Wheelbase(mm) | 4500 | |
| Tread(front/rear) | 1880/1800 | |
| Front axle | 6T | |
| Rear axle | 10T | |
| Steering gear | Hydraulic power assistance | |
| Transmission | 6 forward gear, 1 reverse gear,mechanicaltrasmission | |
Clutch | Dry single plate, hydraulically operated clutch | |
Braking system | Full air brake on all wheels, dual air line system | |
Cab | Non-longheaded,single row cab,one sleeper bed | |
| Number of axle | 2 axle,rear axle is driving axle | |
| Tire Type | 10.00-20 | |
| Air-condition | Factory installed Air-conditioner | |
We can design and manufacture kinds of this truck based on customer\ s choice
Tanker Parameters | Tanker materia | Carbon steel-Q235A, 5mm or 6mm |
| Manhole | 1 units DN500mm manhole | |
| Inlet hole | 1 units DN220mm at top of tanker | |
| Outlet hole | 1 units DN100mm at side of tanker | |
| Fire extinguisher | 2 sets fire extinguisher at side of tanker | |
| Oil pipe | 2 sets of oil pipe at each side of tanker | |
| Oil pump | With oil pump fixed | |
| Refuelling machine | fixed with computerized refueling machine | |
| Tanker compartment | Tanker can divided into several compartment |
-----Fuel tank truck
-----Refuel tanker
-----Edible oil tank truck
-----Insulation oil tanker truck
-----Crude oil transport tank truck
-----Fuel tank full trailer
-----Fuel tank semi trailer
-----Mild steel oil tanker
-----Stainless steel oil tank
-----Aluminum fuel tank
-----Fuel tank container
-----Mobile refueling station
-----Horizontal storage fuel tanker
-----RHD fuel tank truck
And more customized products.
All more details of fuel tank truck, please kindly contact with us.
