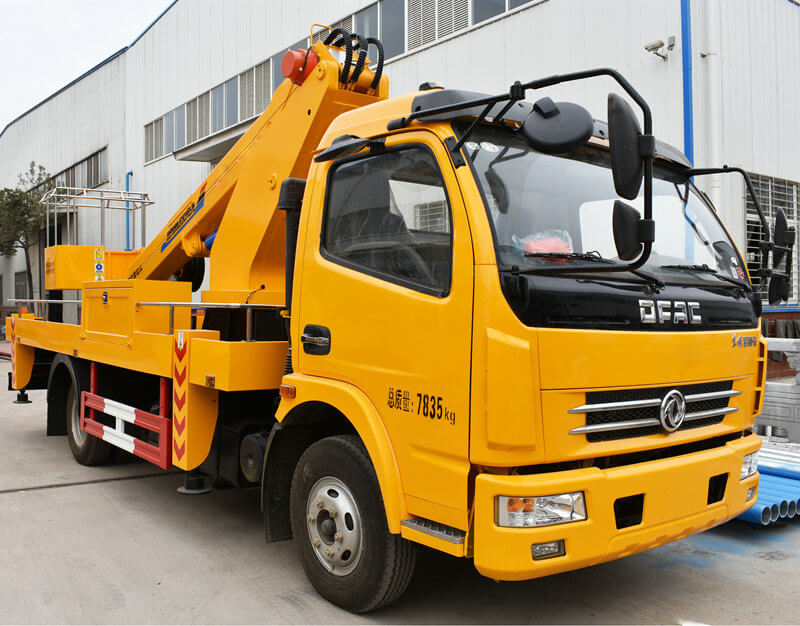

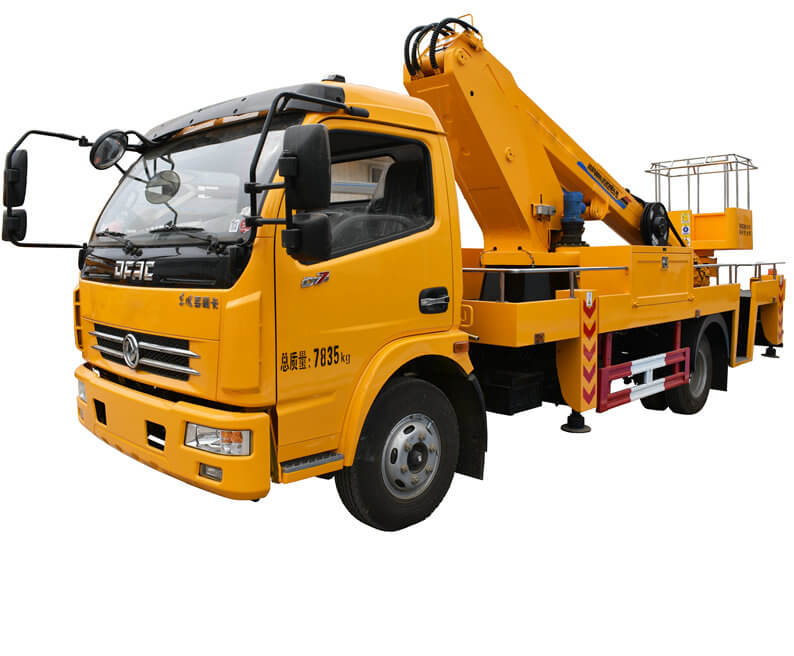

Dongfeng 20m Telescopic Aerial Platform Truck EURO 5

Dongfeng 20m Telescopic Aerial Platform Truck
EURO 5

Price: $ 50000
Discount Price: $ 48000
FOB:
Quantity:

  • DRZ5080JGK20E5
  • Dong run
  • 8705909990
 Dongfeng 20m Telescopic Aerial Platform Truck

 boom trucks  aerial bucket truck

aerial work platforms are available of 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m. Insulated cage is optional.

Features:


---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Working cage can rotate 90 degree in left and right;
---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.

Aerial work truck refers to a special vehicle which work at high altitude (more than three meters), use a hydraulic or electric system multivessel hydraulic cylinders, can do up and down lifting operations, transport staff and equipment to the site, conduct high altitude operations, it is a modern advanced mechanical species equipment.


Aerial work truck is specially designed and produced for aerial work or operation, such as repairing road lights, maintain high buildings, windows, hanging ad boards, power grid maintenance, etc.

Dongfeng 20m Telescopic Aerial Platform Truck EURO 5

SPECIFICATIONS FOR DONGFENG 20M HIGH ALTITUDE OPERATION TRUCK AERIAL PLATFORM VEHICLE
Product Name DongFeng 20m high altitude operation truck aerial platform vehicle Product Model NO. DRZ5080JGK20E5
Function High altitude Operation

General Situation of Vehicle
Overall Dimension(MM) 8100×2320×3350 Curb Weight(Vehicle) (KG) 7640
Dimension of Loading space (MM) / Loading Capacity(KG ) 195
GVW.(KG) 7835 Fuel Type Diesel
Transmission Type Manual Condition New
Maximum Speed (KM/H) 103 Cab 3 Persons
Chassis Specification
Chassis Brand Dongfeng Chassis Model NO. EQ1080SJ8BDC
Driver’s Seat Direction Left Side Drive/Right Side Drive Drive Form 4*2
Steering System Steering wheel Brake System Air braking
Gear Box 5-Speed ABS Include
Electric System 24V Axle Load(KG) 3300/4975
NO. of Axles 2 Tyres Specification 7.50R16
Whee Base(MM) 3800 NO. of Wheels 6
Overhang F/R (MM) 1130/2460 NO. of Spring Leaf
Engine Specification
Engine Model NO. YC4FA130-50 Engine Power (KW/HP) 95/130
Displacement(ML) 2982 Emission level Euro III
Type
Upper Body Configuration Main material: carbon steel Q235,
Upper body and chassis connection Way: Weld and bolt connection
Max.Working Height : 20 M;
Max Working Radius: 9M, 360° rotation;
Prop Leg Max.Span : Lengthways :2430MM;Crosswise: front 1600MM, Rear:2780MM, adjustable;
Load of aerial working platform ≤200 KG ,dimension of aerial working platform: 1080X610X1100MM;
Product Feature 1.Three Foldable arms,arms is electrically controlled ,speed is adjustable;
2.Hydraulic Cylinders control the boom arm stretching, lifting or retracting ,and can be lockable;
3.Double station operation,up and down interlock;
4.Engine start and stop can be remote controlled;
5.Crane hook can be mounted if required ,and max. lifting height 11.5 M, Max lifting weight 1000 KG



  FOTON 10-16M AERIAL WORKING PLATFORM TRUCK 0214319716

Telescopic aerial platforms 12m -14m-16m 4x4 all wheel drive offroad

 Telescopic aerial platforms 12m -14m-16m 4x4 all wheel drive offroad

Description of goods Quantity Unit price Total Amount

Telescopic aerial platforms

Type - telescopic 12M /bucket capacity 200kg

Dongfeng /wheelbase 3300 mm /4x4

Fuel - diesel engine CY4100Q/ 90HP

Cabin - single (7pcs)7.50-16 tires

Power steering, air brake Emission -EU3

1

FOB$3****

CIF $4****

FOB$3****

CIF $4****

Telescopic aerial platforms

Type - telescopic 12M /bucket capacity 200kg

Dongfeng /wheelbase 3300 mm /4x4

Fuel - diesel engine CY4100Q/ 90HP

Cabin -double cabin (7pcs)7.50-16 tires

Power steering, air brake Emission -EU3

1

FOB$3****

CIF $4****

FOB$3****

CIF $4****

single cabin & double cabin price deiffer $605

Height 14M price add $500;Height 16M price add $1000;4x2 & 4x4 price deiffer $2800

Telescopic aerial platforms

Type - telescopic 14M /bucket capacity 200kg

Dongfeng /wheelbase 3300 mm /4x4

Fuel - diesel engine CY4100Q/ 90HP

Cabin - single (7pcs)7.50-16 tires

Power steering, air brake Emission -EU3

1

FOB$3****

CIF $4****

FOB$3****

CIF $4****

Telescopic aerial platforms

Type - telescopic14M /bucket capacity 200kg

Dongfeng /wheelbase 3300 mm /4x4

Fuel - diesel engine CY4100Q/ 90HP

Cabin -double cabin (7pcs)7.50-16 tires

Power steering, air brake Emission -EU3

1

FOB$3****

CIF $4****

FOB$3****

CIF $4****

Telescopic aerial platforms

Type - telescopic16M /bucket capacity 200kg

Dongfeng /wheelbase 3300 mm /4x4

Fuel - diesel engine CY4100Q/ 90HP

Cabin - single (7pcs)7.50-16 tires

Power steering, air brake Emission -EU3

1

FOB$3****

CIF $4****

FOB$3****

CIF $4****

Telescopic aerial platforms

Type - telescopic 16M /bucket capacity 200kg

Dongfeng /wheelbase 3300 mm /4x4

Fuel - diesel engine CY4100Q/ 90HP

Cabin -double cabin (7pcs)7.50-16 tires

Power steering, air brake Emission -EU3

1

FOB$3****

CIF $4****

FOB$3****

CIF $4****

Telescopic aerial platforms 12m 4x2

Description of goods Quantity Unit price Total Amount

Telescopic aerial platforms

Type - telescopic 12M /bucket capacity 200kg

Dongfeng /wheelbase 3300 mm /4x2

Fuel - diesel engine CY4100Q/ 90HP

Cabin - single (7pcs)7.50-16 tires

Power steering, air brake Emission -EU3

10

FOB$3****

CIF $3****

FOB$3****

CIF $3****

Telescopic aerial platforms

Type - telescopic 12M /bucket capacity 200kg

Dongfeng /wheelbase 3300 mm /4x2

Fuel - diesel engine CY4100Q/ 90HP

Cabin -double cabin (7pcs)7.50-16 tires

Power steering, air brake Emission -EU3

10

FOB$3****

CIF $3***

FOB$3****

CIF $3****

single cabin & double cabin price deiffer $605

Height 14M price add $500;Height 16M price add $1000;4x2 & 4x4 price deiffer $2800

Telescopic aerial platforms

Type - telescopic 14M /bucket capacity 200kg

Dongfeng /wheelbase 3300 mm /4x2

Fuel - diesel engine CY4100Q/ 90HP

Cabin - single (7pcs)7.50-16 tires

Power steering, air brake Emission -EU3

10

FOB$3****

CIF $3****

FOB$3****

CIF $4****

Telescopic aerial platforms

Type - telescopic14M /bucket capacity 200kg

Dongfeng /wheelbase 3300 mm /4x2

Fuel - diesel engine CY4100Q/ 90HP

Cabin -double cabin (7pcs)7.50-16 tires

Power steering, air brake Emission -EU3

10

FOB$3****

CIF $3****

FOB$3****

CIF $4****

Telescopic aerial platforms

Type - telescopic16M /bucket capacity 200kg

Dongfeng /wheelbase 3300 mm /4x2

Fuel - diesel engine CY4100Q/ 90HP

Cabin - single (7pcs)7.50-16 tires

Power steering, air brake Emission -EU3

10

FOB$3****

CIF $3****

FOB$3****

CIF $4****

Telescopic aerial platforms

Type - telescopic 16M /bucket capacity 200kg

Dongfeng /wheelbase 3300 mm /4x2

Fuel - diesel engine CY4100Q/ 90HP

Cabin -double cabin (7pcs)7.50-16 tires

Power steering, air brake Emission -EU3

10

FOB$3****

CIF $4****

FOB$3****

CIF $4****

all wheel drive offroad Aerial platforms



FOTON 10-16M AERIAL WORKING PLATFORM TRUCK 57097

Main parameters Product model  DRZ5053JGKZ3
Gross weight (kg) 7640
Curb weight (kg) 7445
Cab seats 3
Number of axles 2
Overall dimension(mm) 7400x1980x3100
Wheel base(mm) 3300
Max speed (km/h) 85
Steering Left hand drive or right hand drive
Chassis parameters Chassis model EQ1060TJ20D3
Brand DongFeng
Fuel diesel
Number of wheels (mm) 6
Tire specification 7.50R16
Engine displacement (ml) 3856
Engine power (kw) 96
Emission standard Euro II
Upper High meters (m) 16
Max. Out reach (m) 11
Max. lifting weight (kg) 1000
Rotating speed 0~2 r/min
The whole boom outreaching time ≤30 S
Articulated Boom Lift Dongfeng (14-16M)
General Vehicle Brand Dong run
Chassis Brand Dongfeng
Overall Dimension 7650 x 1980 x 3150 mm
GVW / Kerb Weight 7,300 kg / 6,975 kg
Cab Cab Capacity 2+3 persons allowed
Air Conditioner With air conditioner
Engine Fuel Type Diesel
Engine Brand Dongfeng engine
Power 95Ps (70KW)
Displacement 3856 ml
Emission Standard Euro III, IV
Chassis Drive Type 4X2, left hand drive or right hand drive
Transmission 5 forward gears & 1 reverse
Wheelbase/No. of axle 3300 mm / 2
Tyre Specification 7.00-16 14PR, 7.00R16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 95 km/h
Paint Metallic paint
Superstructure Cage Rated Capacity 200 kg
Working Height 14m - 16 m
Outriggers 4pcs, H-type; Hydraulically extend and retract
Slewing 360° continuous rotation with base turntable
Control Control both on the ground and in the cage
Emergency electrical/manual pump is equipped to operate the equipment in case of engine failure.
Emergency stop switches at base and operator’s cage.
Optional Insulated cage; Cargo box; Hoist hook with cables.
