Quantity: | |
---|---|
Emission Standard | EUR 3 | ||||

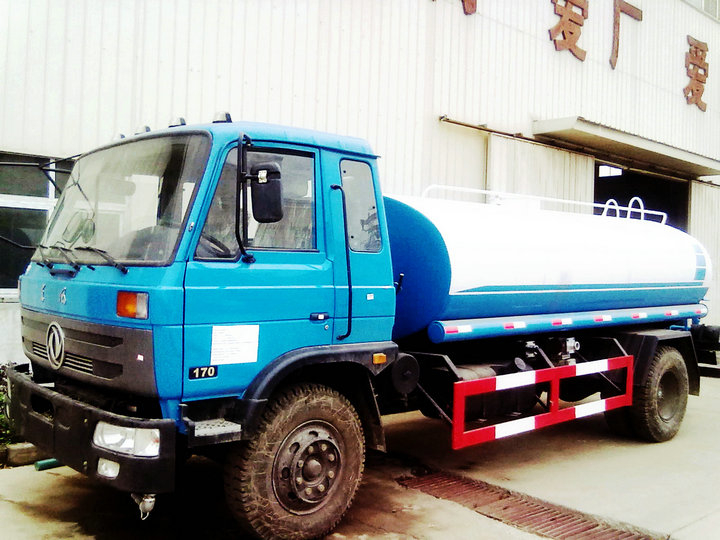

Model Name | TIC5120GSS | ||||
Chassis code | EQ1121GKJ | ||||
Driving Type | 4×2 | ||||
Dimensions | |||||
Wheelbase(mm) | 3950 | ||||
Overall Dimension(mm) | 7600×2500×3100 | ||||
Water tanker size(mm) | 5000×2200×1200 | ||||
Weights | |||||
GVW(kg) | 12450 | ||||
Rated payload Weight (kg) | 9200 | ||||
Curb weight(kg) | 6800 | ||||
Front axle load(T) | 3.6 Ton | ||||
Rear axle load(T) | 9 Ton | ||||
Front axle span(mm) | 1900 | ||||
Rear axle span(mm) | 1800 | ||||
Front/rear overhang(mm) | 1250/2250 | ||||
Approach angle(°) | 20 | ||||
Departure angle(°) | 15 | ||||
Max speed(km/h) | 80 | ||||
Engine | |||||
Engine model | YC6J160-33 from Guangxi Yuchai engine Co.,Ltd | ||||
Engine type | Straight in line, 6 cylinders water-cooled, Direct injection engine 4 stroke | ||||
No. of cylinders | Straight-6 cylinders | ||||
Displacement(L) | 6.5L | ||||
Max. output(kw/Ps) | 118kw(160ps) | ||||
Max torque/Speed(N.m/rpm) | 520 N.m/1700rpm | ||||
Drive Line | |||||
Clutch description | Dry single plate, hydraulic control booster,mechanical operation with hydraulic assistance | ||||
Transmission | 6 forwarder gear,1 reverse gear,Manual operation | ||||
Tanker body | |||||
Tanker body size(mm) | 5000×2200×1200 (Water tank capacity: 10,000 Liters) | ||||
Tire specification | |||||
Tire specification | 9.00-20 standard tire,7 tires(including 1 spare tire) | ||||
Special function of water tank truck | |||||
Water tanker material | Of high quality carbon steel (Q235A)-4mm thickness. From WISCO | ||||
Sprinkling Area(m) | ≥20m | Suction lift(m) | ≥6m | ||
Water cannon | Water cannon installed on the rear of the truck, with operation platform, It can be used to clean road, irrigate trees, corps, also for fire fighting. Water cannon range: ≥50m,it can rotation with 360°degree freely | ||||
Manhole | Man way access hole on top of tank; 1 units 500mm manhole | ||||
Front spray function | Front spray bar with fan sprayer on both sides, spray range: ≥10m | ||||
Man walk way | With skid resistance man walk way on top of tank | ||||
Horse reels | 2 inch 50ft outlet long hose reels, and 2 inch 7ft inlet hose reels | ||||
Water pump | Water pump flow rate(L/m): 1000L/m Head of delivery(m): 50m Efficiency(%):95% Note: The water pump can fixed on the rear of tanker and middle of the tanker. | ||||
Others | a. 1 units tool box |
EQ5140KLJ | YC6J180-33 | EQ1168GLJ3 | YC6J180-42 YC6J180-46 | EQ1168GLJ3 | 4500,4700,5100 |
EQ5140KLJ | YC6J180-33 | YC6J180-42 YC6J180-46 | EQ1168GLJ3 | 4500,4700,5100 | |
EQ5140KLJ | ISDe210 30 | ISB210 40 | EQ1168GLJ3 | 4500,4700,5100 | |
EQ5140KLJ | B190 33 | ISDe185 40, ISB180 40, | EQ1168GLJ3 | 4500 | |
EQ5140KLJ | B190 33 | ISDe185 40, ISB180 40, | EQ1168GLJ3 | 4500,4700,5100 | |
EQ1168GLJ3 | 4500,4700,5100 | ||||
EQ5140KLJ | YC6J180-30 | YC6J180-42 YC6J180-46 | EQ1168GLJ3 | 4500,4700,5100 | |
EQ5140KLJ | ISDE185-30 | ISDe185 40 | EQ1168GLJ3 | 4500 | |
EQ5140KLJ | ISDE185-30 | ISDe185 40 | EQ1168GLJ3 | 4500 | |
EQ5140KLJ | ISDE185-30 | ISDe185 40 | EQ1168GLJ3 | 4500,4700,5100 | |
EQ5140KLJ | ISDE180-30 | ISDe180 40 | EQ1168GLJ3 | 4500 | |
EQ1168GLJ3 | 4500,4700,5100 | ||||
EQ5140KLJ | B190 30 | ISDe185 40, ISB180 40, | EQ1168GLJ3 | 4500 | |
EQ1168GLJ3 | 4500,4700,5100 | ||||
EQ5140KLJ | B190 33 | ISDe185 40, ISB180 40, | EQ1168GLJ3 | 4500 |
EQ1101GLJ | YC4E160-33 | EQ1128GLJ | YC4E160-42 |
EQ1101GLJ | YC4E160-33 | EQ1128GLJ | YC4E160-42 |
EQ1101GLJ | B170 33 | EQ1128GLJ | ISB170 40 |
EQ1101GLJ | B170 33 | EQ1128GLJ | ISB170 40 |
EQ1101GLJ3 | B170 33 | EQ1168GLJ3 | ISB170 40 |
EQ1101GLJ3 | B170 33 | EQ1128GLJ1 | ISB170 40 |
EQ1101GLJ | YC6J180-30 | EQ1128GLJ | YC6J180-42 |
EQ1101GLJ3 | YC6J170-33 | EQ1168GLJ3 | YC6J180-46 |
EQ1101GLJ | ISDe160 30 | EQ1128GLJ | ISDe180 40 |
EQ1101GLJ | YC4E160-33 | EQ1128GLJ | YC4E160-42 |
EQ1101GLJ | YC4E160-33 | EQ1128GLJ | YC4E160-42 |
EQ1101GLJ | YC6J180-30 | EQ1128GLJ | YC6J180-42 |
EQ1101GLJ | ISDe185 30 | EQ1128GLJ | ISB170 40 |
EQ1101GLJ | ISDe180 30 | EQ1128GLJ | ISDe180 40 |
EQ1101GLJ3 | ISDe160 30 | EQ1128GLJ1 | ISDe180 40 |
EQ1101GLJ | YC4E160-30 | EQ1128GLJ | YC4E160-42 |
EQ1101GLJ | ISDe160 30 | EQ1128GLJ | ISDe180 40 |
EQ1101GLJ | YC4E160-30 | EQ1128GLJ | YC4E160-42 |
EQ1101GLJ | YC6J180-30 | EQ1128GLJ | YC6J180-42 |
EQ1101GLJ | YC4E160-30 | EQ1128GLJ | YC4E160-42 |
EQ1101GLJ | B170 30 | EQ1128GLJ | ISB170 40 |
EQ1101GLJ3 | B170 30 | EQ1128GLJ1 | ISB170 40 |
EQ1101GLJ | B170 33 | EQ1128GLJ | ISB170 40 |
EQ1101GLJ | B170 33 | EQ1128GLJ | ISB170 40 |
ater truck special function | A. Water tank capacity(L):6000L 10,000 Liters B. Sprinkling area(m):14-16m C. Suction lift(m):≥7m Water cannon range description Water cannon installed on the rear of the truck,also with operation platform,that operator can work on the platform.It can be used to clean road,trees,and also for emergency fire fighting. Water cannon range:≥60m,it can rotation with 360° degree freely | |
Manhole size(mm) | Man way access hole on top of tank; manhole diameter:¢500mm | |
Front spray function | Front spray bar with fan sprayer,spray range: ≥20m | |
Man walk way | With skid resistance man walk way on top of tank | |
Water pump model | 80QZB(F)-60/90S | |
Flow rate(L/m) | 1000 | |
Head of delivery(m) | 60 | |
Shaft power | 22.5 | |
Suction height (m) | 6.5 | |
Efficiency(%) | 95% |
Our water tank truck with different chassis, eg:DFAC, DFL, SINOTRUCK, CNHTC,NORTH BENS, FOTON, ISUZU, JAC, JMC, KAMA, YUEJIN, etc.
Our water tank series:
-----water tanker truck
-----sanitation water tank truck
-----sprinkler truck
-----water wagon truck
-----insulation water tank truck
-----pesticide sprinkling truck
-----water spraying truck
-----Mild steel water tank cart
-----Stainless steel tank water truck
-----Aluminum alloy water tanker
-----RHD watering cart
-----Water tank semi trailer
-----Storage water tanker
