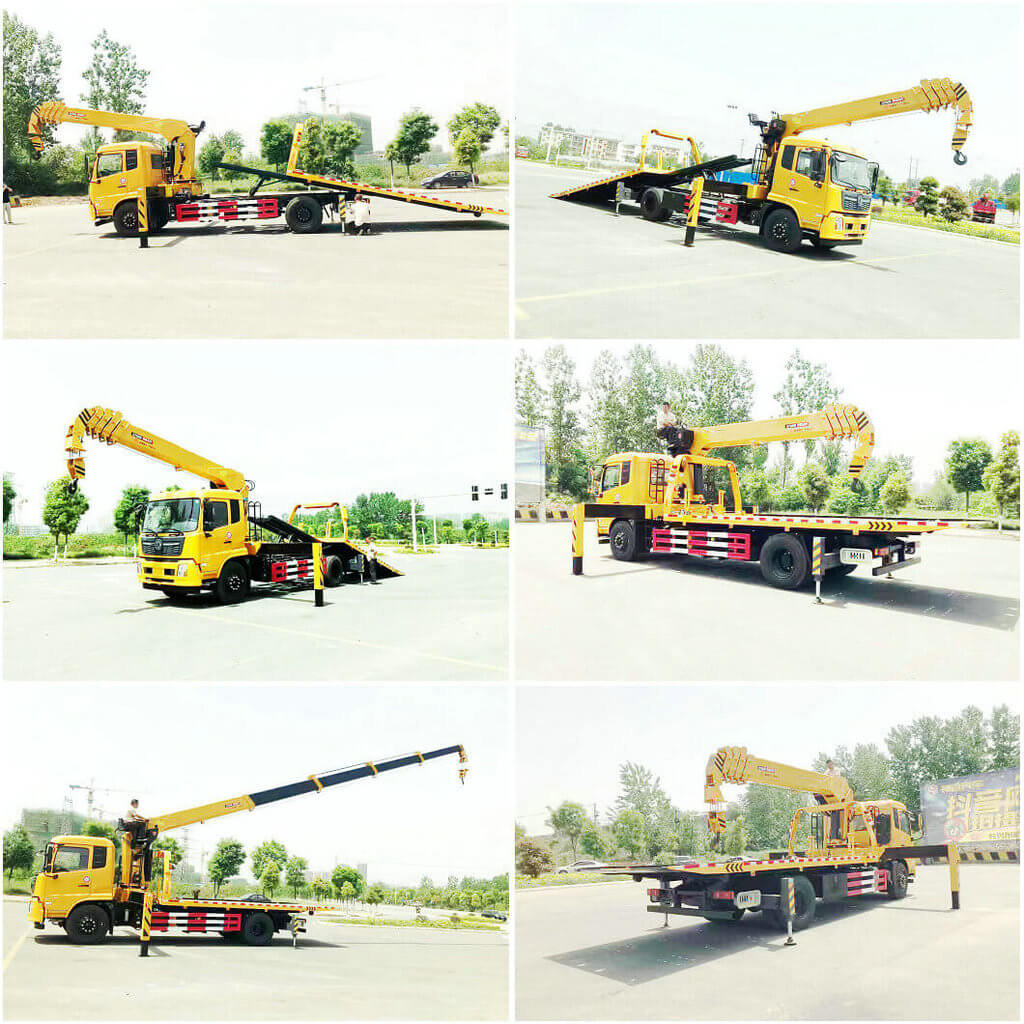

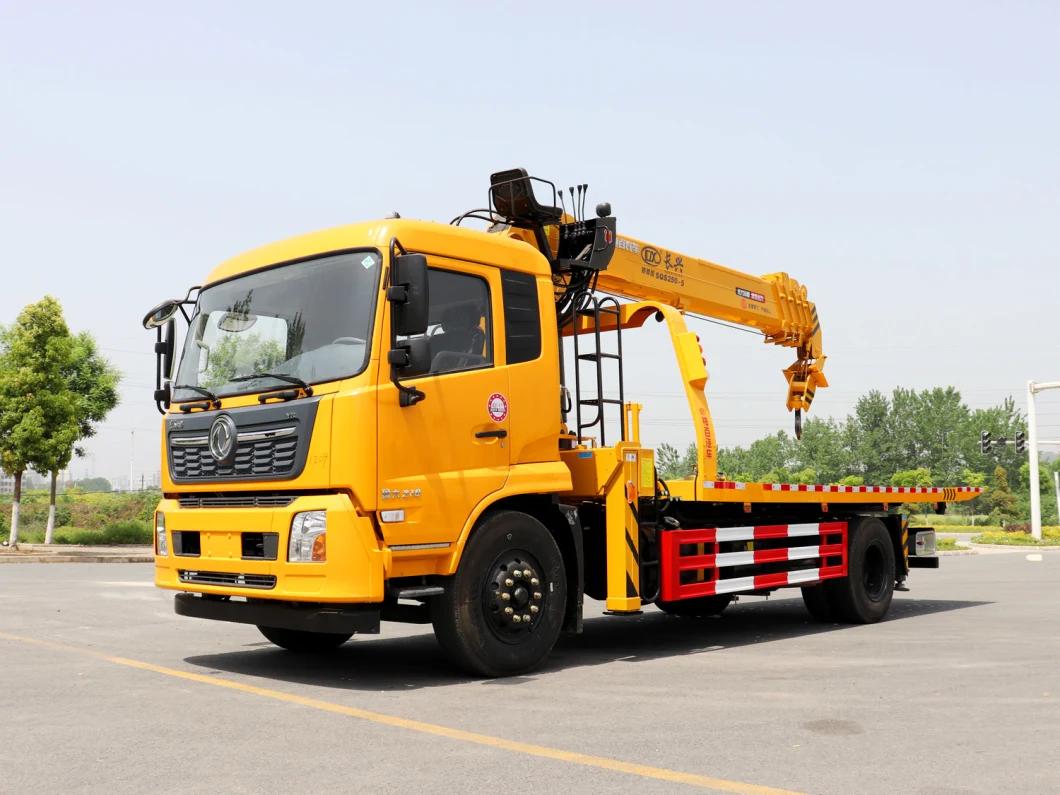

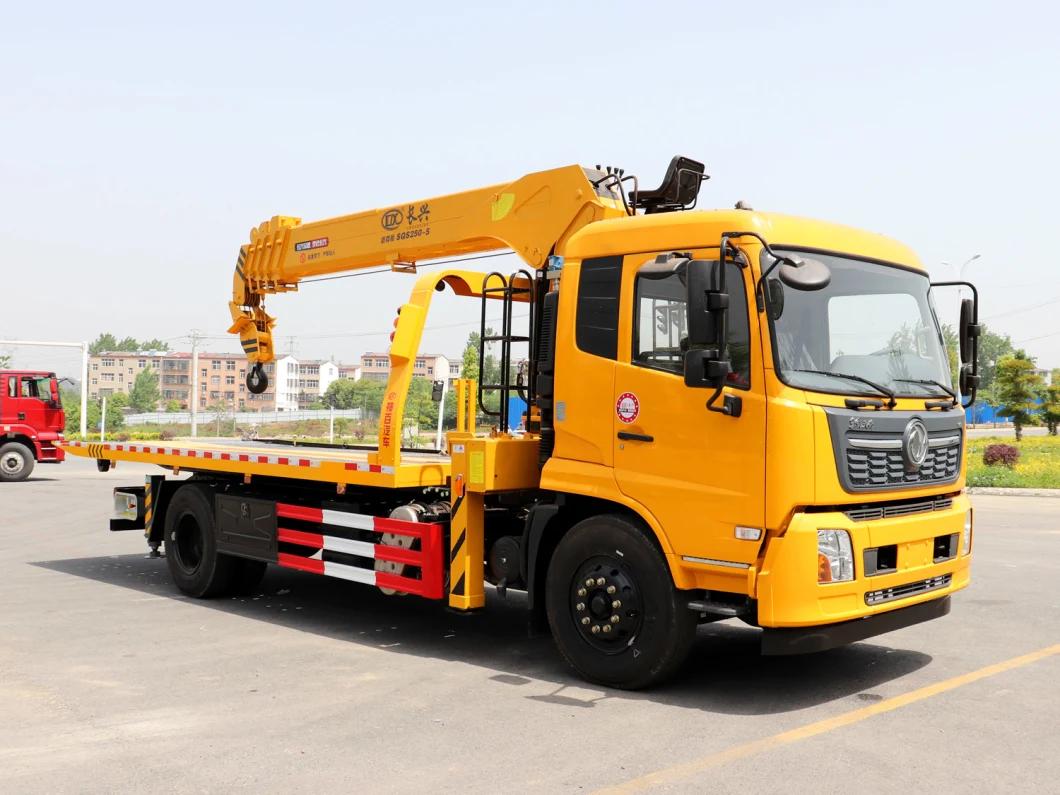

King Run Tilt Tray Rollback Flatbed Tow Truck with 8ton Recovery Hydraulic Winch 8ton Crane
| Product name | Dongfeng 4X2 Tow Trucks With 8 / 10 Ton boom Crane (Wrecker With Crane) | Max Speed | 89km/h | Crane | 8/10 ton boom crane |
| Chassis Brand | Dongfeng | Axles | 2 | Arms sections | 4 |
| Rated loading weight | 10000KG | Engine Brand | Dongfeng | Max lifting capacity | 10 ton |
| Curb weight | 12000KG | Horse Power | 200hp | Max lifting height | 15.6 m |
| Dimensions | 7000x2550x3650mm | Emissions | 4160ml | Max working radius | 13.6 m |
| Cargo body dimension | 4200x2460 | Cab | one and half row | Operation pressure | 25 mpa |
| Wheelbase | 4200mm | Tire | 6 | Deadweight of crane | 3970KG |
| Drive type | 4X2 | Gross weight | 18000kg | Rotation angle | 360 full rotation |
| Note: the Chassis, Engine and Crane all support Customization | |||||

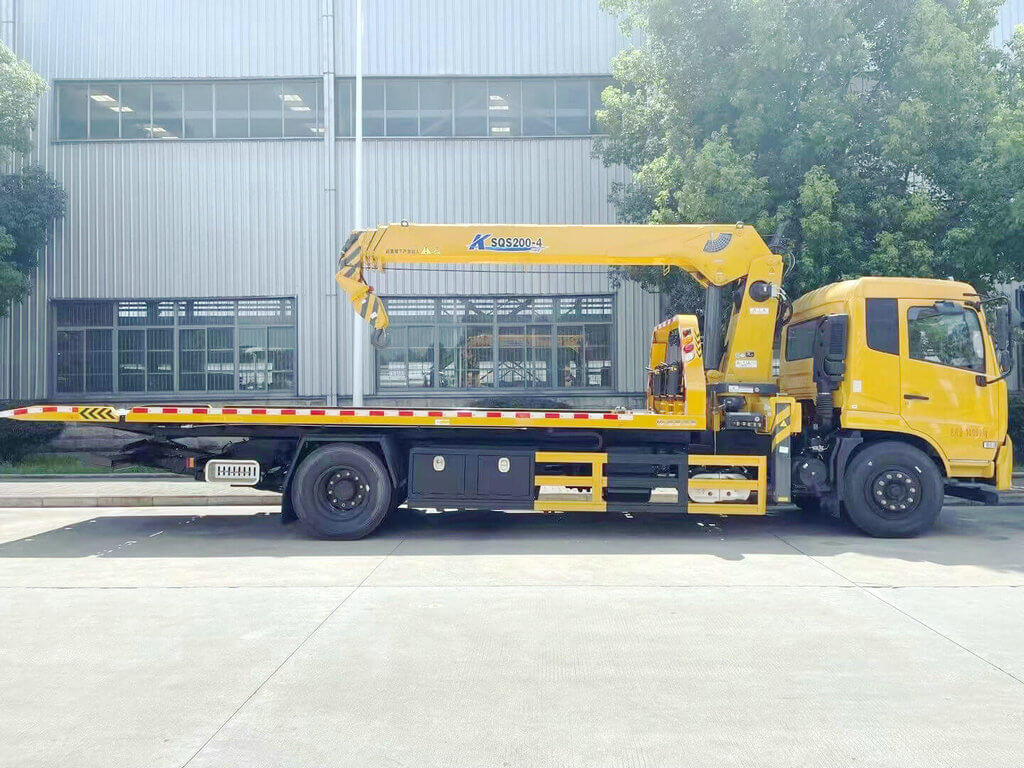

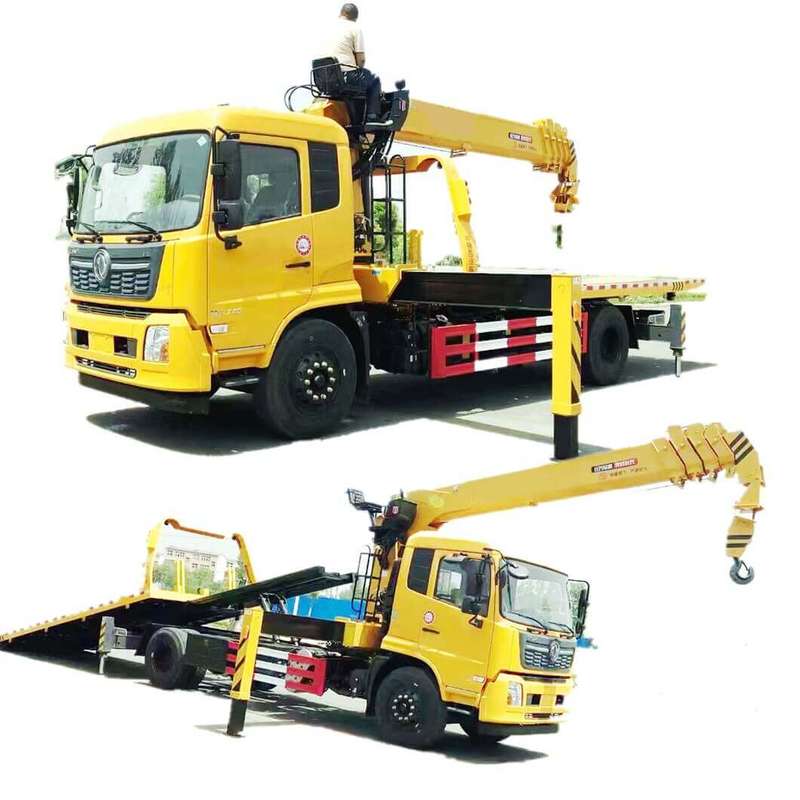

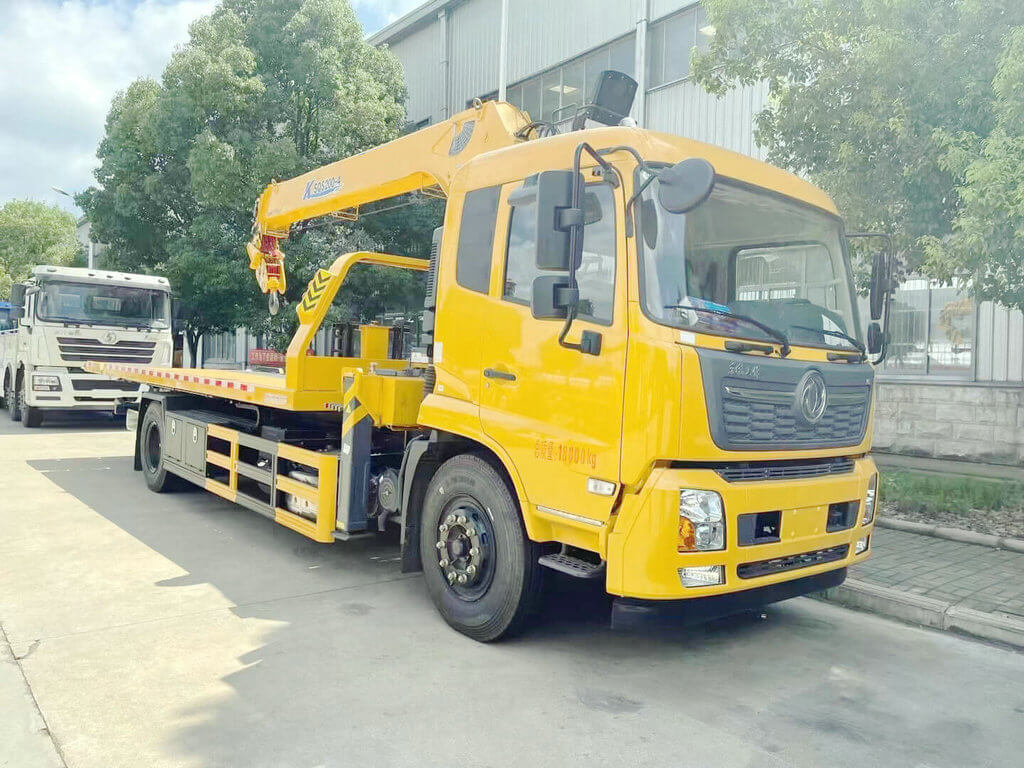

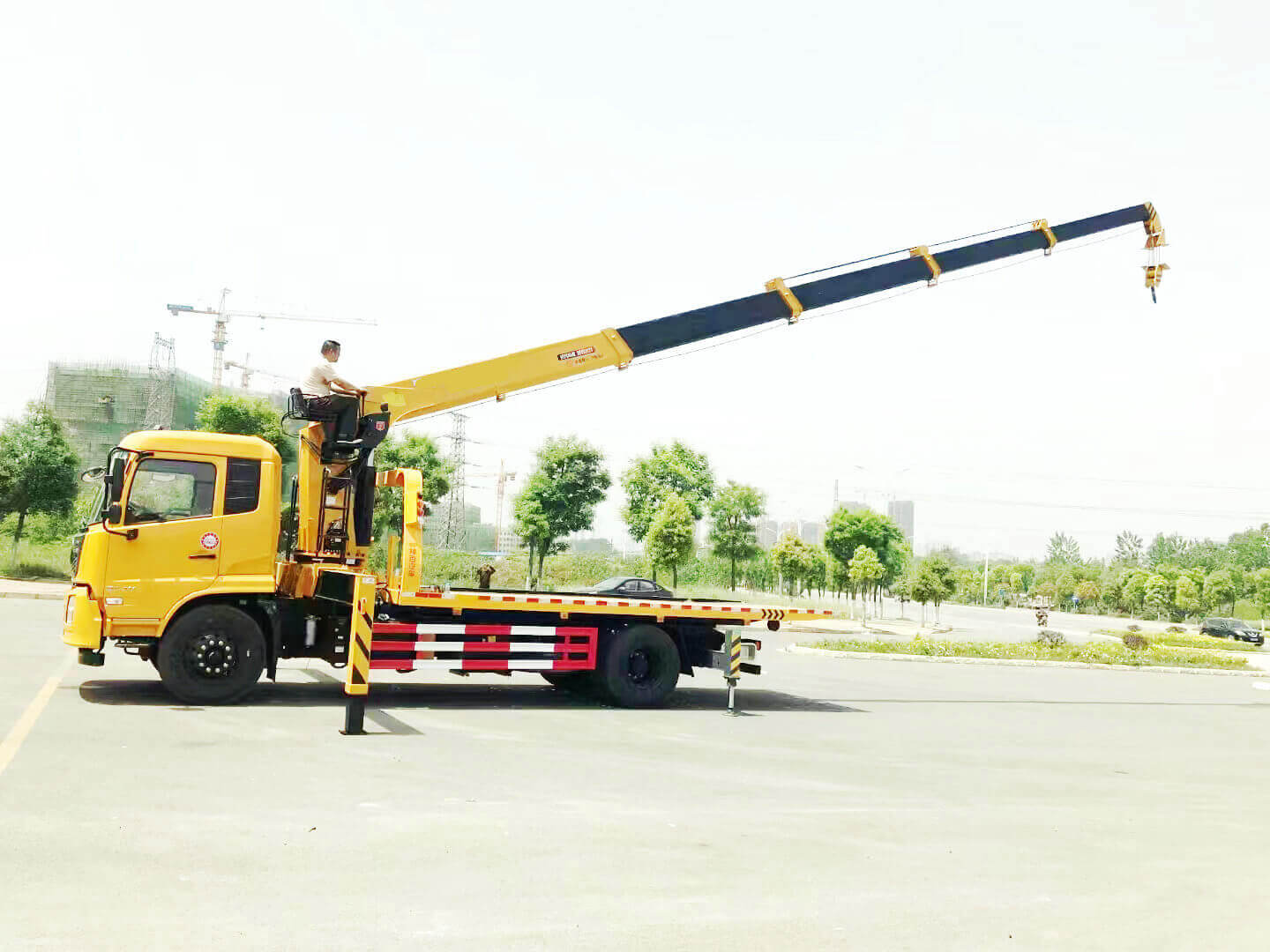

Heavy Car Carrier Flatbed Reovery Truck Mounted 8Ton boom Crane
| General Technical Parameters | |||
| Overall Dimension | 9440x2480x2760 (mm) | ||
| Gross Vehicle Weight | 12495kg | ||
| Curb Weight | 10000kg | ||
| Chassis Specification | |||
| Chassis Parameters | Chassis Brand | Dongfeng | |
| Cabin | Row and half, Right Hand Driving | ||
| Engine | Model | ISD180 50, 4 Cylinders | |
| Power | 132KW/180HP | ||
| Emission Standard | EURO 3/4/5/6/ | ||
| Displacement | 4.5L | ||
| Fuel Type | Diesel | ||
| Gearbox | 6 Forward & 1 Reverse Gear | ||
| Front and Rear Axle Load | 4.5T/9T | ||
| Wheel Base | 4700(mm);5000mm | ||
| Overhang( Front/Rear) | 1015/2450(mm) | ||
| Angle(Approach/departure) | 24/9(°) | ||
| Brake System | Air Brake | ||
| Steering Gear | Power Assistant | ||
| Tire | 9.00R20, 10.20R206 Pieces with 1 Spare Tire | ||
| Maximum Speed | 110(km/h) | ||
| Superstructure | |||
| Flatbed | Dimensions | 6000x2400 (mm) | |
| Max. Loading Weight | 8000(kg) | ||
| Operating Stroke | 2700 (mm) | ||
| Min. Angle of Slope | 8(°) | ||
| Platform Height from the Ground | 1070(mm) | ||
| Winch | Quantity | 1pc | |
| Winch Rating Pulling Capacity | 6000 (kg) | ||
| Length of Steel Cable | 35 (m) | ||
| Hoisting Organ | Rating Under-Pulling Capacity | 6000 (kg) | |
| Rating Under-Hoisting Capacity | 2000 (kg) | ||
| Fully Extended Max Under-Hoisting Capacity | 1600 (kg) | ||
| Max Under-Hoist Useful Length | 1640 (mm) | ||
| Boom Type | Telescopic Boom | ||
| Remarks | 1. Equiped with One Set of Auxiliary Wheels 2. Bandages 4pcs 3. Yellow Warning Lamp 1pc 4. Double Side Hydraulic Operation 5. Can Tow 2 Cars 6. Outrigger 2pcs | ||
| Parameters of the Crane | ||
| Item | Unit | Value |
| Max Lifting Capacity | kg | 8000@2.5m |
| Max lifting height | M | 14 |
| Max working range | M | 11.5 |
| Max Lifting Moment | T.M | 20 |
| Recommend Power | kw | 27 |
| Max Oil Flow of Hydraulic System | L/min | 55 |
| Max Pressure of Hydraulic System | Mpa | 27 |
| Oil Tank Capacity | L | 160 |
| Crane Weight | kg | 3315 |
| Installation Space | mm | 1200 |
| Rotation Angle | ° | 360° All Rotation |
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
3308 | 75 | 4495 | / | / | 4230+88 0 4170+1000 | 2280 | 7 | 2700 | 2000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
3360 | 72 | 4495 | / | / | 4230+880 4170+1000 | 2280 | 7 | 2700 | 2000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
3800 | 115/ 95/ 105 | 8275 | 3000 | 1500 | 5560 5440+1035 | 2380 | 8 2 | 2700 ALL | 3000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
3800 | 115 | 8280 | 3000 | 1500 | 5560 5440+1035 5560 | 2380 | 8 2 4 | 2700 ALL ALL | 3000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
4150 | 96 | 8280 | 3000 | 1500 | 5560 | 2380 | 8 | 2700 | 3000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
3815 | 112 | 8210 | 3000 | 1500 | 5560 5440+1035 5560 | 2380 | 8 2 4 | 2700 Full Full | 3000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
3800 | 103 | 8280 | 3000 | 1500 | 5560 | 2380 | 8 | 2700 | 3000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
4500 | 121 | 8490 | 3000 3500 | 1500 2000 | 6000 6350 | 2380 | 8 | 2700 3290 | 3000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
4475 | 141 15 | 10000 | 3500 | 2000 | 6350 6400 | 2480 2380 | 8 2 | 3290 ALL | 5000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
5200 | 141 | 10000 | 3500 | 2000 | 7600 | 2480 | 8 | 3600 | 5000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
4700 | 115 | 10000 | 3500 | 2000 | 6350 | 2480 | 8 | 3290 | 5000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
4700 5000 | 132 | 12490 | 3500 | 2000 | 6350 7160 | 2480 | 10 | 3290 | 5000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
4700 | 125 | 9990 | 3500 | 2000 | 6350 6400 | 2380 | 8 | 3290 ALL | 5000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
4700 | 125 | 13495 | 3500 | 2000 | 6350 6400 | 2480 238 | 10 2 | 3290 ALLA | 5000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
4700 | 132 | 12490 | 3500 | 2000 | 6350 | 2380 | 10 | 3290 | 5000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
5200 | 132 | 13490 | 3500 | 2000 | 7600 8000 | 2480 | 10 | 3600 | 5000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
wheel base | engine power | max towing | under lifting system | flat bed | Winch | ||||||
(mm) | (kw/r/min) | (kg) | max hoisting(kg) | max hoisting all extended(kg) | Length(mm) | Width(mm) | min tilt angle(°) | flat bed in/out(mm) | Max carrying of flat bed(kg) | Qty.(pcs) | Rated of pulling for each one(KN) |
5825+1350 | 249 | 25000 | 16000 | 6000 | 7550 | 2500 | / | / | 15000 | 1 | 40 |
Note: All ratings specified are based on structural factors of towing and lifting equipment only, not vehicle capacities or capabilities.
Wheel Base | Engine Power | Max Towing | Under Lifting System | Flat Bed | Winch | Notice | ||||||
(mm) | (kM) | (kg) | Max Hoisting(kg) | Max Hoisting All Extended(kg) | Length(mm) | Width(mm) | Min Tilt Angle(°) | Flat Be d In/Out(mm) | Max Carrying Of Flat Bed(kg) | Qty. | Rated Of Pulling For Each One(kN) | P.S |
3360 | 85 | 4495 | / | / | 4230+880 | 2280 | 7 | / | 1850 | 1 | 40 | / |
Wheel Base | Engine Power | Max Towing | Under Lifting System | Flat Bed | Winch | Notice | ||||||
(mm) | (kM) | (kg) | Max Hoisting(kg) | Max Hoisting All Extended(kg) | Length(mm) | Width(mm) | Min Tilt Angle(°) | Flat Be d In/Out(mm) | Max Carrying Of Flat Bed(kg) | Qty. | Rated Of Pulling For Each One(kN) | P.S |
3360 | 85/3200 | 4495 | / | / | 4230+880 | 2280 | 7 | / | 1850 | 1 | 40 | / |
There are five commonly used wrecker tow truck , usually depending on the type or size of the recovery wrecker :
First type : Boom towing truck
