Dongfeng Off Road 6*6 Water Bowser 7Tons Water Tanker 6×6 Fire Truck
Views: 1259 Author: Dong Runze Special Vehicle Publish Time: 2017-11-07 Origin: Dong Runze Special Vehicle
Dongfeng 6*6 Water Tanker Sprinkler,water tank truck
1.All Wheel Drive 6*6 6WD Water Tank Fire Truck,
2.with Cummins Engine 160HP -210HP,
3.12.5R20 radial off road tire
4.water tank capacity: 8000Liters
5. With Fire Monitor, FIre Pump. Multifunction with fire truck and water truck
6. 6WD All Wheel Drive good price and fast delilvery.

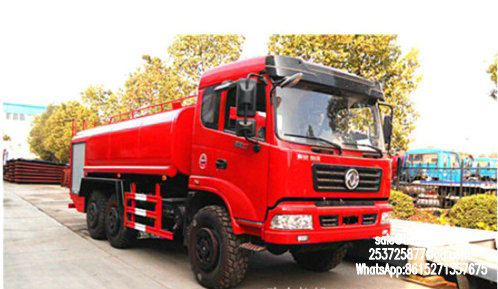

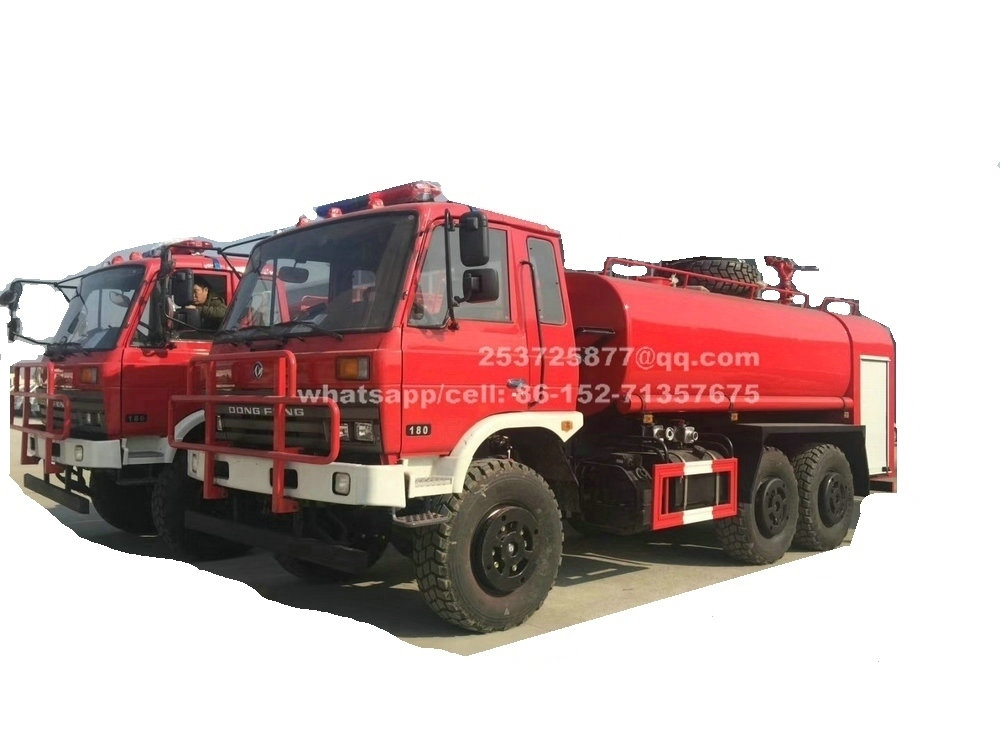

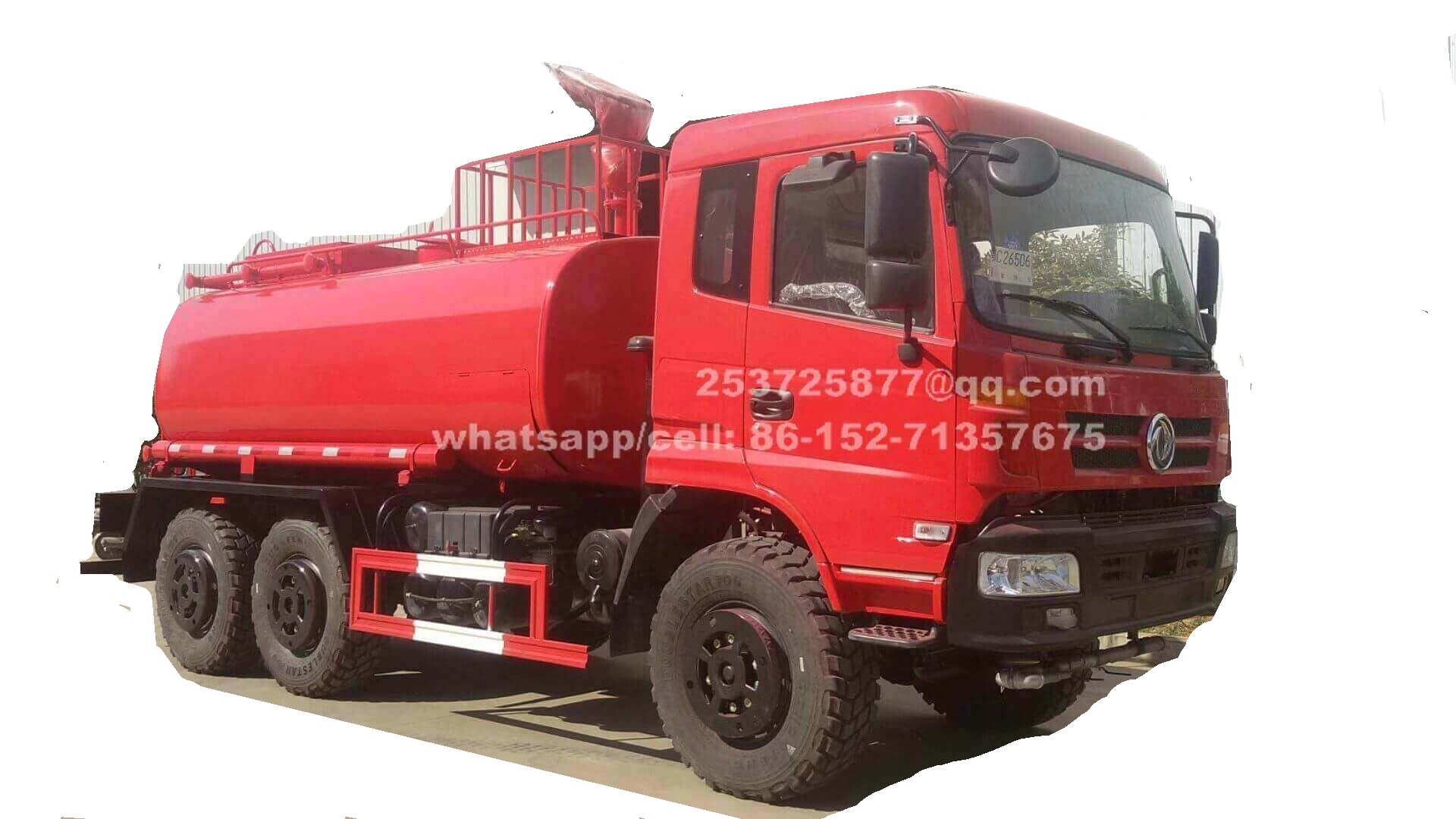

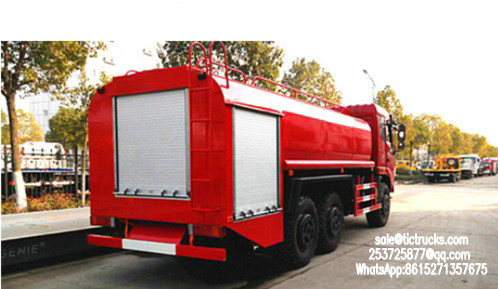

The Photos of all Wheel Drive Truck Left/Right Hand Drive 6×6 Fire Truck Water Tank:
All Wheel Drive Truck Left/Right Hand Drive 6×6 Fire Truck Water Tank
equip Fire Pump, Fire Monitor, Optional Front Spraying Nozzle. with Mulitifunction of Water truck and Fire Truck.
11.Spraying Range by Fire Monitor: more than 50m
Fire Water Truck equips with Special Fire pump, fire monitor, fire Power Take Off. The fire monitor can be installed on the top of tank or at the rear of truck. With fire Connection, can be fill water through Fire Hydrant, with self-discharge valve.
The fire water tank truck with big capacity water tank body, can transport the water and fire personal away the fire to put off the fire, it also can put our the fire directly suction the water source, or supply the water to other fire truck and fire fighting equipment. The fire water tank truck also can supply and transport water to dry areas, it is suit for to put out the common fire. It is suit for police fire brigade and the fire brigade of enterprises. Meantime, the water fire fighting truck is suit for landscaping, fire sprinkler, fire, mine dust, put out the fire for living area, fire power plant.
the specification of all Wheel Drive Truck Left/Right Hand Drive 6×6 Fire Truck Water Tank:
| Chassis model | Dong Feng 6*6 chassis | |
| Traction type | 6×6 | |
| The total mass(kg) | 10940 | |
| Rated loading weight(Kg) | Off-road3500kg,highway5000kg | |
| Overall size(mm) | length | 7495 |
| width | 2470 | |
| height | 2740 | |
| wheelbase(mm) | 3475+1250 | |
| Wheel span(front/rear)(mm) | 1876/1870 | |
| Minimum turning radium(m) | 18.8 | |
| Approach/departure angle( 0 ) | 35/34 | |
| engine | manufacturer | DONGFENG CUMMINS CO.LTD |
| model | EQ6BT5.9 | |
| power(Kw)/(r/min) | 118/2800 160HP | |
| Max torque(N.m)/(r/min) | 546/1700 | |
| clutch | Φ350mmsingle sheet ,dry, hydraulic | |
| gearbox | 5 speed manual | |
| Front axle | 3.7 T | |
| Rear axle | 4T double axles | |
| steering | Power steering | |
| tire | 12.5R20 radial off road tire | |
| Frame profile size(mm) | 232×75×6.5 | |
| Cab | DONGFENG FLAT DOUBLE row cab | |
| Tank volume (L) | Main tank 145L+backup tank 50L | |
| Max speed (Km/h) | 90 | |
| Grade ability | Loading 3500kg,no trailer | 60% |
| loading3500kg,pull4800kg | 40% | |
| Brake distance(loading3500kg,no trailer, speed 30km/h) | 8m | |
| Fuel consumption(L/100km)(loading3500kg,) | 26.5 | |
| Max running distance(km) | 700 | |
| Cross water depth(m) | 1 | |
| others | PTO and capstan are optional | |
| Special function: | ||
| Tank capacity | 8000 liters | |
| Material of the tank | High quality Q235 | |
| with Fire Montior, Fire Pump. | ||
