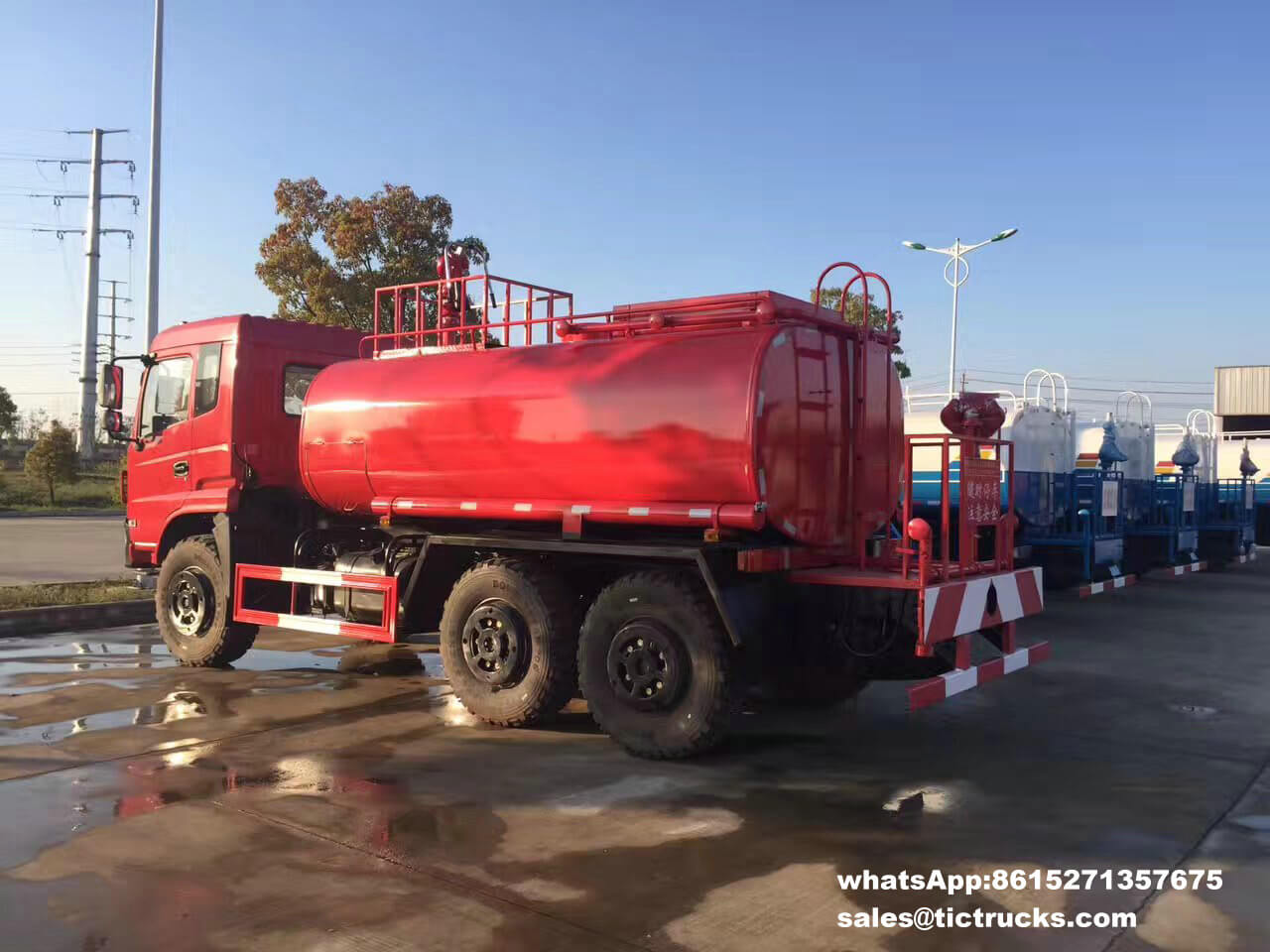

Dongfeng off Road 6x6 All Wheel Drive Water Truck with Fire Pump
carbon steel water tank, manhole, fire pump, front spray nozzle,rear working platform,fire gun,fire valve, water valve, filter gauze,water hose
| FOB: | |
|---|---|
| Availability: | |
| Quantity: | |
|
| |
-
DRZ5251GSSXF66
-
Dong run ze
-
8705309000
Dongfeng off Road 6x6 All Wheel Drive Water Truck with Fire Pump
3200 gallons water tanker fire truck LHD,RHD
Dongfeng 5000Lwater tank lorry Fire Truck 4x2
Dongfeng off Road 6x6 All Wheel Drive Water Truck with Fire Pump
Dongfeng 6*6 fire truck adopts dongfeng DFS5160GLJ original military chassis. Comparing to other chassis, the dongfeng 6*6 off road chassis is with large power, large tyres, strong climbing grade, suitable for hillways and deserts, etc.
DONGFENG 6*6 fire truck is with simple equipments at the rear part for some simple fire fighting equipments. And the tank volume of this fire truck is about 10cbm, equips with CB10/40 fire fighting pump, PS40 fire fighting moniter, and the range is above 55m.
Main aprameters | |||
Product name | Water sprinkling truck | model | 5165GPSD |
Total m ass(Kg) | 16500 | Tank volume(m3) | 9 |
Rated mass | 8645 | Overall dimension(mm) | 7950×2470×2850 |
Curb mass | 7660 | Driver Cab person | 3 |
Appraoch/deaprture angle | 35/18 | Front/rear suspension(mm) | 1385/1815 |
Axle nos. | 3 | wheelbase(mm) | 3500+1250 |
Alxe load(kg) | 4200/6150/6150 | Max speed(Km/h) | 95 |
Chassis main parameters | |||
Chassis model | DFS5160GLJ | Chassis manufacturer | dongfeng |
Overall dimension(mm) | 7500,7565×2470×2740,2850 | Tyre nos. | 6 |
Approach/departure angle | 35/36,38/36 | Tyre specification | 12.5R20 |
Steel spring | 10/12 | Front tread(mm) | 1916 |
Fuel type | diesel | Rear tread(mm) | 1876/1876 |
Emission standard | Euro 4 | ||
Engine model | Manufacturer | displacement | power |
YC6J180-42 | Yuchai | 6494 | 132 |
Overall Measurement(L*W*H)(mm) 8450 x 2470 x 3650
Chassis Brand Dongfeng
Driving form6x6, left hand drive(Option right hand drive)
Wheel Base (mm)3500+1250
Curb Mass(kg)8285
GVW(kg)16500
Water Tank Capacity(L)8020
Engine Power(kw)132
Max Vehicle Speed(km/h)80
Fire Pump ModelCB10/40
Monitor ModelSP40
Water Pump Pressure (Mpa)1.0
Monitor Flow Rate (L/s)40
Monitor Range (m)65
Water Pumper Inlet Diameter (mm)150
Water Pumper Outlet Diameter (mm)100
Water Tank Inlet Diameter (mm)80
Proportioning Mixer Yes
Driver’s Cab (persons) 2+4
Chassis parameters | |||||
Chassis model | DFS5160GLJ | Chassis brand | DONGFENG | ||
Overall dimensions | 7680X2500X2850mm | Wheel base | 3500+1250mm | ||
Front/rear wheel track | 1916/1876mm | Front/rear suspension | 1510/1800mm | ||
Approach/departure angle | 35/34° | Maximum speed | 90km/h | ||
Chassis Manufacturer | Dongfeng Motor Company | ||||
Cab | Configuration | a row and a half cab(with sleeping berth),allowable 3 passengers, air conditioner. | |||
Color | White, other color is optional | ||||
Engine | Model | ISB190 33 | |||
Emission | Euro 3 | ||||
Type | 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, direct injection,diesel engine | ||||
Rated power | 190hp,rated power speed 2500rpm | ||||
Displacement | 6700ml | ||||
Max.torque | 640N.m | ||||
Bore x stroke | 102x120mm | ||||
Manufacturer | Dongfeng Cummins Engine Co.,Ltd | ||||
Tire | Size | 12.5R20 steel wire tire | |||
Number | 6+1 nos | ||||
Clutch | Φ350 diaphragm clutch | ||||
Fuel tank | 350L | ||||
Front axle | 4.1 tons | ||||
Rear axle | 4.4 tons | ||||
Drive form | 6X6 | ||||
Rated voltage | 24V,DC | ||||
Transmissions | 6 speed forward 1 reverse | ||||
Steering device | Power assisted steering | ||||
Steering wheel | Left hand drive | ||||
Selectiveconfiguration | |||||
If there is a slight change in the chassis parameters above,please take the actual product as the standard | |||||
Dongfeng 6x6 Off-Road Fire Truck chassis view
The total mass | 16500 (Kg) | Curb Weight | 7660 (Kg) |
Wheelbase | 3500+1250 (mm) | Chassis Model | DFS5160GLJ |
Approach / departure angle | 35/18 (°) | Front overhang / rear overhang | 1385/1815mm) |
Dimensions | 7950×2470×2850 (mm) | Axle load | 6000/10000(Kg) |
Number of axes | 2 | Maximum speed | 95 (km/h) |
Tire Specifications | 12.5R20 | Number of tires | 6 |
Front track | 1916(mm) | Rear track | 1876/1876(mm) |
Emission standards | Euro 4 | Type of fuel | diesel |
Engine Model | Engine Manufacturer | Engine displacement | Engine power |
YC6J180-42 ISDe185 40 | Guangxi yuchai machinery co.,LTD Dongfeng cummins engine co., LTD | 6494 6700 (ml) | 132 136 (kw) |
Product Price | Should be configured with different vehicles and different coat materials, we recommend that you contact us | ||
3200 gallons water tanker fire truck LHD,RHD
(1) ( Body) | ||
Name | water tanker fire truck | |
Country of Origin | China | |
Cab | cabin (two doors) with Air - Condition, | |
Dimension (mini) | ( 9800 x 2470 x 3380 ) mm | |
Mininum Size of Tyre | 11.00R20 | |
The number of Tyre | 10 + 1 (Spare tyre) | |
Mininum Speed | 90 Km/hr | |
Water tank capacity | 3200 gals (To reduce the action of Water waves.) | |
Suspension (Front) | Leaf Spring | |
Suspension (Rear) | Leaf Spring | |
Wheelbase ( mm) | 4350 + 1300 | |
Required U Shape (6") at the end of relay pipe. | ||
Search light must be fitted left or right. | ||
(2) ( Engine) | ||
Engine Rated power | 240 HP | |
Engine type | 4 Stroke Water Cooling | |
Direct Injection | ||
Engine Fuel | Diesel Oil | |
Driving type | 6 x 4 | |
Gear Link | Lug type | |
Ball quality is required to improve in the transfer gear box. | ||
(3) ( Pump & Pipe) | ||
Type of fire pump | Centrifugal pump | |
Minimum pressure | 1.0 mpa | |
Minimum fire pump capacity | 30 L/S | |
Fire fighting pump Suction depth | > 7 m | |
Fire fighting pump Suction Time | < 35 s | |
Time | ||
Delivery outlet (B/S type) | 65 mm (2 ½ inch) | |
Fire fighting nozzle range | > 55 m | |
Rotation angle of fire fighting | 360° | |
Pipe Line (Inlet) | 4"ø one on both side | |
Pipe Line (Outlet) | 21/2 ø two on both side | |
Vacuum pump valve must be located on the control box. | ||
Pump inlet pipe must be located (1") above the tank base. | ||
Vacuum cut-off quality is required to improve. | ||
Rod system is possible for pump gear. | ||
Main pump should be fitted (4") ball valve. | ||
(4) ( Accessories) | ||
Fire Electric siren | 1-Nos | |
Emergency rotation lamp | 1-Nos | |
Fire axe | 1-Nos | |
Fire hook | 1-Nos (Must be applied to climb) | |
Fireman ladder ( Extension ladder) | 1-Nos ( Metal Ladder) | |
Jet & Spray Nozzle | 1-Nos | |
Jet nozzle | 1-Nos | |
Fire hoses (B/S System) | 4-Nos | |
Suction pipe (Lengrh 4m) | 2-Nos | |
Water filter (Metal) | 2-Nos | |
Suction pipe wrench (ø 100 mm) | 2-Nos | |
Fire hydrant wrench | 2-Nos | |
Pipe quality is required to improve. | ||
To contain fire extinguisher. ( 3 Kg) | ||
Seat of hydraulic jack and wheel spanner quality are required to improve. | ||
2,
DONGFENG fire truck spraying water, righ hand drive optional, Euro III optional, engine power optional, water tanker material(carbon steel, stainless steel, aluminum alloy) optional, fire pump brand optional, etc., custom according the user detailed requirement, such as Southeast Asia, Africa, Middle East, South America, standard configuration include pump chamber, equipment boxes, power output and transport systems, etc., widely used in urban public security fire brigades, factories, mines, forests, ports etc, it can quickly approaching the fire started sites, fighting all kinds of fires, is the ideal equipment.
TRUCK CHASSIS
MANUFACTURER DONGFENG
Oversize 9950x2490x3200mm
Chassis model EQ5253GFJ2
GVW 24700kg
CW 9150kg
Max speed 85 kw/h
Drive type 6*4
Axle No. 3
Axle capacity 6700/18000(two rear axles together)kg
Wheelbase 4350+1300mm
Tire specification 10.00-20 16PR
Suspension type leaf spring 9/10
ENGINE PARAMETER
Manufacturer DONGFENG CUMMINS
Part No. B210
Fuel type diesel
Displacement 5900ml
Power 162kw, 220hp
Emission standard Euro 3
SUPERSTRUCTURER
WATER TANKER
Tanker body material Carbon steel
Tanker capacity 16100L, 4253 gallons
Tanker size 6980×2300×1500mm
FIRE FIGHTING EQUIPMENTS
PUMP AND PIPE
Type of fire pump Centrifugal pump
Minimum fire pressure 1.0 mpa
Minimum fire pump capacity 30 L/S
Fire fighting pump Suction depth > 7 m
Fire fighting pump Suction Time < 35 s
Delivery outlet (B/S type) 65 mm ( 2 ½ inch )
Fire fighting nozzle range > 55 m
Rotation angle of fire fighting Turret Nozzle 360
Pipe Line (Inlet) 4” Ø one on both side
Pipe Line (Outlet) 2 ½ Ø two on both side
RESCUE ACCESSORIES
ACCESSORIES
Electric siren
Emergency rotation lamp
Fire axe
Fire hook
Fireman ladder Extension Ladder, 30’<
Jet & Spray Nozzle
Jet Nozzle
Fire hoses B/S System, Ø 65mm 20m
Suction Pipe Length 4 m
Water Filter Metal and Guide rope
Suction pipe wrench Ø100 mm
fire extinguisher
OTHER EQUIPMENTS: fire helmets, fire fighting clothes, fire gloves and fire boots, fire belts and safety hooks, respiratory protective equipment, built-in heavy chemical warfare suits, closed chemical suits, fire chemical suits, anti-nuclear military chemical warfare suits, simple anti-chemical warfare suits, mobile air supplier, double cylinders respirator, multi-purpose canisters, chemical gloves, electric insulation gloves, cut-resistant gloves, high temperature gloves, chemical safety boots.
Dongfeng 5000Lwater tank lorry Fire Truck 4x2
carbon steel water tank, manhole, fire pump, front/side/rear spray nozzle,rear working platform,fire gun,fire valve, water valve, filter gauze,water hose, climbing ladder.
Fire truck hot sale | ||||||||||
Here the price is for standard configuration. Selective configuration and any change according to the buyer’s requirements please confirm the price with our company. | ||||||||||
Standard configuration | Chassis,sub frame, van body,America DOPPON paint baking varnish,national standard equipment box, 25 units national standard fire-fighting equipment,fire | |||||||||
pump(CB10/20, CB10/30,CB10/40,CB10/60 according to the capacity), fire gun(PS20,PS30,PS40,PS50 according to the capacity),fire power take off, sliding gate, row type | ||||||||||
lights, reel, common tools,rear climbing ladder,water tank. | ||||||||||
Selective configuration | foam type,dry powder type,stainless tank,other requirements. | |||||||||
Vehicle model | Chassis brand | Chassis model | Load | Overall dimensions | Wheel base | Engine model | hp/standard | Tire | FOB Price | |
L | mm | mm |
| USD | ||||||
DRZ5050GXFSGE | DONGFENG | EQ1050NJ20D3 | 2500 | 6260X1900X2750 | 3300 | CY4102-C3F | 95/Euro 3 | 6.15-16 |
| 19980 |
DRZ5060GSSXFE | DONGFENG | EQ1060TJ20D3 | 5000 | 5980X1980X2380 | 3300 | CY4102-C3F | 95/Euro 3 | 7.00-16 |
| 14890 |
DRZ5090GSSXFE | DONGFENG | EQ1090T9ADJ3AC | 6000 | 6995X2285X2980 | 3800 | CY4102-E3C | 120/Euro 3 | 7.50R16 |
| 17990 |
DRZ5090GXFSGE | DONGFENG | EQ1090T9ADJ3AC | 4000 | 7025X2095X2840 | 3800 | CY4102-E3C | 120/Euro 3 | 7.50R16 |
| 25060 |
DRZ5100GSSXFE | DONGFENG | EQ1100FKJ | 7000 | 7350X2440X2990 | 3950 | YC4E140-33 | 140/Euro 3 | 9.00-20 |
| 18140 |
DRZ5108GSSXFE | DONGFENG | EQ1108KJ | 9000 | 7450X2480X3185 | 3950 | B170 33 | 170/Euro 3 | 9.00-20 |
| 21680 |
DRZ5108GXFSGE | DONGFENG | EQ1108KJ | 5000 | 7490X2500X2280 | 3950 | B170 33 | 170/Euro 3 | 9.00-20 |
| 28310 |
DRZ5126GXFSGE | DONGFENG | EQ1126KJ1 | 6000 | 8315X2500X3300 | 4700 | B190 33 | 190/Euro 3 | 9.00-20 |
| 36730 |
DRZ5141GSSXFE | DONGFENG | EQ1141KJ | 11000 | 8105X2490X3250 | 4500 | B190 33 | 190/Euro 3 | 10.00-20 |
| 23450 |
DRZ5141GXFSGE | DONGFENG | EQ1141KJ | 6000 | 8115X2500X3300 | 4500 | B190 33 | 190/Euro 3 | 10.00-20 |
| 36430 |
DRZ5253GSSXFE | DONGFENG | EQ5253GFJ2 | 15000 | 9950X2480X3750 | 4350+1300 | B210 33 | 210/Euro 3 | 10.00-20 |
| 31270 |
DRZ5090GXFSGPME | DONGFENG | EQ1090T9ADJ3AC | 2400 | 7025X2095X2840 | 3800 | B140 33 | 140/Euro 3 | 7.50R16 |
| 29050 |
DRZ5070GXFSGQ | ISUZU | QL1070A1KWY | 3000 | 6820X2000X2820 | 3815 | 4KH1-TCG40 | 120/Euro 4 | 7.00-16 |
| 32080 |
DRZ5160GXFSGQ | ISUZU | QL1160AMFRY | 6000 | 8360X2485X3420 | 4500 | 6HK1-TCNG40 | 240/Euro 4 | 10.00-20 |
| 67250 |
DRZ5250GXFSGQ | ISUZU | QL1250DRFZY | 15000 | 9775X2490X3560 | 5100+1300 | 6HK1-TCSG40 | 280/Euro 4 | 11.00-20 |
| 91450 |
DRZ50703GXFSGQ | ISUZU | QL10703HWRY | 2500 | 6260X1980X2780 | 3360 | 4JB1CN | 98/Euro 4 | 7.00-15 |
| 26770 |
DRZ51609GXFSGQ | ISUZU | QL11609MFRY | 6000 | 8070X2500X3370 | 4500 | 4HK1-TCG40 | 190/Euro 4 | 10.00-20 |
| 55590 |
DRZ5167GXFSGZ | SINOTRUK | ZZ1167M4617C | 8000 | 8820X2500X3450 | 4600 | WD615.92 | 266/Euro 3 | 11.00-20 |
| 59060 |
DRZ5257GSSXFZ | SINOTRUK | ZZ1257M4641W | 20000 | 9895X2496X2958 | 4325+1350 | WD615.92 | 266/Euro 2 | 12.00-20 |
| 43430 |
DRZ5257GXFSGZ | SINOTRUK | ZZ1257N4347C | 15000 | 9680X2500X3650 | 4325+1350 | WD615.69 | 336/Euro 3 | 12.00-20 |
| 70120 |
DRZ5257GXFSGZ1 | SINOTRUK | ZZ1257S4647C | 16000 | 10265X2500X3580 | 4600+1350 | WD615.96 | 375/Euro 3 | 12.00-20 |
| 69610 |
keywords:Dongfeng Fire Fighting Tanker Truck , Dongfeng Multifunctional Fire Truck , Dongfeng Fire Engine Truck , Dongfeng Fire Tanker Truck , Water Fire Fighting Tanker Truck , Fire Fighting Tank Truck , Water Fire Fighting Tank Truck , Dongfeng Fuel Tanker Truck
Dongfeng off Road 6x6 All Wheel Drive Water Truck with Fire Pump
Dongfeng 6*6 fire truck adopts dongfeng DFS5160GLJ original military chassis. Comparing to other chassis, the dongfeng 6*6 off road chassis is with large power, large tyres, strong climbing grade, suitable for hillways and deserts, etc.
DONGFENG 6*6 fire truck is with simple equipments at the rear part for some simple fire fighting equipments. And the tank volume of this fire truck is about 10cbm, equips with CB10/40 fire fighting pump, PS40 fire fighting moniter, and the range is above 55m.
Main aprameters | |||
Product name | Water sprinkling truck | model | 5165GPSD |
Total m ass(Kg) | 16500 | Tank volume(m3) | 9 |
Rated mass | 8645 | Overall dimension(mm) | 7950×2470×2850 |
Curb mass | 7660 | Driver Cab person | 3 |
Appraoch/deaprture angle | 35/18 | Front/rear suspension(mm) | 1385/1815 |
Axle nos. | 3 | wheelbase(mm) | 3500+1250 |
Alxe load(kg) | 4200/6150/6150 | Max speed(Km/h) | 95 |
Chassis main parameters | |||
Chassis model | DFS5160GLJ | Chassis manufacturer | dongfeng |
Overall dimension(mm) | 7500,7565×2470×2740,2850 | Tyre nos. | 6 |
Approach/departure angle | 35/36,38/36 | Tyre specification | 12.5R20 |
Steel spring | 10/12 | Front tread(mm) | 1916 |
Fuel type | diesel | Rear tread(mm) | 1876/1876 |
Emission standard | Euro 4 | ||
Engine model | Manufacturer | displacement | power |
YC6J180-42 | Yuchai | 6494 | 132 |
Overall Measurement(L*W*H)(mm) 8450 x 2470 x 3650
Chassis Brand Dongfeng
Driving form6x6, left hand drive(Option right hand drive)
Wheel Base (mm)3500+1250
Curb Mass(kg)8285
GVW(kg)16500
Water Tank Capacity(L)8020
Engine Power(kw)132
Max Vehicle Speed(km/h)80
Fire Pump ModelCB10/40
Monitor ModelSP40
Water Pump Pressure (Mpa)1.0
Monitor Flow Rate (L/s)40
Monitor Range (m)65
Water Pumper Inlet Diameter (mm)150
Water Pumper Outlet Diameter (mm)100
Water Tank Inlet Diameter (mm)80
Proportioning Mixer Yes
Driver’s Cab (persons) 2+4
Chassis parameters | |||||
Chassis model | DFS5160GLJ | Chassis brand | DONGFENG | ||
Overall dimensions | 7680X2500X2850mm | Wheel base | 3500+1250mm | ||
Front/rear wheel track | 1916/1876mm | Front/rear suspension | 1510/1800mm | ||
Approach/departure angle | 35/34° | Maximum speed | 90km/h | ||
Chassis Manufacturer | Dongfeng Motor Company | ||||
Cab | Configuration | a row and a half cab(with sleeping berth),allowable 3 passengers, air conditioner. | |||
Color | White, other color is optional | ||||
Engine | Model | ISB190 33 | |||
Emission | Euro 3 | ||||
Type | 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, direct injection,diesel engine | ||||
Rated power | 190hp,rated power speed 2500rpm | ||||
Displacement | 6700ml | ||||
Max.torque | 640N.m | ||||
Bore x stroke | 102x120mm | ||||
Manufacturer | Dongfeng Cummins Engine Co.,Ltd | ||||
Tire | Size | 12.5R20 steel wire tire | |||
Number | 6+1 nos | ||||
Clutch | Φ350 diaphragm clutch | ||||
Fuel tank | 350L | ||||
Front axle | 4.1 tons | ||||
Rear axle | 4.4 tons | ||||
Drive form | 6X6 | ||||
Rated voltage | 24V,DC | ||||
Transmissions | 6 speed forward 1 reverse | ||||
Steering device | Power assisted steering | ||||
Steering wheel | Left hand drive | ||||
Selectiveconfiguration | |||||
If there is a slight change in the chassis parameters above,please take the actual product as the standard | |||||
Dongfeng 6x6 Off-Road Fire Truck chassis view
The total mass | 16500 (Kg) | Curb Weight | 7660 (Kg) |
Wheelbase | 3500+1250 (mm) | Chassis Model | DFS5160GLJ |
Approach / departure angle | 35/18 (°) | Front overhang / rear overhang | 1385/1815mm) |
Dimensions | 7950×2470×2850 (mm) | Axle load | 6000/10000(Kg) |
Number of axes | 2 | Maximum speed | 95 (km/h) |
Tire Specifications | 12.5R20 | Number of tires | 6 |
Front track | 1916(mm) | Rear track | 1876/1876(mm) |
Emission standards | Euro 4 | Type of fuel | diesel |
Engine Model | Engine Manufacturer | Engine displacement | Engine power |
YC6J180-42 ISDe185 40 | Guangxi yuchai machinery co.,LTD Dongfeng cummins engine co., LTD | 6494 6700 (ml) | 132 136 (kw) |
Product Price | Should be configured with different vehicles and different coat materials, we recommend that you contact us | ||
3200 gallons water tanker fire truck LHD,RHD
(1) ( Body) | ||
Name | water tanker fire truck | |
Country of Origin | China | |
Cab | cabin (two doors) with Air - Condition, | |
Dimension (mini) | ( 9800 x 2470 x 3380 ) mm | |
Mininum Size of Tyre | 11.00R20 | |
The number of Tyre | 10 + 1 (Spare tyre) | |
Mininum Speed | 90 Km/hr | |
Water tank capacity | 3200 gals (To reduce the action of Water waves.) | |
Suspension (Front) | Leaf Spring | |
Suspension (Rear) | Leaf Spring | |
Wheelbase ( mm) | 4350 + 1300 | |
Required U Shape (6") at the end of relay pipe. | ||
Search light must be fitted left or right. | ||
(2) ( Engine) | ||
Engine Rated power | 240 HP | |
Engine type | 4 Stroke Water Cooling | |
Direct Injection | ||
Engine Fuel | Diesel Oil | |
Driving type | 6 x 4 | |
Gear Link | Lug type | |
Ball quality is required to improve in the transfer gear box. | ||
(3) ( Pump & Pipe) | ||
Type of fire pump | Centrifugal pump | |
Minimum pressure | 1.0 mpa | |
Minimum fire pump capacity | 30 L/S | |
Fire fighting pump Suction depth | > 7 m | |
Fire fighting pump Suction Time | < 35 s | |
Time | ||
Delivery outlet (B/S type) | 65 mm (2 ½ inch) | |
Fire fighting nozzle range | > 55 m | |
Rotation angle of fire fighting | 360° | |
Pipe Line (Inlet) | 4"ø one on both side | |
Pipe Line (Outlet) | 21/2 ø two on both side | |
Vacuum pump valve must be located on the control box. | ||
Pump inlet pipe must be located (1") above the tank base. | ||
Vacuum cut-off quality is required to improve. | ||
Rod system is possible for pump gear. | ||
Main pump should be fitted (4") ball valve. | ||
(4) ( Accessories) | ||
Fire Electric siren | 1-Nos | |
Emergency rotation lamp | 1-Nos | |
Fire axe | 1-Nos | |
Fire hook | 1-Nos (Must be applied to climb) | |
Fireman ladder ( Extension ladder) | 1-Nos ( Metal Ladder) | |
Jet & Spray Nozzle | 1-Nos | |
Jet nozzle | 1-Nos | |
Fire hoses (B/S System) | 4-Nos | |
Suction pipe (Lengrh 4m) | 2-Nos | |
Water filter (Metal) | 2-Nos | |
Suction pipe wrench (ø 100 mm) | 2-Nos | |
Fire hydrant wrench | 2-Nos | |
Pipe quality is required to improve. | ||
To contain fire extinguisher. ( 3 Kg) | ||
Seat of hydraulic jack and wheel spanner quality are required to improve. | ||
2,
DONGFENG fire truck spraying water, righ hand drive optional, Euro III optional, engine power optional, water tanker material(carbon steel, stainless steel, aluminum alloy) optional, fire pump brand optional, etc., custom according the user detailed requirement, such as Southeast Asia, Africa, Middle East, South America, standard configuration include pump chamber, equipment boxes, power output and transport systems, etc., widely used in urban public security fire brigades, factories, mines, forests, ports etc, it can quickly approaching the fire started sites, fighting all kinds of fires, is the ideal equipment.
TRUCK CHASSIS
MANUFACTURER DONGFENG
Oversize 9950x2490x3200mm
Chassis model EQ5253GFJ2
GVW 24700kg
CW 9150kg
Max speed 85 kw/h
Drive type 6*4
Axle No. 3
Axle capacity 6700/18000(two rear axles together)kg
Wheelbase 4350+1300mm
Tire specification 10.00-20 16PR
Suspension type leaf spring 9/10
ENGINE PARAMETER
Manufacturer DONGFENG CUMMINS
Part No. B210
Fuel type diesel
Displacement 5900ml
Power 162kw, 220hp
Emission standard Euro 3
SUPERSTRUCTURER
WATER TANKER
Tanker body material Carbon steel
Tanker capacity 16100L, 4253 gallons
Tanker size 6980×2300×1500mm
FIRE FIGHTING EQUIPMENTS
PUMP AND PIPE
Type of fire pump Centrifugal pump
Minimum fire pressure 1.0 mpa
Minimum fire pump capacity 30 L/S
Fire fighting pump Suction depth > 7 m
Fire fighting pump Suction Time < 35 s
Delivery outlet (B/S type) 65 mm ( 2 ½ inch )
Fire fighting nozzle range > 55 m
Rotation angle of fire fighting Turret Nozzle 360
Pipe Line (Inlet) 4” Ø one on both side
Pipe Line (Outlet) 2 ½ Ø two on both side
RESCUE ACCESSORIES
ACCESSORIES
Electric siren
Emergency rotation lamp
Fire axe
Fire hook
Fireman ladder Extension Ladder, 30’<
Jet & Spray Nozzle
Jet Nozzle
Fire hoses B/S System, Ø 65mm 20m
Suction Pipe Length 4 m
Water Filter Metal and Guide rope
Suction pipe wrench Ø100 mm
fire extinguisher
OTHER EQUIPMENTS: fire helmets, fire fighting clothes, fire gloves and fire boots, fire belts and safety hooks, respiratory protective equipment, built-in heavy chemical warfare suits, closed chemical suits, fire chemical suits, anti-nuclear military chemical warfare suits, simple anti-chemical warfare suits, mobile air supplier, double cylinders respirator, multi-purpose canisters, chemical gloves, electric insulation gloves, cut-resistant gloves, high temperature gloves, chemical safety boots.
Dongfeng 5000Lwater tank lorry Fire Truck 4x2
carbon steel water tank, manhole, fire pump, front/side/rear spray nozzle,rear working platform,fire gun,fire valve, water valve, filter gauze,water hose, climbing ladder.
Fire truck hot sale | ||||||||||
Here the price is for standard configuration. Selective configuration and any change according to the buyer’s requirements please confirm the price with our company. | ||||||||||
Standard configuration | Chassis,sub frame, van body,America DOPPON paint baking varnish,national standard equipment box, 25 units national standard fire-fighting equipment,fire | |||||||||
pump(CB10/20, CB10/30,CB10/40,CB10/60 according to the capacity), fire gun(PS20,PS30,PS40,PS50 according to the capacity),fire power take off, sliding gate, row type | ||||||||||
lights, reel, common tools,rear climbing ladder,water tank. | ||||||||||
Selective configuration | foam type,dry powder type,stainless tank,other requirements. | |||||||||
Vehicle model | Chassis brand | Chassis model | Load | Overall dimensions | Wheel base | Engine model | hp/standard | Tire | FOB Price | |
L | mm | mm |
| USD | ||||||
DRZ5050GXFSGE | DONGFENG | EQ1050NJ20D3 | 2500 | 6260X1900X2750 | 3300 | CY4102-C3F | 95/Euro 3 | 6.15-16 |
| 19980 |
DRZ5060GSSXFE | DONGFENG | EQ1060TJ20D3 | 5000 | 5980X1980X2380 | 3300 | CY4102-C3F | 95/Euro 3 | 7.00-16 |
| 14890 |
DRZ5090GSSXFE | DONGFENG | EQ1090T9ADJ3AC | 6000 | 6995X2285X2980 | 3800 | CY4102-E3C | 120/Euro 3 | 7.50R16 |
| 17990 |
DRZ5090GXFSGE | DONGFENG | EQ1090T9ADJ3AC | 4000 | 7025X2095X2840 | 3800 | CY4102-E3C | 120/Euro 3 | 7.50R16 |
| 25060 |
DRZ5100GSSXFE | DONGFENG | EQ1100FKJ | 7000 | 7350X2440X2990 | 3950 | YC4E140-33 | 140/Euro 3 | 9.00-20 |
| 18140 |
DRZ5108GSSXFE | DONGFENG | EQ1108KJ | 9000 | 7450X2480X3185 | 3950 | B170 33 | 170/Euro 3 | 9.00-20 |
| 21680 |
DRZ5108GXFSGE | DONGFENG | EQ1108KJ | 5000 | 7490X2500X2280 | 3950 | B170 33 | 170/Euro 3 | 9.00-20 |
| 28310 |
DRZ5126GXFSGE | DONGFENG | EQ1126KJ1 | 6000 | 8315X2500X3300 | 4700 | B190 33 | 190/Euro 3 | 9.00-20 |
| 36730 |
DRZ5141GSSXFE | DONGFENG | EQ1141KJ | 11000 | 8105X2490X3250 | 4500 | B190 33 | 190/Euro 3 | 10.00-20 |
| 23450 |
DRZ5141GXFSGE | DONGFENG | EQ1141KJ | 6000 | 8115X2500X3300 | 4500 | B190 33 | 190/Euro 3 | 10.00-20 |
| 36430 |
DRZ5253GSSXFE | DONGFENG | EQ5253GFJ2 | 15000 | 9950X2480X3750 | 4350+1300 | B210 33 | 210/Euro 3 | 10.00-20 |
| 31270 |
DRZ5090GXFSGPME | DONGFENG | EQ1090T9ADJ3AC | 2400 | 7025X2095X2840 | 3800 | B140 33 | 140/Euro 3 | 7.50R16 |
| 29050 |
DRZ5070GXFSGQ | ISUZU | QL1070A1KWY | 3000 | 6820X2000X2820 | 3815 | 4KH1-TCG40 | 120/Euro 4 | 7.00-16 |
| 32080 |
DRZ5160GXFSGQ | ISUZU | QL1160AMFRY | 6000 | 8360X2485X3420 | 4500 | 6HK1-TCNG40 | 240/Euro 4 | 10.00-20 |
| 67250 |
DRZ5250GXFSGQ | ISUZU | QL1250DRFZY | 15000 | 9775X2490X3560 | 5100+1300 | 6HK1-TCSG40 | 280/Euro 4 | 11.00-20 |
| 91450 |
DRZ50703GXFSGQ | ISUZU | QL10703HWRY | 2500 | 6260X1980X2780 | 3360 | 4JB1CN | 98/Euro 4 | 7.00-15 |
| 26770 |
DRZ51609GXFSGQ | ISUZU | QL11609MFRY | 6000 | 8070X2500X3370 | 4500 | 4HK1-TCG40 | 190/Euro 4 | 10.00-20 |
| 55590 |
DRZ5167GXFSGZ | SINOTRUK | ZZ1167M4617C | 8000 | 8820X2500X3450 | 4600 | WD615.92 | 266/Euro 3 | 11.00-20 |
| 59060 |
DRZ5257GSSXFZ | SINOTRUK | ZZ1257M4641W | 20000 | 9895X2496X2958 | 4325+1350 | WD615.92 | 266/Euro 2 | 12.00-20 |
| 43430 |
DRZ5257GXFSGZ | SINOTRUK | ZZ1257N4347C | 15000 | 9680X2500X3650 | 4325+1350 | WD615.69 | 336/Euro 3 | 12.00-20 |
| 70120 |
DRZ5257GXFSGZ1 | SINOTRUK | ZZ1257S4647C | 16000 | 10265X2500X3580 | 4600+1350 | WD615.96 | 375/Euro 3 | 12.00-20 |
| 69610 |
keywords:Dongfeng Fire Fighting Tanker Truck , Dongfeng Multifunctional Fire Truck , Dongfeng Fire Engine Truck , Dongfeng Fire Tanker Truck , Water Fire Fighting Tanker Truck , Fire Fighting Tank Truck , Water Fire Fighting Tank Truck , Dongfeng Fuel Tanker Truck
Related Products
SUCCESS CASES
More >>-
2023-12-226 pcs Metal Alky T21 UN3394 UN3399 Portable Tank TEAL DEAC MAO to SGP6 pcs Metal Alky T21 UN3394 UN3399 Portable Tank TEAL DEAC MAO to SGP Max. gross weight : 4000 kg Tare : 1050 kg Payload : 2950 kg Portable Tank instruction : T21 ADR/RID tank code : N/A Special provisions : TP2 TP7 TP36 TP41 Model : KS1880-T21 ISO size/type code : N/A Type : UN Portable Tank Dimensions : 1148(E.D) x2128 (L) x1388 (H) mm Nominal capacity : 1880 L Measured capacity : 1880 L at 20°C Maximum allowable working pressure : 14 bar Test pressure : 21 bar APPROVALS ADR/RID: F/9151/BV/23 IMDG: F/BV/23/194-T21 US DOT: UN Portable Tank TIR*: GB/C 26839 BV/2023 SUBSTANCES SUITABLE FOR TRANSPORT: In accordance with the requirements of the applicable regulations and the construction of the tank and its equipment. (Substances not compatible with the tank and/or its accessories are excluded for transport) UN3394 & UN3399
-
2024-01-29Customized Hydrochloric Acid HCL Tank Container Lined PE 24m3 for Trailer Mounted to VietnamCustomized Hydrochloric Acid HCL Tank Container Lined PE 24m3 for Trailer Mounted to Vietnam TANK CONTAINER VOLUME 24M3 STEEL SHEET 5MM, HEAD 6MM,Lined LLDPE 16mm for Hydrochloric Acid, Sulfuric Acid Transport 3 CHAMBERS HS CODE: 7309.00
-
2023-02-226 units Metal Alky C480 Portable Tank TEAL DEAC Cylinder for Singapore6 units Metal Alky C480 Portable Tank TEAL DEAC Cylinder for Singapore 360 DEG. ROTATABLE TOP FLANGE VALVE (KV-MTFF DN15 PN 40), 360 DEG. ROTATABLE TOP FLANGE VALVE (KV-MTFE DN20 PN 40) K4430 Gaskets
-
2023-12-246 Units 40KL 44KL 40FT ISO Steel Lined PE Dilute Sulfuric Acid Tank Container To Kazakhstan6 Units 40KL 44KL 40FT ISO Steel Lined PE dilute sulfuric acid Tank Container to Kazakhstan40FT Tank Container PE Lined TankUsed to contain: HCl (max 35%), NaOH (max 50%), PAC (max 17%),H2SO4(max 94%) etc…Sulphuric Acid Tank Capacity: 40,000 Liters;44,000 LitersSteel sheet 6mm, head 6mmLiner thickness: 16mm PE01p
-
2023-09-222 Sets HOWO Offroad AWD 6x6 Mixing And Charging ANFO Explosive Trucks Delivery2 Sets HOWO Offroad AWD 6x6 Mixing And Charging ANFO Explosive Trucks Delivery
-
2023-09-1510 Units Hydrochloric Acid HCL PE LINED ISO Tank Containers to Vietnam10 Units Hydrochloric Acid HCL PE LINED ISO Tank Containers to Vietnam 20FT Tank Container PE Lined Tank Used to contain: HCl (max 35%), NaOH (max 50%), PAC (max 17%),H2SO4(max 94%) etc… Tank Capacity: 21,900 Liters Steel sheet 6mm, head 6mm Liner thickness: 16mm PE
-
2023-08-1417m3 , 22m3 Lined PE Tank Container for Hydrochloric Acid HCL to Vietnam17m3 , 22m3 Lined PE Tank Container for Hydrochloric Acid HCL to Vietnam 20FT TANK CONTAINER TANK VOLUME/ STEEL THICKNESS 22M3/ 6MM (SOC / EMPTY AND NEW TANKS) BRAND: DONG RUNZE MODEL: DRAU2308018 STORAGE TANK CONTAINER TANK FOR HCL CARGO TRUCK TANK VOLUME/STEEL THICKNESS:17M3/ 6MM ( EMPTY AND NEW TANKS) BRAND: DONG RUNZE MODEL: DTA5260 HS CODE : 7309000000
-
2023-07-104 Sets Polyethylene Lined Steel Offshore T14 Tanks For Hydrochloric Acid Transport to Kazakhstan4 Sets Polyethylene Lined Steel Offshore T14 Tanks For Hydrochloric Acid Transport to Kazakhstan Marks DTAU2305012 DTAU2305028 DTAU2305033 DTAU2305049
-
2022-12-2780Units Metal Alky C480 UN Portable Tank T21 TEAL Cylinders to USA80Units Metal Alky C480 UN Portable Tank T21 TEAL Cylinders to USA 80Units UN T21 Portable Tank Container 1880L Cylinder For TEAL Metal Alkyls UN3394 UN3399 to USA Adr/Rid Organometallic Substance, Liquid, Water- Reactive C-430 Saddle Type Portable Tank , tank capacity 1630L C-480 Saddle Type Portable Tank, tank capacity 1880L C-1980 TEAL TMGa ,TEGa,TMIn, TMAl DEAC Metal Alky C-1980 T21 Metal Alky 7495L
-
2023-04-056 Sets Polyethylene Lined Steel Tanks 6600Gallon For Hydrochloric Acid Storage Transport Hydrochloric Acid (HCl) to SAU Chemical Factory6 Sets Polyethylene Lined Steel Tanks 6600Gallon For Hydrochloric Acid Storage Transport Hydrochloric Acid (HCl) to SAU Chemical Factory This the 4th LOT HCL ,NaCLO Tanks For this SAU Chemical Facttory . The 1 st Order date will go back to Date 13-1-2021. CAST IRON STORAGE TANK FOR CHEMICAL MATERIALS STORAGE TANK CAPACITY: 25M3 HS CODE:7309000000
-
2023-03-063 Sets Lined PE Tanks 6604Gallon For Storage Transport Sodium Hypochlorite to Saudi Arabia3 Sets Lined PE Tanks 6604Gallon For Storage Transport Sodium Hypochlorite to Saudi Arabia FROM WUHAN PORT CHINA TO DAMMAM, SAUDI ARABIA BY SEA. + Port of loading : WUHAN PORT + Port of unloading :DAMMAM CAST IRON STORAGE TANK FOR CHEMICAL MATERIALS STORAGE TANK CAPACITY: 25M3 HS CODE:730900 10.2x2.1x2.5*3 160.65cbm 3X40HQ
-
2023-01-054PCS Power Take-off PTO FOR JMC TRANSMISSION MODEL DN3-7003-EC 6MT1420 to URUGUAY4PCS Power Take-off PTO FOR JMC TRANSMISSION MODEL DN3-7003-EC 6MT1420 to URUGUAY Sdq51/65 (Gearbox Power Take off For ISUZU QINGLING Transmission DN3-70030-E0, 6MT1420 PTO Assembly) HWP-G32/65CHQ ,32/65 PQ1
-
2023-02-0812PCS PTO Wanliyang Transmission Power Take-off For WLY6T40 WLY6TS40 to Mexico12PCS PTO Wanliyang Transmission Power Take-off For WLY6T40 WLY6TS40 to Mexico 1 PC SDQ211/60LGQ1 PTO FOR 6DS60T-D TO SAUDI ARABIA
-
2022-12-282 Units Righ Hand Drive Shacman F3000 Hydro Excavators Truck Combined Vacuum Sewer Jetting to Suva Port Fiji2 Units Righ Hand Drive Shacman F3000 Hydro Excavators Truck Combined Vacuum Sewer Jetting to Suva Port Fiji Shacman F3000 Hydro Excavators Truck Sewer Jet Suction Units (RHD 13500L Sewage+4000L Clean Water ) PTO, transmission shaft, vacuum pump, tanker, hydraulic system and jetting pipe system. Combined Sewer Suction & Jetting Unit SZW Aluminium Alloy Liquid Water Ring Compressor Vacuum Pump XW-2800 VAC Flow 2800 M³/h ,1648 Cfm 46.7M3/min 75KW
-
2022-12-276 Sets Lined PE Tanks 6604Gallon For Storage Transport Hydrochloric Acid (HCl) to Saudi Arabia6 Sets Lined PE Tanks 6604Gallon For Storage Transport Hydrochloric Acid (HCl) to Saudi Arabia FROM WUHAN PORT CHINA TO DAMMAM, SAUDI ARABIA BY SEA. Port of loading : WUHAN PORT + Port of unloading :DAMMAM DONG RUN ZE CAST IRON STORAGE TANK FOR CHEMICAL MATERIALS STORAGE TANK CAPACITY: 25M3 HS CODE:7309000000 9.7x2.2x2.5*6
