All wheel drive water fire fighting truck 6x6 Customizing

Views: 1341 Author: Dong Runze Special Vehicle Publish Time: 2017-11-16 Origin: Dong Runze Special Vehicle

All wheel drive water fire fighting truck 6x6 Customizing $48,800-58,000 / Unit

fire truck 6x6-12T.jpg fire truck 6x6-13T.jpg fire truck 6x6-14T.jpg fire truck 6x6-21T.jpg fire truck 6x6-24T.jpg fire truck 6x6-25T.jpg fire truck 6x6-26T.jpg fire truck 6x6-33T.jpg fire truck 6x6-34T.jpg

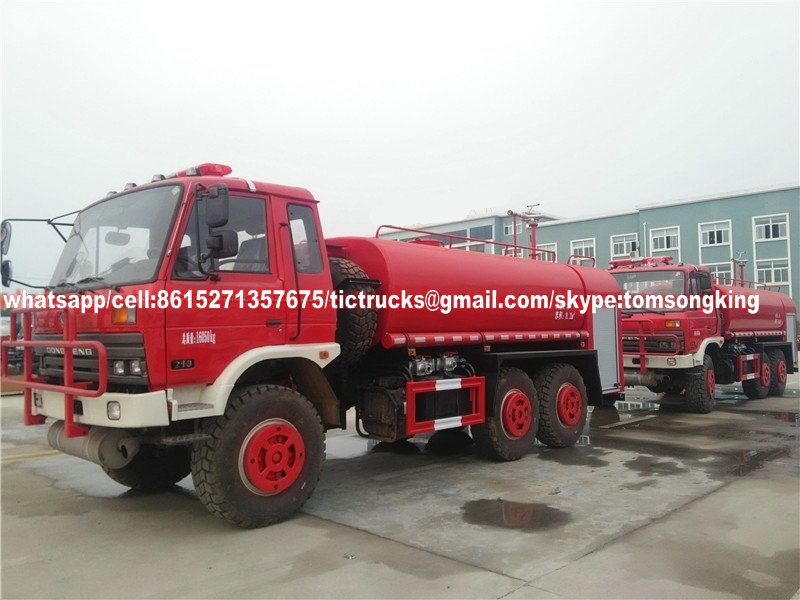

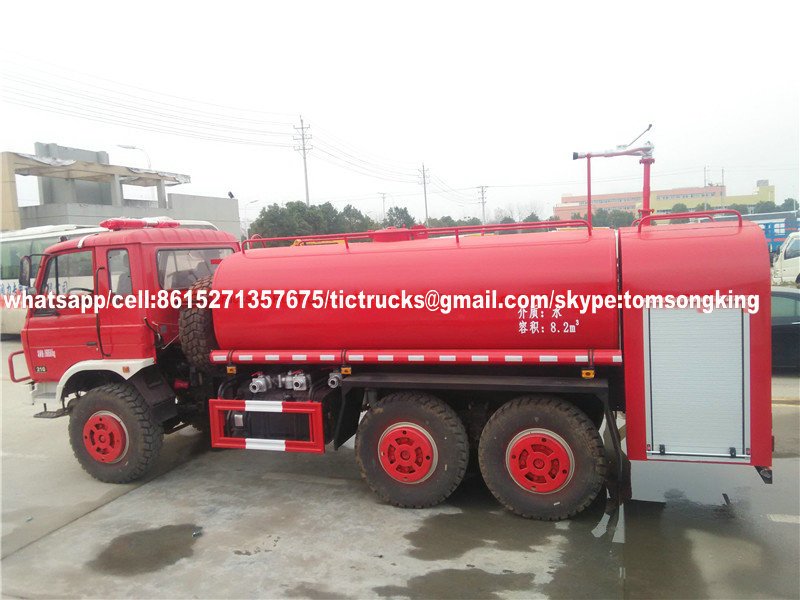

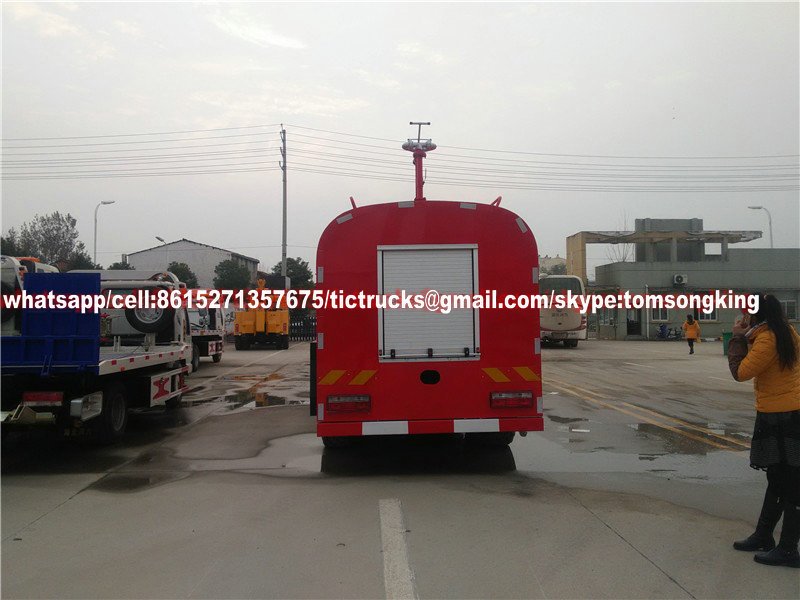

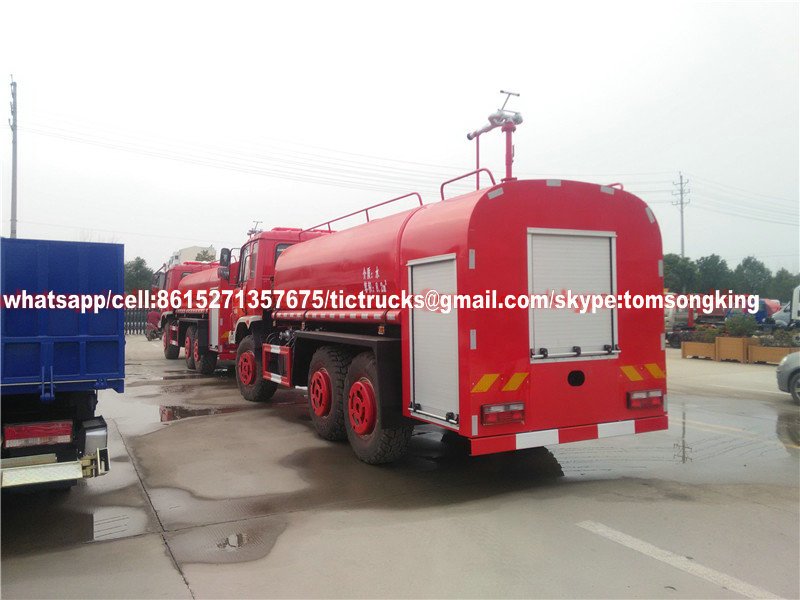

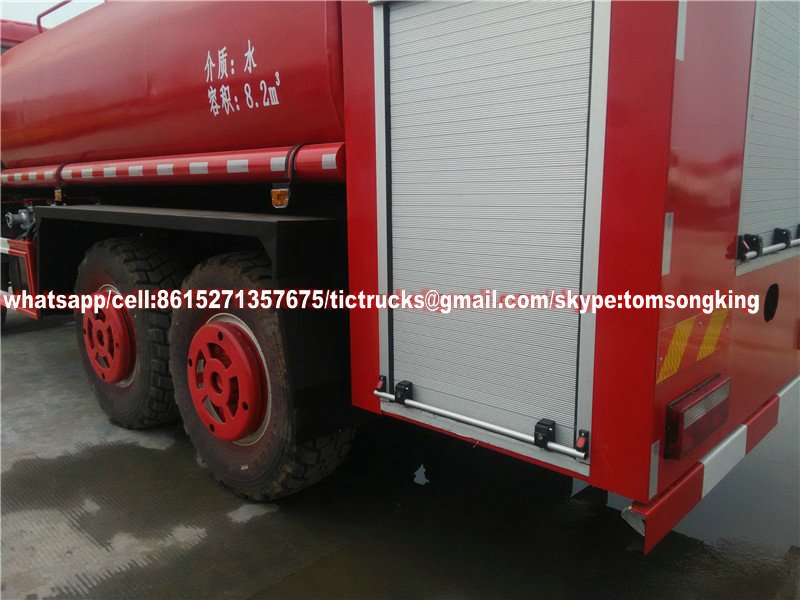

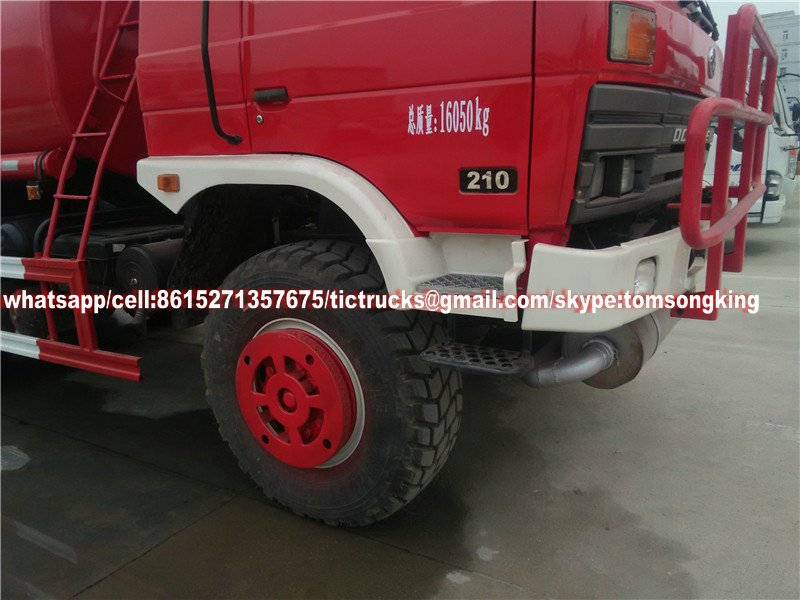

Classical all wheel drive truck, water fire fighting truck,a water truck with a fire pump

· Chassis: Dongfeng

· Fuel Type: Diesel

· Horsepower: 190HP

· Emission Standard: Euro 3/4 /5

"Technical parameters"
Product trademark	Dong Run Ze brand
Product name	6x6 water fire fighting truck	Product model	DRZ5165 water tanker fire trucks
Total mass (Kg)	16500	Tank volume (m3)	8.2
Rated load (Kg)	8645	Overall dimension (mm)	7950x2470x2850
Kerb mass (Kg)	7660	Cargo compartment dimensions (mm)	××
Rated capacity (people)		Trailer gross mass (Kg)
Cab number ( people)	3	Load coefficient
Approach / departure angle(°)	35/18	Front / rear suspension(mm)	1385/1815
Number of axes	3	Wheelbase (mm)	3500+1250
Axle load (Kg)	4200/6150/6150	Maximum speed (km/h)	95
Other	Tank volume : 9 m , transport medium : water , density of 1000 kg / m . Tank overall dimensions ( length x axis x short axis ) (mm): 4000x2050x1300. Lateral protection material is Q235B, joined to bolted connections . Special device for protection instead of after , just high off the ground as : 430, tank colors can be changed , spraying position the text can be changed , allowing local structural changes.Optional cab styling . ABS models : 3631010-C2000, manufacturer :Dongfeng electronics technology Corporation systems.
"Chassis technical parameters"
Chassis model	DFS5160	Chassis name	Special operations vehicle chassis
Trademark name		Production enterprises	The Dongfeng Automobile Company
Overall dimension (mm)	7500,7565x2470x2740,2850	Number of tires	6

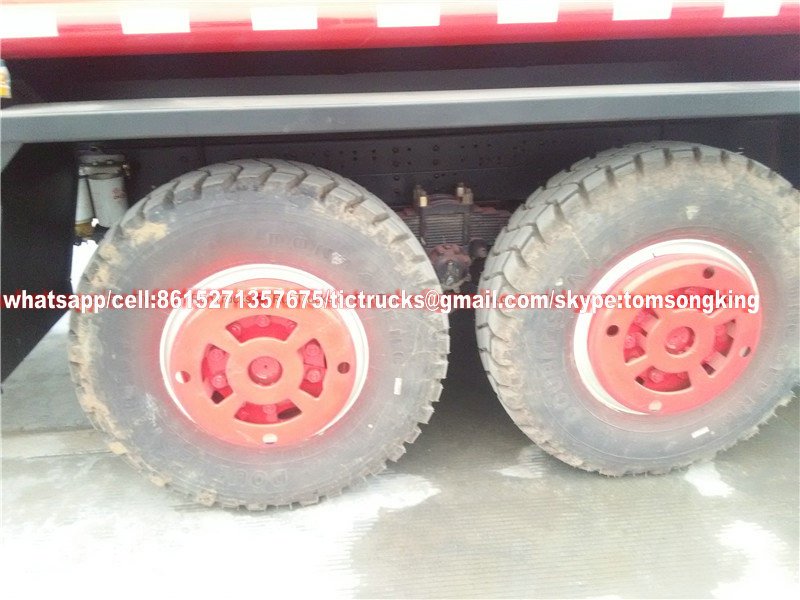

Approach / departure angle(°)	35/36,38/36	Tire specification	12.5R20
Number of leaf springs	10/12	Front track (mm)	1916
Fuel type	Diesel	Rear track (mm)	1876/1876
Emissions standards	GB17691-2005 IV, GB3847-2005
Engine model	Engine manufacturers	Displacement (ML)	Power (Kw)
YC6J180-42 ISDe185 40	Canton Yuchai machinery company limited Dongfeng Cummins Engine co	6494 6700	132 136

4x4 AWD Off Road Water tanker Truck With Fire pump Euro 3/4 /5

1. 4x4 AWD Off Road Water tanker 4*4
2.Dongfeng Cummins Engine 170-190HP Engine
3.Dongfeng Gear Box
4. All Wheel Drive 4WD Truck, Right Hand Drive or Left Hand Drive for Choice
5. Emission Standard: Euro 3/4 /5 US $32,800-38,000 / Unit

all wheel drive water fire fighting truck 6x6,

Dongfeng off Road 6x6 All Wheel Drive Water Truck with Fire Pump

Dongfeng off Road Water Fire Pump truck

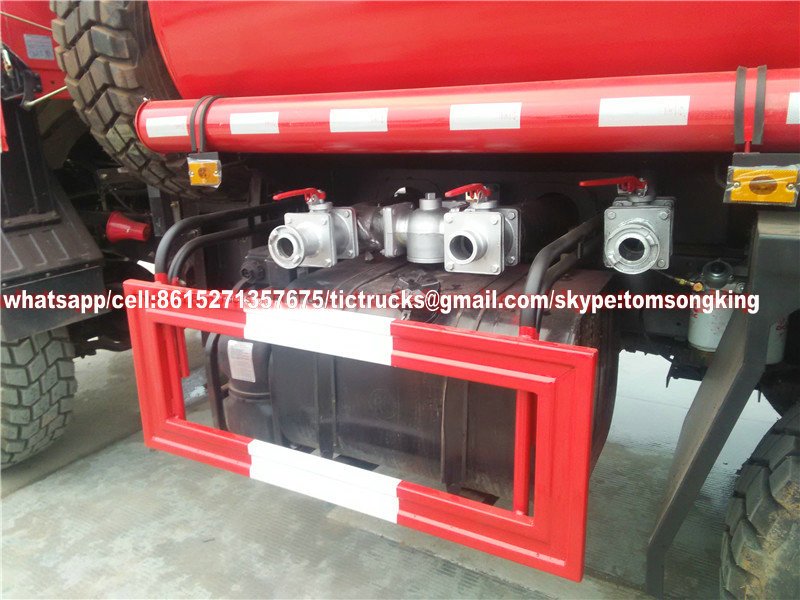

carbon steel water tank, manhole, fire pump, front spray nozzle,rear working platform,fire gun,fire valve, water valve, filter gauze,water hose

water fire fighting truck 6x6,AWD water fire fighting truck, 6x6,all wheel drive water truck, fire truck 6x6,all wheel drive water tanker, fire fighting truck 6x6,

Dongfeng 4x4 AWD Off Road Water Tender Truck With Fire Monitor

1. Dongfeng All Wheel Drive 4*4
2.Dongfeng Cummins Engine 170-190HP Engine
3.Dongfeng Gear Box
4. All Wheel Drive 4WD Truck, Right Hand Drive or Left Hand Drive for Choice
5. With air condition
