20FT T14 Offshore Portable ISO Tank Container 21KL SA516M Lined PE for UN1789 Hydrochloric Acid UN1790 Hydrofluoric Acid

20FT T14 Offshore Portable ISO Tank Container 21KL Lined PE for UN1789 Hydrochloric acid UN1790 Hydrofluoric acid
Steel Lined LDPE also for HCl (max 35%)UN1789, Hydrofluoric Acid UN1790
Price for refer only. Final Price Offer Discount.
Price: $ 31800 / set
Discount Price: $ 29800 / set
Availability:
Quantity:

  • T14
  • Shanghai, China
  • 3000
  • T/T

20FT T14 Offshore Portable ISO Tank Container  21KL Lined PE  for  UN1789 Hydrochloric acid UN1790  Hydrofluoric acid  SA516M+PE


T14 isotank lined tank UN1789 UN1790 acid container offshore tanks T14 Offshore Acid Isotank Lined tank Container (8)T14 Offshore Acid Isotank Lined tank Container (2)

Steel Lined LDPE also for Hydrochloric acid HCl (max 35%)UN1789,

Hydrofluoric acid HF acid UN1790

Thionyl Chloride UN1836,

Sulfuric Acid UN1830,

Sodium Hydrogen Sulphite Solution UN2693 Sodium bisulfite solution

Sodium Hypochlorite solution NACLO UN1791, lined 22mm PE for road transport

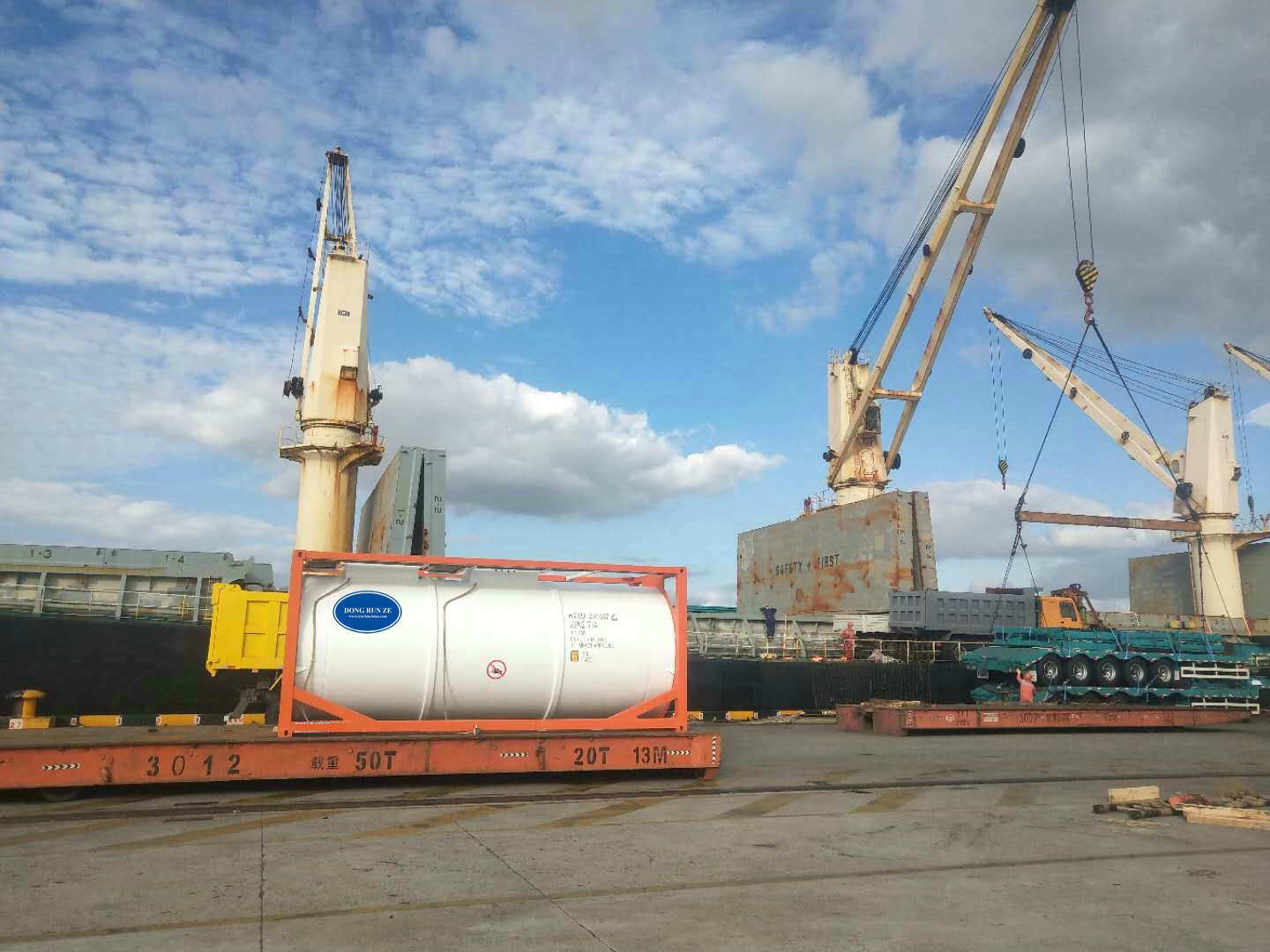

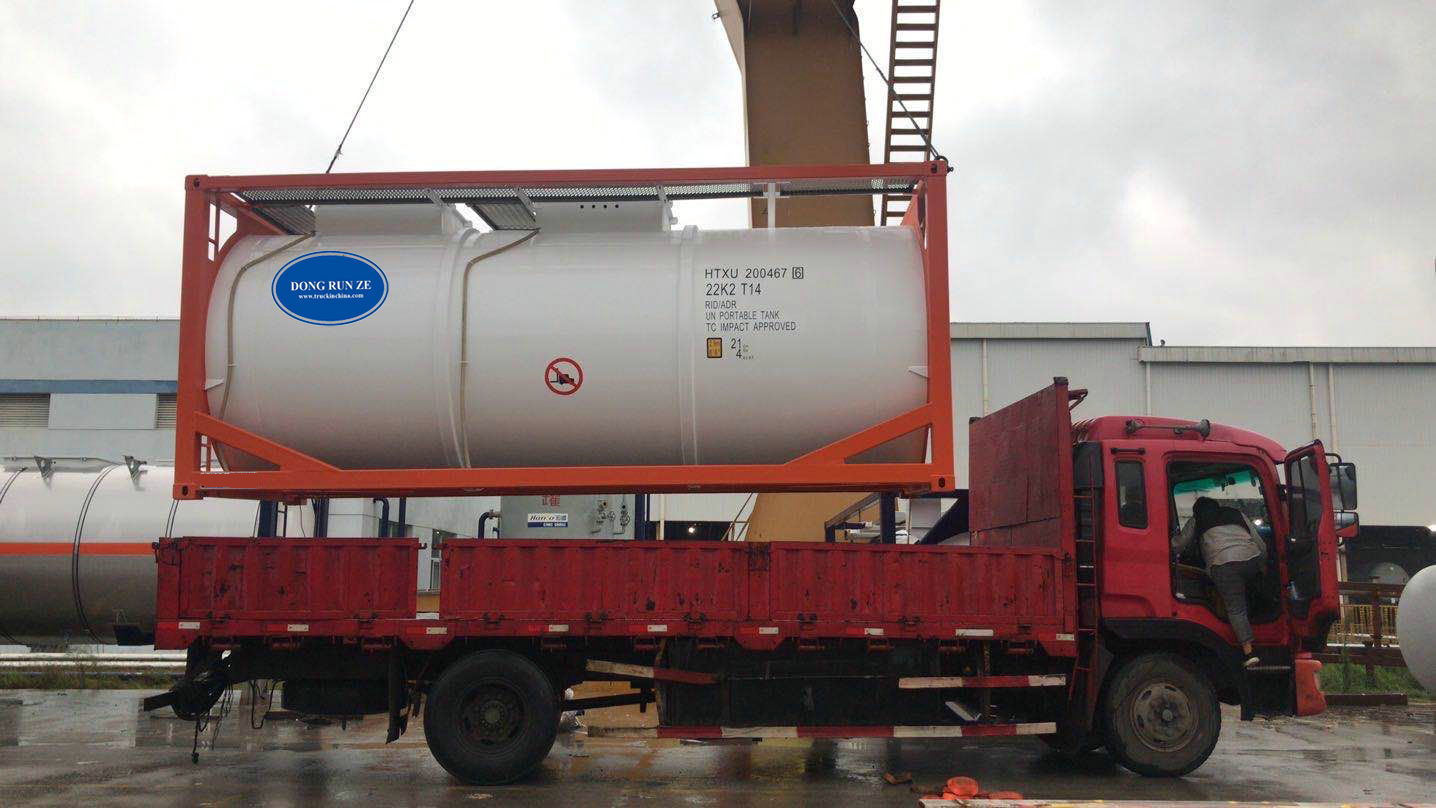

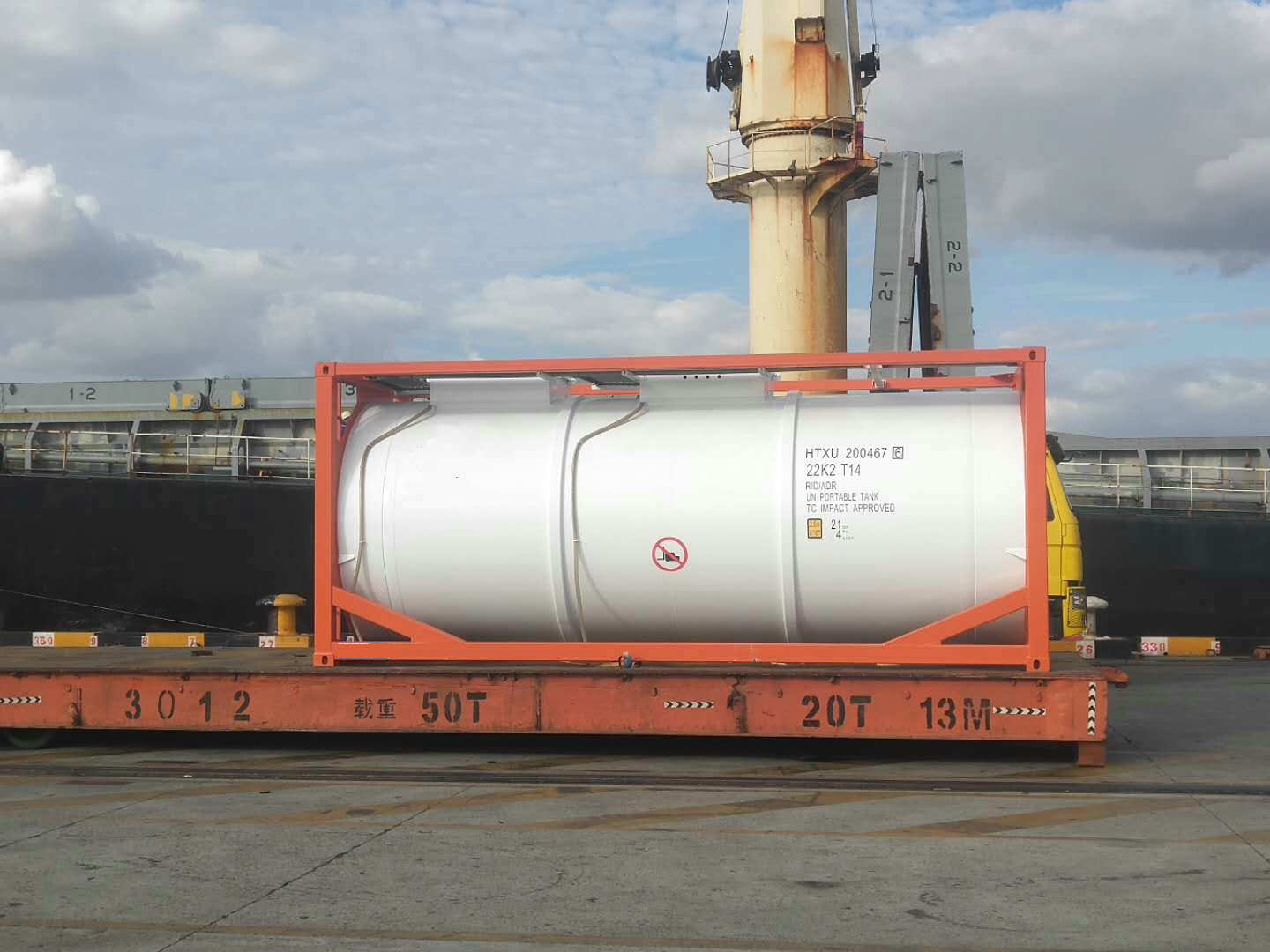

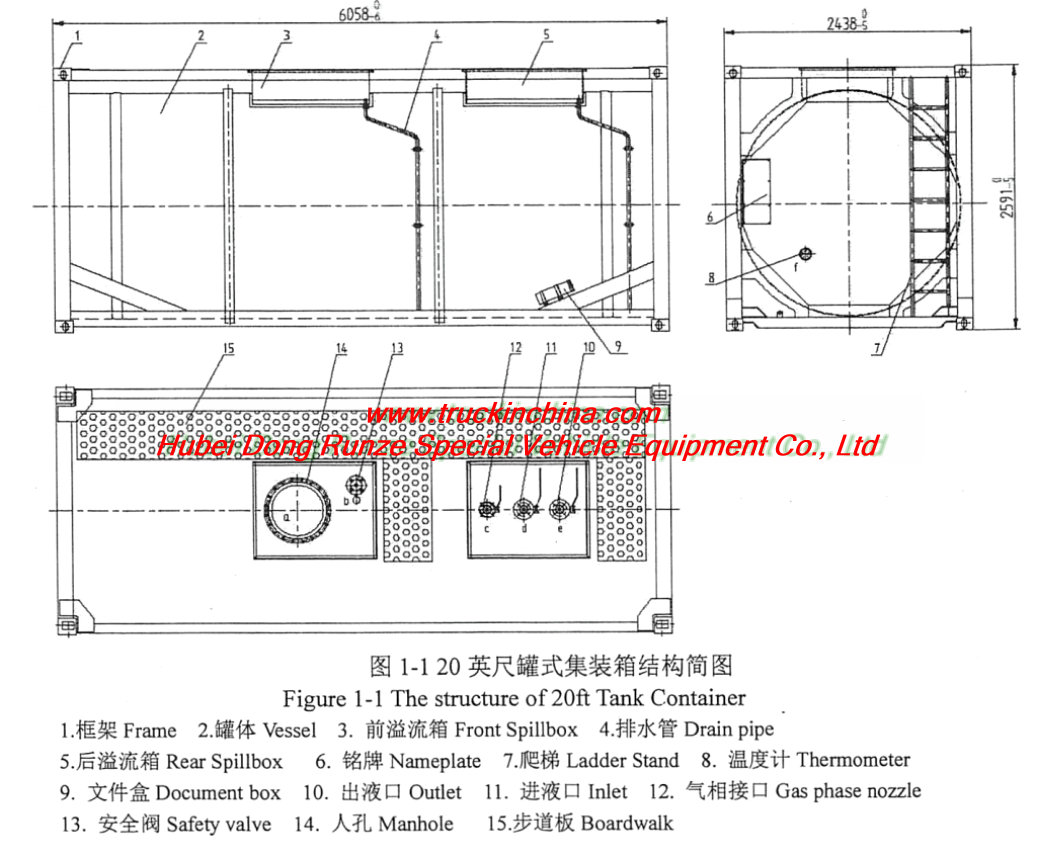

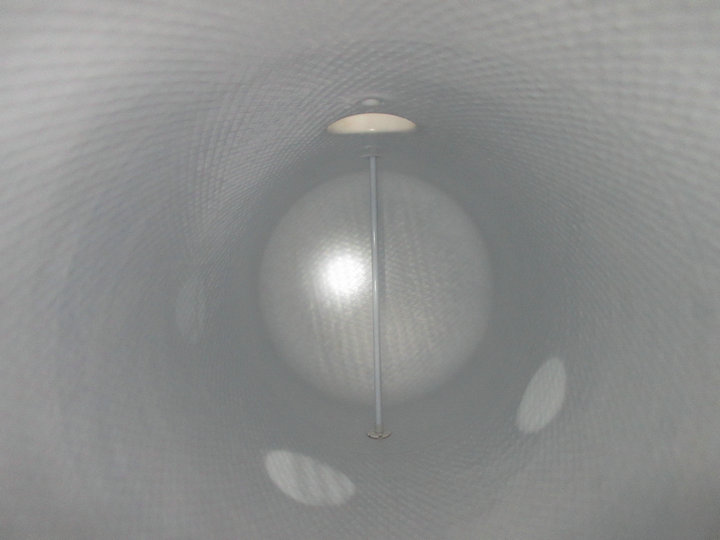

Images of T14 offshore Tank T14 isotank container offshore lined tank acid tank (47)_1T14 isotank container offshore lined tank acid tank (10)


20FT T14 Offshore Portable ISO Tank Container  21KL SA516M Lined PE  for  UN1789 Hydrochloric Acid UN1790  Hydrofluoric Acid Tank container main Technical Parameters

20FT tankcontainer 30FT tank container 40FT tank container
Overall dimension(mm) 6058×2438×2438/2591 9144×2438×2438/2591 12192×2438×2438/2591
Working temperature(ºC) -12C-50C

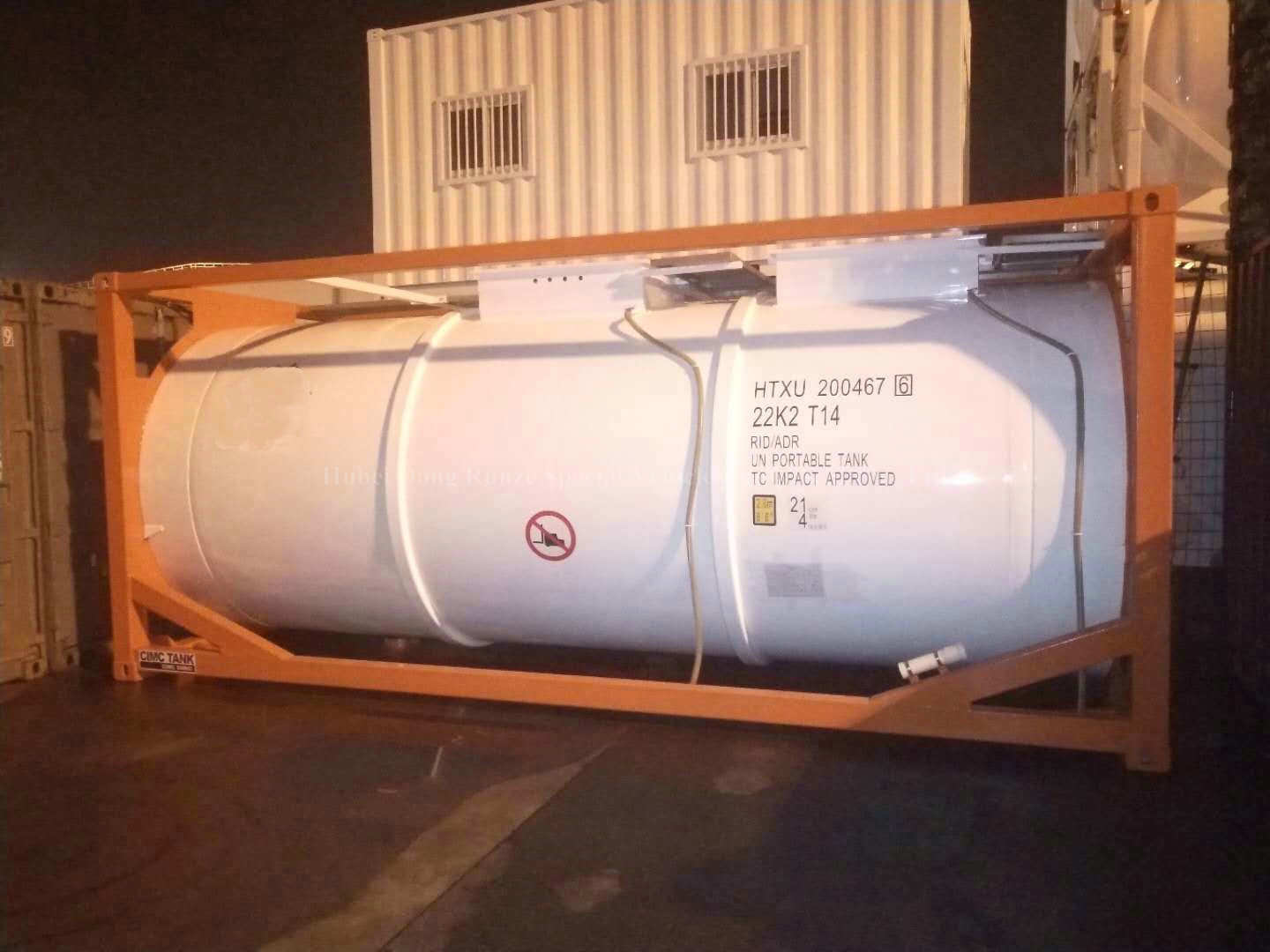

T14 isotank container offshore lined tank UN1789 UN1790 acid tank (12)_1


Steel Lined PE Acid Corrosive Liquid Transport Tank Body 11000liter (Hydrochloric Acid Tanker)Hydrochloric acid tank, Sodium hypochlorite Tank body 2 - 3 compartments Elliptic shape for transport Ammonia liquid, glacial acetic acid, dilute sulfuric acid, hydrochloric acid,Caustic soda ,etc L4bh Hydrochloric Acid Tanker Trailer 3000USG-8000Gallon Lined PE HCl (max 35%), NaOH (max 50%), NaCLO (max 10%), PAC (max 17%),H2SO4(60%,98%) ,HF ( 48%),H3PO4 (10%-85%),NH3. H2O,H2O2 (30%)etc

Tank containers should be filled accurately and according to the requirements. Excessive filling should not be allowed. The maximum filling rate should be guaranteed not to exceed 90% of the effective volume of tank containers (the effective volume of this batch of tank containers after deduction of lining is 20454L, 90%*20454=l 8408L), and calculated according to the following formula, the two values are small.

Keywords :ISO-lined Tank,lined tank, Lined LLDPE tank, hcl Tank, acid tank, tank container, 20ft tank container , iso tank,isotank, iso tank container, t14 tank, imdg tank,acid tank container,Horizontal Tank in Rectangular Frame,acid tank in  Rectangular Frame,Hydrochloric Acid tank,hydrochloric acid fluid tank, lined with Linear Low Density Polyethylene tank,T14 Sulfuric Acid Tank Container,Steel Lined LDPE Tanker,Hypochlorite Ferric tank,tanks containers for Hydrofluoric acid , FECL3  tank,Offshore Acid Tank,offshore tanks suitable for transporting acid,offshore tanks, IMO 1 tank,Ferric Chloride tank,Sodium hydrogen sulphite solution tank,20ft tank ,20ft container tank

View more at Youtu.be and follow us.

https://youtu.be/77W3oSM7KAU

https://youtu.be/pAEXHFBdGdY

https://youtu.be/3Y0tT7nknXM

https://youtu.be/3Yb2diEGXyY

https://youtu.be/VKVIcC02974

https://youtu.be/uqva7K_GLB4

https://youtu.be/YViOkhVwMKg

https://youtu.be/II0khjBNAPs

https://youtu.be/sUpZG9wYqnU

https://youtu.be/x4GxDsDI1N0


ISOTANK List

The Main Technical Parameters of Tanks (ASME Standard)


Item

Loading Medium

Model

Capacity
(m3)

Design
Pressure
(Mpa)

Design
Temperature
(c)

Tank Material

Nominal Tank
Thickness (mm)

Insulation

Tare weight
(Kg)

Max. Gross Weight
(Kg)

Dimension
(LX WX H)(mm)

Loading Method

1

R134a

T50

24

1.38

-40 /+55

SA-612N

11

Sunshade

6400

34000

6058 X 2438 X2591

Down load unload

2

R22

22

2.1

-40/+50

18

8800

3

R143a

22

2.42

20

9500

4

R125

22

2.75

21

9500

5

R32

20

3.44

25

10900

6

AHF

T19

21

1.0

-40/+55

SA516M NGr.485

12

No

6900

Up load unload

7

Trichlorosilan

T14

21

0.5

-40/+50

Q345R
(16MnR)

12

No

6780

34000

6058 X 2438 X2591

8

Liquid Chlorine

T50

20

1.7

-40/+50

16

8300

9

21.72

1.62

16

8900

10

Liquid
Ammonia

T50

21.6

2.2

-40/+50

06Cr19Ni10

22

Packing Insulation

11970

11

SO2

T20

21

1.03

40 /+60

16MnDR

12

No

6900

12

Cryogenic Liquid

T75

19.8,20

0.75-2.35

-196/+50

Inner Tank: 06Cr19Ni10
Outside Tank:Q345R


Vacuum With Mutli-wrapped

8600/12880

Down load unload

The Main Technical Parameters of Tanks (China Standard)


Item

Loading Medium

Model

Capacity
(m3)

Design
Pressure
(Mpa)

Design
Temperature
(c)

Tank Material

Nominal Tank
Thickness (mm)

Insulation

Tare weight
(Kg)

Max. Gross Weight
(Kg)

Dimension
(LX WX H)(mm)

Loading Method

1

R134a

T50

24

1.38

-40 /55

Q345 (16MnR)

12

Sunshade

6500

34000

6058 X 2438 X2591

Down load unload

2

R22

20

2.1

-40/+50

16

7850

3

24

18

9100

4

R125

22

2.75

22

9900

5

R32

22

3.44

28

12000

6

23.7

-40 /55

12700
