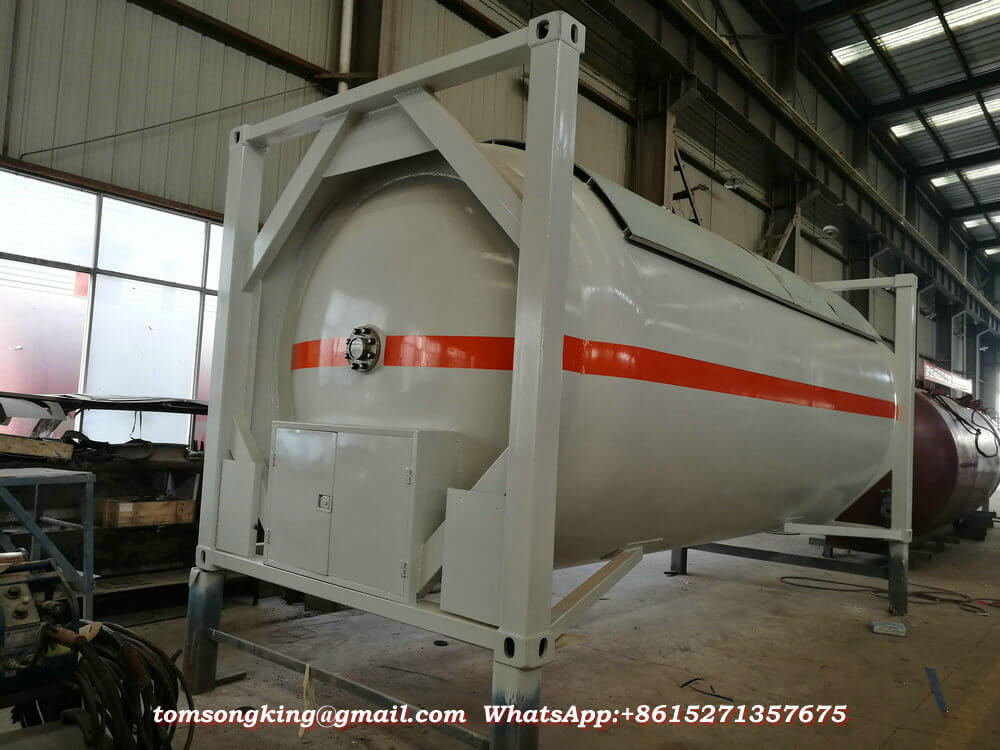

NH3 ISO Tank Container 20FT 24000L Ammonia
T50 Tank , Anhydrous Liquid Ammonia IsoTank
Model | T50 Anhydrous Liquid Ammonia IsoTank |
Capacity | 24M3 |
Design Inner pressure | 2.2Mpa |
Range of Design Temperature | -40～+55（℃） |
Material of Main Body | Q345R 16MnDR |
NDminal Thickness of Tank | Head 18mm / Shell 16mm Head 20mm / Shell 18mm |
Mode of Heat Insulation | Sunshade |
Max.Loading Weight | 12720（kg) |
Net weight | 8800KG; |
Max Gross weight | 30480KG |
Dimension(LxWxH) | 6058*2438*2591（mm) |
Loading Method | Bottom Loading And Unloading |
Anhydrous Liquid Ammonia IsoTank Tank , NH3 Tank Semi-trailer
NH3 Bobtail/Rigid Tanker
NH3 ISO Tank Container
NH3 Spherical Tank
NH3 Horizontal/Mounded/Domestic Storage Tank
NH3 Plant/Filling Plant/Autogas Station
1.5 Pressure & Temperature Rating
Design Reference Temperature 55°C
Maximum Allowable Working Pressure 22bar (2.2MPa.)
Hydrostatic Test Pressure 33bar(3.3MPa.)
External Design Pressure 0.1 bar
Ambient Temperature Range -40 to +55°C
1.6 Material Of Construction
Framework :Hollow section Q345-D--GB/T1591
Plates Q345-D--GB/T1591
Rolled section Q345-D--GB/T1591
Shell & Heads Q345R
1.7NDE (Non Destructive Examination)
| TYPE | EXTENT | STAGE |
| Visual | 100% All welds | Before & After Hydrostatic test. |
| RT | 100% All long. & circ. butt welds | Before Hydrostatic test |
| PT | 100% All nozzle-to-tank attachment welds | Before Hydrostatic test |
| 100% All pad & attachment welds attach to tank which thickness more than 6mm. | Before Hydrostatic test |
2.0 Tank Fittings And Accessories

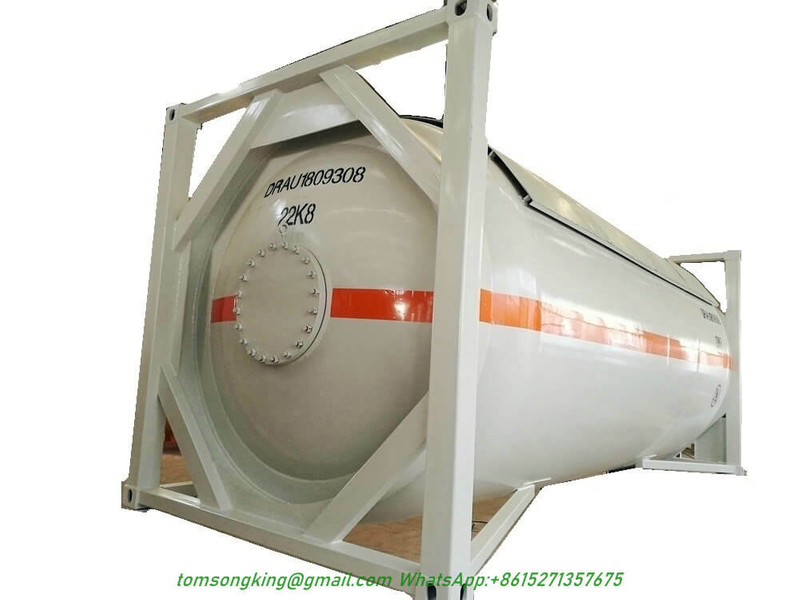

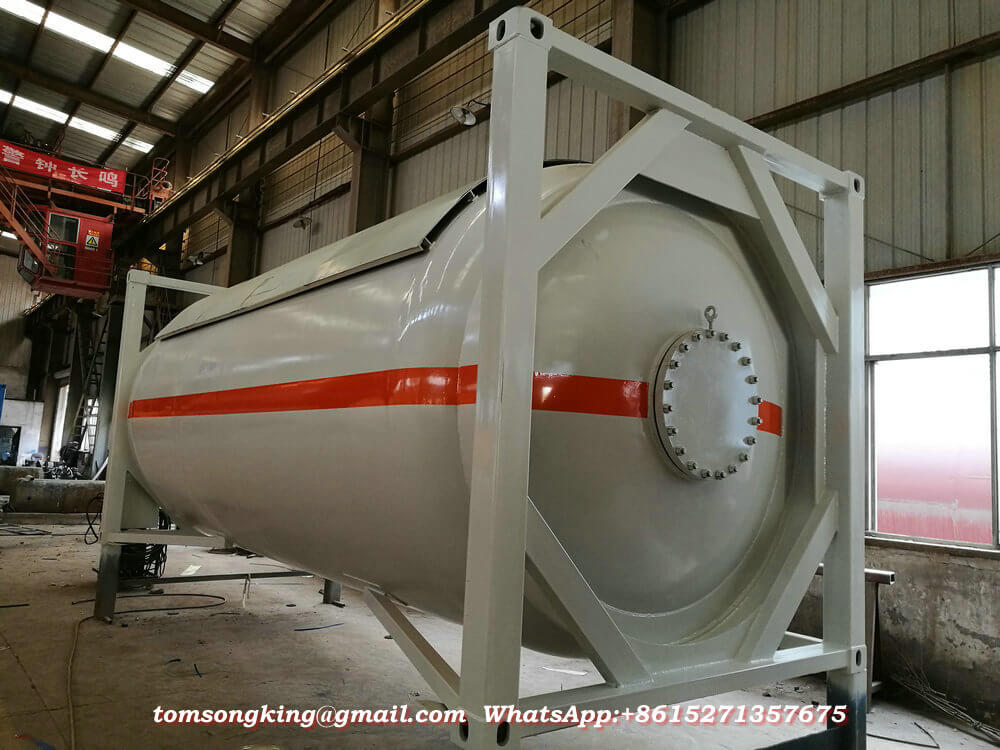

2.1 Manhole
Quantity One
Dimensions 500mm ID
Specification Q345R ; bolted type (24 x M24)
Gasket PTFE
Location Rear ellipse end in the crown section
2.2 Safety Relief Valve Assembly
Quantity One
Gasket PTFE
Location Top of the tank.
2.3 Gas Line
Quantity One
Dimensions DN 50 (2")
Gasket PTFE
2.4 Liquid Line
Quantity One
Dimensions DN 50 (2")
Gasket PTFE

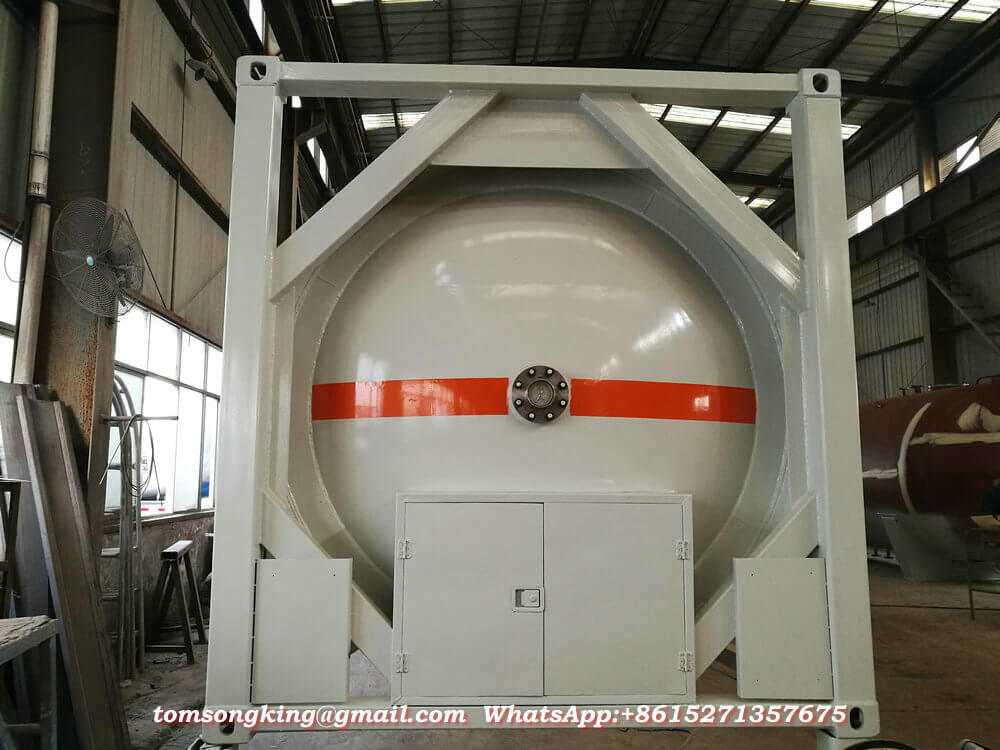

Valve Cabinet
A steel valve protection cabinet, houses the gas and liquid line valves, pressure gauge and thermometer.
2.5 Provision for Baffles
Two sets of surge baffles shall be installed.
2.6 Thermometer -40～+80
2.7 Pressure Gauge A pressure gauge from pressure. 0-40 bar
2.8 Insulating methods Sunshade
NH3 ISO Tank Container 20FT 24000L Ammonia
T50 Tank , Anhydrous Liquid Ammonia IsoTank
Model | T50 Anhydrous Liquid Ammonia IsoTank |
Capacity | 24M3 |
Design Inner pressure | 2.2Mpa |
Range of Design Temperature | -40～+55（℃） |
Material of Main Body | Q345R 16MnDR |
NDminal Thickness of Tank | Head 18mm / Shell 16mm Head 20mm / Shell 18mm |
Mode of Heat Insulation | Sunshade |
Max.Loading Weight | 12720（kg) |
Net weight | 8800KG; |
Max Gross weight | 30480KG |
Dimension(LxWxH) | 6058*2438*2591（mm) |
Loading Method | Bottom Loading And Unloading |
Anhydrous Liquid Ammonia IsoTank Tank , NH3 Tank Semi-trailer
NH3 Bobtail/Rigid Tanker
NH3 ISO Tank Container
NH3 Spherical Tank
NH3 Horizontal/Mounded/Domestic Storage Tank
NH3 Plant/Filling Plant/Autogas Station
1.5 Pressure & Temperature Rating
Design Reference Temperature 55°C
Maximum Allowable Working Pressure 22bar (2.2MPa.)
Hydrostatic Test Pressure 33bar(3.3MPa.)
External Design Pressure 0.1 bar
Ambient Temperature Range -40 to +55°C
1.6 Material Of Construction
Framework :Hollow section Q345-D--GB/T1591
Plates Q345-D--GB/T1591
Rolled section Q345-D--GB/T1591
Shell & Heads Q345R
1.7NDE (Non Destructive Examination)
| TYPE | EXTENT | STAGE |
| Visual | 100% All welds | Before & After Hydrostatic test. |
| RT | 100% All long. & circ. butt welds | Before Hydrostatic test |
| PT | 100% All nozzle-to-tank attachment welds | Before Hydrostatic test |
| 100% All pad & attachment welds attach to tank which thickness more than 6mm. | Before Hydrostatic test |
2.0 Tank Fittings And Accessories
2.1 Manhole
Quantity One
Dimensions 500mm ID
Specification Q345R ; bolted type (24 x M24)
Gasket PTFE
Location Rear ellipse end in the crown section
2.2 Safety Relief Valve Assembly
Quantity One
Gasket PTFE
Location Top of the tank.
2.3 Gas Line
Quantity One
Dimensions DN 50 (2")
Gasket PTFE
2.4 Liquid Line
Quantity One
Dimensions DN 50 (2")
Gasket PTFE
Valve Cabinet
A steel valve protection cabinet, houses the gas and liquid line valves, pressure gauge and thermometer.
2.5 Provision for Baffles
Two sets of surge baffles shall be installed.
2.6 Thermometer -40～+80
2.7 Pressure Gauge A pressure gauge from pressure. 0-40 bar
2.8 Insulating methods Sunshade
ISOTANK List
The Main Technical Parameters of Tanks (ASME Standard) |
Item
| Loading Medium | Model | Capacity
(m3) | Design
Pressure
(Mpa) | Design
Temperature
(c) | Tank Material | Nominal Tank
Thickness (mm) | Insulation | Tare weight
(Kg) | Max. Gross Weight
(Kg) | Dimension
(LX WX H)(mm) | Loading Method |
1 | R134a | T50 | 24 | 1.38 | -40 /+55 | SA-612N | 11 | Sunshade | 6400 | 34000 | 6058 X 2438 X2591 | Down load unload |
2 | R22 | 22 | 2.1 | -40/+50 | 18 | 8800 |
3 | R143a | 22 | 2.42 | 20 | 9500 |
4 | R125 | 22 | 2.75 | 21 | 9500 |
5 | R32 | 20 | 3.44 | 25 | 10900 |
6 | AHF | T19 | 21 | 1.0 | -40/+55 | SA516M NGr.485 | 12 | No | 6900 | Up load unload |
7 | Trichlorosilan | T14 | 21 | 0.5 | -40/+50 | Q345R
(16MnR) | 12 | No | 6780 | 34000 | 6058 X 2438 X2591 |
8 | Liquid Chlorine | T50 | 20 | 1.7 | -40/+50 | 16 | 8300 |
9 | 21.72 | 1.62 | 16 | 8900 |
10 | Liquid
Ammonia | T50 | 21.6 | 2.2 | -40/+50 | 06Cr19Ni10 | 22 | Packing Insulation | 11970 |
11 | SO2 | T20 | 21 | 1.03 | 40 /+60 | 16MnDR | 12 | No | 6900 |
12 | Cryogenic Liquid | T75 | 19.8,20 | 0.75-2.35 | -196/+50 | Inner Tank: 06Cr19Ni10
Outside Tank:Q345R |
| Vacuum With Mutli-wrapped | 8600/12880 | Down load unload |
The Main Technical Parameters of Tanks (China Standard) |
Item
| Loading Medium | Model | Capacity
(m3) | Design
Pressure
(Mpa) | Design
Temperature
(c) | Tank Material | Nominal Tank
Thickness (mm) | Insulation | Tare weight
(Kg) | Max. Gross Weight
(Kg) | Dimension
(LX WX H)(mm) | Loading Method |
1 | R134a | T50 | 24 | 1.38 | -40 /55 | Q345 (16MnR) | 12 | Sunshade | 6500 | 34000 | 6058 X 2438 X2591 | Down load unload |
2 | R22 | 20 | 2.1 | -40/+50 | 16 | 7850 |
3 | 24 | 18 | 9100 |
4 | R125 | 22 | 2.75 | 22 | 9900 |
5 | R32 | 22 | 3.44 | 28 | 12000 |
6 | 23.7 | -40 /55 | 12700 |
20ft T50 LPG ISO Tank Container LPG Propane Isobutane Gas Tank Container 24K Mob :008615271357675
1. DRZ Cryogenic Storage Tank include the following ISO cryogenic tank:10ft, 12ft, 20ft, 40ft
2. Used for: liquid oxygen tank container, liquid nitrogen tank container, liquid argon tank container, liquid Nitrous Oxide tank container, liquid carbon dioxide tank container, LNG tank container, LPG tank container, AHF tank container, Liquid Chlorine tank container, liquid ammonia tank container.
3. Tank capacity: 7.7m3~60m3.
4. Tank pressure: 8bar, 16bar ,24Bar or based on user requirement.
5. certificate: RID/ADR, CFR49, IMDG, T75 UN PORTABLE, TIR , UIC, CSC, TC, US DOT, UK-DFT, FRA
Hydrogen Peroxide Iso Containers, Stainless Steel Iso Tank Containers
Sulphuric Acid Iso Containers, Stainless Steel Iso Tank Containers
Nitric Acid Iso Containers, Stainless Steel Iso Tank Containers
Mining Chemicals Iso Containers, Stainless Steel Iso Tank Containers
Food Products Iso Containers, Stainless Steel Iso Tank Containers
Solvents Iso Containers, Stainless Steel Iso Tank Containers
Oils Iso Containers, Stainless Steel Iso Tank Containers
Resins Iso Containers, Stainless Steel Iso Tank Containers
Alcoholic Beverages Iso Containers, Stainless Steel Iso Tank Containers
Mo 1 Iso Containers, Stainless Steel Iso Tank Containers
Imo Iso Containers, Stainless Steel Iso Tank Containers
Imo 5 Iso Containers, Stainless Steel Iso Tank Containers
Imo 7 Iso Containers, Stainless Steel Iso Tank Containers
Food Tank Containers And Iso Containers, Stainless Steel Iso Tank Containers
Tank Containers Containers And Iso Containers, Stainless Steel Iso Tank Containers
Iso Containers, Stainless Steel Iso Tank Containers Hazardous.
Iso Containers, Stainless Steel Iso Tank Containers Non-Hazardous Liquid Materials.
Horizontal Iso Tanks And Containers, Stainless Steel Iso Tank Containers
Vertical Iso Containers, Stainless Steel Iso Tank Containers
The Aim Of Iso Is To Create a Standardised Process Of Manufacture So That Things Can Be Interchangeable No Matter Where You Are. Having Products With An Iso Label Enables People To Know Exactly How The Product Will Work And Know Everything About It.
There Are Plenty Of Advantages For Using An Iso Tank. They Are a Highly Reliable, Cost Effective And Safe Way Of Transporting Bulk Liquids From Place To Place.
