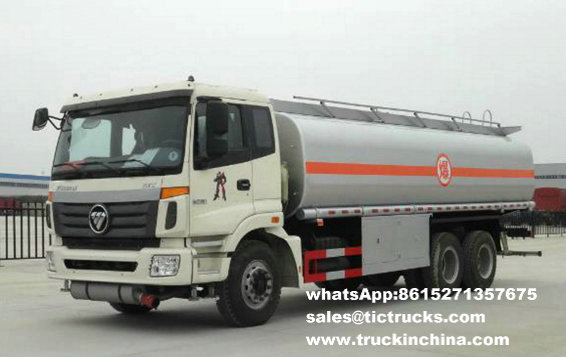

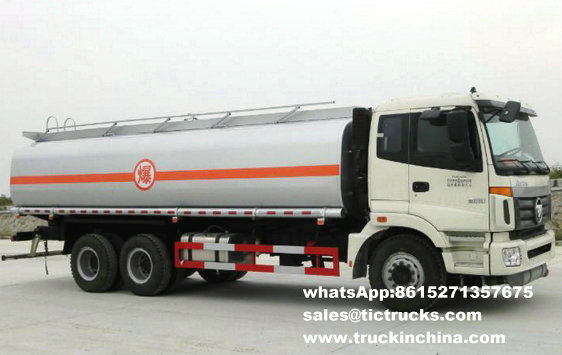

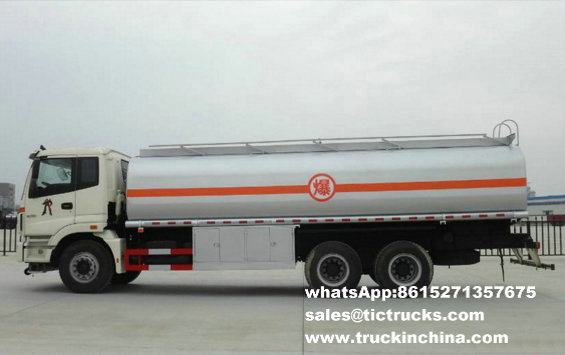

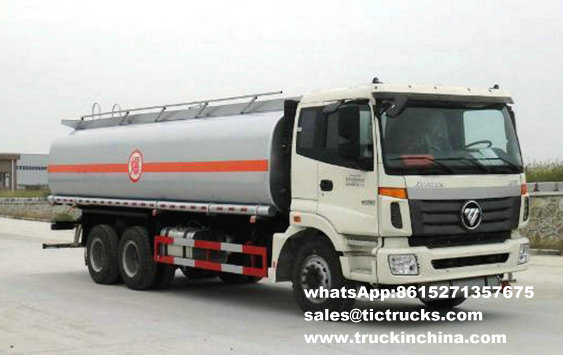

Foton 6x4 Gasoline tanker Truck Capacity 23CBM Tank volume 23000L for sale
Unit Price: USD 40000.00 - 42000.00 / Set/Sets
DRZ5257GYYB
Overall dimensions 10233X2490X3010mm Curb weight 9500kg
Tank dimensions 7600X2420X1600mm Tank volume 23000L

Chassis parameters
Chassis model BJ5257GNFJH-S1 Chassis brand FOTON
Overall dimensions 10067x2490x3010mm Wheel base 4725+1300mm
Front/rear wheel track 1930/1860/1860mm Front/rear suspension 1532/2510mm
Approach/departure angle 11/12° Maximum speed 79km/h
Chassis Manufacturer Beijing Foton Daimler Motor Co., Ltd.
Cab Configuration ETX2420 a row and a half cab(with sleeping berth),allowable 3 passengers,air conditioner
Color White,other color is optional
Engine Model SC9DK270Q3B1
Emission Euro 3
Type 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,direct injection,exhaust valve brake,diesel engine
Rated power 270hp,rated power speed 2200rpm
Displacement 8820ml
Max.torque 1125N.m
Bore x stroke 114x144mm
Manufacturer Shanghai Diesel Engine Co., Ltd
Tire Size 10.00-20 nylon tire
Number 10+1 nos
Clutch φ430 diaphragm clutch
Fuel tank 350L aluminum alloy
Rear axle 10.0 tons
Drive form 6X4
Rated voltage 24V,DC
Transmissions Gear box 9JS,9 speed forward 1 reverse
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration Steel wire tire
If there is a slight change in the chassis parameters above,please take the actual product as the standard
Fuel tank structure parameters
Tank dimensions 7600X2420X1600mm Tank volume 23000L
Tank material Carbon steel Tank thickness 5/6mm
Color and Logo Optional
Standard configuration Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.
Selective configuration Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system

Related Keywords
Foton Gasoline Carrying Vehicle , Foton Oil Transport Truck , Oil Transport Vehicle , FAW Gasoline Carrying Vehicle , JAC Gasoline Carrying Vehicle , Shacman Gasoline Carrying Vehicle , ISUZU Gasoline Carrying Vehicle , FOTON Aluminium Gasoline Carrying Vehicle

Oil Petrol Tank truck refers to the vehicle that loading and transporting of gasoline, diesel, kerosene, lubricating oil, and other liquid fuel, etc. It is mainly composed of oil tank, oil pump, flow meter, refueling gun, filling mouth, fuel release valve, manhole covers, oil hose, chain etc. Petrol Tank truck
According to the different transport medium, oil Petrol Tank truck can be called, oil tanker, Petrol Tank truck , tanker, fuel trucks, Foton oil delivery tanker, Foton flow oil truck, Foton refueling vehicle, computer Foton refueling truck, Foton diesel delivery vehicles, Foton gasoline delivery vehicles, Foton oil transport vehicle, Foton edible oil transport vehicle, Foton crude oil transport vehicle, Foton heavy oil truck, Foton oil truck.

According to the brand oil tanker truck can be divided into, Yuejin Petrol Tank truck , Dongfeng Petrol Tank truck , FAW tanker truck, Foton Petrol Tank truck , Sinotruk Petrol Tank truck ,Auman tanker truck, North-Benz Petrol Petrol Tank truck ,JAC tanker truck, Shacman Petrol Tank truck , CAMC oil transport tanker truck, Isuzu tanker truck, JMC tanker truck, etc.
