DRZ5312GYYB Foton 8x4 Oil Fuel Tanker Truck Capacity 30000L for sale

Views: 2426     Author: Dong Runze      Publish Time: 2017-04-24      Origin: Dong Runze Special Vehicle

DRZ5312GYYB Foton 8x4 Oil Fuel Tanker Truck Capacity 30000L for sale

Foton 8x4 Oil Fuel Tanker Truck Capacity 30000L for sale

 Oil  Petrol  oil bowser  refers to the vehicle that loading and transporting of gasoline, diesel, kerosene, lubricating oil, and other liquid fuel, etc. It is mainly composed of oil tank, oil pump, flow meter, refueling gun, filling mouth, fuel release valve, manhole covers, oil hose, chain etc.

Vehicle Model DRZ5312GYYB

Overall dimensions 11810X2482X3380,2800mm Curb weight 12400kg
Tank dimensions 9000X2462X1600mm Tank volume 30000L

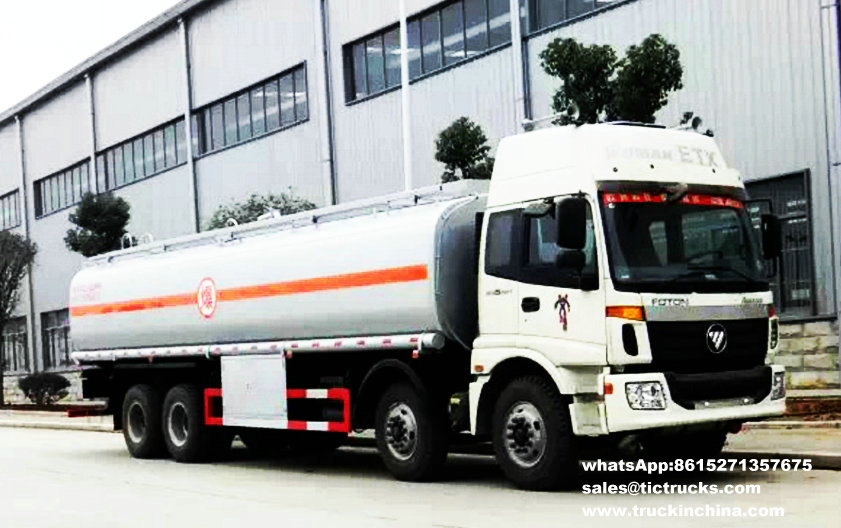

Foton refueling vehicle,


Chassis parameters
Chassis model BJ1312VPPJJ-1 Chassis brand FOTON
Overall dimensions 11865x2482x3050mm Wheel base 1860+4700+1300mm
Front/rear wheel track 1900/1900/1860/1860mm Front/rear suspension 1555/2450mm
Approach/departure angle 20/10° Maximum speed 90km/h
Chassis Manufacturer Beijing Foton Daimler Motor Co., Ltd.
Cab Configuration A row and a half cab(with sleeping berth),allowable 3 passengers, ETX2420 flat top, four point suspension airbag,airbag seat,air conditioner
Color Blue,other color is optional
Engine Model SC9DK270Q3B1
Emission Euro 3
Type 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,direct injection,exhaust valve brake,diesel engine
Rated power 270hp,rated power speed 2200rpm
Displacement 8820ml
Max.torque 1125N.m
Bore x stroke 114x144mm

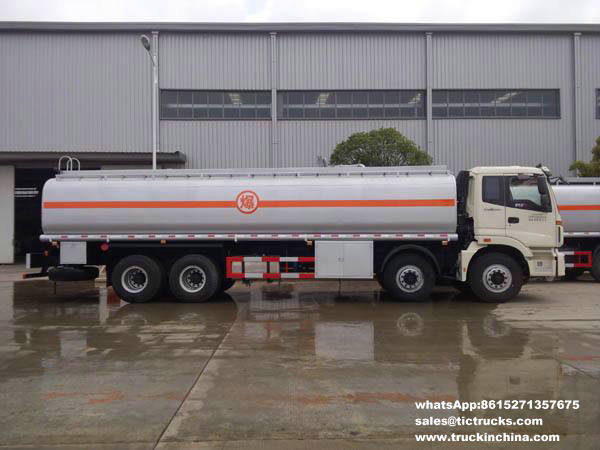

Manufacturer Shanghai Diesel Engine Co., Ltd Foton heavy oil truck 30000L

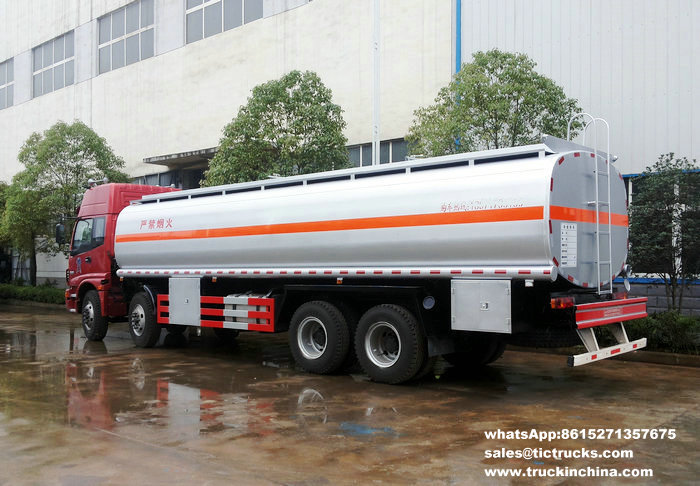

Foton 8x4 Foton  oil bowser 30000L

Tire Size 11.00R20 steel wire tire
Number 12+1 nos
Clutch φ430 diaphragm clutch
Fuel tank 380L aluminum alloy
Rear axle 457 rear axle,13 tons
Drive form 8X4
Rated voltage 24V,DC
Transmissions Gear box 9JS , 9 speed forward 1 reverse
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above,please take the actual product as the standard

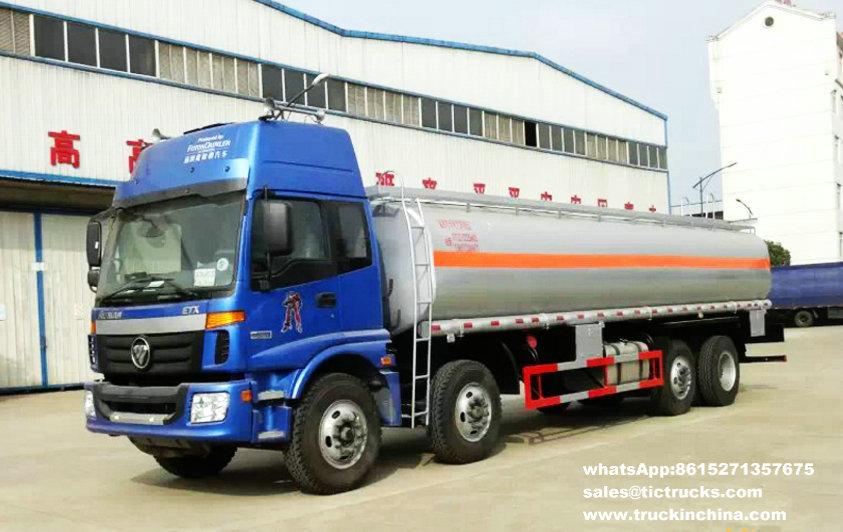

Foton 8x4Foton diesel delivery vehicles 30000L
Fuel tank structure parameters

Tank dimensions 9000X2462X1600mm Tank volume 30000L
Tank material Carbon steel Tank thickness 5/6mm

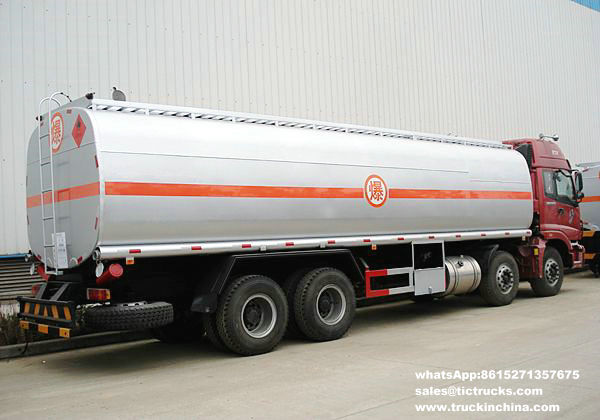

Color and Logo Optional Foton 8x4Foton crude oil transport vehicle 30000L

Standard configuration Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.
Selective configuration Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system

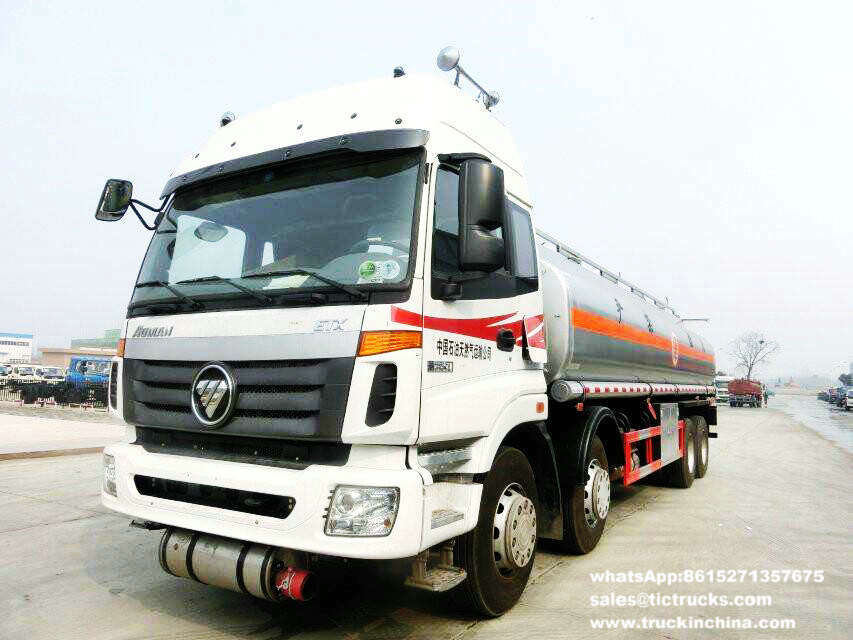

Foton 8x4Foton oil transport vehicle

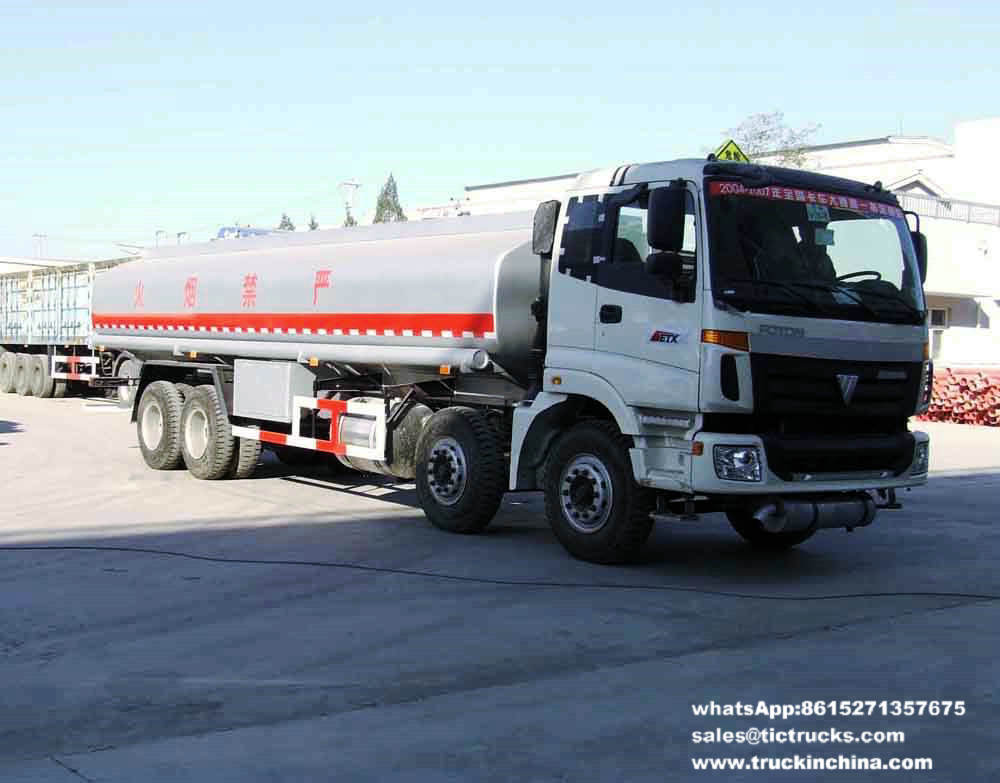

According to the different transport medium, oil   Petrol  oil bowser  can be called, oil tanker,  oil bowser , tanker, fuel trucks,  Foton oil delivery tanker, Foton  flow oil truck, Foton refueling  vehicle, computer Foton refueling truck, Foton  diesel delivery vehicles,  Foton gasoline delivery vehicles,  Foton oil transport vehicle,  Foton edible oil transport vehicle,  Foton crude oil transport vehicle,  Foton heavy oil truck,  Foton oil truck.Foton 8x4Foton edible oil transport vehicle 30000L

According to the brand oil tanker truck can be divided into, Yuejin  oil bowser , Dongfeng  Petrol  oil bowser  , FAW tanker truck, Foton  oil bowser , Sinotruk  Petrol  oil bowser  ,Auman tanker truck, North-Benz Petrol oil bowser  ,JAC  tanker truck,  Shacman  Petrol  oil bowser , CAMC oil transport tanker truck, Isuzu tanker truck, JMC tanker truck, etc.
