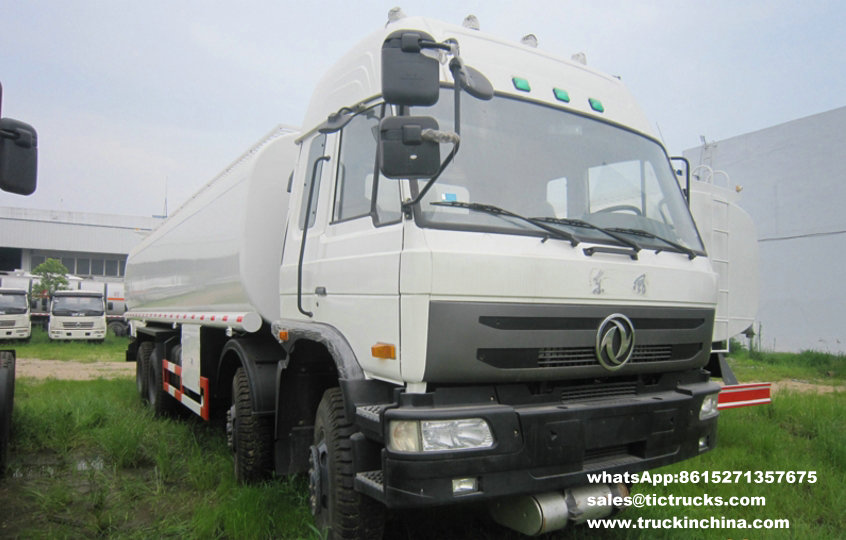

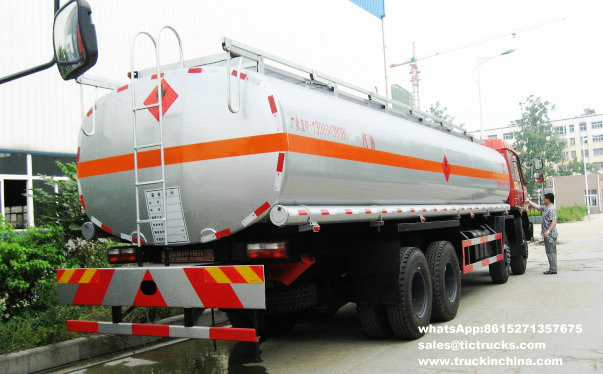

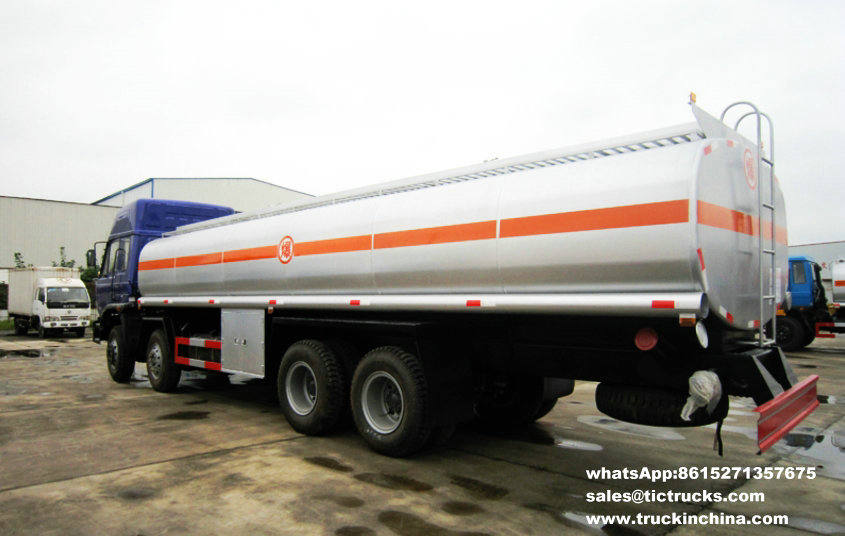

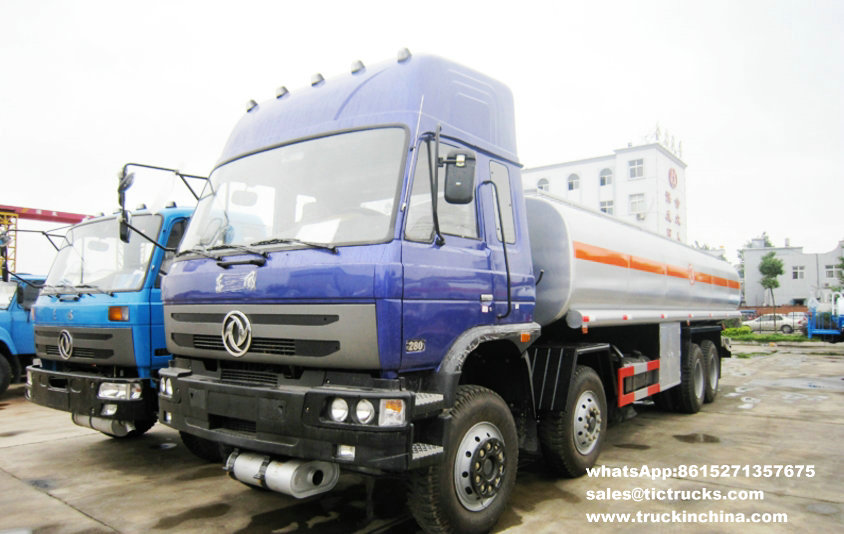

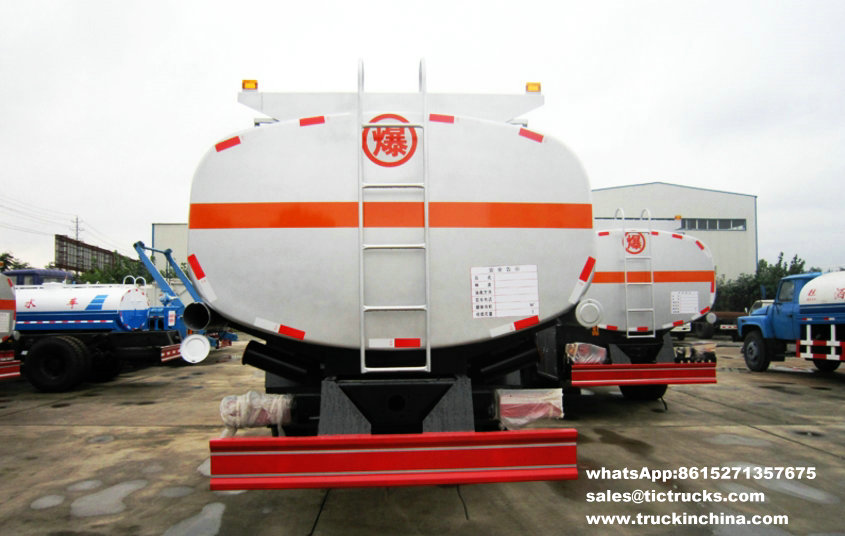

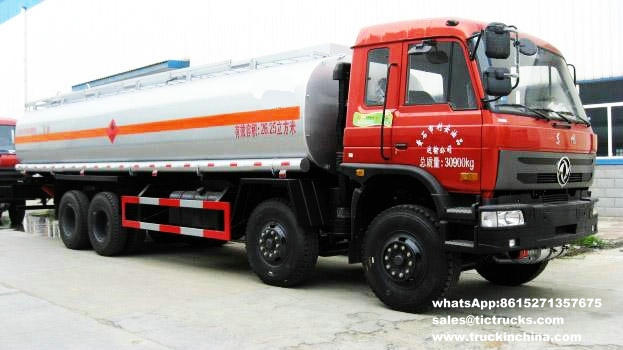

DRZ5290GYYE Dongfeng 8x4 Aluminium Fuel Tanker Capacity 30000L for sale
carbon steel Unit Price: USD 41500.00 - 43500.00 / Set/Sets
Aluminium alloy Unit Price: USD 51500.00 - 53500.00 / Set/Sets
Vehicle Model DRZ5290GYYE
Overall dimensions 11995×2495×3690mm Curb weight 14005kg
Tank dimensions 9100×2450×1450mm Tank volume 30000L

Chassis parameters
Chassis model EQ1290WFJ Chassis brand DONGFENG
Overall dimensions 11805x2470x3350mm Wheel base 1950+4250+1300mm
Front/rear wheel track 1940/1940/1860/1860mm Front/rear suspension 1205/3100mm
Approach/departure angle 34/18° Maximum speed 90km/h
Chassis Manufacturer Dongfeng Motor Corporation
Cab Configuration A row and a half deluxe cab(with sleeping berth),allowable 3 passengers
Color Violet,other color is optional
Engine Model C280 33
Emission Euro 3
Type 6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine
Rated power 280hp,rated power speed 2200rpm
Displacement 8300ml
Max.torque 1125N.m
Bore x stroke 114x135mm
Manufacturer Dongfeng Cummins Engine Co., Ltd.
Tire Size 11.00-20, nylon tire
Number 12+1 nos
Frame 300×80×(8+6)mm
Fuel tank 320L,steel
Front axle 5.0T
Rear axle 10.0T
Drive form 8X4
Rated voltage 24V,DC
Transmissions Gearbox 9JS119A, 9 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration Air Conditioner,steel wire tire,Cummins engine C300 33(300 hp)
If there is a slight change in the chassis parameters above,please take the actual product as the standard
Fuel tank structure parameters
Tank dimensions 9100×2450×1450mm Tank volume 30000L
Tank material Carbon steel Tank thickness 5/6mm or Aluminum alloy ,stainless steel
Color and Logo Optional
Standard configuration Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.
Selective configuration Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system.
Oil tanker truck refers to the vehicle that loading and transporting of gasoline, diesel, kerosene, lubricating oil, and other liquid fuel, etc. It is mainly composed of oil tank, oil pump, flow meter, refueling gun, filling mouth, fuel release valve, manhole covers, oil hose, chain etc.
According to the different transport medium, oil tanker truck can be called, oil tanker, tank truck, tanker, fuel trucks, oil delivery tanker, flow oil truck, refueling vehicle, computer refueling truck, diesel delivery vehicles, gasoline delivery vehicles, oil transport vehicle, edible oil transport vehicle, crude oil transport vehicle, heavy oil truck, oil truck.
According to the brand oil tanker truck can be divided into, Yuejin tank truck, Dongfeng tanker truck, FAW Aluminium alloy tank truck, Foton tank truck, Sinotruk tanker truck,Auman Aluminium alloy tank truck, North-Benz tanker truck, JAC transport Aluminium alloy tank truck, tanker truck, Shacman oil tanker truck, CAMC oil transport Aluminium alloy tank truck, Isuzu Aluminium alloy tank truck, JMC Aluminium alloy tank truck, etc.
