DRZ5108GYYE Dongfeng 4x2 Refuelling Fuel Tanker Truck Capacity 10000L for sale

Views: 17415     Author: DRZ     Publish Time: 2017-04-21      Origin: Dong Runze Special Vehicle

DRZ5108GYYE Dongfeng 4x2 Refuelling Fuel Tanker Truck Capacity 10000L for sale

DRZ5108GYYE

Dongfeng 4x2 Refuelling Fuel Tanker Truck Capacity 10000L for sale

LHD USD 18700.00 - 19700.00 / Set/Sets

RHD Unit Price: USD 19000.00 - 23000.00 / Set/Sets

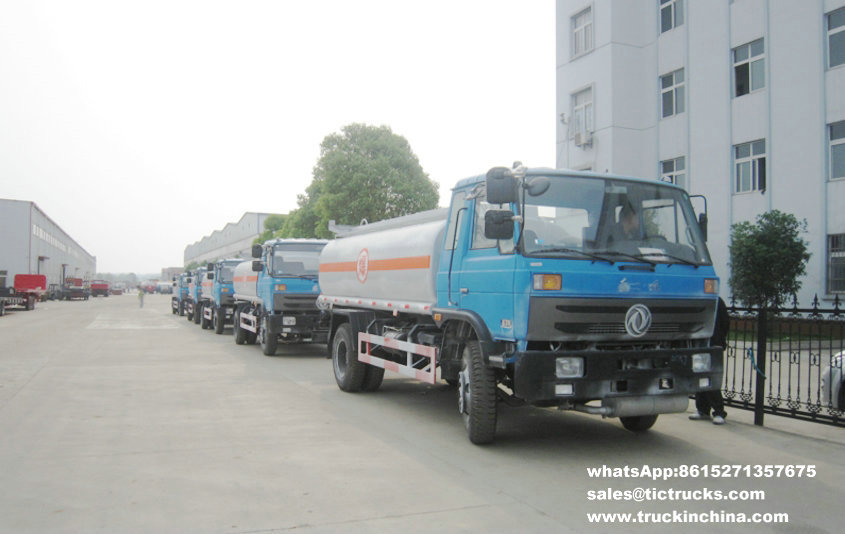

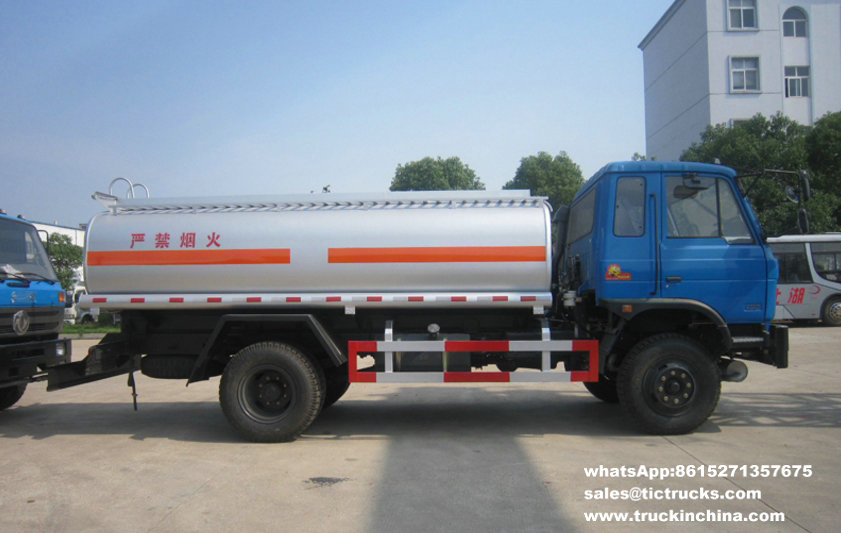

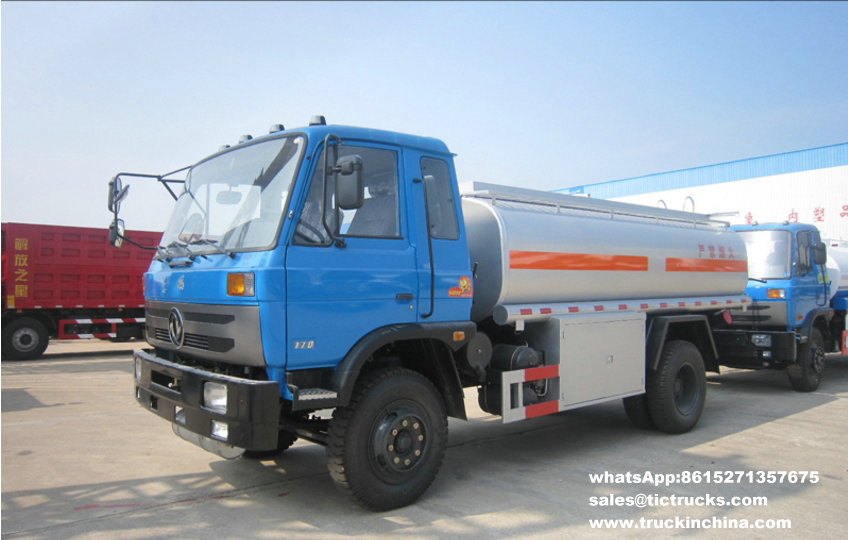

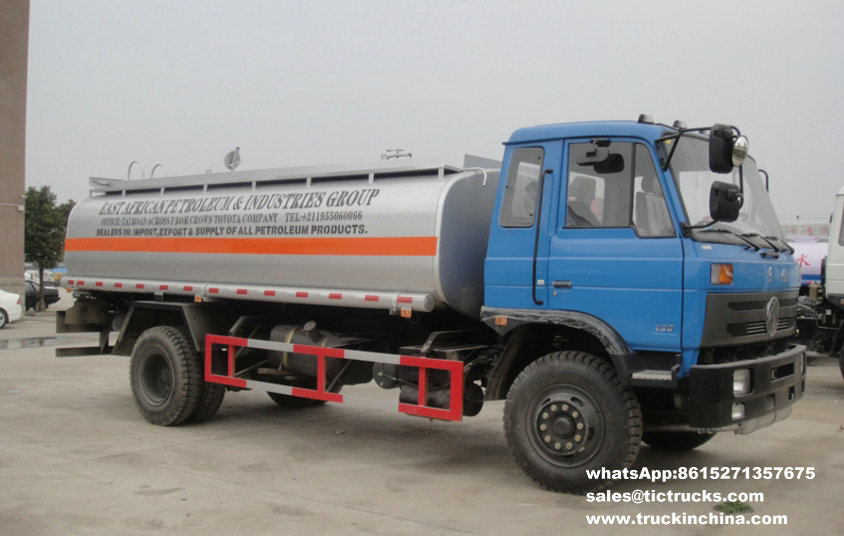

Dongfeng 4x2 Refuelling Fuel Tanker Truck Capacity 10000L 2_1.jpgDongfeng 4x2 Refuelling Fuel Tanker Truck Capacity 10000L 3_1.jpgDongfeng 4x2 Refuelling Fuel Tanker Truck Capacity 10000L 4_1.jpgDongfeng 4x2 Refuelling Fuel Tanker Truck Capacity 10000L_1.jpg

RHD Fuel Tanker Truck , RHD Used Fuel Tanker Truck , RHD Fuel Tanker Truck Capacity , Fuel Tanker Truck , RHD Fecal Tank Truck , RHD Diesel Tanker Truck , RHD Milk Tanker Truck , RHD Water Tanker Truck

Related Keywords

Dongfeng Refuelling Oil Truck , Refuelling Fuel Tank Truck , Refuelling Oil Tank Truck , Dongfeng Refuelling Oil Trucks , Dongfeng Refuelling Oil Tank Truck , Dongfeng Refuelling Fuel Truck , Dongfeng Refuelling Oil Tank Trucks , RHD Dongfeng Refuelling Oil Tank Trucks

Overall dimensions 7275×2495×2950mm Curb weight 5300kg
Tank dimensions 4800×2000×1160mm Tank volume 10000L


Chassis parameters
Chassis model EQ1108KJ Chassis brand DONGFENG
Overall dimensions 6975X2462X2690mm Wheel base 3950mm
Front/rear wheel track 1900/1800mm Front/rear suspension 1205/1820mm
Approach/departure angle 25/18° Maximum speed 90km/h
Chassis Manufacturer Dongfeng Motor Company
Cab Configuration A row and a half deluxe cab(with sleeping berth),allowable 3 passengers
Color Blue,other color is optional
Engine Model B170 33
Emission Euro 3
Type 6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine
Rated power 170hp,rated power speed 2500rpm
Displacement 5900ml
Max.torque 560N.m
Bore x stroke 102x120mm
Manufacturer Dongfeng Cummins Engine Co., Ltd.
Tire Size 9.00-20 nylon tire
Number 6+1 nos
Frame (250×80×7)mm,parts are double layers.
Fuel tank 160L,steel
Front axle 3.6T
Rear axle 9.0T
Drive form 4X2
Rated voltage 24V,DC
Transmissions Gearbox DF6S, 6 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive or right hand drive
Selective configuration Air Conditioner,steel wire tire,new driver`s cab
If there is a slight change in the chassis parameters above,please take the actual product as the standard


Fuel tank structure parameters
Color and Logo Optional  Selective configuration Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system,divided into several bins.Tank dimensions 4800×2000×1160mm Tank volume 10000L
Tank material Carbon steel Tank thickness 5mm
Color and Logo Optional
Standard configuration Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.
Selective configuration Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system,divided into several bins.

Oil tanker truck refers to the vehicle that loading and transporting of gasoline, diesel, kerosene, lubricating oil, and other liquid fuel, etc. It is mainly composed of oil tank, oil pump, flow meter, refueling gun, filling mouth, fuel release valve, manhole covers, oil hose, chain etc.

According to the different transport medium, oil tanker truck can be called, oil tanker, tank truck, tanker, fuel trucks, oil delivery tanker, flow oil truck, refueling vehicle, computer refueling truck, diesel delivery vehicles, gasoline delivery vehicles, oil transport vehicle, edible oil transport vehicle, crude oil transport vehicle, heavy oil truck, oil truck.

According to the brand oil refueling  truck can be divided into, Yuejin tank truck, Dongfeng refueling  truck, FAW refueling  truck, Foton tank truck, Sinotruk refueling  truck,Auman refueling  truck, North-Benz refueling  truck, JAC transport refueling  truck, refueling  truck, Shacman oil refueling  truck, CAMC oil transport refueling  truck, Isuzu refueling  truck, JMC refueling  truck, etc.
