DRZ5070GYYQ ISUZU 4x2 Aluminium Oil Tanker Truck Capacity 5000L for sale

Views: 2515     Author: Dong Runze Special Vehicle     Publish Time: 2017-04-25      Origin: Dong Runze Special Vehicle

DRZ5070GYYQ ISUZU 4x2 Aluminium Oil Tanker Truck Capacity 5000L for sale

ISUZU 4x2 Aluminium Oil Tanker Truck Capacity 5000L for sale

carbon steel Unit Price: USD 23600.00 - 24600.00 / Set

Aluminium alloy   Unit Price: USD 26600.00 - 28600.00 / Set


Related Keywords

ISUZU Stainless Steel Oil Truck , ISUZU Stainless Steel Oil Tank Truck , ISUZU Stainless Steel Oil Tanker Truck , DFAC Stainless Steel Oil Truck , Stainless Steel Milk Truck , FOTON Stainless Steel Oil Truck , Beiben Stainless Steel Oil Truck , Dongfeng Stainless Steel Oil Truck

Vehicle Model DRZ5070GYYQ
Overall dimensions 7250X2300X2350mm Curb weight 3510kg
Tank dimensions 4270×1750×1140mm Tank volume 8000L

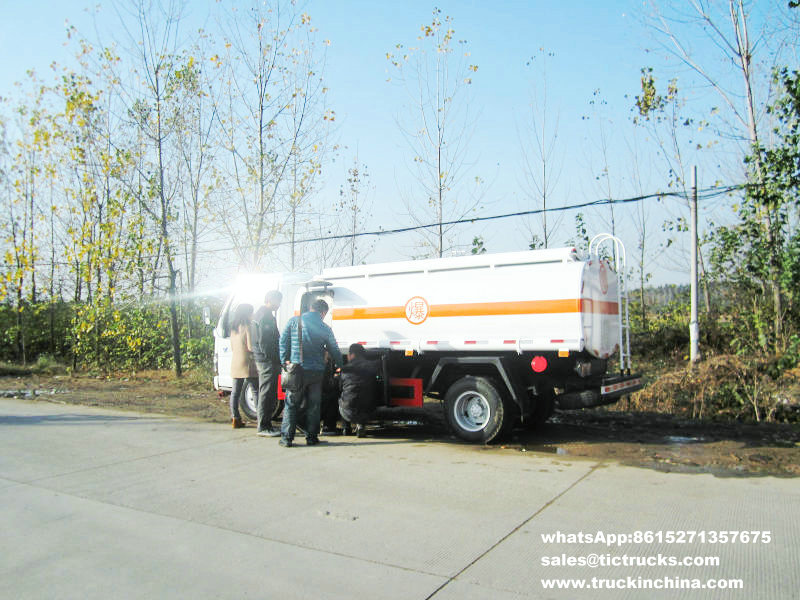

ISUZU 5000L Aluminum Alloy ISUZU oil delivery tanker

Chassis parameters
Chassis model QL1070A1KAY Chassis brand ISUZU
Overall dimensions 6645x1880x2160mm Wheel base 3815mm
Front/rear wheel track 1504/1425mm Front/rear suspension 1015/1815mm
Approach/departure angle 24/14° Maximum speed 105km/h
Chassis Manufacturer QingLing Motors (Group) Co., Ltd.
Cab Configuration 600P,single row cab,allowable 2 passengers,car interior, air conditioner, USB radio interface, with oil brake vacuum booster pump
Color White,other color is optional
Engine Model 4KH1-TCG40
Emission Euro 4
Type 4 cylinders, in-line, 4-stroke,water-cooled,turbo inter-cooling,4-valve ,diesel engine
Rated power 120hp,rated power speed 3400rpm
Displacement 2999ml
Manufacturer Isuzu Engine (Chongqing) Co., Ltd.
Tire Size 7.00-15 10PR nylon tire
Number 6+1 nos
Front axle 2.5 tons
Rear axle 4.8 tons
Drive form 4X2
Suspension Multi leaf springs
Rated voltage 24V,DC
Transmissions Isuzu MSB five speed transmission,5 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above,please take the actual product as the standard

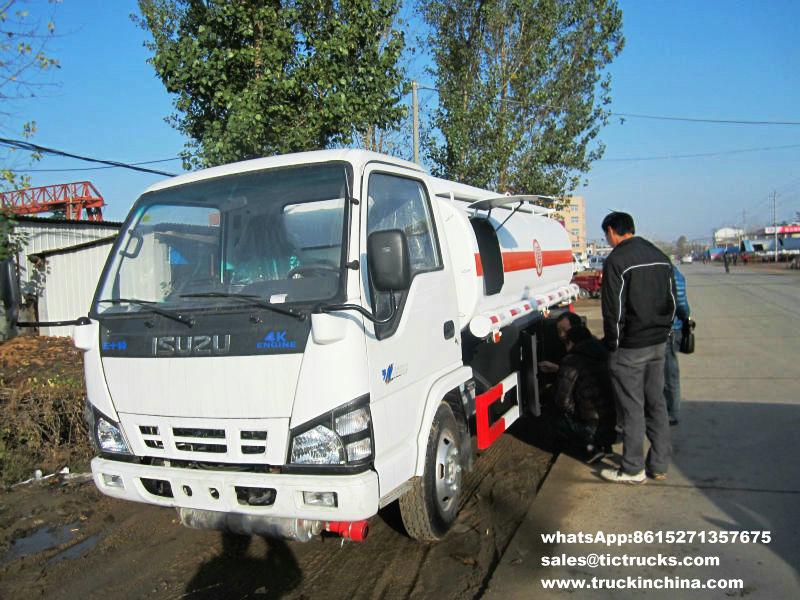

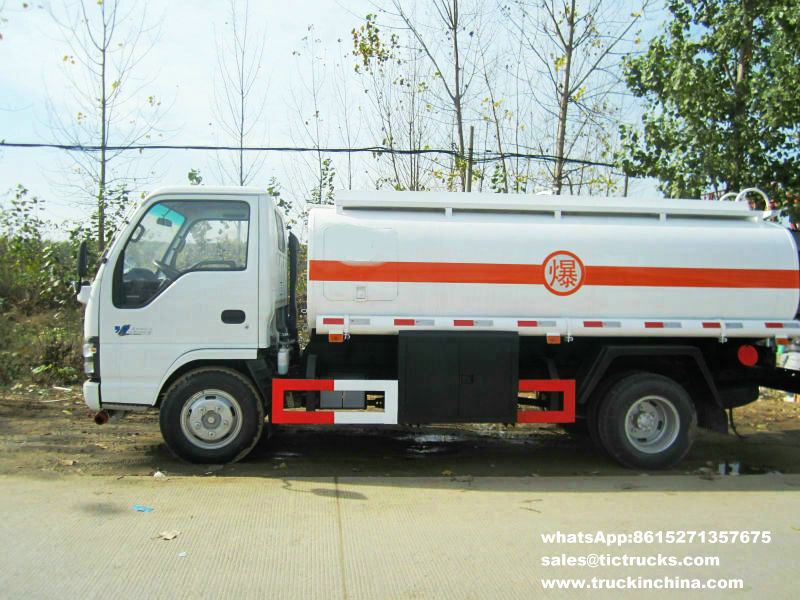

computer ISUZU refueling truck 5000L Fuel tank structure parameters      ISUZU oil transport vehicle 5000L

Tank dimensions 4270×1750×1140mm Tank volume 8000L
Tank material Carbon steel Tank thickness 5mm
Color and Logo Optional
Standard configuration Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.
Selective configuration Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system,

 Oil  Petrol  Tank truck   refers to the vehicle that loading and transporting of gasoline, diesel, kerosene, lubricating oil, and other liquid fuel, etc. It is mainly composed of oil tank, oil pump, flow meter, refueling gun, filling mouth, fuel release valve, manhole covers, oil hose, chain etc. fuel tank lorry

According to the different transport medium, oil   Petrol  Tank truck   can be called, oil tanker, fuel tank lorry   , tanker, fuel trucks,  ISUZU oil delivery tanker, ISUZU  flow oil truck, ISUZU refueling vehicle, computer ISUZU refueling truck, ISUZU  diesel delivery vehicles,  ISUZU gasoline delivery vehicles,  ISUZU oil transport vehicle,  ISUZU edible oil transport vehicle,  ISUZU crude oil transport vehicle,  ISUZU heavy oil truck,  ISUZU oil truck.

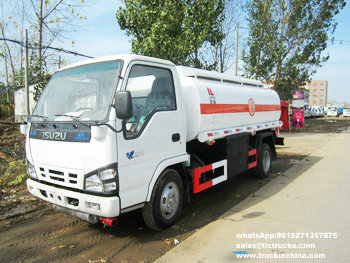

ISUZU oil truck 5000L Aluminum Alloy According to the brand oil tanker truck can be divided into, Yuejin fuel tank lorry   , Dongfeng fuel tank lorry   , FAW tanker truck, Foton fuel tank lorry  , Sinotruk  Petrol  Tank truck  ,Auman tanker truck, North-Benz  fuel tank lorry    ,JAC  tanker truck,  Shacman  Petrol  Tank truck  , CAMC oil transport tanker truck, Isuzu tanker truck, JMC tanker truck, etc.
