DRZ5060GYYE Dongfeng DFAC RHD 4x2 5000L oil tanker truck

Views: 425     Author: DRZ     Publish Time: 2017-04-20      Origin: Dong Runze Special Vehicle

DRZ5060GYYE Dongfeng DFAC RHD 4x2 5000L oil tanker truck

Dongfeng DFAC RHD 4x2 5000L oil tanker truck USD 15000.00 - 22000.00 / Set/Sets

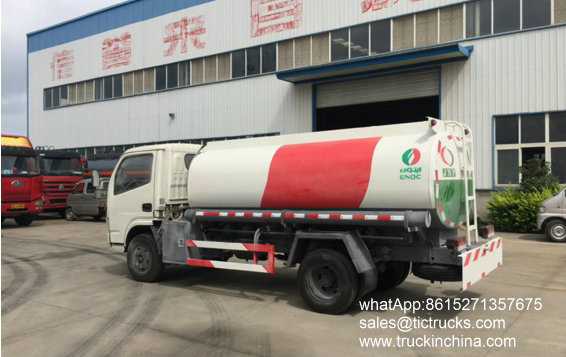

Dongfeng DFAC RHD 4x2 5000L oil tanker truck 32_1.jpgRelated Keywords

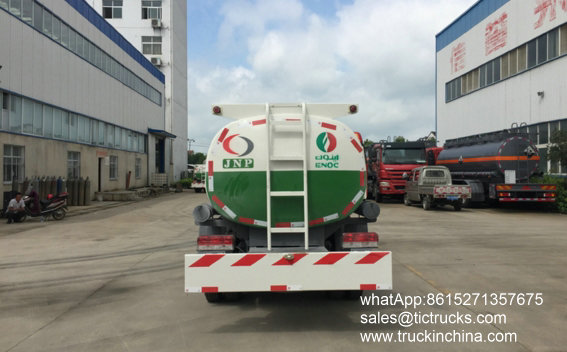

RHD Dongfeng Refuelling Fuel Tank Trucks , RHD Dongfeng Refuelling Oil Tank Trucks , RHD Dongfeng Mobile Refueling Vehicles , Dongfeng Refuelling Fuel Tank Trucks , Dongfeng Refuelling Fuel Tank Truck , Dongfeng Refuelling Oil Tank Trucks , Dongfeng Refuelling Oil Tank Truck , Dongfeng Refuelling Fuel TruckDongfeng DFAC RHD 4x2 5000L oil tanker truck 3_1.jpg

Vehicle parameters

Vehicle Model

DRZ5060GYYERHD

Vehicle Brand

FOMON

Overall dimensions

5990×1980×2350mm

Curb weight

3300kg

Tank dimensions

4100×1720×1150mm

Tank volume

5000L

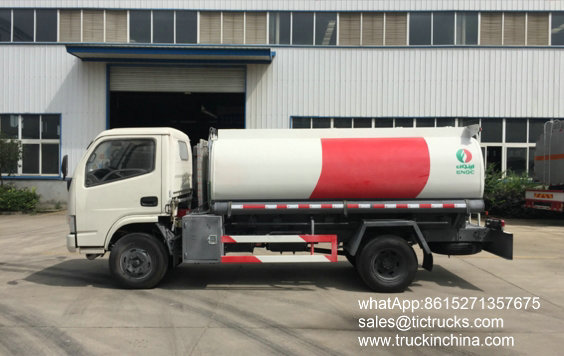

   Dongfeng DFAC RHD 4x2 5000L oil tanker truck_1.jpg

Chassis parameters

Chassis model

EQ1060TJ20D3

Chassis brand

DONGFENG

Overall dimensions

5820x1940x2080mm

Wheel base

3300mm

Front/rear wheel track

1506/1466mm

Front/rear suspension

1032/1488mm

Approach/departure angle

19/15°

Maximum speed

80km/h

Chassis Manufacturer

Dongfeng Automobile Co.,Ltd

Cab

Configuration

Single row cab,allowable 3 passengers

Color

White,other color is optional

Engine

Model

CY4102-C3F

Emission

Euro 3

Type

in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

95hp,rated power speed 3200rpm

Displacement

3856ml

Bore x stroke

102x118mm

Manufacturer

Dongfeng Chaoyang Diesel Power Co. Ltd.

Tire

Size

7.00-16 nylon tire

Number

6+1 nos

Fuel tank

100L,steel

Front axle

2.0T

Rear axle

4.0T

Drive form

4X2

Rated voltage

24V,DC

Transmissions

5 speed forward 1 reverse.

Steering wheel

Right hand drive

Selective configuration

Air Conditioner,steel wire tire,power assisted steering

If there is a slight change in the chassis parameters above,please take the actual product as the standard



Dongfeng DFAC RHD 4x2 5000L oil tanker truck

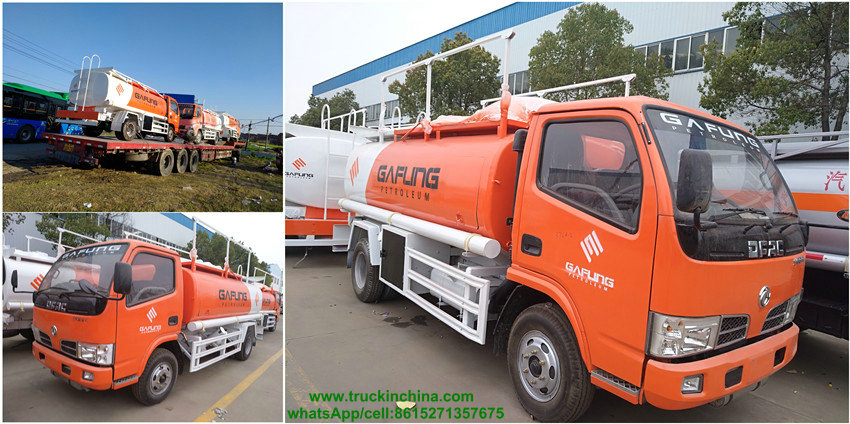

DONGFENG RHD 5,000L fuel dispensing truck_ 1.jpg

Fuel tank structure parameters

Tank dimensions

4100×1720×1150mm

Tank volume

5000L

Tank material

Carbon steel

Tank thickness

5mm



Color and Logo

Optional

Standard configuration

Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.

Selective configuration

Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system,divided into several bins.

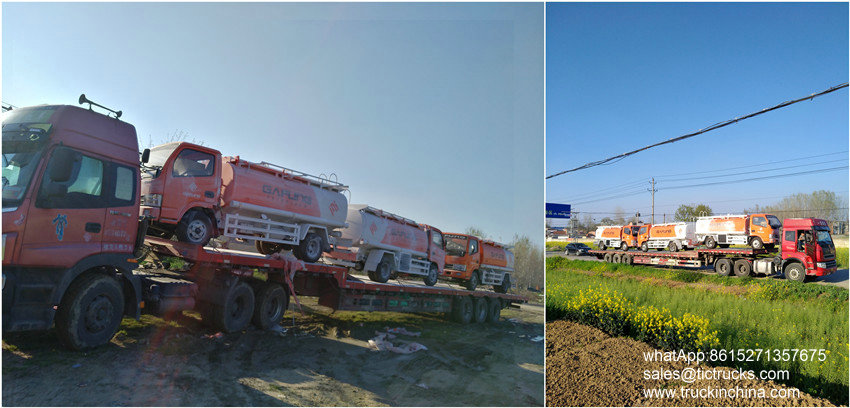

 DONGFENG RHD 5,000L fuel dispensing truck 2_1.jpg
