DRZ50503GYYQ ISUZU 100P Oil bowser Capacity 4000L-6000L for sale

Views: 4269     Author: Dong Runze Special Vehicle      Publish Time: 2017-04-25      Origin: Dong Runze Special Vehicle

DRZ50503GYYQ ISUZU 100P Oil bowser Capacity 4000L-6000L for sale

DRZ50503GYYQ ISUZU 100P Oil bowser Capacity 4000L-6000L for sale

 Unit Price: USD 19000.00 - 20000.00 / Set

Vehicle Model DRZ50503GYYQ
Overall dimensions 5875X1900X2175mm Curb weight 3385kg
Tank dimensions 3870×1750×1140mm Tank volume 6000L

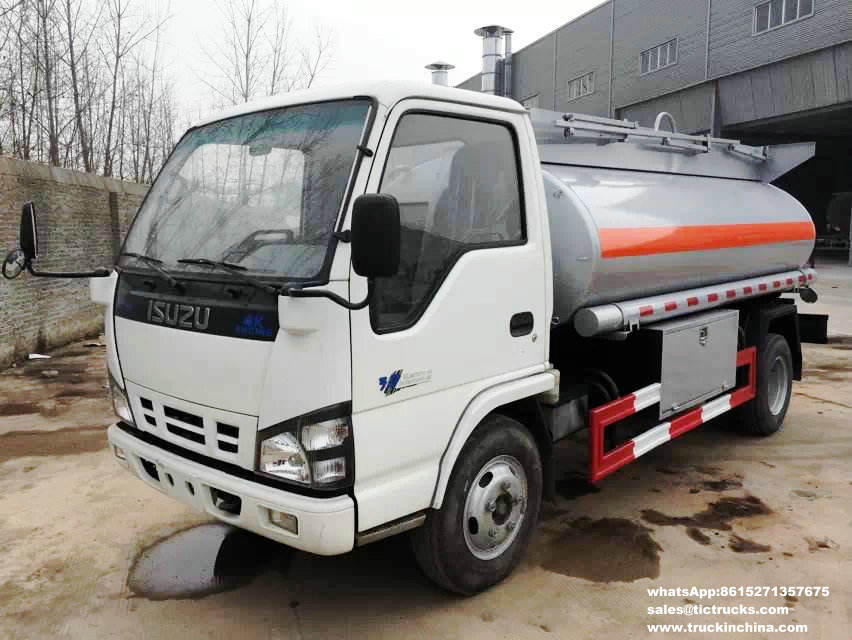

ISUZU 100P Oil Transport Truck Capacity 6000L 2_1.jpg

Chassis parameters
Chassis model QL10503HARY Chassis brand ISUZU
Overall dimensions 5900x1860x2180mm Wheel base 3360mm
Front/rear wheel track 1385/1425mm Front/rear suspension 1015/1525mm
Approach/departure angle 24/16° Maximum speed 98km/h
Chassis Manufacturer QingLing Motors (Group) Co., Ltd
Cab Configuration 100P ,single row cab,allowable 3 passengers,air conditioner, USB radio interface.
Color White,other color is optional
Engine Model 4JB1CN
Emission Euro 4
Type 4 cylinders, in-line, diesel engine
Rated power 98hp
Displacement 2771ml
Manufacturer Isuzu (ChongQing) Engine Co., LTD
Tire Size 7.00-15 10PR nylon tire
Number 6+1 nos
Frame 172X65(4)mm
Front axle 2.5 tons
Rear axle 3.0-4.8 tons
Drive form 4X2
Suspension Multi leaf springs
Rated voltage 24V,DC
Transmissions Isuzu MSB five speed transmission,5 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration Tire of small tonnage 700-15 and big tonnage 700-16
If there is a slight change in the chassis parameters above,please take the actual product as the standard

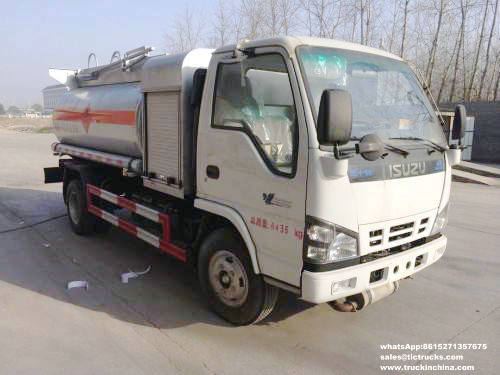

ISUZU 100PISUZU refueling vehicleFuel tank structure parameters

Tank dimensions 3870×1750×1140mm Tank volume 6000L
Tank material Carbon steel Tank thickness 5mm
Color and Logo Optional
Standard configuration Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.
Selective configuration Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system

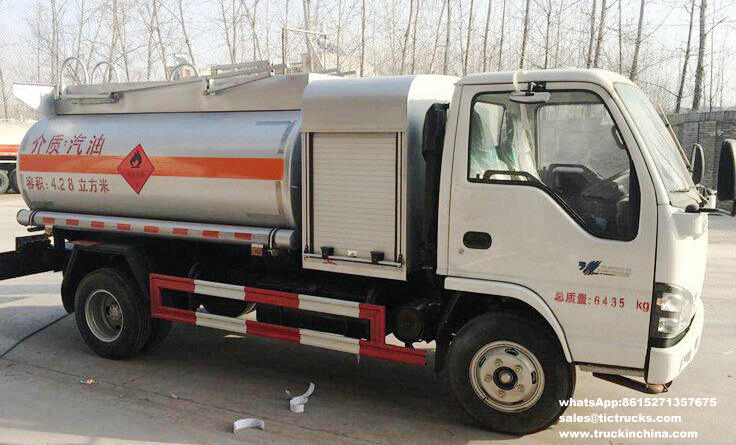

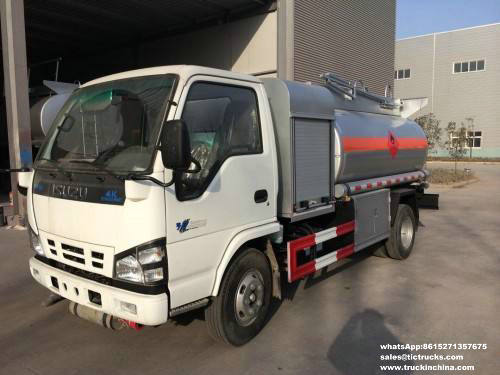

ISUZU 100P ISUZU gasoline delivery vehiclesISUZU 100P ISUZU diesel delivery vehicles, 6000L

Related Keywords

Isuzu Fuel Transport Vehicle , Fuel Transport Truck , Oil Transport Vehicle , FAW Fuel Transport Vehicle , FOTON Fuel Transport Vehicle , Shacman Fuel Transport Vehicle , FAW Aluminium Fuel Transport Vehicle , Flatded Transport Vehicle

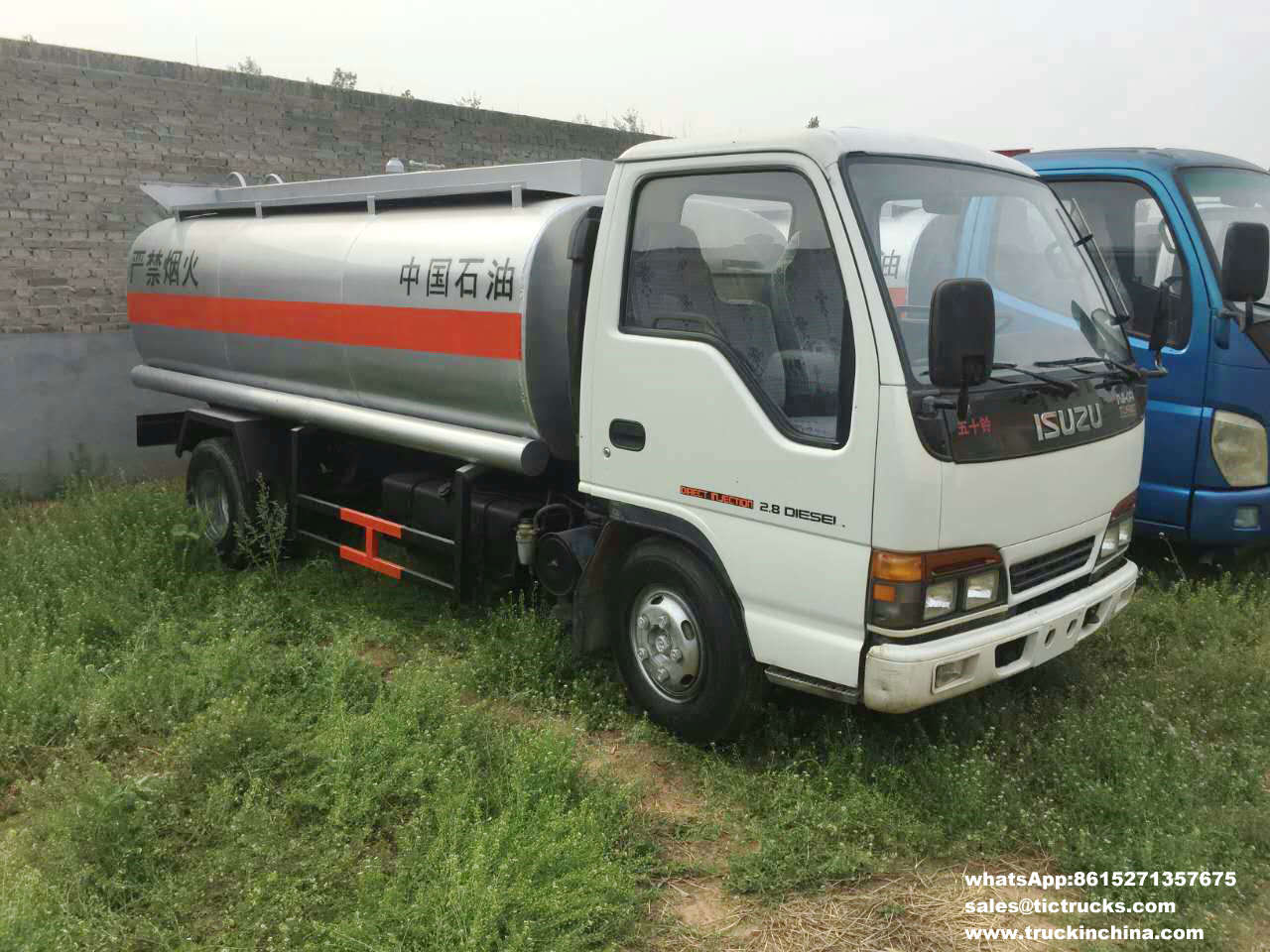

ISUZU 100P ISUZU oil truck 6000L

 Oil  Fuel Trucks    refers to the vehicle that loading and transporting of gasoline, diesel, kerosene, lubricating oil, and other liquid fuel, etc. It is mainly composed of oil tank, oil pump, flow meter, refueling gun, filling mouth, fuel release valve, manhole covers, oil hose, chain etc. Fuel Trucks For Sale

According to the different transport medium, oil   Fuel Trucks    can be called, oil tanker, Fuel Trucks For Sale   , tanker, fuel trucks,  ISUZU oil delivery tanker, ISUZU  flow oil truck, ISUZU refueling vehicle, computer ISUZU refueling truck, ISUZU  diesel delivery vehicles,  ISUZU gasoline delivery vehicles,  ISUZU oil transport vehicle,  ISUZU edible oil transport vehicle,  ISUZU crude oil transport vehicle,  ISUZU heavy oil truck,  ISUZU oil truck.

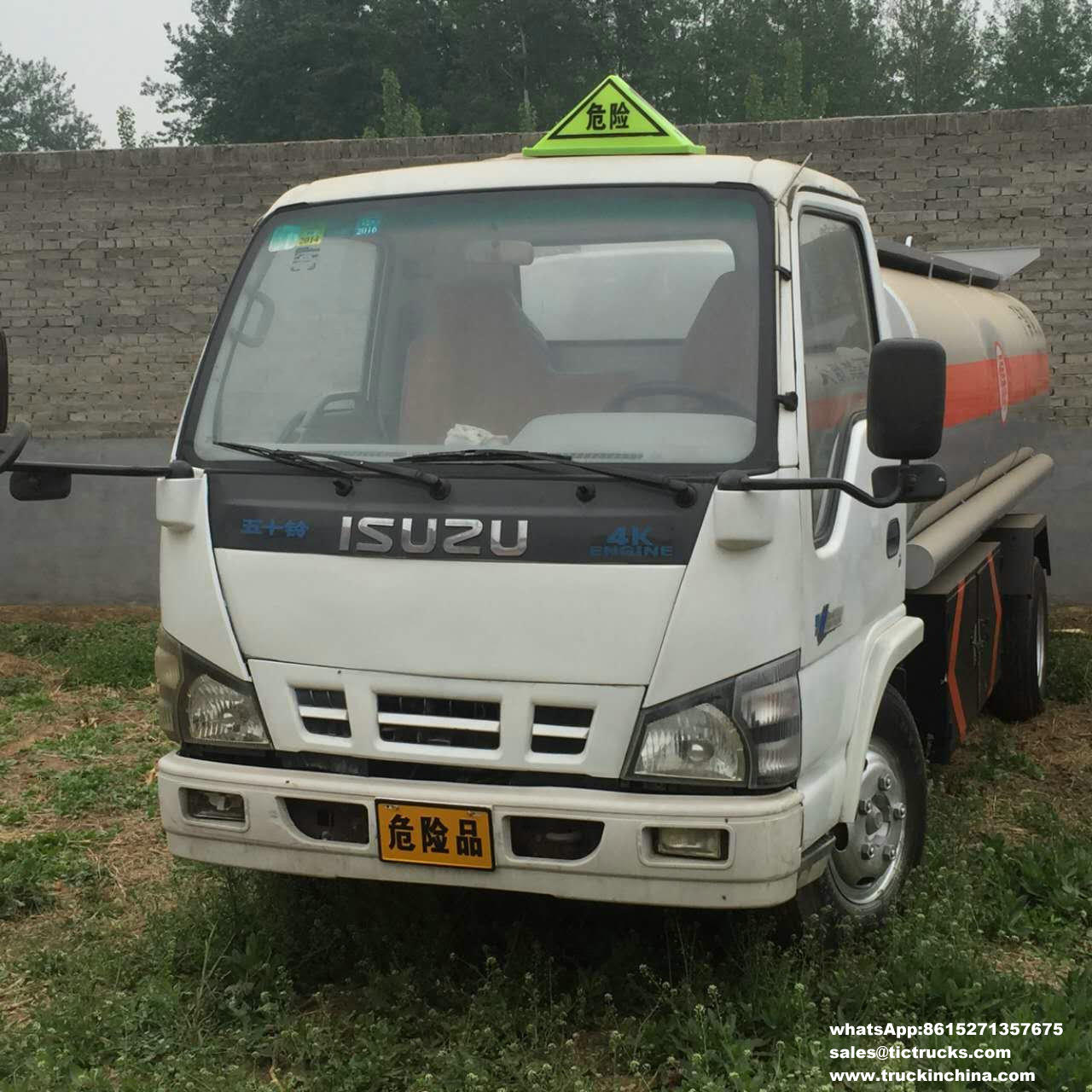

ISUZU 100P Oil Transport Truck Capacity 6000L 66_1.jpg

According to the brand oil tanker truck can be divided into, Yuejin Fuel Trucks For Sale     , Dongfeng Fuel Trucks For Sale, FAW Fuel Trucks For Sale , Foton Fuel Trucks For Sale, Sinotruk  Fuel Trucks  ,Auman Fuel Trucks For Sale , North-Benz  Fuel Trucks For Sale ,JAC  Fuel Trucks For Sale ,  Shacman  Fuel Trucks , CAMC oil transport Fuel Trucks For Sale , Isuzu Fuel Trucks For Sale , JMC Fuel Trucks For Sale , etc.
