T9400TDP
DRZE
871639900

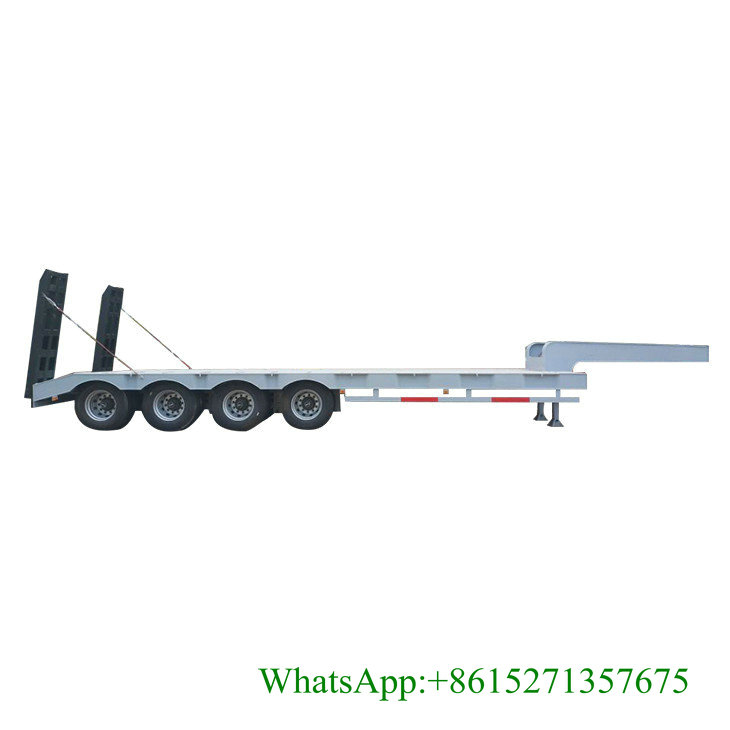

Customizing 80T 4 Axles Lowbed Semi Trailer 13.5M
Low Bed Trailer BPW Axles 14T 2180mm, TIRES 11R22.5 equip 13 pcs
LOW BED OVERALL WIDE 3M
Customizing Other Trailer Trucks
Application Of The 80T 4 Axle Low Bed Semi Trailer
Low Bed Semi-Trailer Is Named As Lowbed Trailer, Lowboy Trailer, Drop Deck Trailer As Well. It Is Specialized In Loading Construction Machineries.
It Could Be 2 Axle, 3 Axle, 4 Axle Or Multi Axles. We Also Could Use The Steering Axle To Improve The Mobility Of The Trailer.
The Payload Could Be 30 Tons, 45 Tons, 60 Tons, 80 Tons Or Even 100 Tons.
It Is a Highly Customized Product.
We Design And Make The Low Bed Trailer According To Your Actual Demend Of The Usage.
Advantages Of The 80T 4 Axle Low Bed Semi Trailer
Heavy Duty Payload
The Trailer Payload Reaches 80 Tons. It Has 4 Axle, Each One 16Ton Capacity Fuwa Axle, Strong Mechanical Suspension And Heavy Duty I Beam.
The I Beam Is Made By High Tensile Steel And Thickness Reaches 20mm To Bear The Heavy Loading.
The Mechanical Ramp Is Also Heavy Duty Type For The Equipment Climbing Up And Down.
Customized Working Platform Length
This Working Platform Length Is 9m. It Could Be Made Between 6m To 10m. It Is Up To The Loaded Machinary Size And Length.
The Working Platform Normally Has 2 Types. One Is The Flat Deck Type, One Is The Concave Type.
The Flat Deck Type Could Have Longer Working Platform But The Deck Height Is Higher.
The Concave Type Has Shorter Working Platform, But The Deck Height Is Lower Which Could Provide Better Stability For Heavy Duty Machinary Transport.
High Tensile Steel
The Raw Material Of The Low Bed Trailer Is Carbon Steel Q345.
We Are Keeping To Improve This Trailer By Reducing The Trailer Tare Weight But Still Keep The Same Payload.
We Could Use The High Tensile Steel T700, 800, Nm450 To Reduce The Trailer Tare Weight
Specification
Specification | |
Payload | 80,000kg |
Overall Length | 13,500mm |
Overall Width | 3000mm |
Overall Height | 1750mm, The Overall Height Is Subject To Final Drawing |
Deck Dimension | 9000x3000mm |
Main Frame | Heavy Duty And Extra Durability Designed; Opting For High Tensile Steel Q345B, Welded By Automatic Submerged-Arc Processes. 500mm Height Beam, Top Flange 20mm ,Middle Flange 10mm, Bottom Flange 20mm, |
Floor | Steel Sheet 6mm Thickness Checker Floor |
Axle | Fuwa 15T Axle Extended Length, 4 Axles |
Suspension | Heavy Duty Mechanical Suspension |
Leaf Spring | Eight Sets Of Reliable Local Brand, 8pcs Leaf Spring, 16x90mm |
King Pin | One Unit Of 3.5” Bolt In Kingpin, Jost Brand |
Landing Gear | Two-Speed ,Manual Operation, Heavy Duty Landing Gear, Jost Brand |
Tire | 17 Units 295/80R22.5 Tire, 11.00-20, 8.25R15, 11.00R20, 12.00R20, 11R22.5, 12R22.5, 315/80R22.5 Including 1 Unit Spare Tire, 1 Spare Tire Carrier. Wheel Rim 8.5-20, 8.25-22.5, 9.0-22.5 |
Rear Ladder | Mechanical Type |
Pneumatic Braking System | Reliable Local Brand 40L Air Tank; |
Electrical System | One Unit Of 24V 7 Pin Iso Socket; Two Sets Of Reliable, Local Brand Standard Rear Light; With Side Light, Side Reflector, And Rear Reflector. |
Painting | Sand Blasting Before Painting; One Coat Of Primer, Anti-Corrosion; Two Coats Of Finish Painting; Color Advised By Client. |
Accessory | One Box With a Set Of Standard Trailer Tool |

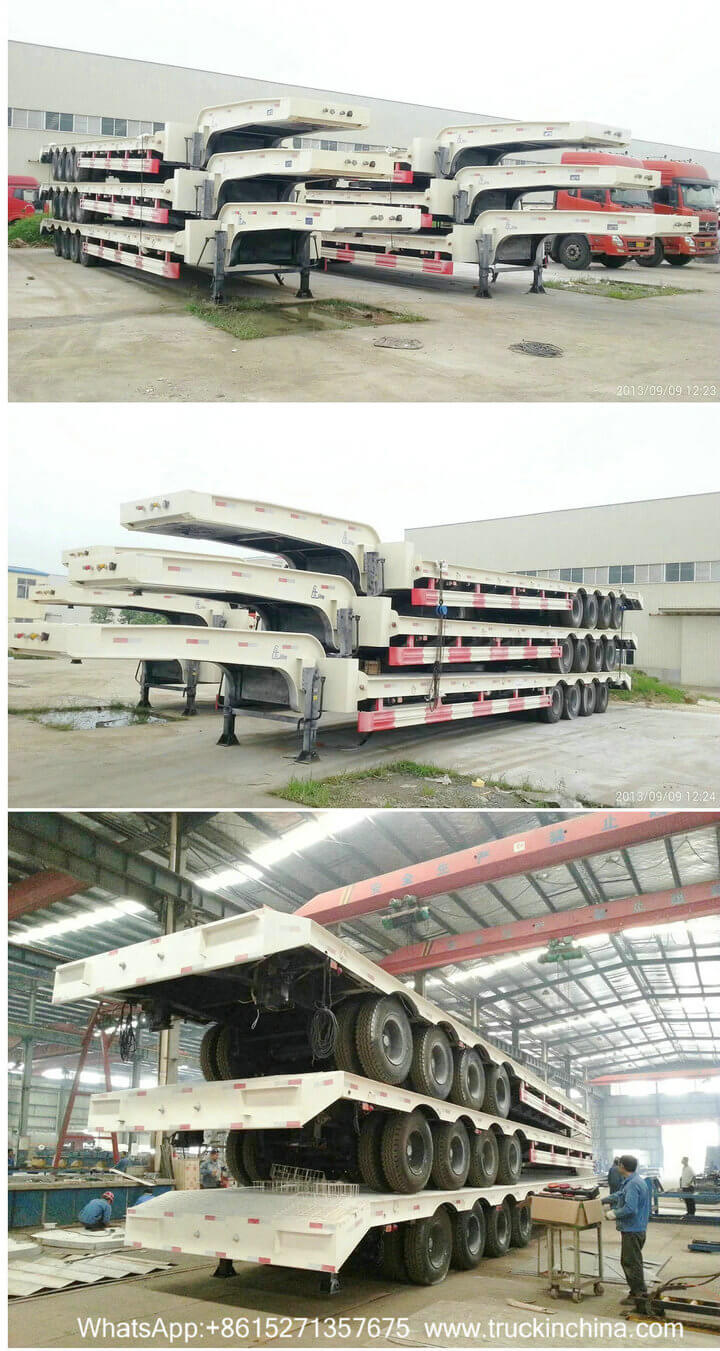

Successful Cases : Export to Africa
FROM SHANGHAI PORT,CHINA TO MOMBASA ports , BY SEA
Price TERM: CIF MOMOMBASA
Ship Vessel details : GRAND PAVO (Vehicles Carrier) Voyage V.083 Time of Loading 2019-09-25
Application of 3 Axle Heavy Duty Low Bed Trailer
Due to the limitation of the structure and driving speed, construction machineries have to be transported by other facilities to the workplace. The construction development increases the volume and weight of equipments. Thus, this heavy duty low bed trailer can meet the market demand.
Wind Blade Transport Extendable Trailer
Total Standard Fuel Tank Trailer
Heavy Duty Low Loader Trailer
Heavy Equipment Transport Trailer
4 Axle 2 Line Low Bed Trailer
3 Axle Heavy Duty Low Bed Trailer
Advantages of 3 Axle Heavy Duty Low Bed Trailer
• Heavy duty I beam
The heavy duty I beam is consist of the top flange, middle plate and bottom flange. The strength it bears is scientifically calculated by engineer.
• Well-made Superstructure
The superstructure of this low bed trailer is well designed by our experienced engineer.
• Customized Design
Since different construction equipments have different weight and size, we could make the unique low bed trailer for your equipment, especially some abnormal size one.
low bed semi trailer also named as low boy, low loader, drop deck etc, used for long distance or short distance equipment transport or long item, heavy item transport. Enhanced I beam makes this trailer very strong and durable, suitable for heavy duty transport. Low bed height is quite low which means low gravity, and makes the whole trailer quite stable.
The low bed semi trailer could be customized design, like 2 alxe, 3 alxe or 4 axle, or tarden axle, to suitable for different payload. The working platform width and height is also could be designed as what you want. We use good quality carbon steel, and famous reliable key parts, like BPW axle, Fuwa axle, JOST landing gear, to ensure this is really high quality item.
