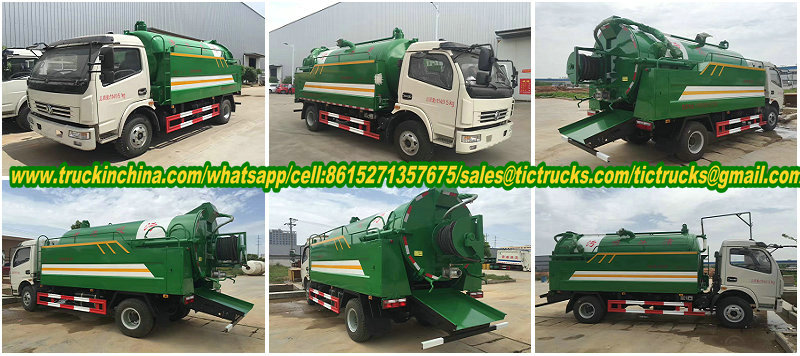

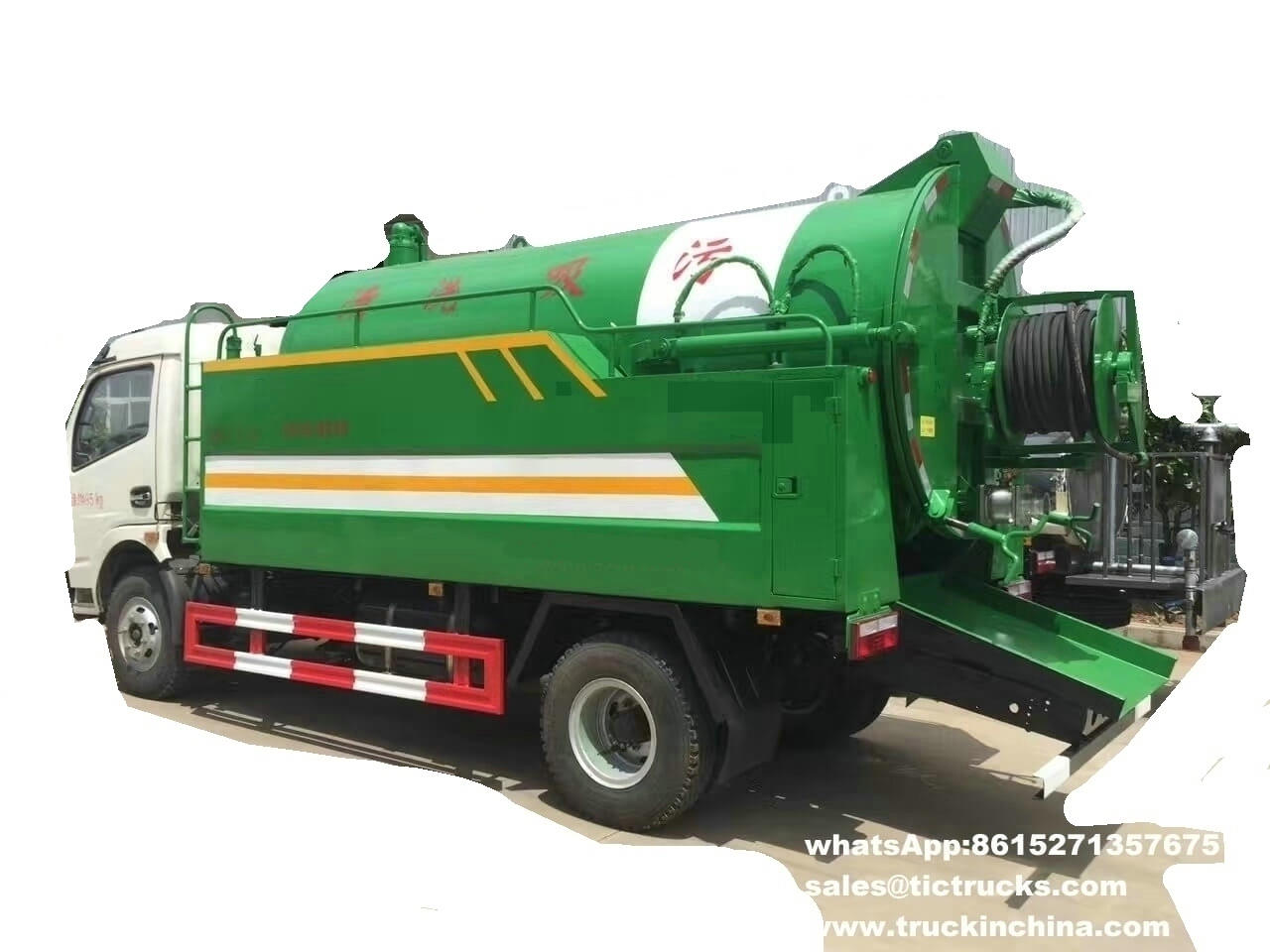

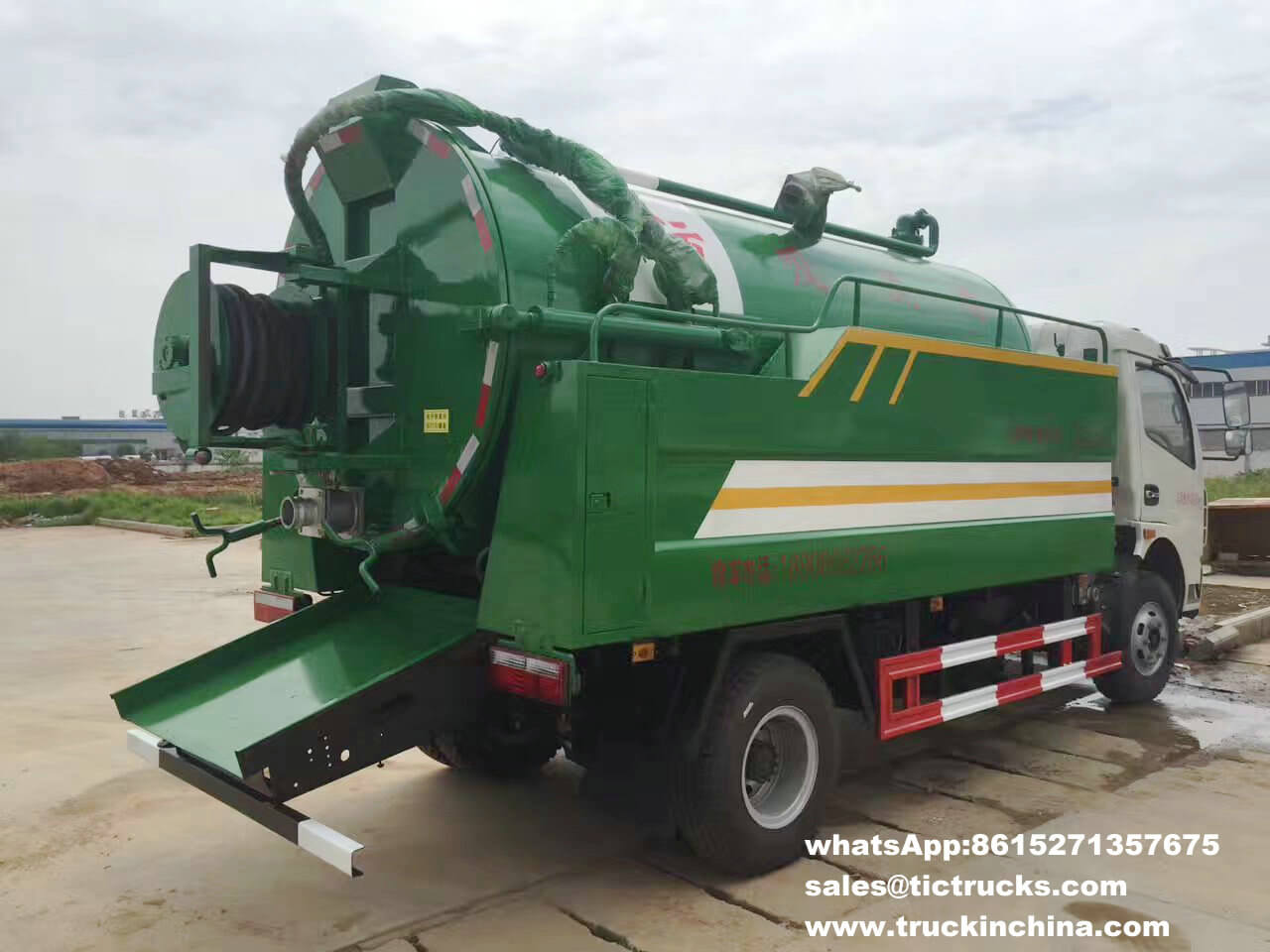

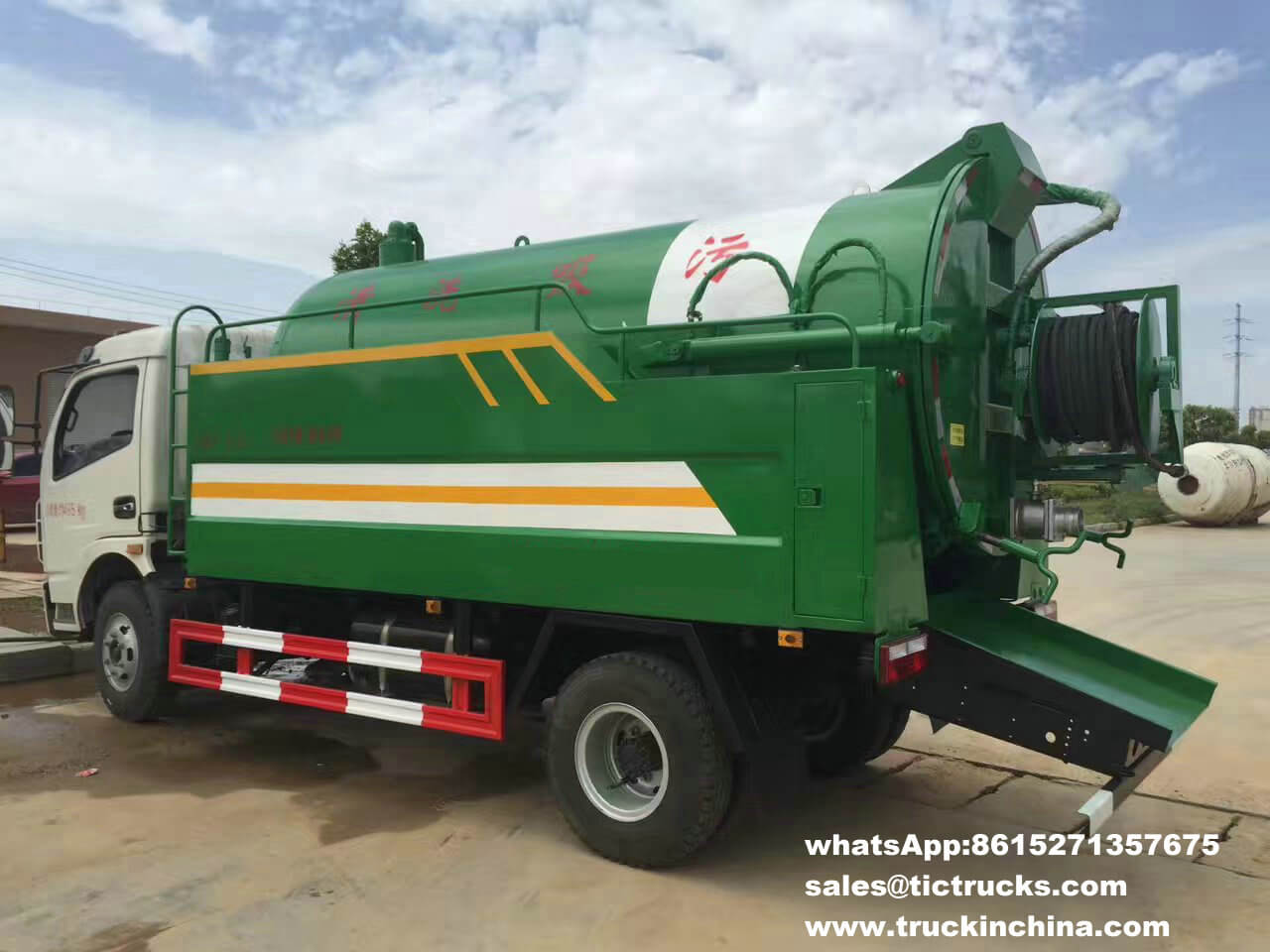

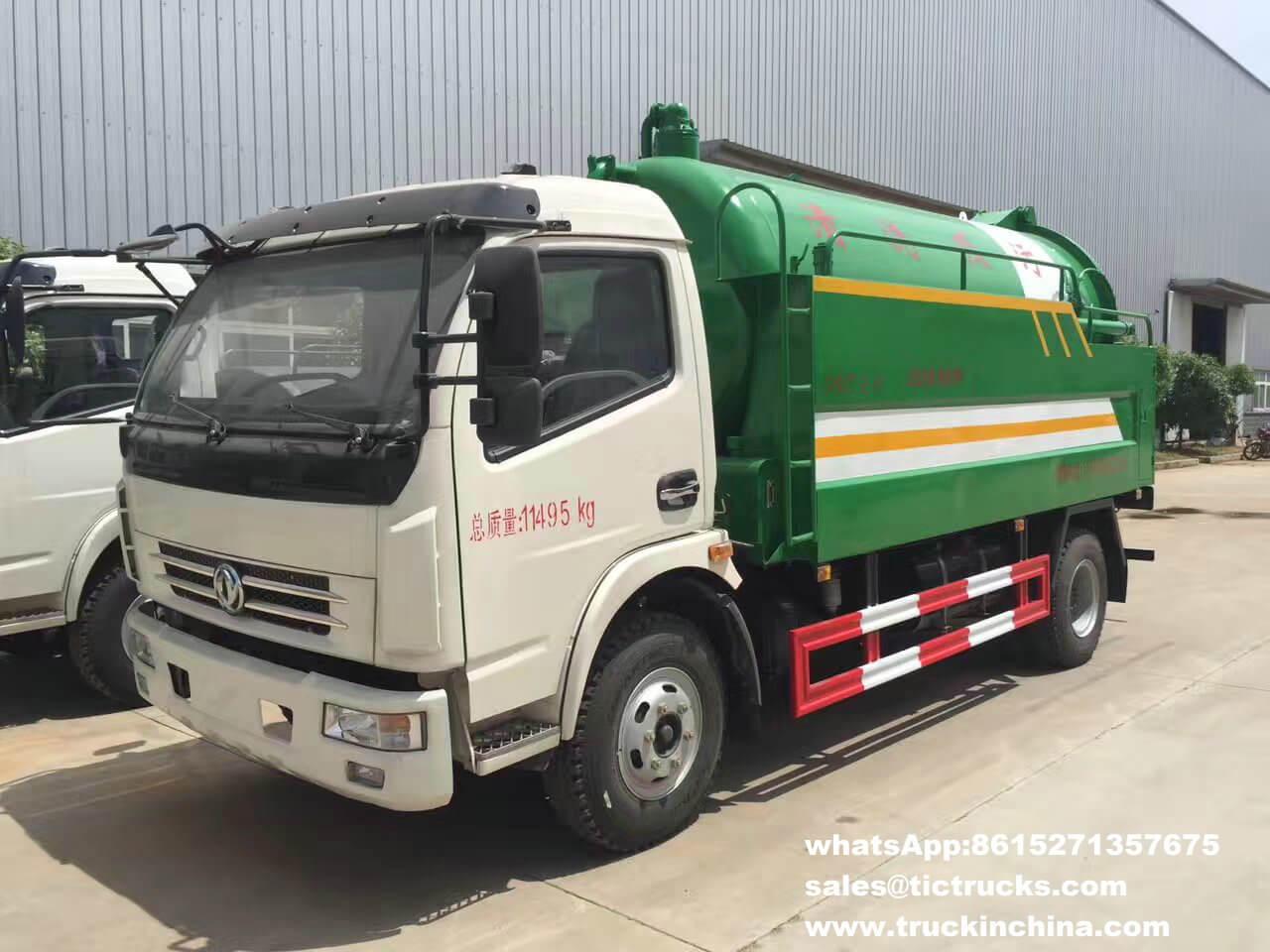

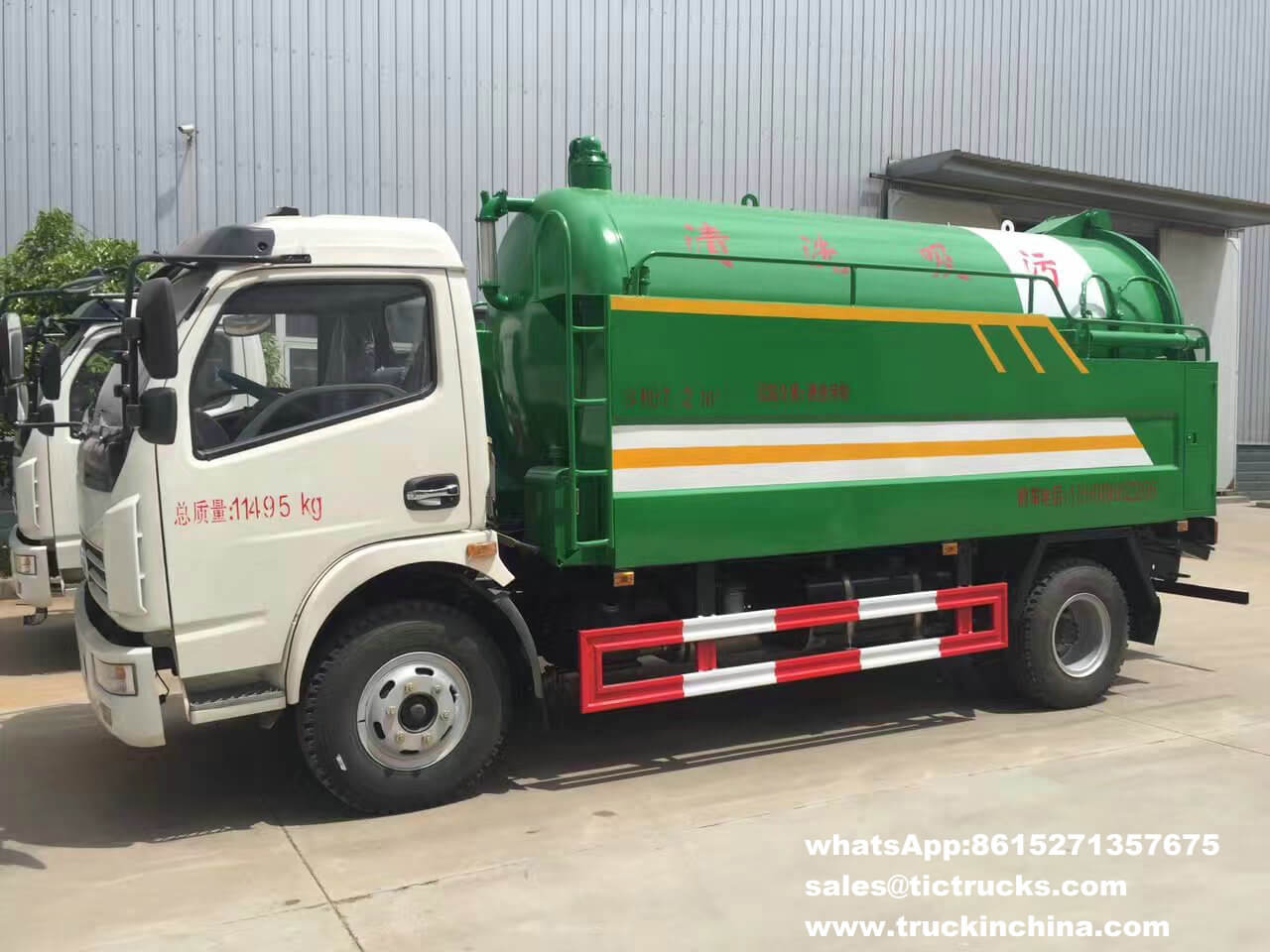

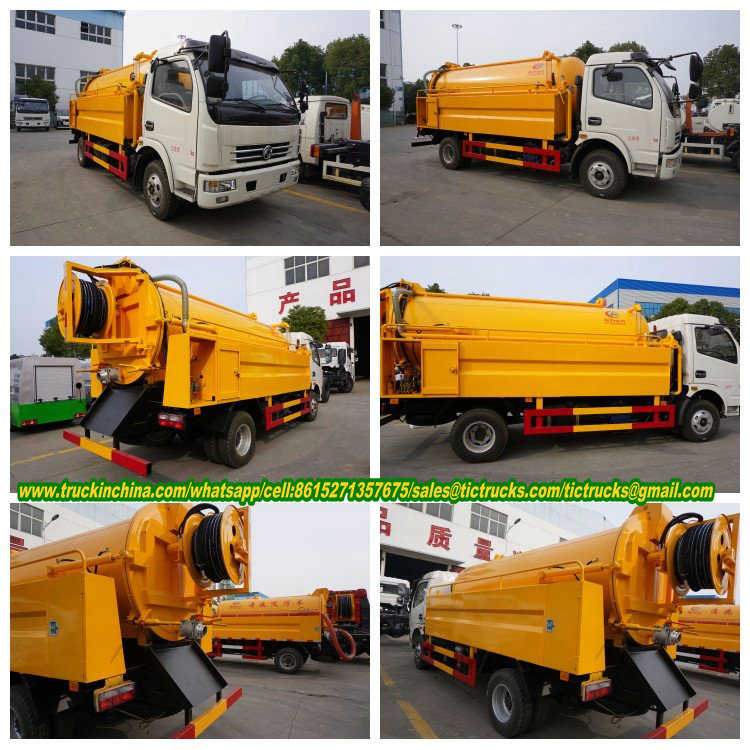

vacuum truck with high pressure jetting vacuum sewer cleaner 4000L Vacuum tank+1000L water Jetting tank
Fittings
Four-way change valve fitted to pump
Drain separator
Fully opening rear door
Sight glasses at top and bottom of tank , PTO, transmission shaft, vacuum pump, tanker, hydraulic system and pipe system.
| FOB: | |
|---|---|
| Availability: | |
| Quantity: | |
|
| |
-
DRZ5060GXWE
-
DRZ
-
8705909990
Fittings
Four-way change valve fitted to pump
Drain separator
Fully opening rear door
Sight glasses at top and bottom of tank
Ladder: For access to top of tank complete with cat walk on top of tank
Brief introduction of function
It is formed of PTO, transmission shaft, vacuum pump, tanker, hydraulic system and pipe system.
Fittings
Four-way change valve fitted to pump
Drain separator
Fully opening rear door
Sight glasses at top and bottom of tank
Ladder: For access to top of tank complete with cat walk on top of tank
Brief introduction of function
It is formed of PTO, transmission shaft, vacuum pump, tanker, hydraulic system and pipe system.
Fittings
Four-way change valve fitted to pump
Drain separator
Fully opening rear door
Sight glasses at top and bottom of tank
Ladder: For access to top of tank complete with cat walk on top of tank
Brief introduction of function
It is formed of PTO, transmission shaft, vacuum pump, tanker, hydraulic system and pipe system.
vacuum truck with high pressure jetting vacuum sewer cleaner 4000 Vacuum tank+1000L water Jetting tank
Driving Type: 4*2, 4*4 , 4wd , off-road , 6wheel ,
Capacity: 3000L, 4000L, 5000L, 6000L,
Steering Wheel: Left Hand Drive or Right Hand Drive
Dongfeng 4x2 or 4x4 Street High-pressure Sewer Flushing Jetting Cleaning Vehicle
Upper-Body specification | ||
Volume of tank | ||
Color | Colours /logo on both front doors as specified by the client | |
Material of tanker | 6mm Carbon stell | |
Special function | Suction height | ≥5 (m) |
Suction time | 250(S) | |
Maximum Inclination Angle | ≥45° | |
maximum vacuum | ≥11 MPa | |
Lifting time | ≤45 S | |
the Cover opening Angle | ≥75° | |
The cover opening time | ≤25 S | |
Suction pipe | 3m length and 100 mm in diameter | |
Hose Racks | Fitted on both sides of tank, to accommodate a minimum of seven hoses each | |
Accoessories | Rear Wheel arches complete with Mudguards | |
Rear drip tray | ||
Heavy-duty rear bumper | ||
Fittings | Four-way change valve fitted to pump Drain separator Fully opening rear door Sight glasses at top and bottom of tank Ladder: For access to top of tank complete with cat walk on top of tank | |
Brief introduction of function | It is formed of PTO, transmission shaft, vacuum pump, tanker, hydraulic system and pipe system. | |
vacuum sewer truck with high pressure flushing 4000 Vacuum tank+1000L water Jetting tank
Item | unit | parameter | ||
Vehicle | Sewer dredging and cleaning vehicle | |||
Overall dimensions | mm | 5800x1990x2640 | ||
Factual cubage | L | 4000 Vacuum tank+1000L water Jetting tank | ||
GVW | kg | Appro 8315 | ||
Rated loading capacity | Appro 4000 | |||
Mass in working order | Appro 4315 | |||
Body internal dimensions | mm | \ | ||
Wheel base | 3300 | |||
F/R track base | 1404/1458 | |||
Approach/departure angle | 19/15 | |||
Exhaust/hp | ml/hp | 3707/3612/3856/90hp/110hp/130hp | ||
Max speed | km/h | 95 | ||
Tire specification | 7.00-16 | Engine type | CY4100Q YN4100QB-2 YC4E130-3 | |
Traction system | 4x2 | transmission | 5-speed with over drive | |
Number of axles | 2 | Electric system | 24v | |
Operation control system | Electrically hydraulic control | Allowable passengers in cab | 2 | |
Fittings
Four-way change valve fitted to pump
Drain separator
Fully opening rear door
Sight glasses at top and bottom of tank
Ladder: For access to top of tank complete with cat walk on top of tank
Brief introduction of function
It is formed of PTO, transmission shaft, vacuum pump, tanker, hydraulic system and pipe system.
vacuum truck with high pressure jetting vacuum sewer cleaner 4000 Vacuum tank+1000L water Jetting tank
Driving Type: 4*2, 4*4 , 4wd , off-road , 6wheel ,
Capacity: 3000L, 4000L, 5000L, 6000L,
Steering Wheel: Left Hand Drive or Right Hand Drive
Dongfeng 4x2 or 4x4 Street High-pressure Sewer Flushing Jetting Cleaning Vehicle
Upper-Body specification | ||
Volume of tank | ||
Color | Colours /logo on both front doors as specified by the client | |
Material of tanker | 6mm Carbon stell | |
Special function | Suction height | ≥5 (m) |
Suction time | 250(S) | |
Maximum Inclination Angle | ≥45° | |
maximum vacuum | ≥11 MPa | |
Lifting time | ≤45 S | |
the Cover opening Angle | ≥75° | |
The cover opening time | ≤25 S | |
Suction pipe | 3m length and 100 mm in diameter | |
Hose Racks | Fitted on both sides of tank, to accommodate a minimum of seven hoses each | |
Accoessories | Rear Wheel arches complete with Mudguards | |
Rear drip tray | ||
Heavy-duty rear bumper | ||
Fittings | Four-way change valve fitted to pump Drain separator Fully opening rear door Sight glasses at top and bottom of tank Ladder: For access to top of tank complete with cat walk on top of tank | |
Brief introduction of function | It is formed of PTO, transmission shaft, vacuum pump, tanker, hydraulic system and pipe system. | |
vacuum sewer truck with high pressure flushing 4000 Vacuum tank+1000L water Jetting tank
Item | unit | parameter | ||
Vehicle | Sewer dredging and cleaning vehicle | |||
Overall dimensions | mm | 5800x1990x2640 | ||
Factual cubage | L | 4000 Vacuum tank+1000L water Jetting tank | ||
GVW | kg | Appro 8315 | ||
Rated loading capacity | Appro 4000 | |||
Mass in working order | Appro 4315 | |||
Body internal dimensions | mm | \ | ||
Wheel base | 3300 | |||
F/R track base | 1404/1458 | |||
Approach/departure angle | 19/15 | |||
Exhaust/hp | ml/hp | 3707/3612/3856/90hp/110hp/130hp | ||
Max speed | km/h | 95 | ||
Tire specification | 7.00-16 | Engine type | CY4100Q YN4100QB-2 YC4E130-3 | |
Traction system | 4x2 | transmission | 5-speed with over drive | |
Number of axles | 2 | Electric system | 24v | |
Operation control system | Electrically hydraulic control | Allowable passengers in cab | 2 | |
