sinotruk sludge transportation trucks hot sale
Views: 1738 Author: Dong Runze Special Vehicle Publish Time: 2017-11-20 Origin: Dong Runze Special Vehicle

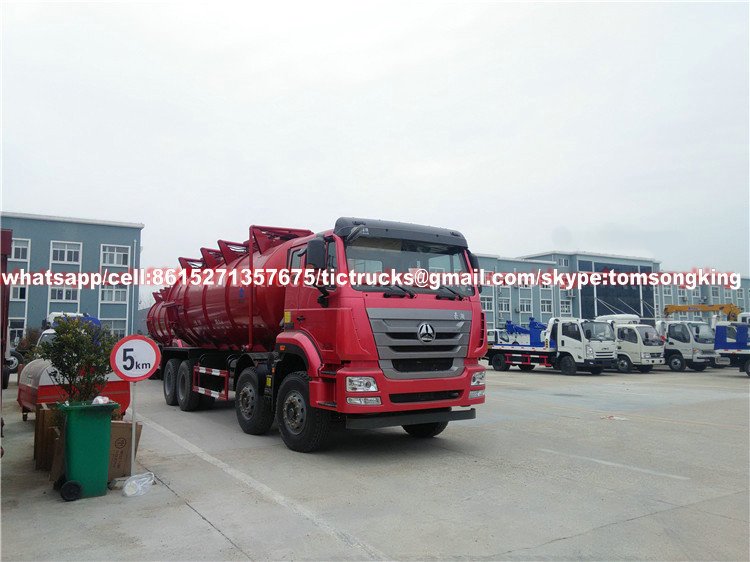

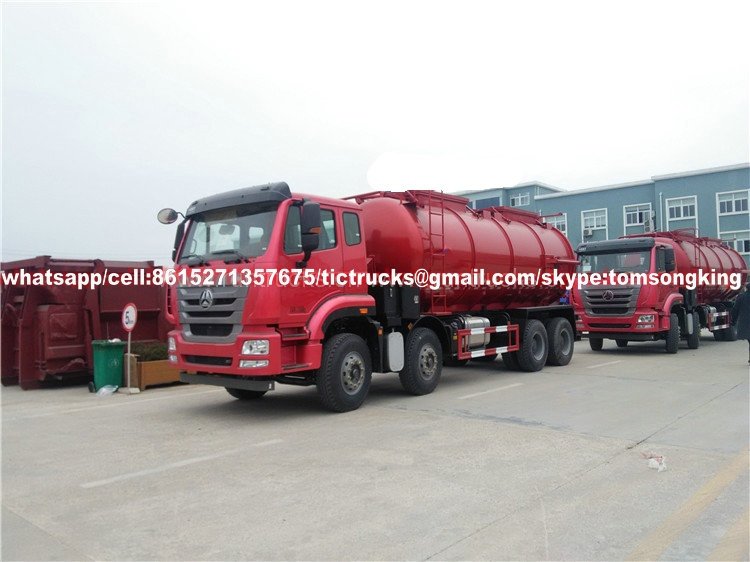

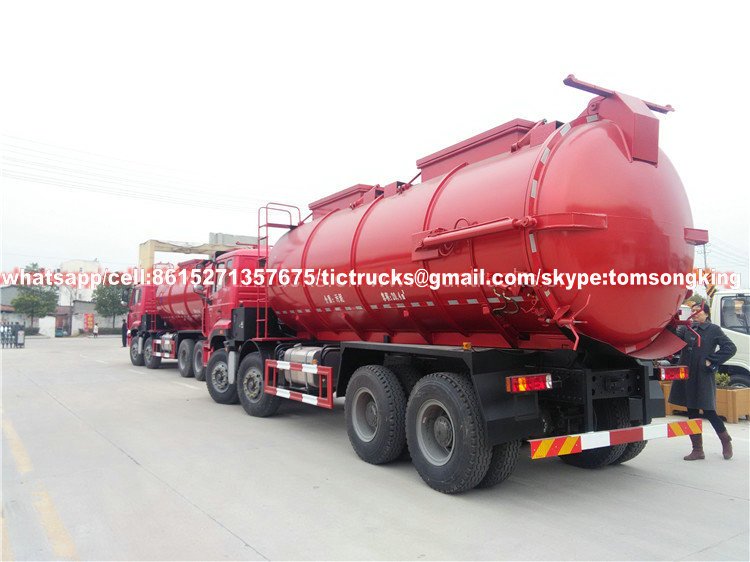

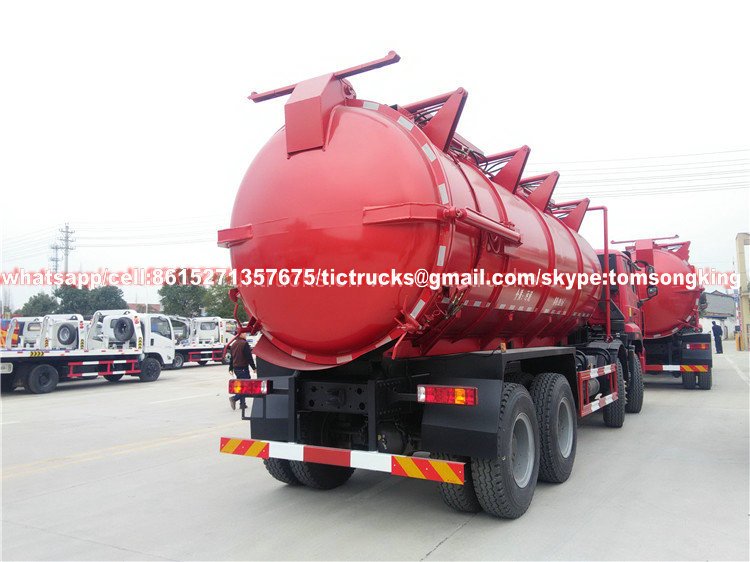

sinotruk sludge transportation trucks
20 cbm sinotruk sludge transportation truck is ready for delivery
1, the effective volume of the tank: press bulletin sized (about 18 cubic meters);
2 material, tank made of 304 stainless steel, 5 mm thick steel plate, head 6 mm thick;
3, made before the top-mounted cylinder, points can be moved forward on the one hand, fuel tank load decreases, more stable work, on the other hand can avoid possible imbalance of double cylinder hydraulic sector with well-known manufacturers products;
4, the inlet opening and closing hydraulic control, about sliding lid, feed setting seals, odor or prevent inlet closes after sludge overflow tank opening set 2 open cover, size 1600X800 mm.
5, hydraulic control rear door opening and closing, and 4 bolt type hydraulic lock device, and with a leak;
6, the hydraulic system of automatic and manual operation, user-friendly operation, manual system for multi-way valve operation, control the loading and unloading operations, driving indoor for the button operation, automatic interlock device is operating system, which can effectively prevent misuse;
7, ladder and upper part of the tank platform with anti-slip material, ensuring safe, anti-slip; 250L pressure water tank is installed and is equipped with a water pistol to facilitate cleaning the tank at any time;
8, in the niches of the tank in accordance with the national standard paste 3C (3M-2) reflective logo and bumper color made according to the announcement.
9, the rest according to the technical design as standard.
Vehicle Features:
1. China Truck high quality chassis, 8x4 drive type, LHD/RHD
2.Heavy truck 375hp engine, Euro 3/4 emission standard
