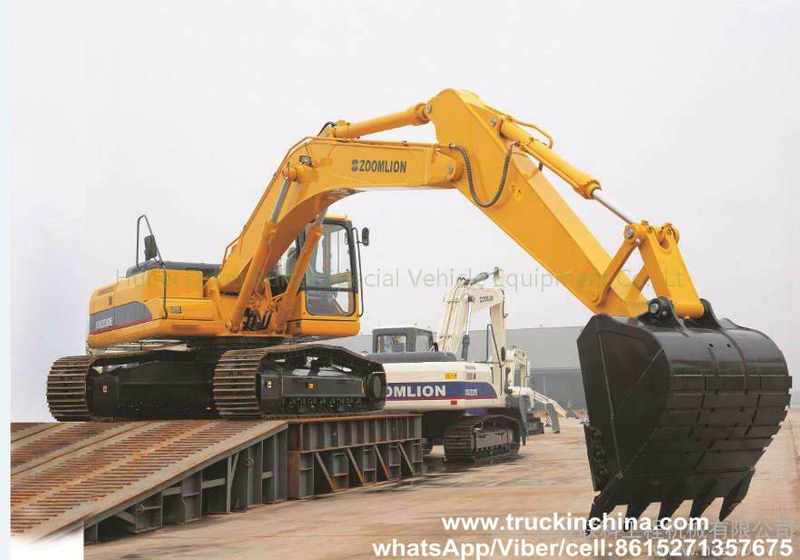

ZE230E ,ZE360E,ZE150E
-
ZOOMLION
-
84295212
(a)Supreme Power, High Reliability and Low Fuel Consumption
Original packaging Comings engine which is equipped with electric throttle device can adjust fuel consumption according to the engine power, realize automatic idle speed and acceleration and decrease fuel consumption. The environmental protection
Performance is improved and accords with environmental emission standard of European II.
Large capacity fuel prefilter and oil-water separator improves fuel quality, decreases the early wearing of fuel injection nozzle and extends the service life of engine cylinder.
The air filter uses macro-scale structure and is equipped with air prefilter to realize three-stage filtering which ensures clean air admission and decreases the early wearing of cylinder components. It particularly satisfies for harsh working environment of heavy dust and wind.
The muffler uses large capacity airflow section technology, which significantly improves the effect of muting and reduces noise effectively.
(b)Advanced and reliable hydraulic control system
New complete electric control selective system
According to different working loads, design different power selection methods, perform optimum performance in the precondition of reducing fuel consumption and make the engine and the main pump power reach the best state.
Original packaging Comings engine which is equipped with electric throttle device can adjust fuel consumption according to the engine power, realize automatic idle speed and acceleration and decrease fuel consumption. The environmental protection
Performance is improved and accords with environmental emission standard of European II.
Large capacity fuel prefilter and oil-water separator improves fuel quality, decreases the early wearing of fuel injection nozzle and extends the service life of engine cylinder.
The air filter uses macro-scale structure and is equipped with air prefilter to realize three-stage filtering which ensures clean air admission and decreases the early wearing of cylinder components. It particularly satisfies for harsh working environment of heavy dust and wind.
The muffler uses large capacity airflow section technology, which significantly improves the effect of muting and reduces noise effectively.
(b)Advanced and reliable hydraulic control system
New complete electric control selective system
According to different working loads, design different power selection methods, perform optimum performance in the precondition of reducing fuel consumption and make the engine and the main pump power reach the best state.
| Model | ZE230E |
| Machine weight | 22800 kg |
| Bucket capacity | 1.1 m³ |
| Engine | |
| Model | Cummins 6BTAA5.9-C178 |
| Type | 6 cylinders, 4 stroke, water cooling, direct injection, turbochagred, inter0cooled |
| Rated power | 133kW (178hp)/2000rpm |
| Max. torque | 708N.m/1500rpm |
| Bore×stroke | 102×120 mm |
| Displacement (ml) | 5883 ml |
| Hydraulic system | |
| Main pump type | Awry-plate type duplex variable dispalcement piston pump |
| Max. flow | 2×220 L/min |
| Guide pump | gear pump |
| Travelling motor | Double-speed awry-plate type piston motor with automatic brake and parking brake |
| Slewing motor | Awry-plate type piston motor with automatic brake |
| Working device Hydraulic circuit | 32.4 Mpa ( when boosting 35.3 Mpa ) |
| Travelling Hydraulic circuit | 34.3 Mpa |
| SlewingHydraulic circuit | 25.5 Mpa |
| Guide hydraulic circuit | 3.9 Mpa |
| Hydraulic cylinder(No. of cylinder-Bore×stroke×piston rod diameter) | |
| Swing arm | 2-130×1315×90 mm |
| Bucket rod | 1-140×1635×100 mm |
| Bucket | 1-130×1020×90 mm |
| Dimension | |
| Overall length | 9735 mm |
| Overall width | 2990 mm |
| Overall height (To Swing armtop ) | 3145 mm |
| Tail slewing radius | 2840 mm |
| Tail length | 2800 mm |
| Counter weight ground height | 1070 mm |
| Min. ground clearance | 440 mm |
| Crawler ground length | 3640 mm |
| Crawler length | 4430 mm |
| Track gauge | 2390 mm |
| Crawler board width | 600 mm |
| Grouserheight | 26 mm |
| Overall height (Cab top ) | 2960 mm |
| Rotary table width | 2720 mm |
| Working scope | |
| Max.digging reach | 10170 mm |
| Ground max.digging reach | 9995 mm |
| Max.digging depth | 6860 mm |
| Max. vertical digging depth | 6120 mm |
| Max. digging height | 10220 mm |
| Max. dummping height | 7240 mm |
| Min. slewing radius | 3140 mm |
| Bucket max. digging force | 155 kN |
| Bucket rod max. digging force | 120 kN |
| Coolant & lubrication oil capacity (Fullfilled ) | |
| Fuel tank | 340 L |
| Hydraulic system | 350 L |
| Hydraulic tank | 230 L |
| Drive & brake system | |
| Drive type | Full hydraulic |
| Travelling motor | Awry-plate type piston motor |
| Reducing mechanism | Planetary reducer |
| Slewing control | Two levers with foot pedals |
| Parking brake | Wet multi-disc plate brake |
| Max.tractoring force | 195 kN |
| Gradeability | 35° (70%) |
| Travelling speed (high/low) | 5.2~3.4 km/h |
(a)Supreme Power, High Reliability and Low Fuel Consumption
(b)Advanced and reliable hydraulic control system
(b)Advanced and reliable hydraulic control system
| Model | ZE360E |
| Operating weight | 33800 kg |
| Bucket capacity | 1.6 m³ |
| Track shoe width | 600 mm |
| Ground pressure | 62.9 kPa |
| Max. Bucket arm digging force | 174kN |
| Max. Bucket digging force | 230 kN |
| Max.digging reach | 11075 mm |
| Max.digging reach on ground | 10888 mm |
| Max.digging depth | 7380 mm |
| Max.vertical digging depth | 6410 mm |
| Max. digging height | 10170 mm |
| Max. dumping height | 7110 mm |
| Min. rotating radius | 4390 mm |
| Engine | |
| Model | Cummins 6CTAA8.3-C250 |
| Type | 6 cylinders, 4 stroke, water cooled, turbocharged, inter-cooled type |
| Rated power | 198 kW (265hp)/2000 rpm |
| Max. torque | 1157 N.m/1500 rpm |
| Bore* stroke | 114*135 mm |
| Exhaust | 8.3 L |
| Starting motor | 24 V |
| Alternator | 70 Amp |
| Hydraulic system | |
| Main pump type | Swash variable double-piston pump |
| Max. liquidity | 2*264 L/min |
| Guide pump | Gear pump |
| Travelling motor | Double-speed swashplate piston motor with automatic braking valve and parking braking |
| Steering motor | Swashplate piston motor with automatic braking |
| System pressure | |
| Hydraulic circuit of working device | 32.4 Mpa (35.3 Mpa when boosting) |
| Hydraulic circuit of travelling device | 34.3 Mpa |
| Hydraulic circuit of steering | 24.5 Mpa |
| Hrdraulic circuit of guide pump | 3.9 Mpa |
| Hydraulic cylinder | No.of cylinders-bore*stroke*dia.of pistion rod |
| Boom | 2-φ140×1480×φ100mm |
| Arm | 1-φ160×1825×φ110mm |
| Bucket | 1-φ140×1285×φ100mm |
| Steering system | |
| Drive type | Full hydraulic |
| Slewing pump | Swashplate piston motor with automatic brake |
| Decelerating device | Two-stage planetary reducer |
| Slewing gear lubrication | oil bath lubrication |
| Slewing brake | Wet multi-plate disc brake |
| Slewing speed | 9.1rpm |
| Drive and braking system | |
| Drive type | Full hydraulic |
| Travel motor | Swashplate piston motor |
| Decelerate structure | Planet retarder |
| Slewing control | 2 control levers with two foot pedals |
| Stop brake | Wet multi-plate brake |
| Max. traction | 264 kN |
| Grade ability | 35° (70%) |
| Travel speed (High/low) | 5.1/3.3 km/h |
| Chassis | |
| Track frame | Structure of box-type |
| Track board (each side) | 49 |
| Track roller (each side) | 9 |
| Carrier roller (each side) | 2 |
| Cooling liquid & lubricating oil (filled) | |
| Fuel tank | 590 L |
| Cooling liquid & lubricating oil (filled) | 32 L |
| Engine oil | 24 L |
| Slewing device | 10.5L |
| Travel device | 2*9.5 L |
| Hydraulic system | 370 L |
| Hydaulic oil tank | 195 L |
| Dimension | |
| A Total length | 11199 mm |
| B Total width | 3190 mm |
| C Total height (to top of active arm) | 3308 mm |
| D Turning radius of tail | 3472 mm |
| E Tail length | 3453 mm |
| G Counteweight ground clearance | 1161 mm |
| H Min. ground clearance | 499 mm |
| I Crawler ground length | 4140 mm |
| J Crawler length | 5042 mm |
| K Crawler gauge | 2590 mm |
| L Crawler belt width | 3190 mm |
| M Crawler board width | 600 mm |
| P Total hight (to top of cab) | 3101 mm |
| Q Rotary table width | 2995 mm |
Zoomlion Crawler Excavator Ze150e
| Model | ZE150E |
| Standard bucket capacity | 0.58m³ |
| Operating weight | 14300kg |
| Engine Model | Cummins4BTAA3.9-C115 |
| Rated power | 86kW/2200rpm |
| Max.tractoring force | 123kN |
| Travelling speed | 3.0/5.2km/h |
| Bucket rod digging force | 71kN |
| Bucket digging force | 87kN |
| Dimension | 8000mm×2600 mm×2750 mm (When tranported) |
| Max.digging reach | 8530 mm |
| Max.digging depth | 5510 mm |
| Max. digging height | 8650 mm |
