DTA Water truckHigh Pressure Jetting Truck
Vacuum truck
refuse Truck
hook lift truck Waste Food tank Truck Side Loading Refuse Collection Truck
Sprinkler pressure/liter/rang/width/depth: 250-450Kpa/0.2-2l/m/>45m/>14m/>6m
Sprinkler way: front/side/rear sprinkler and work plate sprinkler
5-25CBM water tank trucks with various engine horsepower or chassis are available.

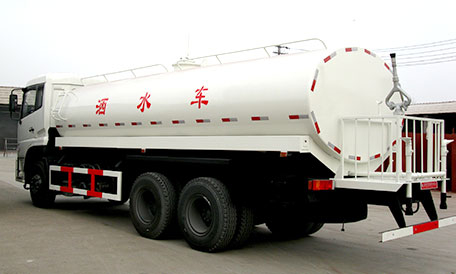

Water truck Customization
Photo | | | |
Tanker cubage | 4~5CBM | 6~10CBM | 15~20CBM |
Tanker material | Carbon steel | Carbon steel | Carbon steel |
Tanker thickness | 4mm | 4mm | 5mm |
Water pump model/brand | 80QZB-40 Weilong pump | 80QZB-50 Weilong pump | 80QZB-60 Weilong pump |
Sprinkler way | front/side/rear sprinkler and work plate sprinkler | front/side/rear sprinkler and work plate sprinkler | front/side/rear sprinkler and work plate sprinkler |
Engine model / brand / displacement/ standard | YC4F115-30/ Yuchai/ 115HP/ 2660ml/ Euro3 | 6HK1-TC/ ISUZU/ 260HP/ 7790ml/ Euro3 | WD10.270/Weichai/ 270HP/7900ml/Euro3 |
Transmission | LC5/Liuan/ 5shafts+1reverse | MLD6/ 6shafts+1reverse | 9JS/9shafts+1reverse |
Drive type | 4x2/6wheels | 4x2/6wheels | 6x4/10wheels |
Wheelbase | 3365mm | 5000mm | 4325+1250mm |
Chassis model / brand | HFC1070/JAC | FVR34/ISUZU | SX1255/Shacman |
Photo | | | |
Tanker cubage | 16~22CBM | 22~24CBM | 25~30CBM |
Tanker material | Carbon steel | Carbon steel | Carbon steel |
Tanker thickness | 5mm | 6mm | 6mm |
Water pump model/brand | 80QZB-70 Weilong pump | 80QZB-80 Weilong pump | 80QZB-90 Weilong pump |
Sprinkler way | front/side/rear sprinkler and work plate sprinkler | front/side/rear sprinkler and work plate sprinkler | front/side/rear sprinkler and work plate sprinkler |
Engine model / brand / displacement/ standard | C260 33/Cummins /260HP/6700ml/Euro3 | WD615/Sinotruk/230HP /9726ml/Euro3 | BF6M1013/FAW/260HP /7146ml/Euro3 |
Transmission | FAST9/ 9shafts+1reverse | HW10/Sinotruk/ 10shafts+1reverse | 8JS/8shafts+1reverse |
Drive type | 6x4/10wheels | 6x4/10wheels | 8x4/12wheels |
Wheelbase | 4350+1300mm | 4350+1300mm | 2000+4700+1350 |
Chassis model / brand | DFL1250/Dongfeng | ZZ1250/Sinotruk | CA1313/FAW |
More water jetting trucks with various engine horsepower or chassis listed below.
water jetting trucks with various engine horsepower or chassis listed below. Customization
Photo | | | |
Water tanker cubage | 2CBM | 3~4CBM | 4~6CBM |
High pressure pump type/brand/pressure | piston/Italy pump/16~19MPa | piston/Italy pump/16~19MPa | piston/Italy pump/16~19MPa |
Tube length | 60M | 60M | 60M |
Engine model/brand/ horsepower/ displacement/ standard | 4KH1-TC/ISUZU/130HP /2999ml/Euro3 | CY4102-C3F/Chaochai/95HP/3856ml/Euro3 | CA4DF3/FAW/140HP/4752ml/Euro3 |
Transmission model/brand/ gear | MSB/ISUZU /5shafts+1reverse | DT5/Datong /5shafts+1reverse | CA5T/FAW/5shafts+1reverse |
Drive type | 4x2/6wheels | 4x2/6wheels | 4x2/6wheels |
Wheelbase | 3360mm | 3300mm | 3750mm |
Chassis model/brand | QL1050/ISUZU | EQ1060/Dongfeng | CA1083/FAW |
Photo | | | |
Water tanker cubage | 7~8CBM | 9~10CBM | 11~12CBM |
High pressure pump type/band/pressure | piston/Italy pump/16~19MPa | piston/Italy pump/16~19MPa | piston/Italy pump/16~19MPa |
Tube length | 60M | 60M | 60M |
Engine model/brand/ horsepower/ displacement/ standard | B190 33/Cummins/ 190HP/5900ml/Euro3 | B190 33/Cummins/190HP /5900ml/Euro3 | YC6J190-33/Yuchai/190HP/6500ml/Euro3 |
Transmission model/brand/ gear | DF6/Datong/ 6shafts+1reverse | DF6/Fast/6shafts+1reverse | DC6/Sinotruk/6shafts+1reverse |
Drive type | 4x2/6wheels | 4x2/6wheels | 4x2/6wheels |
Wheelbase | 4500mm | 4700mm | 4700mm |
Chassis model/brand | EQ1141/Dongfeng | DFL1160/Dongfeng | ZZ1164/Sinotruk |
Vacuum truck used for dredging, clear and transfer the sludge in sewers. Large tonnage, high efficiency and wide use are our sewage suction truck’s advantages.
Cabin: with three seats, air-condition, radio, color optional
Vacuum tank cubage: 2~25CBM
Vacuum tank material and thickness: Q235 carbon steel (similar as ST37-2) carbon steel lined PE / plastic , stainless steel, aluminum Alloy/4-8mm
Valid suction distance: ≥5
Vacuum pump model/brand: 50QZxDH-68/7000/Weilong brand or MEC vacuum pump
TALIAN TECHNOLOGY VACUUM PUMP MEC 9000/ MEC 11000/ MEC 13500
Main sewage part equipments on vacuum tank truck:
• Vacuum pump ; Oil and gas separator ;Water and gas separator ; Selector valve; Vacuum pressure gauge Tachometer ;Alarm; Anti-siphon;Lift hydraulic cylinders;Rear cover locking sets
More sewage suction trucks with various engine horsepower or chassis listed below.
Road Sweeper Garbage bin cubage/material/thickness: 2.5-8 CBM/carbon steel/5mm/stainless steel 4mm
Water tanker cubage/material/thickness: 2.5-8CBM CBM/stainless steel/4mm
Max. cleaning width: 3.5m
Max. cleaning speed: 5-25km/h
Max. cleaning capacity: 87500m2/h
Max. sucking stone diameter: 120mm
Cleaning efficiency: ≥96
Discharge angle: 53°
Single stage centrifugal blower
Water cooled diesel vice engine equipped on street sweeping
Four units plastics inner steel wires sweeping brushes
One set polypropylene suction brush
One set with two small tires suction brush supporting tire
One set flexible rubber mud suction unit
2.5-8CBM road sweeping with various engine horsepower and chassis are available.
• Time of pressing and discharging: 4.5mins
More Customization road sweepers with various engine horsepower or chassis listed below.
Garbage truck body cubage: 6-20CBM
Garbage truck body material and thickness: Q235 carbon steel (similar as ST37-2)/4mm
Hopper cubage: 1.3~1.5CBM
Hopper material and thickness: Q345 carbon steel (similar as ST52)/4mm
Compressed density: 0.6-0.8kg/m3 (for household garbage)
Max. lift capacity of flip bracket: 200KG
Flip bracket type: Optional
More garbage trucks with various engine horsepower or chassis listed below.
Food Waste Truck waste food trucks with various engine horsepower or chassis listed below.
Hook lift Customization lift capacity: 3~20T /3-20CBM hook lift/hook loaders with various engine horsepower
Food Waste Truck waste food trucks with various engine horsepower or chassis
