DR9011
-
DRZ
-
8716100000

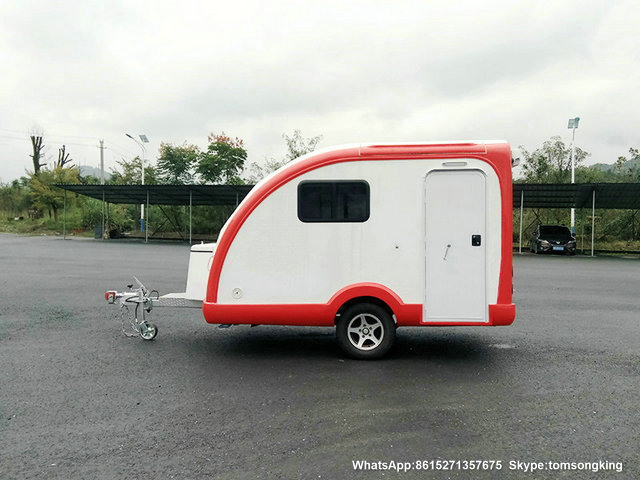

Water Drop Shaped Camper Trailer
1.Suspension -Spiral spring + hydraulic suspension
2.Top Window -Push-pull uviofast acrylic window(fiber glass curtain)
4.Lifter Roof - Ensure large space of accommodation and safety & efficient travel.
4.Vehicular Audio System - All furnitures are made of solid wood.
5.Kitchen Ware And Faucet -Outside layout, easy to clear up, makes the indoor space clean.
6.Sunshade -Enjoy the sunshine freely.
Notice and options：
1. Non-passenger in running.
2. Front storage box option.
3. Left/right side sunshade option.
4. Windows and door's layout, according to interior layout.
5. Top ventilator, top window, top air condition, luggage shelf option.
6. Trailer body 's painting color and printing option.
7. Front and rear coaming option.
8. Wall-hanging air condition option.
9. All the furnitures are optional as clients' requests. (such as refrigerator, cabinet, kitchen ware, washroom etc.)
Overall Dimension (mm) | 4820*1980*2240 |
Kurb Weight (kg) | 980 |
Track Tread (mm) | 1680 |
Tire | 175/R13 |
Material | Cold rolled steel, stainless steel, etc. |
Body size: | 2350*1753*742 /2065 overall size: 4850*1903/1980*1508 /2240 |
Surface finishing: | Orange peel black, silver, hot dip galvanizing |
Coupler: | 360 off-road type connector, 2000KG, |
Ground Clearance: | 590mm(chassis) ; 330mm (suspension) |
Rear Stabilizer: | two Stability Jacks,500KG/unit |
Safety Chain: | 304 stainless steel chain, diameter of the steel wire is 10mm, length=1500mm |
Axle Specification: | Independent suspension system, The double shock absorber , 1800 kg |
Brake System: | 10 inch power brake with manual brake |
Rim Specification: | 16 inch aluminum alloy wheels, |
Tire Specification/ Spare Wheel: | ,off road type wheels |
