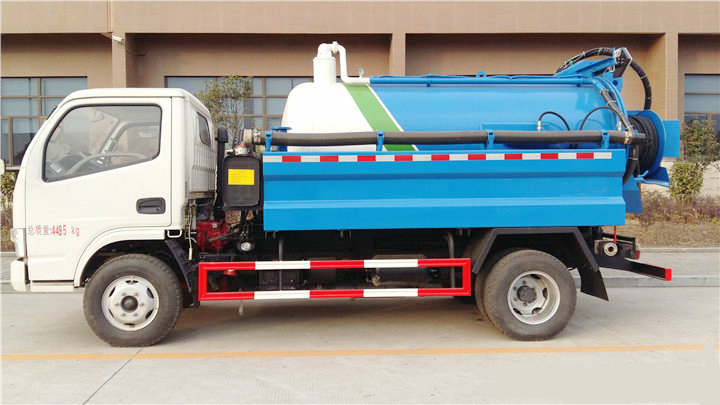

vacuum tanker with pressure water clean truck
Main technical parameters of products | |||
Product name: | TIC5041GQWDFA-cleaning sewage suction vehicles | Overall dimensions: | 5995X1990X2650(mm) |
Chassis model: | DFA1041SJ35D6 | Cargo compartment dimensions: | XX (mm) |
Total mass: | 4495(Kg) | Approach/departure angle: | 19/15 (°) |
Quality rating: | 1500,1435(Kg) | Front overhang Rear overhang: | 1032/1663(mm) |
Kerb mass: | 2865(Kg) | Speed limit: | 95(km/h) |
Vehicle notes: | Water tank volume: 1.5 cubic metres, the transport medium: water, density: 1000 kilograms per cubic meter, tank overall dimensions (length x diameter) (mm): 1500x1200. Sewage suction tank effective capacity: 1.80 m, the transport medium: liquid dirt, density: 800 kilograms/cubic meter, tank overall dimensions (length x length short axis x axis) (mm): 1600x1200. Water tank and the suction tank are two separate tanks, cleaning using tank, suction suction tanks for functionality, clean the suction function is not the same as two. Protective materials: Q235A carbon steels, connector: left and right side and rear underrun protection are made of welded connections, rear protection dimensions (mm): 100x50x5, rear protective ground clearance (mm): 490. Optional cab with chassis ... |
Chassis parameter parameter | |||
Chassis model: | DFA1041SJ35D6 | Fuel type: | Diesel |
Axis: | 2 | Front track: | 1506,1404,1500,1586(mm) |
Wheelbase: | 3300 | Rear track: | 1466,1458,1520,1530(mm) |
CAB numbers: | 2,3 | Number of spring leaf: | 8/9+5,6/8+4,6/6+5 |
Number of tires: | 6 | Axle load: | 1800/2695 |
Tire size: | 7.00-16 8PR,7.00R16 8PR,6.50-16 10PR,6.50R16 10PR | ||
Emission standard: | GB3847-2005,GB17691-2005 States |
cleaning-vacuum truck
Engine parameters | |||
Engine: | Engine manufacturer: | Displacement (ML): | Power (kW): |
4B28BTCI SD4BW754U YN33CRD2 CY4102-CE4F YC4FA90-40 D28D10-4DA CY4T75-CE4 4F20ATCI 4DW93-84E4 YN27CRD1 4DW93-95E4 | Changzhou diesel engine company limited Jiangsu SIDA power machinery group Kunming yunnei power company limited Dongfeng Chaoyang diesel power Co Ltd Guangxi Yuchai machinery company limited Dongfeng light engine Dongfeng Chaoyang diesel power Co Ltd Changzhou diesel engine company limited Faw Jiefang automotive company Wuxi diesel engine works Kunming yunnei power company limited Faw Jiefang automotive company Wuxi diesel engine works | 2834 2545 3298 3856 2982 2771 3707 1995 2540 2672 2540 | 70 75 75 73 66 75 75 60 64 70 72 |
Other information |
Water tank volume: 1.5 cubic metres, the transport medium: water, density: 1000 kilograms per cubic meter, tank overall dimensions (length x diameter) (mm): 1500x1200. Sewage suction tank effective capacity: 1.80 m, the transport medium: liquid dirt, density: 800 kilograms/cubic meter, tank overall dimensions (length x length short axis x axis) (mm): 1600x1200. Water tank and the suction tank are two separate tanks, cleaning using tank, suction suction tanks for functionality, clean the suction function is not the same as two. Protective materials: Q235A carbon steels, connector: left and right side and rear underrun protection are made of welded connections, rear protection dimensions (mm): 100x50x5, rear protective ground clearance (mm): 490. Optional cab with chassis ... |
Product | DongFeng 4X2 TIC5041GQWDFA vacuum tanker with pressure water clean truck | |
Cab | Single row,Left/right hand drive with AC | |
Chassis | Brand | Dongfeng |
Chassis model | DFA1041SJ35D6 | |
Drive type | 4x2 | |
Tire Spec. | 7.00-16 8PR,7.00R16 8PR | |
Tire Numbers | 6 | |
Braking System | Air braking | |
Clutch | Uniwafer, dry clutch, hydraulic remote control | |
Transmission | Manual | |
Engine | Model | CY4102-CE4F |
Horse Power(hp) | 100 | |
Displacement(cc)/ Power(kw) | 3856/73 | |
Emission | EuroIII/EuroIV | |
Main Parameters | Overall dimension (L*W*H/mm) | 5900X1980X2800 |
Wheelbase(mm) | 3300 | |
Axles No. | 2 | |
GVW(kg) | 4495 | |
Curb Weight(kg) | 3765 | |
Leaf spring No. | 8/9+5,6/8+4,6/6+5 | |
Approaching/Departure Angle( ) | 18/13 | |
Front/Rear truck(mm) | 1500/1520 | |
Front/Rear suspension(mm) | 1032/1568 | |
Max speed(km/h) | 95 | |
Front/Rear Axle Load(kg) | 1800/2695 |
