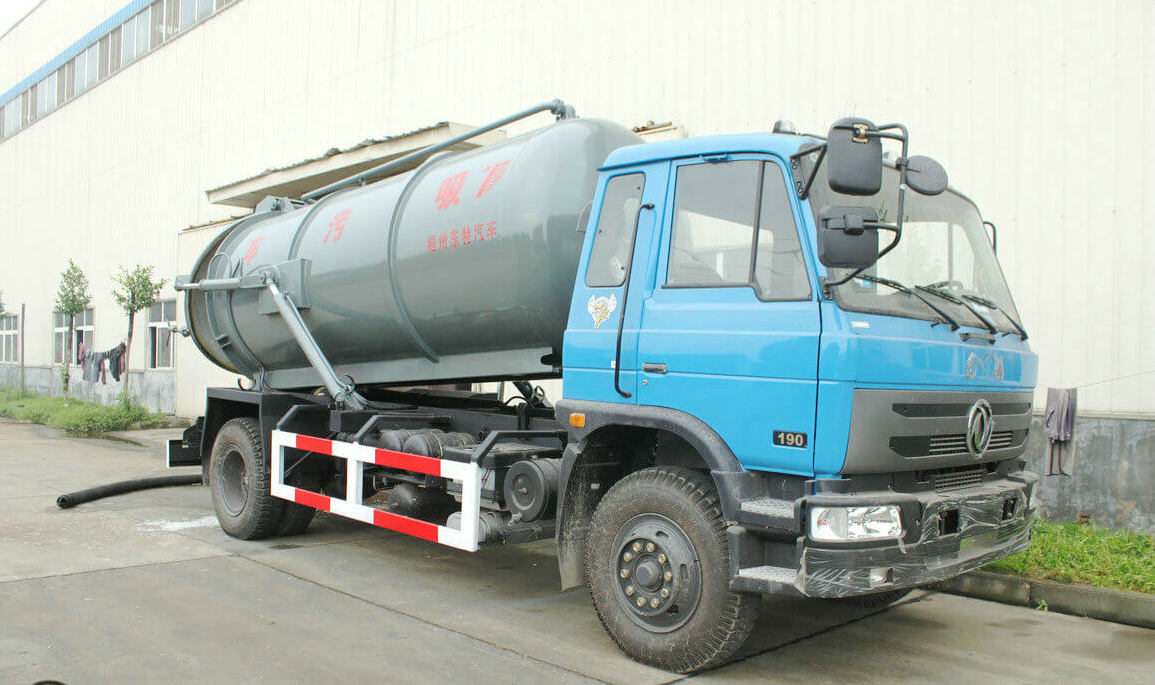

Vacuum Tank Truck 10000L-12000 Liter For Sucking chemical acid Waste
| Quantity: | |
|---|---|
Vacuum Tank Truck 10000L-12000 Liter For Sucking chemical acid Waste
LHD/RHD
with vacuum pump for non-potable water, chemical sewage suction and transport
optional inner lined PE for chemical wast acid
FOB$30000~48000
Vaccum tanker vacuum sewage suction truck
Dongfeng EQ Vacuum tanker truck 10000L Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675 Vacuum tanker septik truck sewage tanker ,CAPACITY 8000 UPTO 12000 Sewage Tank,Sewer JettingTruck,Vacuum Suction tanker , vacuum suction truck ,vacuum truck,Sewer Jet Truck ,vacuum sewage suction truck ,Septic Tank Truck ,Cesspit Emptier
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 32000-38000 / Set |
| Packaging Details: | bulk,ro-ro,container |
| Delivery Time: | 25 days after receiving deposits |
| Supply Ability: | 50 sets per month |
| Tank Capacity: | 10000L ~12000 L | Tank Material: | Q235 |
| Tank Shape: | Cylinder-shaped | Whole Tank Dimension: | 5200*1800 Mm |
| Whole Truck Dimension: | 8150*2500*3350 Mm | F/R Axle Load: | 1800/2695 Kg |
| Wheel Base: | 4500 Mm | Engine Power: | 180 Hp |
| Truck chassis specification | Item | unit | parameter | ||
| Vehicle model | TIC 5160GQW4 | ||||
| Chassis model | EQ1160ZZ4GJ | ||||
| Overall dimensions | mm | 8150x2500x3350 | |||
| GVW | kg | Appro×16000 | |||
| Mass in working order | Appro×6805 | ||||
| Wheel base | mm | 4500 | |||
| Exhaust/hp | ml/hp | 4500/180 | |||
| Max speed | km/h | 90 | |||
| Tire specification | 9.00-20 | Engine type | ISDe180 40 | ||
| Traction system | 4×2 | Number of Tires | 6 | ||
| Number of axles | 2 | Electric system | 24V | ||
| Operation control system | Electrically hydraulic control | Allowable passengers in cab | 3 | ||
| F/R Axle load (kg) | 6000/10000 | ||||
| Engine | The truck, diesel engine, water cooled, direct injection,180 horse power | ||||
| Special function Specification | Tank Capacity(L) | 10000L~12000 | |||
| Tank Dimension(mm) | 5200xΦ1800 | ||||
| Equipped with high-power vacuum suction sewage pump. Tanker with lifting function, with double hydraulic cylinder, rear cover can hydraulic open with self-flowing valve. Equipped with power take off, transmission shaft, pipe network, sewage pipe for observing and cleanout equipment. | |||||
with two Vacuum pumps
optional inner lined PE for chemical wast acid
with twin vacuum pump for non-potable water, sewage suction and transport
| Commodity | Dongfeng EQ1162GKJ 160HP 8Tons High Pressure Vacuum Suction Truck | |
| Chassis | EQ1162GKJ | |
| Cubage (T) | 10000Litres to 128000Litres | |
| Vehicle | Overall dimension(length/width/height)mm | 7250,7400×2480×3280 |
| G V W(kg) | 16930 | |
| Payload (kg) | 7500 | |
| Kerb mass(kg) | 8705 | |
| Fuel Type | Diesel | |
| Fuel consumption(L/100km) | 22 | |
| Top speed | 90 | |
| Engine | Model | YC4E160-33 |
| Exhaust/Power(kw) | 4260cc/105kw | |
| 160HP | ||
| Manufacturer | GUANGXI YUCHAI | |
| Type | 6-in-line water cool Turbo Charge engine | |
| Chassis | Drive type | 4x2 |
| Wheelbase (mm) | 3,950 | |
| Front Bridge | 3.6T FRONT AXLE | |
| Rear Bridge | 9T rear axle | |
| Transmission | Double spoke wheel, with power steering | |
| Gear box | 6Forwards, mechanical transmission | |
| Tire specification | 8.25-20,9.00-20,8.25R20,9.00R20 | |
| Air condition | with | |
| suction system | suction pump | Single Stage Rotary Oil Seal Vacuum Pump |
| special parameter | Vertical suction heihgt | ≥8 |
| working pressure | 8500Pa | |
| rotation speed | 500 | |
| suction speed | 98L/S | |
| power | 5.5kw | |
| inlet diatmeter | 50mm | |
| filling time | Less Than 5s | |
| discharge time | Less Than 5s | |
Steel Vacuum Trailers Stainless Steel Vacuum Tanks
| Vacuum tanker | |
| Material | Q235, 6mm optional Aluminum / midd Steel Stainless Steel Vaccum |
| Capacity(L) | 6000~10000L |
| Tank dimensions(mm) | 6600*1850*1850 |
| Vacuum pump | |
| Model | Dual 50QZXDG-45/400 |
| flux(L/S) | 45 |
| Min pressure | 400 P |
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
M:8615271357675
TIC TRUCKS , www.truckinchina.com
