UN3394 T21 TEAL Portable Tank C480S Teal Metal Alkyls Cylinder For KE Materials

Views: 2259     Author: Tom     Publish Time: 2022-04-08      Origin: Dong Runze

 UN3394 T21 TEAL Portable Tank C480S Teal Metal Alkyls Cylinder For KE Materials

 UN3394 T21 TEAL  Portable Tank C480S Teal  Metal Alkyls  Cylinder For KE Materials

T21 TEAL tank

Portable tank container YCDT1880-T21

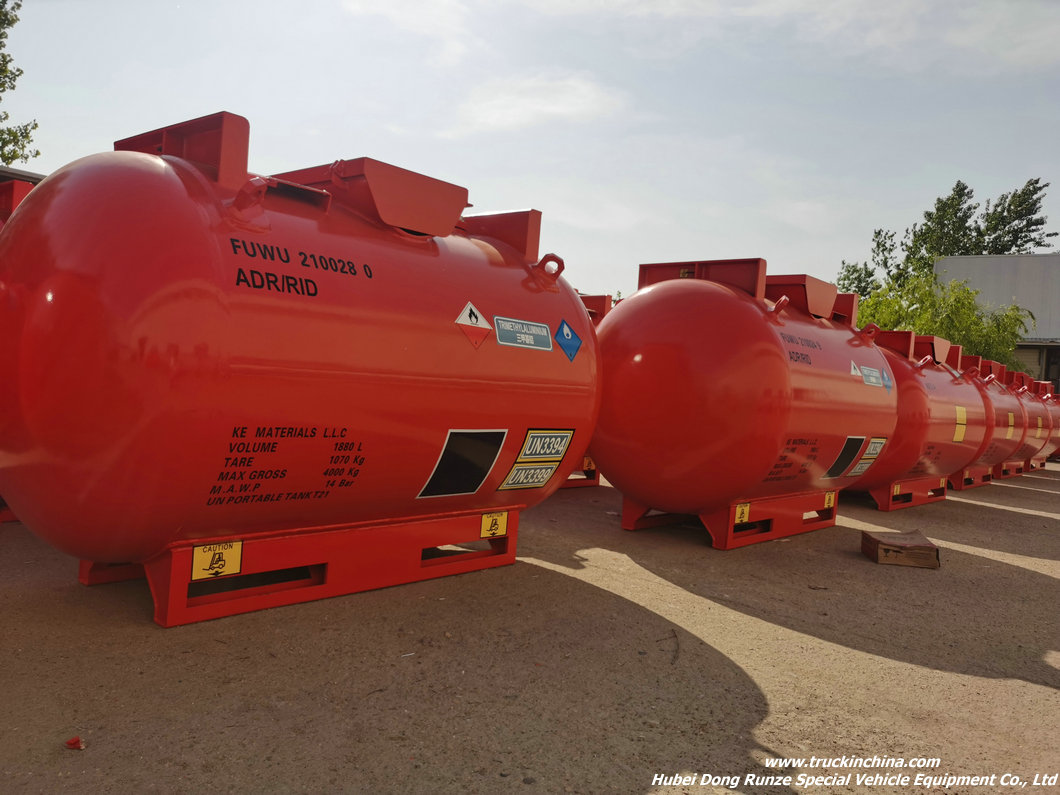

UN T21 TEAL portable tank C430 C480 (54)UN T21 TEAL portable tank C430 C480 (32)UN T21 TEAL portable tank C430 C480 (41)UN T21 TEAL portable tank C430 C480 (51)UN T21 TEAL portable tank C430 C480 (70)UN T21 TEAL portable tank C430 C480 (108)UN T21 TEAL portable tank C430 C480 (52)UN T21 TEAL portable tank C430 C480 (111)

C-430 Saddle Type Portable Tank ,  tank capacity 1630L

C-480 Saddle Type Portable Tank,   tank capacity 1880L

TEAL tank Triethylaluminum (TEAL) Alky Portable Tank Container   FOR UN3394 ,UN3399  HS code :8609009000

UN T21 TEAL portable tank C430 C480 (59)UN T21 TEAL portable tank C430 C480 (100)UN T21 TEAL portable tank C430 C480 (123)UN T21 TEAL portable tank C430 C480 (105)UN T21 TEAL portable tank C430 C480 (53)UN T21 TEAL portable tank C430 C480 (126)UN T21 TEAL portable tank C430 C480 (102)

YCDT1880-T21

WATER CAPACITY

1880L

MAX GROSS MASS

4000kg

MAX TARE MAS

1070kg

EXTERNAL DIMENSIONS

2128mm*1148mm*1388mm

Max WORKING PRESSURE

14bar  1.4Mpa /-0.13MPa at 65 oC


DESIGN TEMPERATURE

-40C to +65C

MATERIAL

SA-516M Gr.485 / 16MnDR

SHELL THICKNESS

12mm,14mm

PRESSURE VESSEL CODE

T21 UN ,IMDG,ADR/RID,49CFR,TIR,USDOT,ASME,BV

APPLICABLE CARGOS

TRIETHYL ALUMINUM UN3394 UN3399

 From: Tom King
Sent: Monday, December 27, 2021 5:38 PM

Order confirmation with the delivery schedule

there are about 16 days China Spring holiday from 24th Jan till 8th Feb.

DELIVERY SCHEDULE ABOUT 2022-03-31~2022-04-18


- Invoice for 30% down payment

- Bank account confirmation


Date: Mon, Dec 27, 2021 02:23 PM Subject:  Purchase order for T21*10

Dear Tom,

Please find the attached PO and please provide;

- Order confirmation with the delivery schedule

- Invoice for 30% down payment

- Bank account confirmation

If you can provide the down payment invoice by the 29th of December, we will wire on the 30th of December.

Or the next payment schedule is early of the next week.



From: Tom King
Sent: Monday, December 20, 2021 6:50 PM


Note : TMA(Trimethyl aluminium), TEA(Triethyl aluminium), TMG(Trimethyl gallium) and TEG(Triethyl gallium)

are non corrosive under nitrogen protection.


1. We would like to purchase T21*10 tanks.

quotation for 10 tanks valid.

2. Information of PSV sheet packing material.

As Taeyeop mentioned in previous e-mail, our products are gallium-based materials which has nature of corrosiveness.

Therefore, I want to make sure that the packing sheet material of PSV has a high resistance.

(for example, Kalrez O-ring). Kindly advise which materials will be used for PSV packing sheet.

All Gaskets Kalrez O-ring  will be Klingersil  famous UK brand, enclosed photos

enclosed Tank shell material certificate

3. Could you issue a country of origin for FTA Korea and China?

Sure  will issue FTA Korea and China  CO country of origin


From: Tom King

Sent: Wednesday, April 14, 2021 4:39 PM

1.What is different with Hubei Dong Runze special vehicle equipmet and YUCHAI DONGTE?   Dongte Export department was deleted years ago. so I founded Hubei Dong Runze special vehicle equipment to delegated the export business.

2. Are these T21 1880L tainers UN certified? Yes  With UN certified BV and ASME report .

3. What is the height of hole for fork lift? For example, 10cm?  refer the picture~7cm

4. Is minimum order q’ty (MOQ) 10ea?

we also accept 5each order but price higher $300 each tank.


From: taeyeop

Date: Wed, Apr 14, 2021 10:26 AM

Subject: Inquiry about T21 tank


Dear Tom,


My name is Taeyeop Kim who worked with MC Kang as the company name “Daystar materials”.

In 2015, we purchased T21 tank from YUCHAI DONGTE as attached.

Now, my company change the name as “KE materials”.

I have an inquiry about T21 tanks so I would like to ask you the quotation for T21 tanks.

Could you give me quotations in case we purchase T21 5ea or T21 8ea or T21 10ea in each?


I look forward to receiving quotations from you soon.

If you have any questions, please let me know.


PS. When we use T21 tanks we purchased, there are some difficulties to insert fork of fork lift or hand lift due to the bottom frame located low.

When you manufacture T21 tanks at this time, please modify bottom frame location up in order to insert fork easily.

UN T21 TEAL portable tank C430 C480 (28)UN T21 TEAL portable tank C430 C480 (29)UN T21 TEAL portable tank C430 C480 (26)UN T21 TEAL portable tank C430 C480 (33)UN T21 TEAL portable tank C430 C480 (11)

Tank containers for transporting metal alkyls
