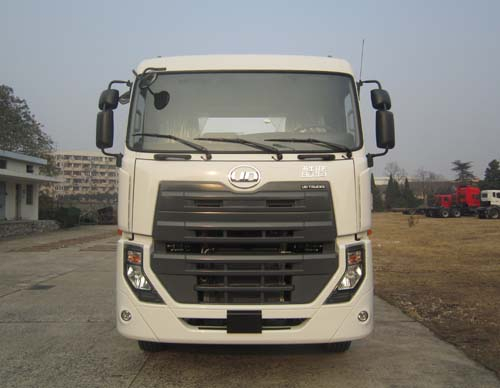

UD water tanker 15~22 m3 water tank truck

UD water tanker 15~22 m3 water tank truck
Availability:
Quantity:

   12 wheels tanker 15~22m3   UD water tanker 15m3 water tank truck


Customization, Cost Control, Built trucks How You Want it, at a Price You Can Afford !
water truck  16000 ~25000Litres
 GH1A 380H/P,GH1B  400HP,GH1C 430H ,UD Trucks Corporation
water/   oil tanker truck  Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale  86-152 -7135-7635



       Basic information
       Product name       Cargo rigid chassis
       Type       6×4
       DND1250WA46

       Length x Width x Height(mm)
       10304×2499×3228
       Wheelbase(mm)       4600+1370
       Front overhang/Rear overhang(mm)       1460/2874
       Top speed(km/h)       117
       GVW(kg)       25000
       Rated load(kg)       -
       Kerb Weight(kg)       9410
       Approach/Departure angle(°)       15/9
       Cab       Type       Cab-over-engine, Std. roof , single bunk
       Passengers(person)       3
       Engine       Model       GH1A
       Manufacturer       UD Trucks Corporation
       Displacement(L)       10.837
       Emission       CN4
       Type       Inline 6 cylinders, 4 valves, hydro-cooling, turbo with inter-cooling
       Power rating(kw)       280
       Max net power(kw)       279
       Injection technology       Electric unit injector with max injection pressure 200MPa
       After treatment       SCR
       Clutch       Type       Single disc, dry, pull-type diaphragm clutch
       Disc diameter(mm)       420
       Gearbox       Model       F9R20A
       Type       Mechanical, manual, 12 forward gears + 2 reverse gears
       Steering gearbox       Type       Recirculating ball type hydraulic power-assisted steering system
       Axle       Load capacity(kg)       Front: 8000/ Rear:26000(tandem)
       Rear axle ratio       4.111
       Frame       Type       One piece by roll forming
       Max section area(mm)       300×90×(8+5)
       Suspension       Type       Front parabolic leaf, Rear multi leaf + T-ride, Front/Rear stabilizer
       Leaf Qty.       3/11
       Tyre       Specification(either one)       12.00R20-14PR
       315/80R22.5-16PR
       295/80R22.5-16PR





       Basic information
       Product name       Cargo rigid chassis
       Type       6×4
       DND1250WA56

       Length x Width x Height(mm)
       11304×2499×3228
       Wheelbase(mm)       5600+1370
       Front overhang/Rear overhang(mm)       1460/2874
       Top speed(km/h)       117
       GVW(kg)       25000
       Rated load(kg)       -
       Kerb Weight(kg)       9450
       Approach/Departure angle(°)       15/9
       Cab       Type       Cab-over-engine, Std. roof , single bunk
       Passengers(person)       3
       Engine       Model       GH1A
       Manufacturer       UD Trucks Corporation
       Displacement(L)       10.837
       Emission       CN4
       Type       Inline 6 cylinders, 4 valves, hydro-cooling, turbo with inter-cooling
       Power rating(kw)       280
       Max net power(kw)       279
       Injection technology       Electric unit injector with max injection pressure 200MPa
       After treatment       SCR
       Clutch       Type       Single disc, dry, pull-type diaphragm clutch
       Disc diameter(mm)       420
       Gearbox       Model       F9R20A
       Type       Mechanical, manual, 12 forward gears + 2 reverse gears
       Steering gearbox       Type       Recirculating ball type hydraulic power-assisted steering system
       Axle       Load capacity(kg)       Front: 8000/ Rear:26000(tandem)
       Rear axle ratio       4.111
       Frame       Type       One piece by roll forming
       Max section area(mm)       300×90×(8+5)
       Suspension       Type       Front parabolic leaf, Rear multi leaf + T-ride, Front/Rear stabilizer
       Leaf Qty.       3/11
       Tyre       Specification(either one)       12.00R20-14PR
       315/80R22.5-16PR
       295/80R22.5-16PR


    UD 6x4




         Driving Type          6x4
         Wheel Base (mm)          5200+1370
         Overall Length (mm)          10904
         Overall Width (mm)          2499
         Overall Height (mm)          3228
         Wheelspan          Front (mm)          2020
         Rear (mm)          1836/1836
         Engine          Model          GH1B
         Displacement (L)          10.8
         Max Output (kw)          293
         Max Output (HP)          390


         Announcement Model          DND5330TZZWB52          Announcement Batch          255
         Rated Load(kg)                    Total Weight(kg)          33000
         Curb Weight(kg)          9520          Fuel Type          Diesel
         Emmission Standard          Euro IV          Axles Number          3
         Wheel Base          5200+1370          Axle Load          8000/26000
         Steel Spring Number          3/11          Tyre Number          10
         Tyre Size          12.00R20,   315/80R22.5          Approach/Departure Angle          15/9
         Front/Rear Suspension          1460/2874          Front Wheelspan          2020
         Rear Wheelspan          1836/1836          Overall Size(mm)          10904x2499x3228
         Top Speed(km/h)          105







               Basic information                Type                UD water tank Fire truck rigid
               Model                6×4


  •                    DND5330TXFWB46
  •

               Length x Width x Height(mm)                10304×2499×3228
               Wheelbase(mm)                4600+1370
               Front overhang/Rear overhang(mm)                1460/2874
               Top speed(km/h)                105
               GVW(kg)                33000
               Payload(kg)                -
               Kerb Weight(kg)                9080
               Approach/Departure angle(°)                15/9
               Cab                Type                Cab-over-engine, high roof , single bunk
               Passengers(person)                3
               Engine                Model                GH1B
               Manufacturer                UD Trucks Corporation
               Displacement(L)                10.837
               Emission                CN4
               Type                Inline 6 cylinders, 4 valves, hydro-cooling, turbo with inter-cooling
               Power rating(kw)                294
               Max net power(kw)                293
               Injection technology                Electric unit injector with max injection pressure 200MPa
               After treatment                SCR
               Clutch                Type                Single disc, dry, pull-type diaphragm clutch
               Disc diameter(mm)                420
               Gearbox                Model                F9R20A
               Type                Mechanical, manual, 9 forward gears + 1 reverse gears
               Steering gearbox                Type                Recirculating ball type hydraulic power-assisted steering system
               Axle                Load capacity(kg)                Front: 8000/ Rear:26000(Tandem axle)
               Rear axle ratio                4.625
               Frame                Type                One piece by roll forming
               Max section area(mm)                300×90×(8+5)
               Suspension                Type                Front parabolic leaf, Rear multi leaf + T-ride, Front/Rear stabilizer
               Leaf Qty.                3/11
               Tyre                Specification(either one)                12.00R20-18PR
               315/80R22.5-18PR





  •      DND5330TZZWB46
  •




               Basic information                Type                Special purpose vehicle rigid
               Model                6×4
               Length x Width x Height(mm)                10304×2499×3228
               Wheelbase(mm)                4600+1370
               Front overhang/Rear overhang(mm)                1460/2874
               Top speed(km/h)                105
               GVW(kg)                33000
               Payload(kg)                -
               Kerb Weight(kg)                9080
               Approach/Departure angle(°)                15/9
               Cab                Type                Cab-over-engine, high roof , single bunk
               Passengers(person)                3
               Engine                Model                GH1B
               Manufacturer                UD Trucks Corporation
               Displacement(L)                10.837
               Emission                CN4
               Type                Inline 6 cylinders, 4 valves, hydro-cooling, turbo with inter-cooling
               Power rating(kw)                294
               Max net power(kw)                293
               Injection technology                Electric unit injector with max injection pressure 200MPa
               After treatment                SCR
               Clutch                Type                Single disc, dry, pull-type diaphragm clutch
               Disc diameter(mm)                420
               Gearbox                Model                F9R20A
               Type                Mechanical, manual, 9 forward gears + 1 reverse gears
               Steering gearbox                Type                Recirculating ball type hydraulic power-assisted steering system
               Axle                Load capacity(kg)                Front: 8000/ Rear:26000(Tandem axle)
               Rear axle ratio                4.625
               Frame                Type                One piece by roll forming
               Max section area(mm)                300×90×(8+5)
               Suspension                Type                Front parabolic leaf, Rear multi leaf + T-ride, Front/Rear stabilizer
               Leaf Qty.                3/11
               Tyre                Specification(either one)                12.00R20-18PR
               315/80R22.5-18PR



2




               Basic information                Type                Special purpose vehicle rigid
               Model                6×4
               Length x Width x Height(mm)                10904×2499×3228
               Wheelbase(mm)                5200+1370
               Front overhang/Rear overhang(mm)                1460/2874
               Top speed(km/h)                105
               GVW(kg)                33000
               Payload(kg)                -
               Kerb Weight(kg)                9520
               Approach/Departure angle(°)                15/9
               Cab                Type                Cab-over-engine, high roof , single bunk
               Passengers(person)                3
               Engine                Model                GH1B
               Manufacturer                UD Trucks Corporation
               Displacement(L)                10.837
               Emission                CN4
               Type                Inline 6 cylinders, 4 valves, hydro-cooling, turbo with inter-cooling
               Power rating(kw)                294
               Max net power(kw)                293
               Injection technology                Electric unit injector with max injection pressure 200MPa
               After treatment                SCR
               Clutch                Type                Single disc, dry, pull-type diaphragm clutch
               Disc diameter(mm)                420
               Gearbox                Model                F9R20A
               Type                Mechanical, manual, 9 forward gears + 1 reverse gears
               Steering gearbox                Type                Recirculating ball type hydraulic power-assisted steering system
               Axle                Load capacity(kg)                Front: 8000/ Rear:26000(Tandem axle)
               Rear axle ratio                4.625
               Frame                Type                One piece by roll forming
               Max section area(mm)                300×90×(8+5)
               Suspension                Type                Front parabolic leaf, Rear multi leaf + T-ride, Front/Rear stabilizer
               Leaf Qty.                3/11
               Tyre                Specification(either one)                12.00R20
               315/80R22.5



UD cool teng are dongfeng motor group and VOLVO group to tailor high server-assisted card for the Chinese market, to VOLVO group global standardization of the overall design, manufacture process, supplier system as the foundation, into full time local professional service support, ensure the security of the vehicles and drivers and efficient.Product is more reliable and durable, better fuel economy and better yields and preventive service leading characteristic advantage, at the same level at the same time, the bridge structure design conforms to the European ECE safety standards, to provide the highest standards of driving safety.Rich product line, including 4 x2, 6 x2, x4, 8 x4 and so on a full range of tractor and chassis, according to different industry demand, in the long-distance logistics distribution, dangerous goods transport, construction and special vehicle, and other important fields are reflected to the maximum to meet customer requirements.

Brand origin
"UD" brand, adhering to the "Going the Extra Mile hearts meet force dow" brand promise, inherits the European high server-assisted card descent, is trusted by customers and reliable partner.

Leading technology products around the world
Inherits the European high server-assisted card descent, the world's leading truck manufacturers - UD TRUCKS, VOLVO group global technology research and development platform, integration of the global supply chain resources, blue ocean strategy, based on China, zhiyuan, its UD, is committed to providing high efficiency and energy saving products and perfect service, glory to become trusted by customers and reliable partner.
UD truck company was founded in 1935, with its iconic diesel engine is light, strong and durable, from scratch, all the way to develop, grow up to be in the field of research and development, manufacturing, marketing has the comprehensive innovation ability of transnational commercial vehicle enterprises.
UD brand is the result of 1955 single flow scavenge diesel engine (Uniflow - ScavengingDieselengine), unremitting efforts by generations of UD, UD gradually evolved into a user to UD trucks (UltimateDependability) the pronoun of "the ultimate trust", and this belief is still till today UD man keep his promise, one of the international first-class heavy card, UD brand is also one of the user preferred heavy card brand in the world.
In 2007, UD VOLVO group brand.Today, UD trucks covering 64 countries and regions in the world.UD continue to add the value of ultimate trust to all UD products, to "meet the customer's real needs" as the main point, strive for excellence.
In October 2013, VOLVO group to launch new products - UD cool tengzhong heavy trucks, through the whole series of car configuration, meet the long-distance logistics, construction, fire control industry and other special use the market demand.UD cool teng fuel economy, reliability, excellence and pipe to provide users with efficient logistics solutions.

Famous brand exquisite craft
As vehicle fuel economy, reliability, pipe experts and pioneer, UD trucks to "heart cohesion, zhiyuan" spirit of the brand, service users in China.
Professional sales and financial value-added service, the guarantee of the complete original accessories, remote information system, from the vehicle purchase to maintain, we pay attention to your needs every detail all the way, we are for you to cut costs and increase your maximum normal operation time, to provide you with timely and reliable returns, to help your business succeed.
We not only pay attention to your business, but also pay attention to your surroundings.As the first to focus on environmental issues and obtain the excellent achievements of the company, with our European standard and the most rigorous perspective, examining the manufacturing material and process, ensure vehicle driving environment comfortable environmental protection.

All the way to create value
As the rapid development of global companies, we integrate global advantage resources, rooted in China for twenty years, has always been committed to improve for Chinese users to provide comprehensive its value chain solutions.Our truck always adhere to maximize the value for the user, as a long-distance runner, no matter what kind of under pressure is always surging ahead.
UD cool tengzhong heavy card listed as milestone, UD will with European standards, and stand in the height of the global brands, providing customers with the most fit the actual "zhiyuan" service in China.
Step by step, concentric force, UD in various fields expand the train of thought, with global customers, shareholders, financial institutions, suppliers, dealers, special special automobile works, domestic and foreign media, employees, such as the whole value chain partners, the ultimate trust relationship.In one, we listen to the needs of customers, and continuously improve business and service quality of the solution.One step for high server-assisted card customers to choose the best way of win shipment, zhiyuan li together with you.

The core of product
(a)   fuel economy
Accurate fuel-efficient, win in the beginning.Global cutting-edge quality fuel-efficient power core, Europe's leading high precision power transmission system matching, to ensure that every drop of fuel the force of the driving trucks surging forward.Imported high-end market response and uncommon real-time fuel guidance system, completes the stewards you every drop of fuel.
Cool teng advantage
1. The world's leading engine performance excellence
2. The power transmission system design optimization
3. Real-time fuel guidance system
4. The aerodynamic cab modeling

(b)   the reliability
The ultimate reliable Win in strength.UD cool teng, European standard comprehensive, stable response to challenges under various working conditions.To VOLVO group's overall design, standardized manufacturing process and system of suppliers around the world as the foundation, into full time local professional service support, ensure the security of the vehicles and drivers and efficient.The ultimate strength, to provide real security.
Cool teng advantage
1. The VOLVO group's overall design, standardization of global manufacturing process
2. Global supplier base
3. The VOLVO group global unified quality control process
4. Unique T - ride after the suspension structure design
5. UD bridge structure design conforms to the European ECE safety standards

(c)   intact rate
Persistent in good condition, win in quality.UD cool room, to ensure the integrity rate of the world's leading products.Vehicle overall durability conforms to European standard, frame of high strength steel rolling technology, high anti-corrosion surface treatment, maintain the product in good condition.Durable quality, achieve for the customer "minimum maintenance costs, maximize uptime".
Cool teng advantage
1. European standard design
2. European standard corrosion process
3. The European standard high-strength flexible frame design
4. The fault self-diagnosis system + remote transmission * (assembly Telematics model have this function)
5. The world's leading maintainability

Chassis - reliable durable Hosting the world

UD cool teng chassis, sets up the new European standard high server-assisted card, benchmarking to security concept, a rock-solid quality, enduring performance, consistently for the user to provide the most efficient operation of the solution.Cars are divided into 6 x4 highway truck chassis, x4 special vehicle chassis, 8 x4 special vehicle chassis, 8 x4 special automobile chassis series, the product has the following features:

6 x4 highway truck chassis advantage:
Security
1. The human body engineering dashboard
Controller and switch is within reach, configuration is 4.5 inches high brightness, high contrast display screen.
2. The whole view mirror
Ensure drivers all perspective without blind area, options electric heating rearview mirror at the same time, improve the driving safety of bad weather.
3. Efficient auxiliary brake
UD EEB (engine brake + exhaust brake) 92% of the braking power of engine power, fully guarantee the safety operation of the complex working conditions.

Durability
1. The transmission cooling system
Gearbox with oil circulation water cooling system, enhance the service life.
2. The wheel reduction bridge
Optional wheel reduction bridge, can satisfy the customer condition of transport demand.

Maintainability
1. The bridge large Angle reverse it
The cab flip Angle to 58 degrees, and turn over 45 degrees can complete engine loading and unloading.
2. Before the mask design easy to maintain
Clutch hydraulic oil tank, the wind window before washing liquid tank and the air filter is located in the former, such as face masks, convenient maintenance.
3. A three-stage bumper fission maintenance
Paragraphs, independent, easy to maintain, replace, maintenance cost is reduced greatly.

Bearing ability
1. High load-bearing frame
Is made of European standard high strength steel plate, rolling forming technology, improved vehicle bearing performance
2. Unique T - ride after suspension structure
Effective stress of the buffer in all directions, to promote overall bearing capacity.

Modified convenience
1. The beam wing surface without rivet
Girder bottom wing surface without rivet type design, is advantageous for the jacket overall layout.
2. The chassis overall layout optimization
VOLVO group after 6 years, 1500000 hours design, build the optimal layout of the chassis, meet the demand of various modified.
3. The wheelbase configuration is reasonable
By 400 prototype real vehicle tests, selected the most reasonable wheelbase configuration, meet the demand of modified to the greatest extent.

Special automobile chassis of special advantage (applicable to: 6 x4 special vehicle chassis, 8 x4 special vehicle chassis, 8 x4 special automobile chassis) :
Technology of adaptive
1. The VOLVO group UD engine design
Reliable performance of the imported engine, low speed high torque, peak torque speed range is broad.
2. The wheel reduction bridge
Optional wheel reduction bridge, can satisfy the customer condition of transport demand.
3. High load-bearing frame
Is made of European standard high strength steel plate, rolling forming technology, improved vehicle bearing performance.
4. Unique T - ride after suspension structure
Effective stress of the buffer in all directions, to promote overall bearing capacity.
5. Before and after the lateral stabilizer bar
Before and after using the horizontal stabilizer bar, the vehicle has good handling.
6. High standards of electrical system
The latest generation of VOLVO group electrical system, provide all kinds of electricity, gas standard interface, meet the demand of modified.

Modified convenience
1. The beam wing surface without rivet
Girder bottom wing surface without rivet type design, is advantageous for the jacket overall layout.
2. The chassis overall layout optimization
VOLVO group after 6 years, 1500000 hours design, build the optimal layout of the chassis, meet the demand of various modified.
3. Regarding installation and varied
Engine has three kinds of flange type force way, gearbox spline two take force, flange type.
4. Special modified
Meet the laws and regulations within the scope of maximum allowable bearing capacity, to meet the needs of special modified pump truck, oilfield special automobile, etc.

 TIC TRUCKS , www.truckinchina.com

SUCCESS CASES

More >>

Contact Us

EMAIL:Sale@tictrucks.com,
TEL: +86-152-7135 7675 (Mr. King) ; TEL: +86-135-9782 8741 (Mr. Xi);
 WeiChat: king253725877 ; Keanxisong
truck in china weichat made in china truck
 Add:Wuhan Office 1: No.1 Taizong Avenue Gaoqiao Industry Park Taiwanese  Investment Area Dongxihu District Wuhan City, Hubei Province, P.R China
Address CRRC Factory : No. 8 Jiliangdadao,Zengdu Economic Development Zone,Suizhou City, Hubei Province, P.R China P.O. Box 441300
Address Yuchai DTA Truck Factory : No. 121, Liangshui 1St Road, Zengdu Economic Development Zone Suizhou City, P.R. China  P.O. Box 441300  .......

Hubei Dong Runze Special Vehicle Equipment Co., Ltd. All rights reserved. 2009-2024 XML Site Map webmail   Made-in-China.com    https://tictrucks.en.made-in-china.com/
 www.truckinchina.com ,www.tictrucks.com
