Availability: | |
---|---|
Quantity: | |
| |
DRZ5*
Dong Run Ze
8705909990

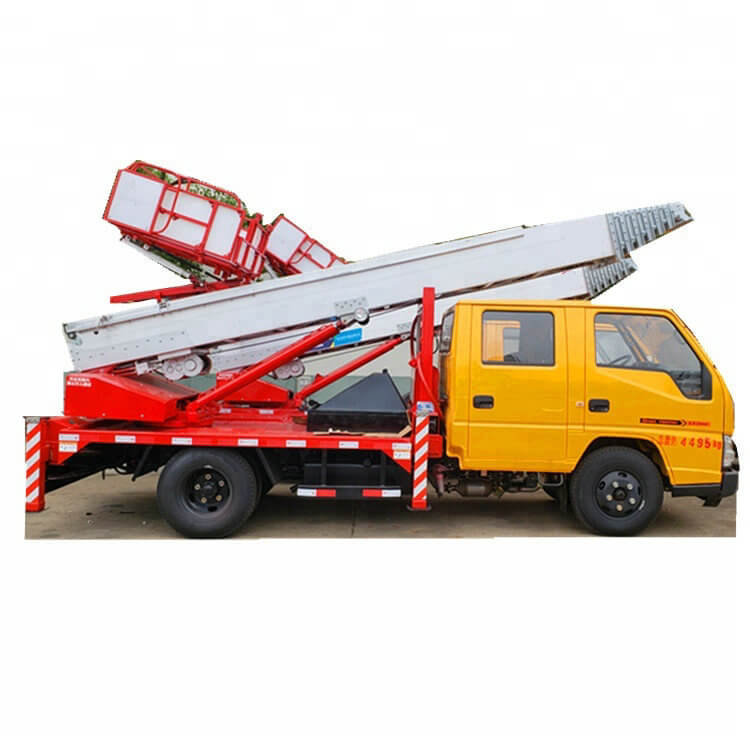

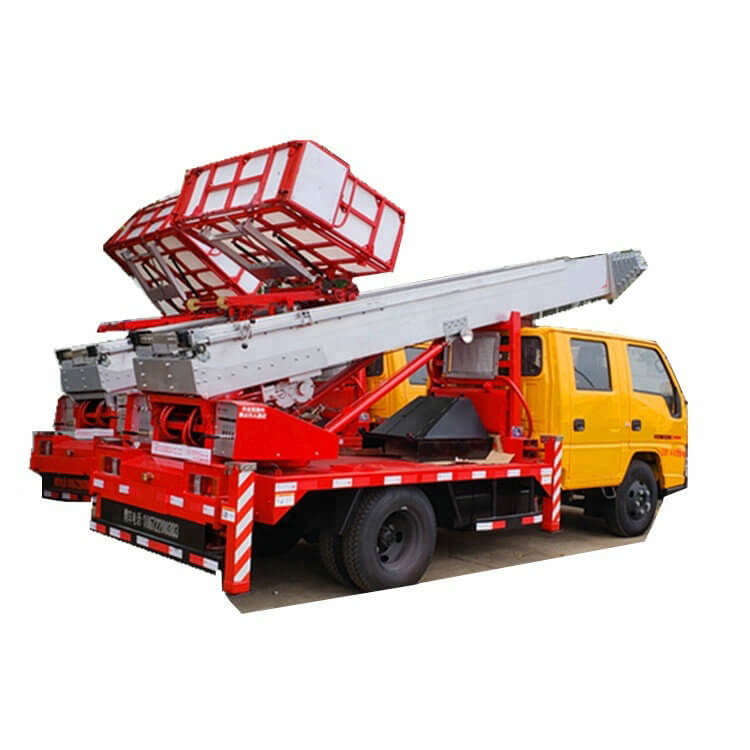

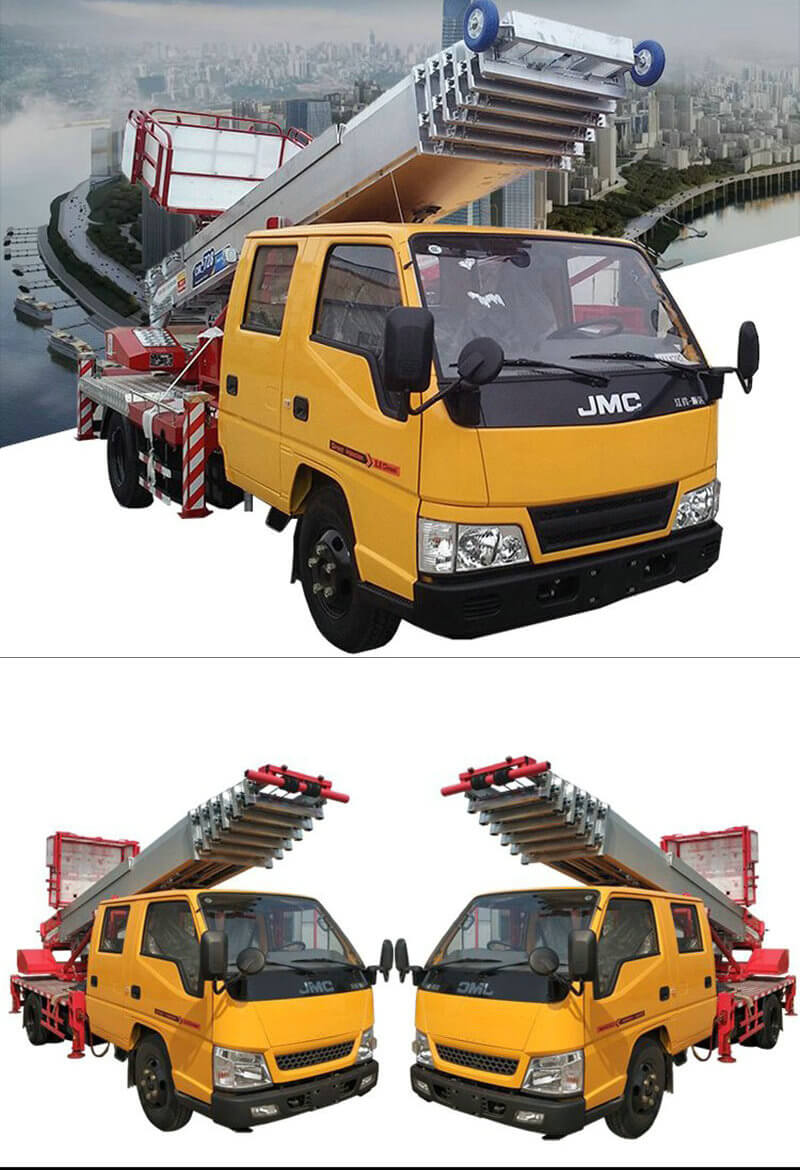

Truck Mounted Telescopic Ladder ( House Moving Services 28m -30m)
House Building Goods Lift and Download (House Furniture Moving Cherry Picker Hydraulic 28 M -30M Aerial Platform Ladder)

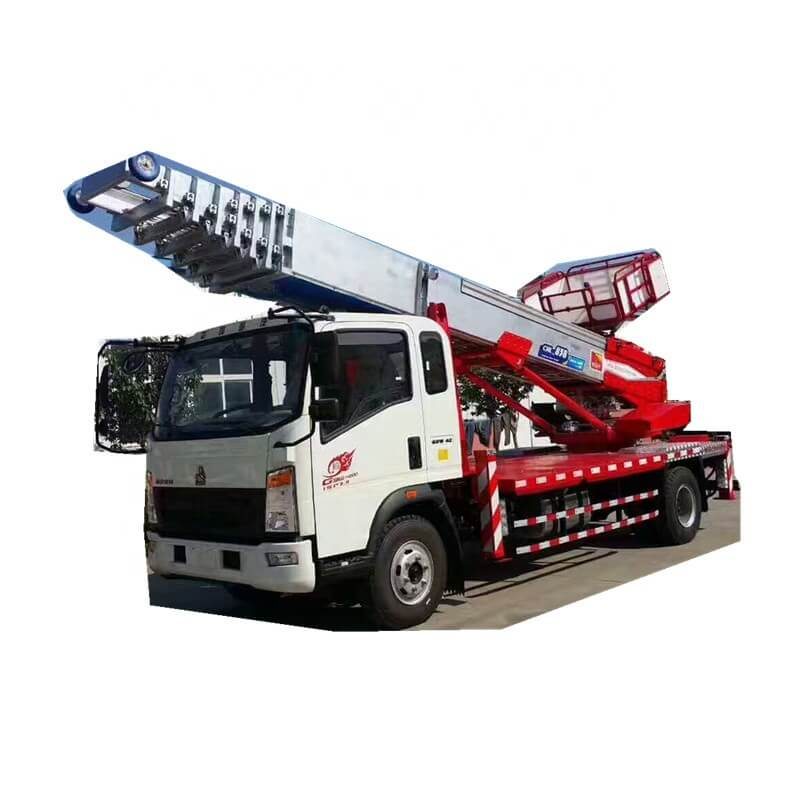

JMC HOWO Customizing
Chassis: | JX1041TSGA25 | Fuel type: | diesel fuel |
Engine: | JX493ZLQ5 | Wheelbase (mm): | 3360 |
Displacement (cc): | 2771 | Dimensions (mm): | 5995 × 1990 × 2950 |
Power (kW): | 85 | Gross weight (kg): | 4240 |

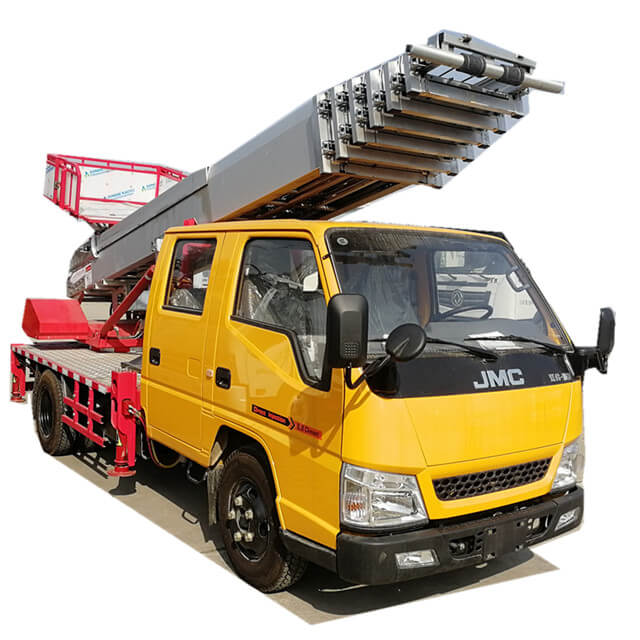

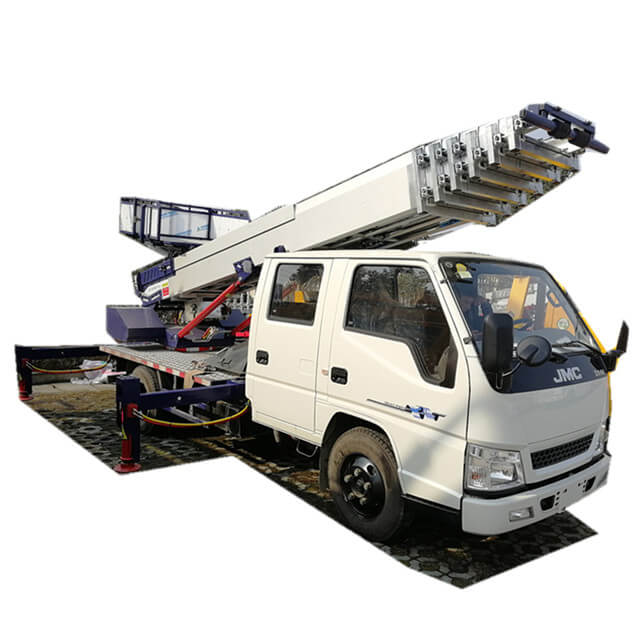

Parameters of JMC telescopic ladder truck
Product name | 28m telescopic ladder truck | Options |
Overall dimention | 5810*2010*3260(mm) | |
Max working height | 28m | 12~32m |
Platform bucket load | max 400kg | |
Outrigger | front and rear outrigger,hydraulic type | |
Ladder rotation | 360° | |
Control | Operation handles | |
Max speed | 90km/h | |
Equipped truck chassis | ||
Brand | JMC | Dongfeng,Foton,Shaanxi,etc |
Wheel drive | 4x2, LHD | RHD |
Driving cab | double rows, 6 seats | single row |
Wheel base | 3360mm | |
Engine | JX493, 85kW/115hp, 4 cylinder, water cooling | |
Emission standard | Euro3 | state III/V |
Axle & wheel | 2 axle, 6 wheels, one spare tire | |
Tire specification | 7.00R16 | 7.00R16 |
Approach / departure angle | 19/10° | |
Front/rear overhang | 1065/1385mm | |
Max speed | 90km/h |
Chassis: | ZZ1107G421CE199 | Fuel type: | diesel fuel |
Engine: | ISF3.8s5154; ISF3.8s5168;... | Wheelbase (mm): | 3800, 4200 |
Displacement (cc): | 3760; 3760; 4580; 4580;... | Dimensions (mm): | 6480/6880/6830/7230 ×... |
Power (kW): | 115; 125; 103; 118; 132;... | Gross weight (kg): | 8655 |
Chassis: | JX1041TSG25 | Fuel type: | diesel fuel |
Engine: | JX493ZLQ5; JX493ZLQ5A | Wheelbase (mm): | 3360 |
Displacement (cc): | 2771; 2771 | Dimensions (mm): | 5810 × 2010 × 3260 |
Power (kW): | 85; 85 | Gross weight (kg): | 4495 |
Chassis: | DFA1041DJ35D6 | Fuel type: | diesel fuel |
Engine: | 4B28BTCI; SD4BW754U;... | Wheelbase (mm): | 3300 |
Displacement (cc): | 2834; 2545; 3298; 3856;... | Dimensions (mm): | 5810 × 2010 × 3270 |
Power (kW): | 70; 75; 75; 73; 66; 75;... | Gross weight (kg): | 4495 |
Chassis: | EQ1041DJ3BDF | Fuel type: | diesel fuel |
Engine: | CY4BK551; YC4FA115-50;... | Wheelbase (mm): | 3308, 2800 |
Displacement (cc): | 3707; 2982; 2545; 2953;... | Dimensions (mm): | 5810 × 2010 × 3250 |
Power (kW): | 75; 85; 85; 96; 85; 70 | Gross weight (kg): | 4495 |
Ladder car is also called ladder truck, high - altitude transport car, high air transport car, ladder moving car. The car is mainly used for project lease, waterproof materials upstairs, moving company, cement sand and stone handling, building materials upstairs, construction garbage handling, ship maintenance, road and bridge repair and so on. The operation range is up to 28 meters, the vertical height is equivalent to 10 floors, and the maximum cargo weight is 400 kg.
Includes hydraulic legs (4), remote control, radiator, dump bucket
Features Of 28 Meter Ladder Truck
1, Ladder Truck: Humanized Design, More Convenient, Landing Bucket From The Ground 45 Cm, More Labor Saving When Working;
2, 100 Meters Remote Control Operation, Within 100 Meters Can Be Remote Control Operation, No Longer Need To Worry About Work In The Sun, Work More Convenient;
3. The Hopper With Self-Discharging Function Can Automatically Unload Goods Or Sand, Greatly Saving Working Time;
4, Hydraulic Support Leg, H Type Hydraulic Support Leg Plus Front Hydraulic Support Leg, Two Horizontal Support Legs Span Large, Good Stability, Can Be Operated Simultaneously Or Alone, Front Support Leg Strengthens The Stability Of The Vehicle;
5. 220V Power Supply Is Optional, Which Can Be Connected With Electric Tools At The Work Site For Convenient Operation;
6, Optional Air Pump Can Be Connected At The Work Site, Pneumatic Tools, Work Is Convenient And Labor Saving;
7. Optional Navigation Device Is Equipped With The Car, Which Integrates Navigation, Dashcam, Reversing Image And Video Playback Functions To Facilitate Driving;
8, Standard Trip Memory, Through The Computer Learning And Memory Of The First Operation Mode, a Key To Reach The Designated Position, The Speed Of Free Control, Suitable For The Same Height Many Times Back And Forth Operations;
9, Manual Automatic Radiator, Self-Dynamic Temperature, When The Temperature Reaches 55 Degrees, Automatic Heat Dissipation, Reduce Losses.
Weights and Ground pressure | ||||
---|---|---|---|---|
Curb weight | 8460 kg | 8.5 t | 18,651 lbs | |
Gross vehicle weight rating | 8655 kg | 8.7 t | 19,081 lbs | |
Axle load distribution | 3050 kg / 5605 kg 3.1 t / 5.6 t 6,724 lbs / 12,357 lbs |
Dimensions | ||||
---|---|---|---|---|
Overall length | 6480 mm / 6880 mm / 6830 mm / 7230 mm | 21′4″ / 22′7″ / 22′5″ / 23′9″ | ||
Overall width | 2410 mm | 7′11″ | ||
Overall height | 3840 mm | 12′8″ |
Undercarriage and Suspension | ||||
---|---|---|---|---|
Number of axles | 2 | |||
Wheelbase | 3800 mm, 4200 mm | 12′6″, 13′10″ | ||
Front track | 1585 mm, 1780 mm, 1825 mm | 5′3″, 5′11″, 6′0″ | ||
Rear track | 1605 mm, 1796 mm | 5′4″, 5′11″ | ||
Front/rear overhang | 1160 mm / 1520 mm, 1240 mm / 1790 mm | 3′10″ / 5′0″, 4′1″ / 5′11″ | ||
Angle of approach | 18° | |||
Angle of departure | 11° | |||
Leaf springs | 8 / 9+6, 11 / 9+7, 11 / 11+7, 9 / 12+9, 3 / 3+2 |
Tyres and Wheels | ||||
---|---|---|---|---|
Number of tyres | 6 | |||
Tyres dimension | 8.25R16LT, 8.25R20 14PR, 9R17.5, 9R22.5 |
Miscellaneous | ||||
---|---|---|---|---|
Seating capacity | 3 | |||
Steering control | steering wheel |
Truck Mounted Telescopic Ladder ( House Moving Services 28m -30m)
House Building Goods Lift and Download (House Furniture Moving Cherry Picker Hydraulic 28 M -30M Aerial Platform Ladder)
JMC HOWO Customizing
Chassis: | JX1041TSGA25 | Fuel type: | diesel fuel |
Engine: | JX493ZLQ5 | Wheelbase (mm): | 3360 |
Displacement (cc): | 2771 | Dimensions (mm): | 5995 × 1990 × 2950 |
Power (kW): | 85 | Gross weight (kg): | 4240 |
Parameters of JMC telescopic ladder truck
Product name | 28m telescopic ladder truck | Options |
Overall dimention | 5810*2010*3260(mm) | |
Max working height | 28m | 12~32m |
Platform bucket load | max 400kg | |
Outrigger | front and rear outrigger,hydraulic type | |
Ladder rotation | 360° | |
Control | Operation handles | |
Max speed | 90km/h | |
Equipped truck chassis | ||
Brand | JMC | Dongfeng,Foton,Shaanxi,etc |
Wheel drive | 4x2, LHD | RHD |
Driving cab | double rows, 6 seats | single row |
Wheel base | 3360mm | |
Engine | JX493, 85kW/115hp, 4 cylinder, water cooling | |
Emission standard | Euro3 | state III/V |
Axle & wheel | 2 axle, 6 wheels, one spare tire | |
Tire specification | 7.00R16 | 7.00R16 |
Approach / departure angle | 19/10° | |
Front/rear overhang | 1065/1385mm | |
Max speed | 90km/h |
Chassis: | ZZ1107G421CE199 | Fuel type: | diesel fuel |
Engine: | ISF3.8s5154; ISF3.8s5168;... | Wheelbase (mm): | 3800, 4200 |
Displacement (cc): | 3760; 3760; 4580; 4580;... | Dimensions (mm): | 6480/6880/6830/7230 ×... |
Power (kW): | 115; 125; 103; 118; 132;... | Gross weight (kg): | 8655 |
Chassis: | JX1041TSG25 | Fuel type: | diesel fuel |
Engine: | JX493ZLQ5; JX493ZLQ5A | Wheelbase (mm): | 3360 |
Displacement (cc): | 2771; 2771 | Dimensions (mm): | 5810 × 2010 × 3260 |
Power (kW): | 85; 85 | Gross weight (kg): | 4495 |
Chassis: | DFA1041DJ35D6 | Fuel type: | diesel fuel |
Engine: | 4B28BTCI; SD4BW754U;... | Wheelbase (mm): | 3300 |
Displacement (cc): | 2834; 2545; 3298; 3856;... | Dimensions (mm): | 5810 × 2010 × 3270 |
Power (kW): | 70; 75; 75; 73; 66; 75;... | Gross weight (kg): | 4495 |
Chassis: | EQ1041DJ3BDF | Fuel type: | diesel fuel |
Engine: | CY4BK551; YC4FA115-50;... | Wheelbase (mm): | 3308, 2800 |
Displacement (cc): | 3707; 2982; 2545; 2953;... | Dimensions (mm): | 5810 × 2010 × 3250 |
Power (kW): | 75; 85; 85; 96; 85; 70 | Gross weight (kg): | 4495 |
Ladder car is also called ladder truck, high - altitude transport car, high air transport car, ladder moving car. The car is mainly used for project lease, waterproof materials upstairs, moving company, cement sand and stone handling, building materials upstairs, construction garbage handling, ship maintenance, road and bridge repair and so on. The operation range is up to 28 meters, the vertical height is equivalent to 10 floors, and the maximum cargo weight is 400 kg.
Includes hydraulic legs (4), remote control, radiator, dump bucket
Features Of 28 Meter Ladder Truck
1, Ladder Truck: Humanized Design, More Convenient, Landing Bucket From The Ground 45 Cm, More Labor Saving When Working;
2, 100 Meters Remote Control Operation, Within 100 Meters Can Be Remote Control Operation, No Longer Need To Worry About Work In The Sun, Work More Convenient;
3. The Hopper With Self-Discharging Function Can Automatically Unload Goods Or Sand, Greatly Saving Working Time;
4, Hydraulic Support Leg, H Type Hydraulic Support Leg Plus Front Hydraulic Support Leg, Two Horizontal Support Legs Span Large, Good Stability, Can Be Operated Simultaneously Or Alone, Front Support Leg Strengthens The Stability Of The Vehicle;
5. 220V Power Supply Is Optional, Which Can Be Connected With Electric Tools At The Work Site For Convenient Operation;
6, Optional Air Pump Can Be Connected At The Work Site, Pneumatic Tools, Work Is Convenient And Labor Saving;
7. Optional Navigation Device Is Equipped With The Car, Which Integrates Navigation, Dashcam, Reversing Image And Video Playback Functions To Facilitate Driving;
8, Standard Trip Memory, Through The Computer Learning And Memory Of The First Operation Mode, a Key To Reach The Designated Position, The Speed Of Free Control, Suitable For The Same Height Many Times Back And Forth Operations;
9, Manual Automatic Radiator, Self-Dynamic Temperature, When The Temperature Reaches 55 Degrees, Automatic Heat Dissipation, Reduce Losses.
Weights and Ground pressure | ||||
---|---|---|---|---|
Curb weight | 8460 kg | 8.5 t | 18,651 lbs | |
Gross vehicle weight rating | 8655 kg | 8.7 t | 19,081 lbs | |
Axle load distribution | 3050 kg / 5605 kg 3.1 t / 5.6 t 6,724 lbs / 12,357 lbs |
Dimensions | ||||
---|---|---|---|---|
Overall length | 6480 mm / 6880 mm / 6830 mm / 7230 mm | 21′4″ / 22′7″ / 22′5″ / 23′9″ | ||
Overall width | 2410 mm | 7′11″ | ||
Overall height | 3840 mm | 12′8″ |
Undercarriage and Suspension | ||||
---|---|---|---|---|
Number of axles | 2 | |||
Wheelbase | 3800 mm, 4200 mm | 12′6″, 13′10″ | ||
Front track | 1585 mm, 1780 mm, 1825 mm | 5′3″, 5′11″, 6′0″ | ||
Rear track | 1605 mm, 1796 mm | 5′4″, 5′11″ | ||
Front/rear overhang | 1160 mm / 1520 mm, 1240 mm / 1790 mm | 3′10″ / 5′0″, 4′1″ / 5′11″ | ||
Angle of approach | 18° | |||
Angle of departure | 11° | |||
Leaf springs | 8 / 9+6, 11 / 9+7, 11 / 11+7, 9 / 12+9, 3 / 3+2 |
Tyres and Wheels | ||||
---|---|---|---|---|
Number of tyres | 6 | |||
Tyres dimension | 8.25R16LT, 8.25R20 14PR, 9R17.5, 9R22.5 |
Miscellaneous | ||||
---|---|---|---|---|
Seating capacity | 3 | |||
Steering control | steering wheel |
