Tri Axles Trailer Tanker with Insulation Layer for Heat Bitumen, Liquid Asphalt, Coal Tar Oil, Crude Oil Transport Tank Capacity 30, 000L-45, 000liters 12wheels

Quantity:
  • Shanghai, China
  • 3000
  • T/T
  • Tri Axles Trailer Tanker
  • Cross Arm Type
  • Tanker
  • 3
  • 13
  • Self-dumping
  • ABS Anti-lock Braking System
  • Steel
  • New
  • 13000*2500*3900mm
  • Bitumen, Liquid Asphalt, Coal Tar Oil, Crude Oil
  • Dongrun Ze
  • Road Transport
  • 50m3
  • Cn
  • 871631900
  • Semi-Trailer
  • 50T
  • ISO9001, ISO/TS16949
  • 9000-10000mm
  • 1820mm
  • Heavy Duty

Hot Liquid Asphalt Tanker Trailer Truck 50,000 liters With Two Burner Heater Insulation Layer For Transport Bitumen,Liquid Asphalt,Coal Tar Oil,Crude Oil

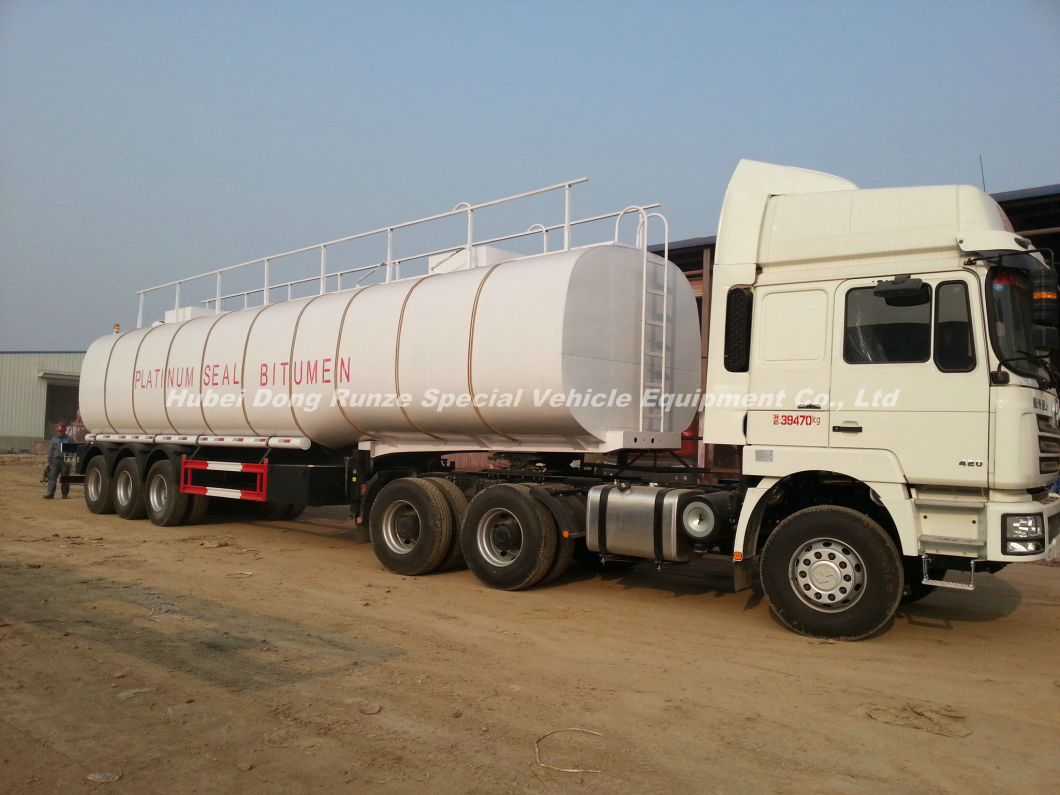

50,000 liters 3 axle bitumen insulation tank semi-trailer
Tank volume: 50,000 liters
Tanker material: Carbon steel-Q235A
Tank medium: Bitumen,liquid asphalt,coal tar oil,crude oil
No.of axle: 3 axle BPW or FUWA
Heating system: 2 BALTUR TBL45P ITALY burner heating
Insulation layer: Rock wool 80mm and outer stainless steel cold plate


Ask for better price

Cell +8615271357675

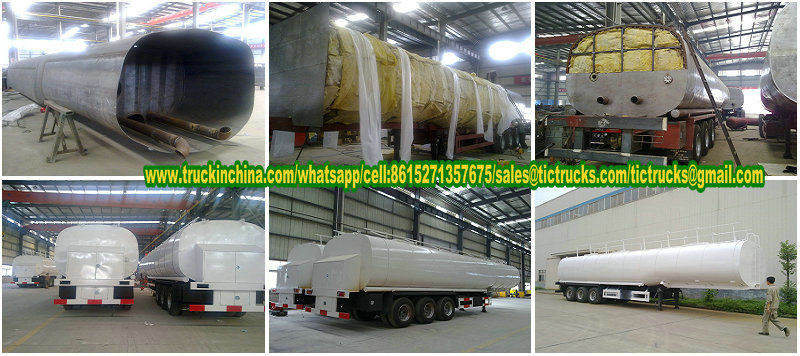

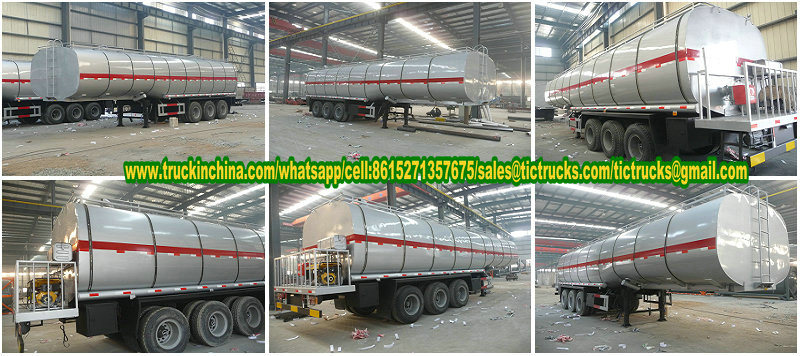

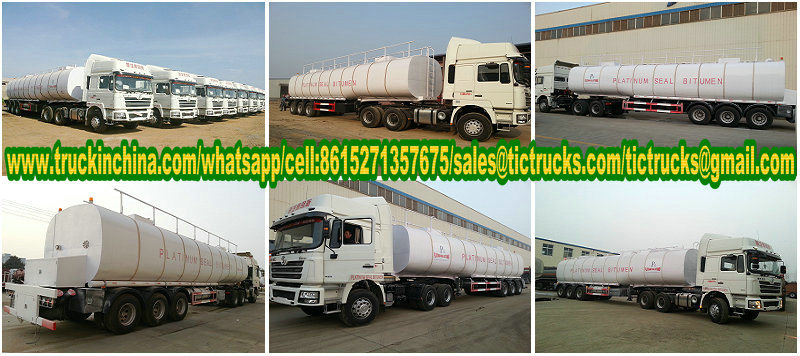

The pictures are for your reference only.
Tri Axles Trailer Tanker with Insulation Layer for Heat Bitumen, Liquid Asphalt, Coal Tar Oil, Crude Oil Transport Tank Capacity 30, 000L-45, 000liters 12wheels

Tri Axles Trailer Tanker with Insulation Layer for Heat Bitumen, Liquid Asphalt, Coal Tar Oil, Crude Oil Transport Tank Capacity 30, 000L-45, 000liters 12wheels
Tri Axles Trailer Tanker with Insulation Layer for Heat Bitumen, Liquid Asphalt, Coal Tar Oil, Crude Oil Transport Tank Capacity 30, 000L-45, 000liters 12wheels

Tri Axles Trailer Tanker with Insulation Layer for Heat Bitumen, Liquid Asphalt, Coal Tar Oil, Crude Oil Transport Tank Capacity 30, 000L-45, 000liters 12wheels
Tri Axles Trailer Tanker with Insulation Layer for Heat Bitumen, Liquid Asphalt, Coal Tar Oil, Crude Oil Transport Tank Capacity 30, 000L-45, 000liters 12wheels



Tri Axles Trailer Tanker with Insulation Layer for Heat Bitumen, Liquid Asphalt, Coal Tar Oil, Crude Oil Transport Tank Capacity 30, 000L-45, 000liters 12wheels
Tri Axles Trailer Tanker with Insulation Layer for Heat Bitumen, Liquid Asphalt, Coal Tar Oil, Crude Oil Transport Tank Capacity 30, 000L-45, 000liters 12wheels
Tri Axles Trailer Tanker with Insulation Layer for Heat Bitumen, Liquid Asphalt, Coal Tar Oil, Crude Oil Transport Tank Capacity 30, 000L-45, 000liters 12wheels
Tri Axles Trailer Tanker with Insulation Layer for Heat Bitumen, Liquid Asphalt, Coal Tar Oil, Crude Oil Transport Tank Capacity 30, 000L-45, 000liters 12wheels

Asphalt tanker truck / trailer/ tank containers

applied to transport liquid asphalt in a short or long distance. It's an ideal equipment to transport asphalt from asphalt storage depot to asphalt plant, and transport asphalt from oil refinery and wharf to asphalt storage depot. Besides the above functions, also suitable to transport crude oil and residual oil and viscous oil

1. lower center of gravity, driving stably and safely.

2. Rock wool insulation100mm, average temp. drop<1°C/h.

3. equipped with diesel-oil Burner and a 4. Equipped 220V generator, supply continuous power for systems.

5. Reliable monitoring system of heating.

6. Stainless steel tank shell or cold plate

7. Heating and control functions can be on semi-trailer, and be independently used on tractor.OEM ,OBM, ODM HEATED BITUMEN TANK ,HEATED ASPHALT TANK Trailer

Tare Weight(kg)

12500

Pay Load(kg)

45000

Total Weight(kg)

57000

LxWxH (mm)

12000x2495x3680

Wheelbase(mm)

6800+1310+1310

Tanker

Shape

Cylinder,roundness,etc

Total Volume(m3)

50

Valid Volume(m3)

50

Material

Q235A/6mm

End plate

Q235A/8mm, by punching

Isolated steel plate

Q235A/6mm, 20 inch manhole

Parts for Tank

Manhole cover

2 sets of 500mm/Q235 manhole fixed on top of Tank,

with breather valve

Unloading valve

2 sets of DN80 fixed at bottom of Tank

Pipeline at bottom of tank

4seamless steel tube/Q235

Anti-static electricity

system

pulling, wire carrier, sheet copper (6 sheet-standard layout)

Other Parts

Ladder

2 unit at front and rear of Tank

Guard on top of Tank

Zinc galvanized guard- net

Oil hose box

single hole tube, 1 unit on each side

Oil hose

2 unit, 3x 6m size in black rubber

Side guard

cross bar-structure

Rear bottom guard

Fixed type

Work tank deck

Box type

Fire extinguisher box

2 unit at the back of each side

Mud guard

Steel structure in trapezoid form

Lights and wire

24V, 7 coils with lights for parking, reverse, instruction,head lamp and end lamp

Chassis

Main Beam

Heavy duty and extra durability designed;Opting for high tensile steel

Q345B,welded by automatic Submerged-Arc processes

Axle

3 units of FUWA(band) or BPW or L1

Axle load capacity:13 ton/axle

Landing Gear

JOST Brand two Speed Manual Operation

King Pin

JOST brand,one unit of 2SAE standard Jost bolt-in king pin

Suspension

FUWA(band) mechanical tandem suspension with 16mm x 90mm

8 leafs spring

Pneumatic Braking System

A system with emergency brake and parking brake;

Dual line - air brake, piggyback spring on all axles;

One units of WABCO RE 6 relay valve; four units of T30/30 chamber;

one units of 40L air tank,two units of standard copper airconnector.

Wheel rim

12 units of 8.25R22.5 rim

Tire

12 units of 11R22.5 tubeless tyre

Painting

Sand blasting processing on rust cleaning

One coat of anticorrosive

Two coats of finish urethane paint

Colour as customer choice

Heating and insulation system

of tanker

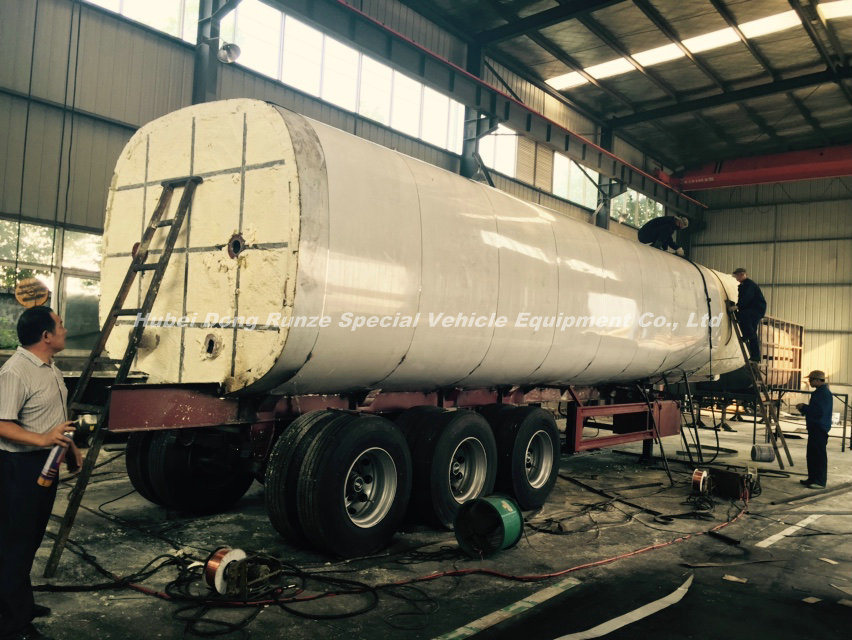

Insulating layer

1. Tank containing keep warm by insulation layer

2. Insulation layer composed of: 80mm rock wool and 1.2mm

stainless cold plate covered, it can prevent the heat losing.

Heating system

1.Use Burner heater 24 hours continuous heating at back of the tanker

2 Italian BALTUR diesel oil burner

Capacity: 14*104Kcal/h, brand-new

3. One general-purpose diesel generator

4.According to continuous diesel burning to keep warm

for the crude oil (Diesel consumption:150kg/24hours)

Note: It's not necessary to adopt 24 hours continuous burning,

you just only need begin to heat ahead of 2-3 hours while approach the

destination site.It will save oil consumption and cost for you

www.truckinchina.com

Tri Axles Trailer Tanker with Insulation Layer for Heat Bitumen, Liquid Asphalt, Coal Tar Oil, Crude Oil Transport Tank Capacity 30, 000L-45, 000liters 12wheels
Tri Axles Trailer Tanker with Insulation Layer for Heat Bitumen, Liquid Asphalt, Coal Tar Oil, Crude Oil Transport Tank Capacity 30, 000L-45, 000liters 12wheels

Truck Model Chassis Model Steel lined PE Tank Steel Tank Steel lined PE Tank Steel Stainless Steel tank Carbon Steel Tank Aluminium alloy Medium
DTA5310GFWD9 TANK TRANSPORTER FOR CORROSIVE ARTICLES DFL1311A9 19.36 18.5 / 5 / / Sulphuric Acid
DTA5160GFWLZ TANK TRANSPORTER FOR CORROSIVE ARTICLES LZ1161RAPAT 10.5 10.5 11.56/12 5 5 6 Ammonia 8600kg
DTA5250GFWCA TANK TRANSPORTER FOR CORROSIVE ARTICLES CA5250GYYP62K1L6T3E4 13.13 14 / 5 / / Hydrochloric Acid
DTA5311GFWLZ TANK TRANSPORTER FOR CORROSIVE ARTICLES LZ1311QELAT 22.73 20.5 / 5 / / Hydrochloric Acid 14300kg
DTA5310GFWC4 TANK TRANSPORTER FOR CORROSIVE ARTICLES CA5310GYYP66K2L7T4E4 19.88 22.3 / 5 / / Hydrochloric Acid
DTA5161GFWC4 TANK TRANSPORTER FOR CORROSIVE ARTICLES CA1167PK2BE4A80 8.2 8.5 / 5 / / Hydrochloric Acid 7500kg
DTA5110GFWDF TANK TYPE TRANSPORT VEHICLE FOR CORROSIVE ARTICLES DFA1110SJ11D3 6.1 6.1 / 5 / / Hydrochloric Acid 5200kg
DTA5312GFWCT4 TANK TRANSPORTER FOR CORROSIVE ARTICLES CA1311P1K2L6T10BE4A80 17.7 18 / 5 / / Hydrochloric Acid 13260kg
DTA5311GFWC TANK TRANSPORTER FOR CORROSIVE ARTICLES CA5310GYYP63K1L6T4E4 19.2 20.5 21.6 5 5 6 Ammonia 14630kg
DTA9400GFWA TANK SEMI-TRAILER FOR CORROSIVE GOODS 18.83 18.5 20 5 / 6 Sulphuric Acid 7620kg
DTA9407GFW TANK SEMI-TRAILER FOR CORROSIVE GOODS Round tank 35 37 39 5 5 6 Ammonia 10340kg
DTA9401GFWC TANK SEMI-TRAILER FOR CORROSIVE GOODS Round tank 18.83 19.5 20.5 5 / 6 Sulphuric Acid 9360kg
DTA9406GFW TANK SEMI-TRAILER FOR CORROSIVE GOODS Round tank 29.5 31 / 5 / / Hydrochloric Acid 11380kg
DTA9401GFWA TANK SEMI-TRAILER FOR CORROSIVE GOODS Round tank 19.95 22 23.5 5 / 5 Dilute Sulphuric Acid
DTA9402GFW TANK SEMI-TRAILER FOR CORROSIVE GOODS Round tank 25.67 25 26.3 5 5 6 Caustic Soda
DTA9403GFW TANK SEMI-TRAILER FOR CORROSIVE GOODS Round tank 27.84 27.8 / / / 5 Hydrochloric Acid
DTA9400GFW TANK SEMI-TRAILER FOR CORROSIVE GOODS Round tank 19.98 18 20 5 / 6 Dilute Sulphuric Acid 7620kg
DTA9350GFW TANK SEMI-TRAILER FOR CORROSIVE GOODS Round tank 23.82 23 / 5 / / Hydrochloric Acid
DTA5310GRYL4 FLAMMABLE LIQUID TANK TRUCK LZ1311QELAT 23.78 / 28.6 / 5 6 Diesel Oil 12200kg
DTA5310GRYD10 FLAMMABLE LIQUID TANK TRUCK DFL1311A10 29.15 / 30 / 5 6 Hexane
DTA5310GRYD9 FLAMMABLE LIQUID TANK TRUCK DFL1311A9 29.15 / 30 / 5 6 Hexane
DTA5310GRYC4 FLAMMABLE LIQUID TANK TRUCK CA5310GYYP63K2L6T4E4 29.25 / 29.5 / 5 6 Hexane
DTA5311GRYC4 FLAMMABLE LIQUID TANK TRUCK CA5310GYYP66K2L7T4E4 28.46 / 29.5 / 5 6 Hexane
DTA5160GRYB4 FLAMMABLE LIQUID TANK TRUCK BJ5163GYY-AB 13.44 / 14.5 / 4 5 Hexane
DTA5250GRYBH4 FLAMMABLE LIQUID TANK TRUCK BJ5253GYY-XA 25.3 / 25 / 5 6 Hexane
DTA5160GRYD5 FLAMMABLE LIQUID TANK TRUCK DFL1160BX5 14.22 / 17/17/15.13 / 4 5 Hexane
DTA5160GRYE4 FLAMMABLE LIQUID TANK TRUCK EQ1168GLJ3 15 / 15.7/16.4/16.7 / 4 5 Hexane
DTA5310GRYB4 FLAMMABLE LIQUID TANK TRUCK BJ5317GYY-XB 28.45 / 29.8 / 5 6 Hexane
DTA5251GRYC4P62 FLAMMABLE LIQUID TANK TRUCK CA5250GYYP62K1L6T3E4 17.09 19.7 / 4 5 Butyl Acetate 10420kg
DTA5311GRYYBJ4 FLAMMABLE LIQUID TANK TRUCK BJ5312GYY-XB 21 21.7 / 4 5 Butyl Acetate 12800kg
DTA9390GRY FLAMMABLE LIQUID TANK SEMI-TRAILER 41.34 / 44.5 / 5 6 Alcohol
DTA9401GRY FLAMMABLE LIQUID TANK SEMI-TRAILER 45.25 / 43.5 / 5 6 Ethanol
DTA9402GRY FLAMMABLE LIQUID TANK SEMI-TRAILER 40.18 / 47.5 / 5 6 Butanol
DTA9403GRYB FLAMMABLE LIQUID TANK SEMI-TRAILER (Whatsapp/ Weichat +86152 71357675) 45 / 44.5 / 5 6 Butyl Ether 8820kg
DTA9401GRYD FLAMMABLE LIQUID TANK SEMI-TRAILER 42.6 / 40.5 / 5 6 Methanol
DTA9402GRYA ALUMINUM ALLOY FLAMMABLE LIQUID TANK SEMI-TRAILER 42.39 / 47.8 / / / 9 Methanol
DTA9406GRY ALUMINUM ALLOY FLAMMABLE LIQUID TANK SEMI-TRAILER 47.67 / 47.67 / / / 6 Butyl Ether
DTA9351GRY ALUMINUM ALLOY FLAMMABLE LIQUID TANK SEMI-TRAILER Round tank 36.87 / 36.5 / / / 9 Methanol
DTA9405GRYA ALUMINUM ALLOY FLAMMABLE LIQUID TANK SEMI-TRAILER Announcement needs to be changed 46 / 47.3 / / / 6 Butyl Ether
DTA9401GYYC ALUMINUM ALLOY OIL SEMI-TRAILER 42 / 47 / / / 6 Diesel Oil 6800kg
DTA9401GRYA ALUMINUM ALLOY FLAMMABLE LIQUID TANK SEMI-TRAILER sample vehicle 42 / 42 / / / 8 Methanol 7280kg
DTA9351GYY ALUMINUM ALLOY OIL SEMI-TRAILER 43.5 / 39.9 / / / 6 Gasoline
DTA9401GYYB TYPE ALUMINUM ALLOY OIL SEMI-TRAILER 47.5 / 49 / / / 6 Gasoline
DTA9400GSY ALUMINUM ALLOY EDIBLE OIL TRANSPORTATION SEMI-TRAILER 43.8 / 43.5 / / / 6 Edible Oil
DTA5310GYYS4 ALUMINUM ALLOY TANKER SQR1311D5T6-E1 28.2 / 30 / / / 6 Gasoline
DTA9400GYW TYPE TANK SEMI-TRAILER FOR OXIDIZING GOODS TRANSPORTATION 27.3 / 32.5 / 6 / / Liquid Ammonium Nitrate 11650kg
DTA9401GHY CHEMICAL LIQUID TRANSPORTATION SEMI-TRAILER Round tank 42 / 43.5 / 5 6 Methanol
DTA9402GY CHEMICAL LIQUID TRANSPORTATION SEMI-TRAILER Round tank 21.99 20 21.7 5 / 6 Sodium Hydroxide
DTA9405GHY CHEMICAL LIQUID TRANSPORTATION SEMI-TRAILER 45.73 / 43.2 / 5 6 Sec-Butylamine
DTA9406GHY CHEMICAL LIQUID TRANSPORTATION SEMI-TRAILER 49.89 / 55.1 / 5 6 Hexane
DTA9403GHY CHEMICAL LIQUID TRANSPORTATION SEMI-TRAILER Round tank 39.37 / 39.5 / 5 6 Methanol
DTA9407GY CHEMICAL LIQUID TRANSPORTATION SEMI-TRAILER 33 33 / 5 / / Diluted Hydrochloric Acid
DTA5251GHYDD CHEMICAL LIQUID TRANSPORT VEHICLE DFL1250A11 21.45 / 22 / 5 6 Xylene
DTA9400GYY OIL SEMI-TRAILER 47.7 / 51.5 / 5 6 Gasoline
DTA5251GYYDD TANKER DFL1250A11 21.6 / 20.5 / 5 6 Gasoline
DTA5310GFWD9 TANK TRANSPORTER FOR CORROSIVE ARTICLES CA5250GYYP62K1L6T3E4 22.5 / 22/21.7 / 5 6 Gasoline
DTA5160GFWLZ TANK TRANSPORTER FOR CORROSIVE ARTICLES DFL1311A10 27.65 / 29.6 / 5 6 Gasoline
DTA5250GFWCA TANK TRANSPORTER FOR CORROSIVE ARTICLES CA5310GYYP63K2L6T4E4 28.5 / 30.4 / 5 6 Gasoline
DTA5311GFWLZ TANK TRANSPORTER FOR CORROSIVE ARTICLES EQ1168GLJ3 14.24 / 15.7/16.3/16.6 / 4 6 Gasoline
DTA5310GFWC4 TANK TRANSPORTER FOR CORROSIVE ARTICLES EQ1070 4.8 / 7 / 4 5 Gasoline 4270kg
DTA5161GFWC4 TANK TRANSPORTER FOR CORROSIVE ARTICLES Round tank 29.9 31.5 33 5 6 6 Sodium Hydroxide
DTA5110GFWDF TANK TYPE TRANSPORT VEHICLE FOR CORROSIVE ARTICLES 34.26 / 38.7 / 5 6 Glycol
DTA5312GFWCT4 TANK TRANSPORTER FOR CORROSIVE ARTICLES 31.5 33 36 5 5 6 Water
DTA5311GFWC TANK TRANSPORTER FOR CORROSIVE ARTICLES Round tank 38.39 / 39 / 5 6 Methanol Formaldehyde,
DTA9400GFWA TANK SEMI-TRAILER FOR CORROSIVE GOODS Round tank 28.8 31.5 33 5 5 / Hydrogen Peroxide Solution
