Trailer Asphalt Distributor Bitumen Spraying Nozzles (Asphalt Tank Dolly Trailers 1000L -2000L, Spray Bitumen 2 -5 meters)

Trailer Asphalt Distributor Bitumen Spraying Nozzles (Asphalt Tank Dolly Trailers 1000L -2000L, Spray Bitumen 2 -5 meters)
Availability:
Quantity:
  • Shanghai, China

  • 3000

  • T/T

Trailer Asphalt Distributor  Bitumen Spraying Nozzles ( Asphalt Tank Dolly Trailers  1000L -2000L, Spray Bitumen 2 -5 meters )


Cell /+8615271357675

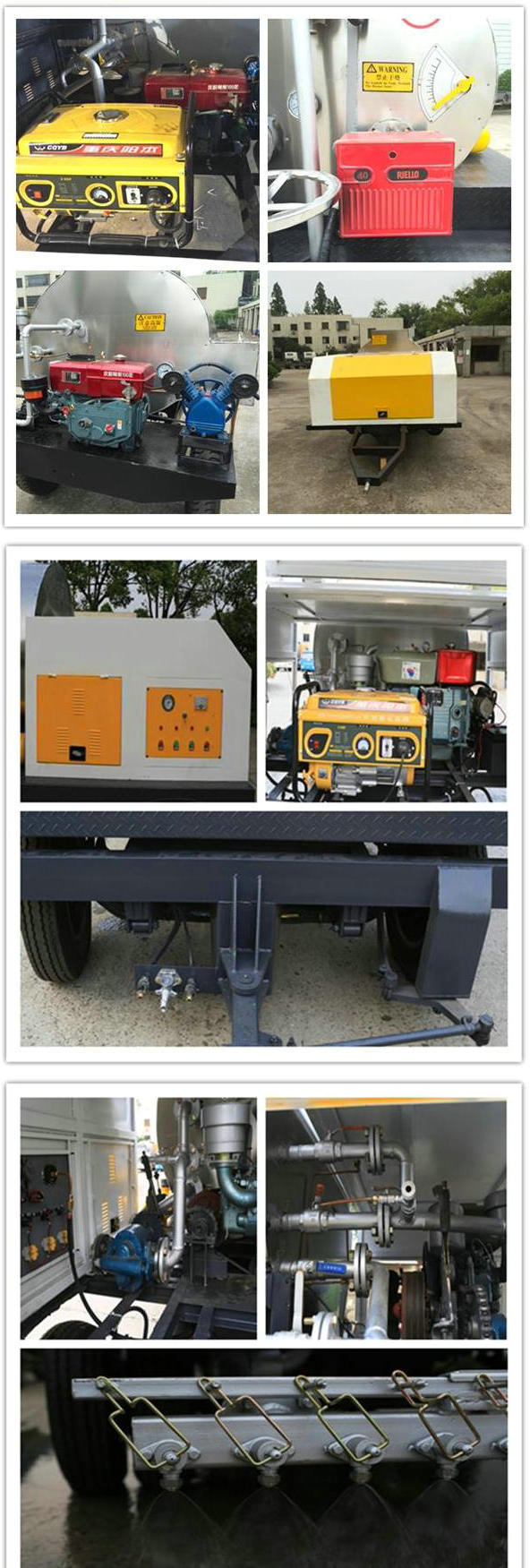

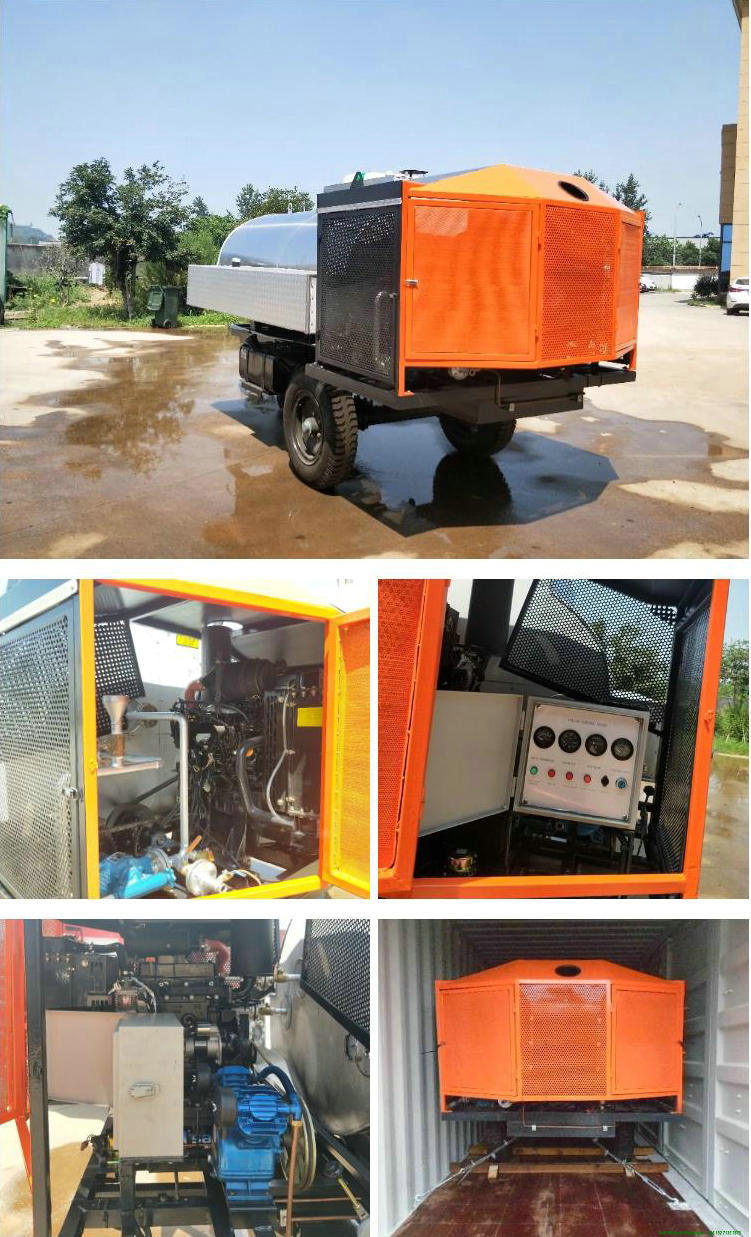

The pictures are for your reference only.   Bitumen Sprayer Dolly TrailerTrailer Asphalt Distributor Bitumen Spraying Nozzles (Asphalt Tank Dolly Trailers 1000L -2000L, Spray Bitumen 2 -5 meters)

Trailer Asphalt Distributor Bitumen Spraying Nozzles (Asphalt Tank Dolly Trailers 1000L -2000L, Spray Bitumen 2 -5 meters)



Trailer Asphalt Distributor Bitumen Spraying Nozzles (Asphalt Tank Dolly Trailers 1000L -2000L, Spray Bitumen 2 -5 meters)

Trailer Asphalt Distributor Bitumen Spraying Nozzles (Asphalt Tank Dolly Trailers 1000L -2000L, Spray Bitumen 2 -5 meters)Trailer Asphalt Distributor Bitumen Spraying Nozzles (Asphalt Tank Dolly Trailers 1000L -2000L, Spray Bitumen 2 -5 meters)
Trailer Asphalt Distributor Bitumen Spraying Nozzles (Asphalt Tank Dolly Trailers 1000L -2000L, Spray Bitumen 2 -5 meters)



TRAILER ASPHALT DISTRIBUTOR SERIES

(1) The tank capacity from 1000L -4000L, insulated with 50mm fiber glass and coated by stainless steel.

(2) With Italy Riello burner and gasoline generator and heating tube in the tank.

(3) 2 meters spray bar and 5 meters hand spray lance, flexible use in the asphalt working.

(4) Multiple power options, 1-4 cylinder diesel engine, Mechanic connect or by hydraulic.
Specification

Dimension(mm)(Excluding traction arm ) 4960×1860×2550mm
Tank Capacity (L) 2500
Spray width 2000mm
Hand spray lance 5000mm
Nozzles 15
Spray Value 0.5-3.0(Kg)
Insulation Thickness 50mm
Engine model ZS1100
Asphalt pump YCB6/0.6
Burner G10(Riello)

Asphalt Distributor Trailer

Mass parameter
Kerb Weight(kg) 1500 Total Weight(kg) 1500
Rated loading Weight(kg) 1500 Dimension(mm) 8500*2200*2600
Chassis Parameter
Chassis Model ZM-15 Tyre model 6.50-16
Diesel engine model R180 Power(Kw/r/min) 5.67
Spray specification
Tank Capacity(L) 1500 Asphalt pump discharge 50(ml/r)
Manual gun nozzle 1(conical) Insulation Thickness 50mm
Hand spray gun 1 Hose 5m


Trailer Asphalt Distributor Bitumen Spraying Nozzles (Asphalt Tank Dolly Trailers 1000L -2000L, Spray Bitumen 2 -5 meters)

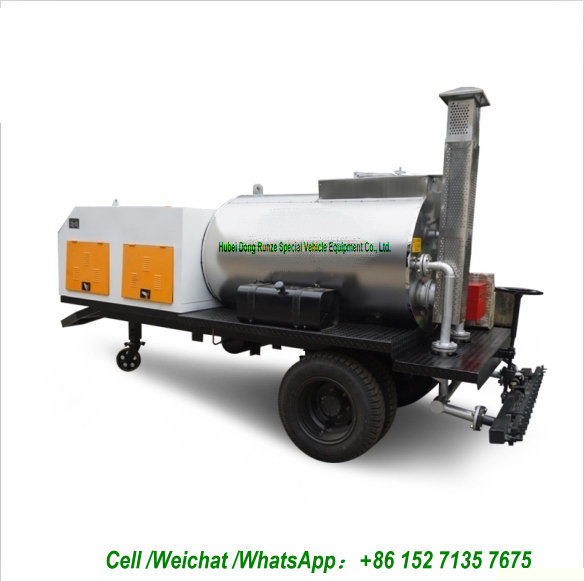

1  DR5025 trailer asphalt distributor is a specialized machine for building and maintaining the road.

2 It is widely used for the spraying work and the liquid asphalt transport with high temperature. It features easy use, low center of gravity and compact structure.
3 It adopts a separable structure so that the asphalt distributor could be moved away from ZMTS-25 trailer asphalt distributor when there is no need to spray the asphalt.
4 The asphalt pump works powered by the reduction gear of diesel engine chain wheel.

5 The external asphalt pump is easy to be maintained.
6 The asphalt tank around utilizes aluminum silicate material as the insulation layer and has favorable heat preservation performance.

7 There is no need to heat the tank in general. If there is need, the tank could obtain the heating through
burning the diesel in burner.
8 High pressure air could easily blow the asphalt remnants out of the pipeline after the asphalt is dissolved through mixing with the diesel in the pipeline. So the nozzle is hard to block.

Mass parameter:

Dimension(mm)(Excluding traction arm )

4960×1860×2200

Total Weight(kg)

4800

Rated loading Weight(kg)

2500

Kerb Weight(kg)

2300

Chassis Parameter:

Chassis Model

DR5025

Tyre model

7.50-16

Wheelbase (mm)

2310

Tread (mm)

1650

Minimum Ground Clearance(mm)

350



Spray  specification:

Tank Capacity(m³)

2.5

Spray width

2000mm

Nozzles

15

Spray Value

0.5-3.0(Kg)

Manual gun nozzle

1(conical )

Insulation Thickness

50mm

Burner

G10(Riello)

Asphalt pump

YCB6/0.6

Generator(Converter)

YGBT2500

Air compressor

0.1/0.8

Other parameter:

Max. Trail speed(km/h)

30

Axis No.

2

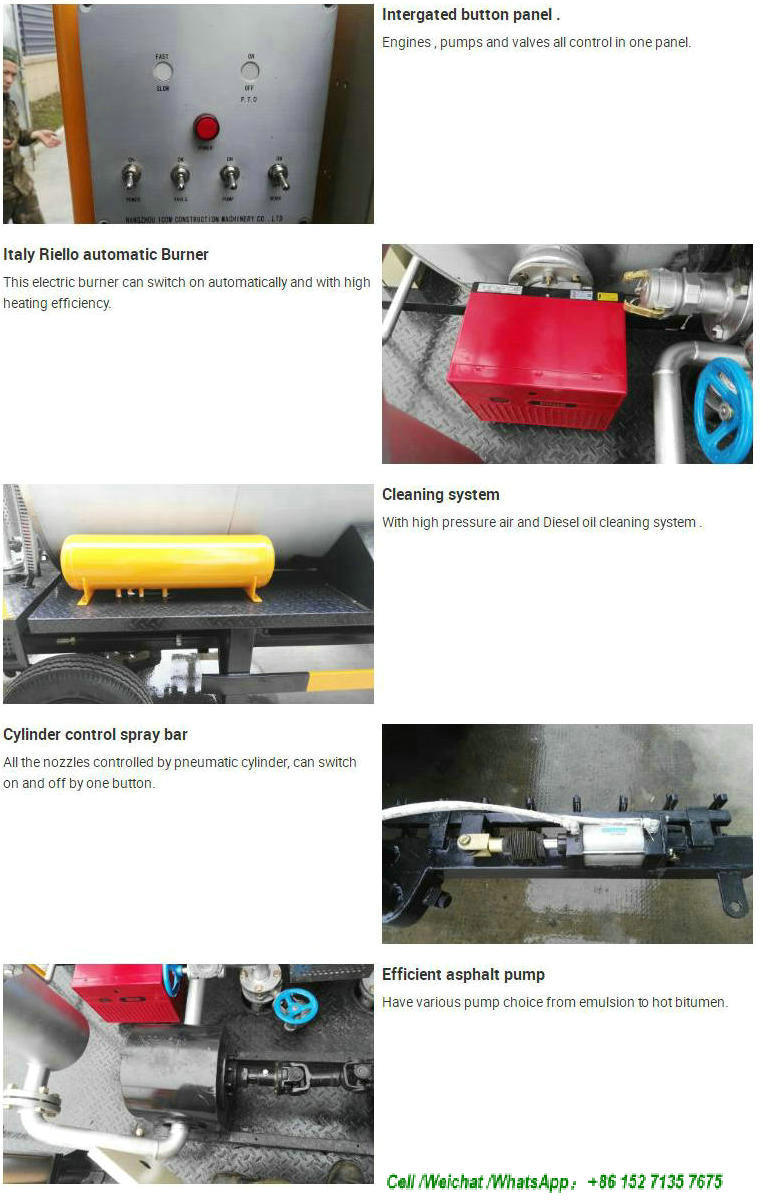

Intergated button panel .

Engines , pumps and valves all control in one panel.
Italy Riello automatic Burner
This electric burner can switch on automatically and with high heating efficiency.

Cleaning system
With high pressure air and Diesel oil cleaning system .

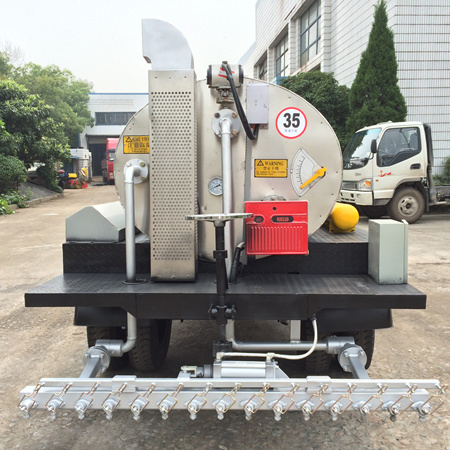

Cylinder control spray bar
All the nozzles controlled by pneumatic cylinder, can switch on and off by one button.

Efficient asphalt pump
Have various pump choice from emulsion to hot bitumen

Trailer Asphalt Distributor Bitumen Spraying Nozzles (Asphalt Tank Dolly Trailers 1000L -2000L, Spray Bitumen 2 -5 meters)

Mass parameter
Kerb Weight(kg) 2300 Total Weight(kg) 4800
Rated loading Weight(kg) 2500 Dimension(mm) 4960×1860×2550
Chassis Parameter
Chassis Model DR5025 Tyre model 7.50-16
Wheelbase (mm) 2310 Tread (mm) 1650
Minimum Ground Clearance(mm) 350

Spray specification
Tank Capacity(m³) 2.5 Asphalt pump YCB6/0.6
Nozzles 15 Spray width 2000mm
Manual gun nozzle 1(conical ) Spray Value 0.5-3.0(Kg)
Insulation Thickness 50mm Air compressor 0.1/0.8
Burner G10(Riello) Generator(Converter) YGBT2500
Engine model ZS1100 Engine power (Kw/r/min) 10.3

Configuration Type Details of Asphalt truck
Normal configuration Simple type 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Burner: G10 imported from Italy
4. Temperature control: AI-218 microcomputer temperature controller;
5. Spreading width: 1.2m ~ 4.5m, optional 6m
6. Spray control: manual adjustment
7. Asphalt pipeline compressed air cleaning function
 Ordinary configuration 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: F563 aluminum alloy gear pump;
4. Hydraulic system: manual flow control valve imported;
5. Burner: G10 imported from Italy
6. Temperature control: AI-218 microcomputer temperature controller;
7. Spreading width: 1.2m ~ 4.5m, optional 6m
8. Sprinkler control: manually adjust asphalt pipe
9. Asphalt pipeline compressed air cleaning function
Ordinary upgrade configuration
1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: F563 aluminum alloy gear pump;
4. Hydraulic system: imported proportional flow control valve;
5. Burner: G10 imported from Italy
6. Heating method: automatically heating by heat-conduction oil
7. Temperature control: AI microcomputer temperature controller;
8. Width of Spray : 1.2m ~ 4.5m, optional 6m precise triple overlapping Spray ,
9. Spraying quantity control: manually adjust asphalt nozzle;
10. Asphalt pipeline compressed air cleaning function
Semi-intelligent configuration

1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: F563 aluminum alloy gear pump;
4. Hydraulic system: imported proportional flow control valve;
5. Burner: G10 imported from Italy
6. Heating method: automatically heating by heat-conduction oil
7. Temperature control: AI microcomputer temperature controller;
8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric controln ozzle,
9. Sprinkler control: front and background potentiometer adjustment, digital display;
10. Asphalt pipeline compressed air cleaning function
Full intelligent configuration

1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: F563 aluminum alloy gear pump;
4. Hydraulic system: imported proportional flow control valve;
5. Burner: G10 imported from Italy
6. Heating method: automatically heating by heat-conduction oil with selective heating function
7.temperature control: Germany Siemens temperature control module, computer temperature control
8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric control nozzle,
9. Sprinkling width is precisely controlled by computer: sprinkling quantity control: Germany Siemens PLC, intelligent control, sprinkling quantity and speed precise linkage, front touch screen control system.
10. Asphalt pipeline compressed air cleaning function
Full intelligent configuration
imported Pump
  1. Asphalt pump: European TGGP-86-100 heat preservation pump

2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: Germany leisler plunger variable pump;
4. Hydraulic system: imported proportional flow control valve;
5. Burner: G10 imported from Italy
6. Heating method: automatically heating by heat-conduction oil with selective heating function
7.temperature control: Germany Siemens temperature control module, computer temperature control
8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric control nozzle,
9. Sprinkling width is precisely controlled by computer: sprinkling quantity control: Germany Siemens PLC, intelligent control, sprinkling quantity and speed precise linkage, front touch screen control system.
10. Asphalt pipeline compressed air cleaning function
11.spray volume 0.2 ~ 3 kg / , 28 sets of full electric nozzle,


Our products enjoy a good reputation for the good quality!
The asphalt distributor is made up by chassis, asphalt tank, asphalt pump, optional conduction oil heating system, electronic control system and spraybar system, etc.
Major features:
1) Digital display meters and instruments to indicate speed of the vehicle and the asphalt pump rotation, as well as temperature of asphalt inside the tank.
2) Possesses heat preservation, conduction oil recycling heating, transportation, spray, pumping and discharge function, etc.
3) Nozzle controlled through pneumatic joint control operation of cylinder for opening and closing.
4) Cleaning system of compressed air
5) Hydraulic power take-off of chassis or auxiliary diesel engine for drive, heated with burner, optional conduction oil recycling system.
