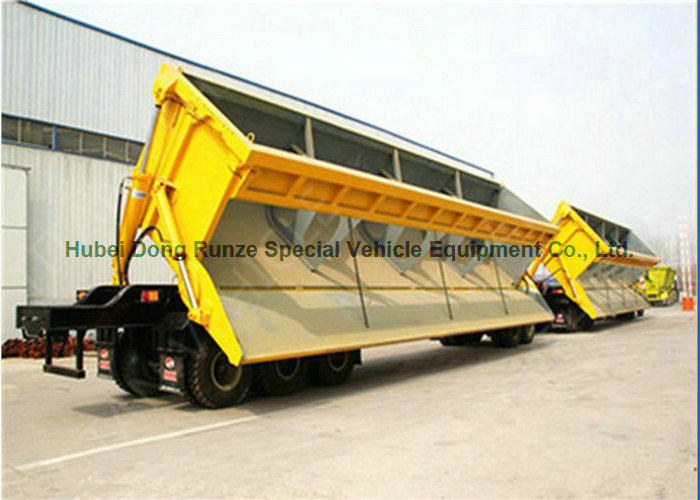

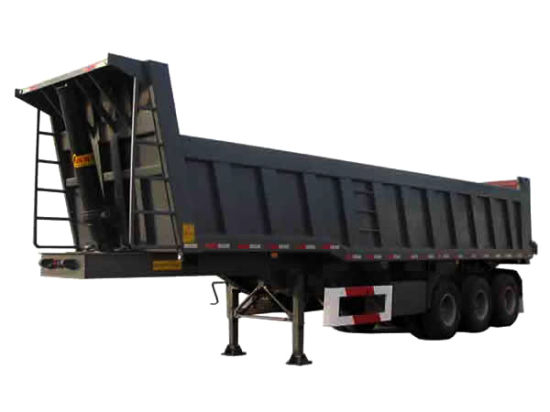

Tipper Trailer 24cbm Bucket Dumper (40Ton Truck Trailer)

Quantity:
  • Shanghai, China
  • 200sets Per Month
  • T/T
  • Tipper Trailer
  • Trailing Arm Type
  • Van-type
  • 5-6
  • 6\10\12/16/18
  • Not Self-dumping
  • ABS Anti-lock Braking System
  • Steel
  • New
  • Color Advised by Client
  • L1, Fuwa, BPW
  • Square Shape or U-Shape
  • Hyva Brand Cylinder
  • Jost Brand 50#, 90#
  • Heavy Duty Mechanism or Air Suspensio
  • Q345b or High Tensile Steel 610 and 7

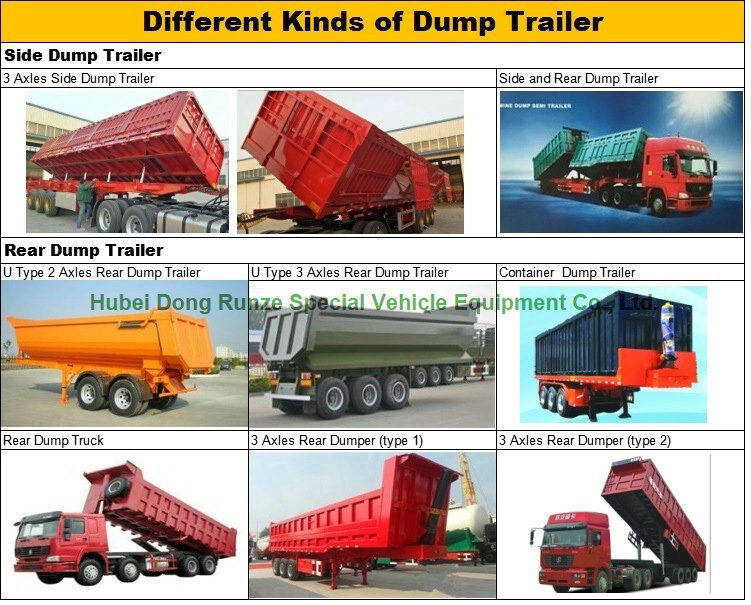

  • End Tipper or Side Tipper Trailer
  • 25cbm, 30cbm, 40cbm, 55cbm Tipper
  • 12.00-20 or 12r22.5 Tubeless Tire
  • DRZE

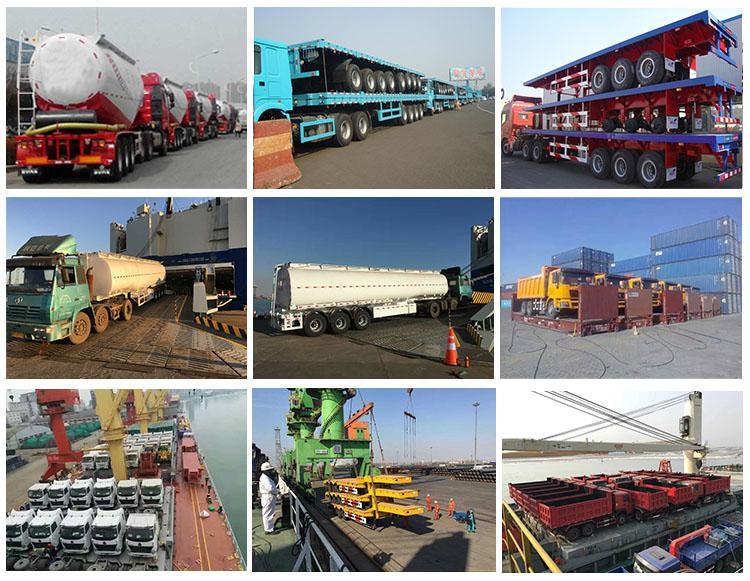

  • by Bulk Cargo Carrier, Roro or Frt Container
  • Customization
  • Hubei China
  • 8716399000
  • Semi-Trailer
  • 80-90t
  • ISO9001, CCC, ISO/TS16949
  • +1310mm+1310mm+1310mm
  • 2240mm
  • Medium Duty
Heavy Duty


Tipper Trailer 24CBM Bucket Dumper ( 40Ton Truck Trailer)





5 Axles Tipper Trailer For 90 Ton Mangenese And Bouxite Ores Transport

Tipper Trailer 24cbm Bucket Dumper (40Ton Truck Trailer)
Tipper Trailer 24cbm Bucket Dumper (40Ton Truck Trailer)
Tipper Trailer 24cbm Bucket Dumper (40Ton Truck Trailer)
Tipper Trailer 24cbm Bucket Dumper (40Ton Truck Trailer)
Tipper Trailer 24cbm Bucket Dumper (40Ton Truck Trailer)
Tipper Trailer 24cbm Bucket Dumper (40Ton Truck Trailer)
Tipper Trailer 24cbm Bucket Dumper (40Ton Truck Trailer)

5 / 6 AXLES TRAILER TIPPER SPECIFICATION
MODEL DRZ9905 DRZ9906
Description 5 AXLES TRAILER TIPPER TRAILER TIPPER BUCKET SIZE 10.986*2.4*1.7M VOLUM 44.8M3 6 AXLES TRAILER TIPPER TRAILER TIPPER BUCKET SIZE 10.986*2.4*1.7M VOLUM 44.8M3
Loading Capacity 80TON 80TON-100TON
Axle 5 AXLES FRONT 2 *13TON AXLES LIFTABLE + 3*16T AXLES WITH DUTY SPRING SUSPENSION 6 AXLES FRONT 3 *13TON AXLES LIFTABLE + 3*16T AXLES WITH DUTY SPRING SUSPENSION
Tyre 4 pieces 385/65R22.5 ; 12 pieces 12.00R20
6 pieces 385/65R22.5 ; 12 pieces 12.00R20
Dimensions(LxWxH) 12000mm x 2500 x 3800mm
Tare weight 16 tons / 17 tons
Axle spacing +1310mm+1310mm+1310mm;
+1310mm+1310mm+1310mm+1310mm;
Rims 11.75/22.5, 8.5-20
Suspension System 2/3 air bag suspension + 3 sets 9/9/9/ spring suspension

6 Axles Tipper Trailer For 100 Ton Mangenese And Bauxite Ores Transport










Tipper Trailer 24cbm Bucket Dumper (40Ton Truck Trailer)
Tipper Trailer 24cbm Bucket Dumper (40Ton Truck Trailer)
Tipper Trailer 24cbm Bucket Dumper (40Ton Truck Trailer)
Tipper Trailer 24cbm Bucket Dumper (40Ton Truck Trailer)



Customization, Cost and Control Built How You Want it,
at a Price You Can Afford. for sale 5 / 6 AXLES TRAILER TIPPER SPECIFICATION
MODEL DRZ9905 DRZ9906
Description 5 AXLES TRAILER TIPPER TRAILER TIPPER BUCKET SIZE 10.986*2.4*1.7M VOLUM 44.8M3 6 AXLES TRAILER TIPPER TRAILER TIPPER BUCKET SIZE 10.986*2.4*1.7M VOLUM 44.8M3
Loading Capacity 80TON 80TON-100TON
Axle 5 AXLES FRONT 2 *13TON AXLES LIFTABLE + 3*16T AXLES WITH DUTY SPRING SUSPENSION 6 AXLES FRONT 3 *13TON AXLES LIFTABLE + 3*16T AXLES WITH DUTY SPRING SUSPENSION
Tyre 4 pieces 385/65R22.5 ; 12 pieces 12.00R20 6 pieces 385/65R22.5 ; 12 pieces 12.00R20
Dimensions(LxWxH) 12000mm x 2500 x 3800mm
Tare weight 16 tons / 17 tons
Axle spacing +1310mm+1310mm+1310mm; +1310mm+1310mm+1310mm+1310mm;
Rims 11.75/22.5, 8.5-20
Suspension System 2/3 air bag suspension + 3 sets 9/9/9/ spring suspension
CONTACT US
Website: www.truckinchina.com
Tech 1.
We have well experienced in reseaching and developing different trailers: Container trailer, Low bed trailer, Side wall semi trailer, Stake semi trailer, Tank trailer, Dump trailer, Car carrier trailer,Van trailer, Extendable trailer, Modular trailer, Special trailer and Heavy duty trailer etc Road you success business!
Outside dimension(mm)
Length:13000, width:2500 height:2850
Inside dimension(mm)
Length:12850, width:2320 height:600
Gross weight(kg)40000
Tare weight(kg)8500
Loading capacity(kg)31500
Axles3 pieces,13T/piece, Fuwa brand or BPW brand

Tech 2.

60Ton U shape dumper semi-trailer
Loading capa: 60Ton
No.of axle: 3 axle,2 axle is optional.BPW,FUWA or L1
Tipper trailer Shape: U shape
Tipper body volume: 20-35CBM are available
Hydraulic cylinder: HYVA or China famous brand

3 axle tipping semi trailer truck 80ton

Loading capacity:80Tons

Tipper body bucket:35CBM

No.of axle:3 axle BPW,FUWA optional

Hydraulic cylinder:HYVA or China brand

Tire specification:12.00R22.5,Total 12 tires

Trailer suspension:Strengthen leaf spring suspension


Tech 3.
3 axle tipping semi trailer truck 80ton

Loading capacity: 80Tons

Tipper body bucket: 35CBM

No.of axle: 3 axle BPW,FUWA optional

Hydraulic cylinder: HYVA or China brand

Tire specification: 12.00R22.5,Total 12 tires

Trailer suspension: Strengthen leaf spring suspension

Tipper body material: Q345 for tipper body,16Mn for tipper trailer chassis

Tipper body volume(CBM): About 35CBM

Rated loading weight(kg): 80,000kgs

Tipper body hydraulic lifter: HYVA

Tipper body thickness: Side floor:8mm,end floor:10mm

Dump Semi-trailer 3 axles Air suspension 3 axle 60Ton tipper semi-trailer

Tipper load capacity: 60Ton

No of axle: 3 axle BPW,FUWA

Dump body volume: 30CBM

Hydraulic cylinder: HYVA or China brand are option

Suspension: Air suspension

Tire: 315/60R22.5,total 12 units

Tipper bucket(Tipper body) specification

Tipper body material: Q345 for tipper body,16Mn for tipper trailer chassis

Tipper body volume(CBM): About 30CBM

Rated loading weight(kg): 60,000kgs

Tipper body dimension(mm): 8800x2350x1800

Tipper body hydraulic lifter: HYVA

Tipper body thickness: Side floor:8mm,end floor:10mm

Tech 3.

Tipper trailer chassis specification

Axle: 3 axle FUWA 16Ton

Suspension: Air suspension

Landing gear: JOST double action

Kingpin: JOST 50# or 90#

Tech 4.

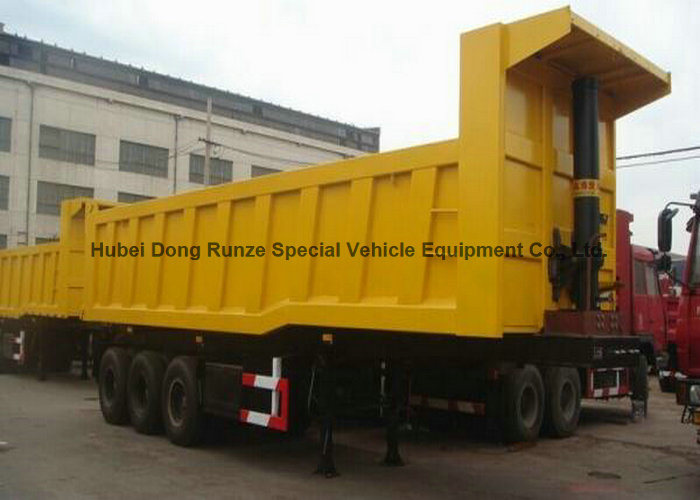

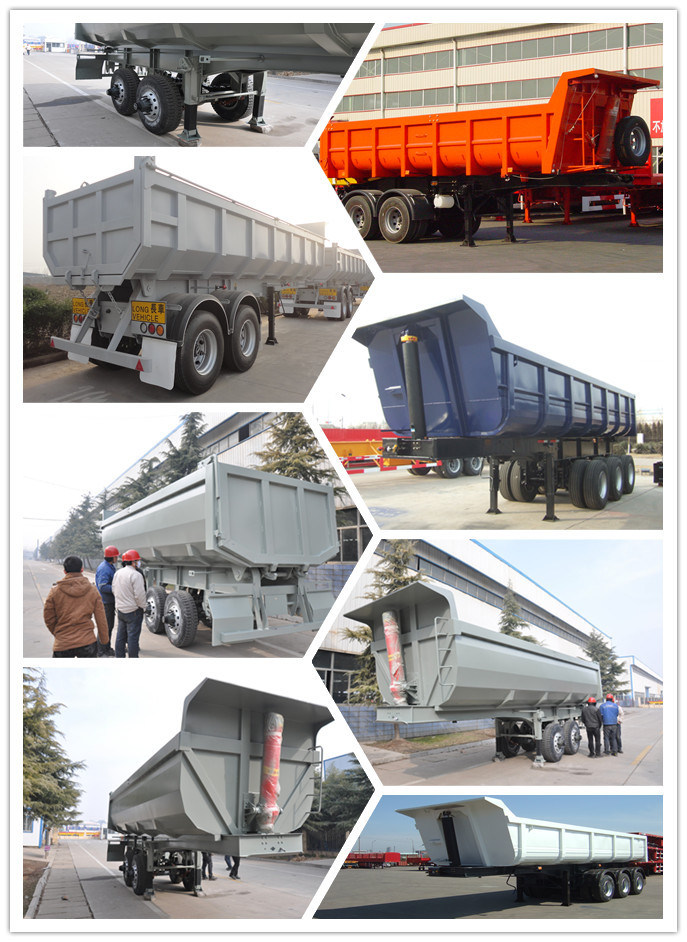

3 axles U-shape Rear Dump Semi-trailer 24 cbm

Type

3 axles U-shape Rear Dump Semi-trailer

Overall dimension

8600 * 2490 * 3370 mm

Inside cargo box dimension

7399*2480*1400mm

Capacity of cargo box

24m3

Main beam

Beam height: 500mm, Upper plate: 14mm,Double Middle plate: 8 mm, Down plate: 14mm

Platform thickness

6mm

Side wall thickness

4mm

Material

High-tensile Steel, T700

Gross vehicle weight

Approximately 8500 kgs

Total weight

45000 kg

Lifting system

HYVA brand

King pin

90# (3,5 inch)

Support leg

Standard 30T, SAF Holland

Axle

FUWA brand, 3*13T

Suspension

mechanical suspension 10pcs leaf spring

Tire

Triangle brand, 11.00R-20, 13pcs

Rim

8.0-20, 13 pcs

Brake System

30/30 type on each axle

Spare wheel carrier

01 pcs

Tool box

01 pcs

Electrical System

Chinese standard 24V lighting system

Side Maker Lamp

LED lamp

Painting

Polyurethane Paint

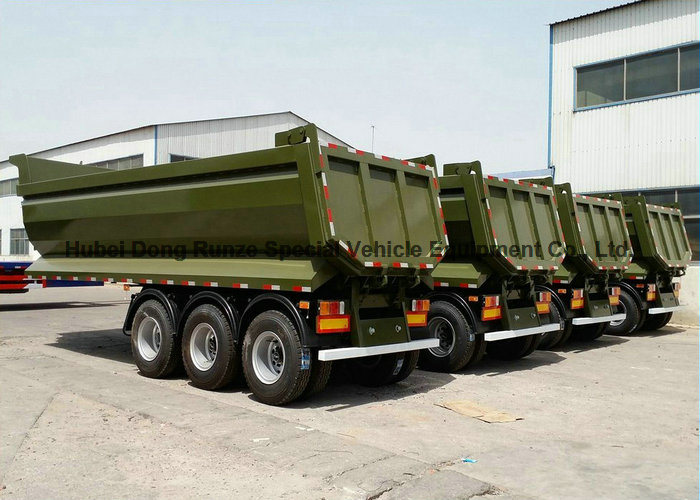

60Ton U shape tipper semi-trailer 35cbm

U shape tipper semi-trailer is widely use in mining engineering,huge construction site,large quarry site,etc.

It have many advantageous than normal tipper truck, such as heavy load capacity, huge load box volume,more stability,etc.

It can combined work with different tractor head, so it improve the working efficiency than tipper truck.

U shape tipper semi-trailer specifications

Tipper body material

Carbon steel -Q235 or Q345 for tipper body

16Mn for tipper trailer chassis(frame and girden)

Body volume(CBM)

About 35CBM

Trailer curb weight(kg)

11,800kgs

Max.loading weight(kg)

80,000kgs

Overall dimensions(mm)

10500×2500×3950

Tipper body size (mm)

9800x2350x1800

Axle description

3 axle BPW brand,each axle 16Ton load capacity

Tire specification

Triangle brand tire,12.00R22.5,total 12 tires

Suspension type

Strengthen leaf spring suspension

Landing gear

JOST double action landing gear

Kingpin specification

JOST, 2 inch(50mm)

Electric circuit

Chinese standard 24V

Tipper body components

Main frame description

Heavy duty extra durability design,high tensile steel 16Mn

Hydraulic system

One set of HYVA hydraulic cylinder

Tipper body volume(M3)

35M3

Body thickness (mm)

Side floor:8mm,end floor:10mm,carbon steel plate

ACCESSORIES

Climb Ladder

High tensive steel,ladder located at the front side

Spare tire carrier

1 unit

Tools box

1 unit tool box fixed

TRAILER CONSTRUCTION &FIXTURE

Lighting

24 Volt electrical in accordance to Chinese standard complete with Chinese's made LED light for brake, signal, reverse and fog light at rear, and marker light at both side of trailer, complete with ''3M'' reflective tape at sides and rear

Rear Bumper

Made of Steel,manufacture Standard

3 axle 60Ton dumper semi trailer

Tech 5.

Tipper semi-trailer also called dumper semi-trailer.This type of tipper semi-trailer composed of running gear,dump

bucket,hydraulic lifting cylinder,tool box,ladder,etc.Running gear including landing leg,tire,suspension,axle,beam.

Dump bucket material is carbon steel from WISCO.Hydraulic lifting cylinder adopted world famous HYVA brand to

ensure the stability and good seal performance.Also China made Hydraulic lifting cylinder is optional.

Tipper body material: Q345 for tipper body,16Mn for tipper trailer chassis

Tipper body volume(CBM): About 30CBM

Rated loading weight(kg): 60,000kgs

Tipper body dimension(mm): 8800x2350x1800

Tipper body hydraulic lifter: HYVA

Tipper body thickness: Side floor:8mm,end floor:10mm

Tipper trailer chassis specification

Axle: 3 axle FUWA 16Ton

Suspension: Air suspension

Landing gear: JOST double action

Kingpin: JOST 50# or 90#

Tipper bucket(Tipper body) specification

3 Axle Tipping Semi Trailer
1) One Tool Box;
2) Good quality with competitive price.

3 Axle Tipping Semi Trailer 45T Capacity Load

1. Model: DRZ9570

2. Whole Truck Dimension: 8200x2496x3300mm

3. Body Size: 7000x2300x1700mm

4. Steel Thickness of Carriage: Floor:8mm, Side:6mm

5. Axle: 3Axles, 16T

6. Tyre: 12.00R20

7. Coupling Seat Size: 3.5 inch, 90#

8. Dead Weight: 13000kg

9. Loading Capacity: 45000kg

10. Color: optional

11. One Tool Box

12. Two Spare Tires Supports

Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675

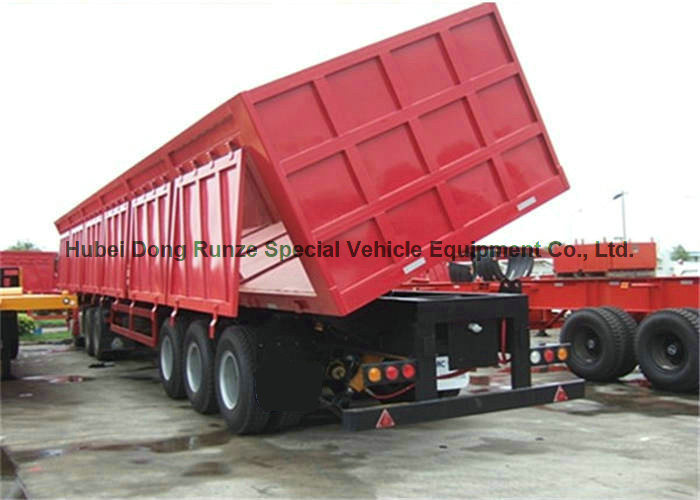

MODEL:DUMP Side SEMI-TRAILER

YEAR: NEW

LOAD CAPACITY: 40T, 50T, 60T,80T,100T

BUCKET VOLUME: 30m⊃3; , 35m⊃3;, 40m⊃3;, 45m⊃3;

AXLE: FUWA AXLE 13T (16T, 20T) OPTIONP BPW AXLE (12T, 13T), ABS 2axles Bogie type trailer

TIRE: 12.00-20 TIRE OPTION:--------------------------SPECIFICATION12.00R20 RAIL TIRE
Type: tipper semi-trailer
DIMENSION:
Overall Length: 8,500mm
Overall Width: 2,500mm
Overall height: 3,900mm

RUNNING GEAR:
Suspension : Undermount tri-axle suspension with equalizer,10 leaf plat spring.
Brake :Dual line pneumatic brake system
Axle: BPW axle 13,000 kg capacity. X 3PCS
Wheel: 9.0-22.5 steel Disc wheel 13 pcs, made in China.
Tire: 12R22.5 Bridgestone tyre 13 pcs
King Pin : 3 " king pin,
LANDING LEG: Jost 28T

Main beam : 500/16/10/20 Q345
The box applied with Q345, Bottom 8, Side 6
The frame applied with Q235,
Cylinder:
HYVA FC214
TANK ACCESSORIES AND FITTINGS :
One tool box, one spare tyre with carrier
