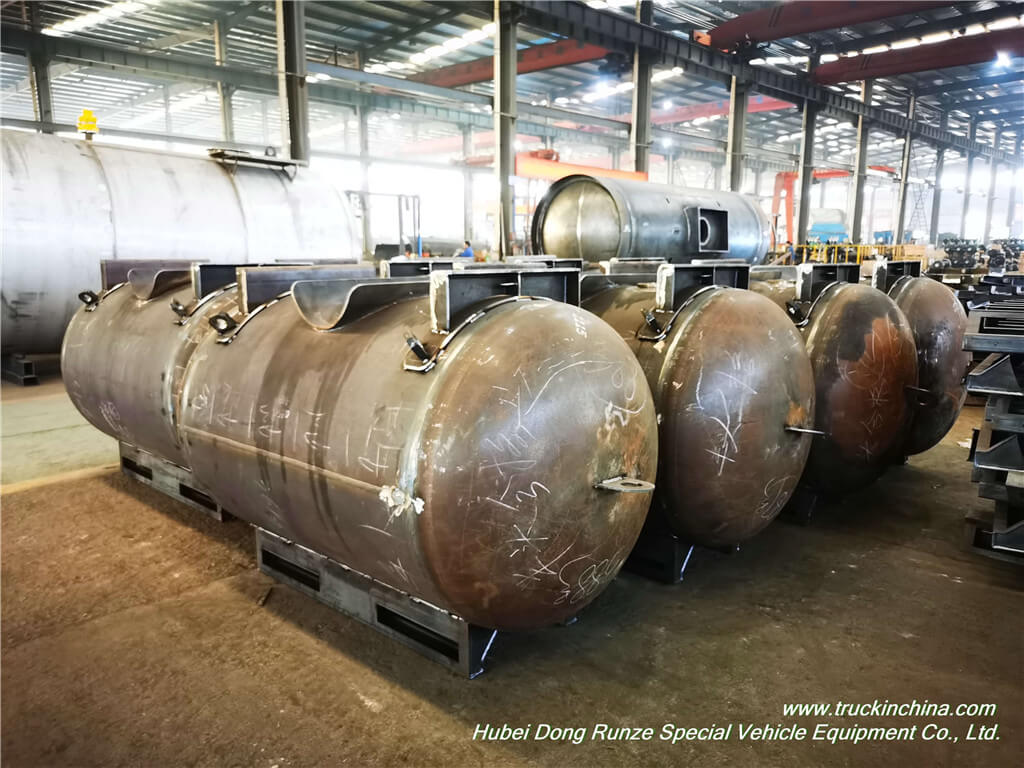

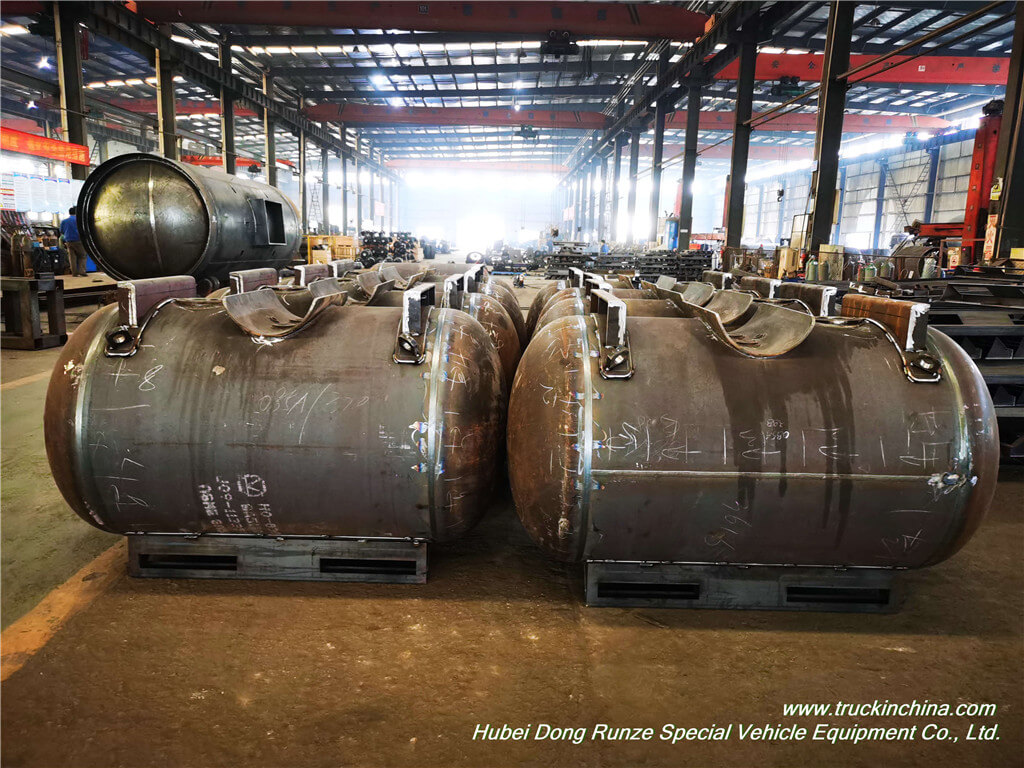

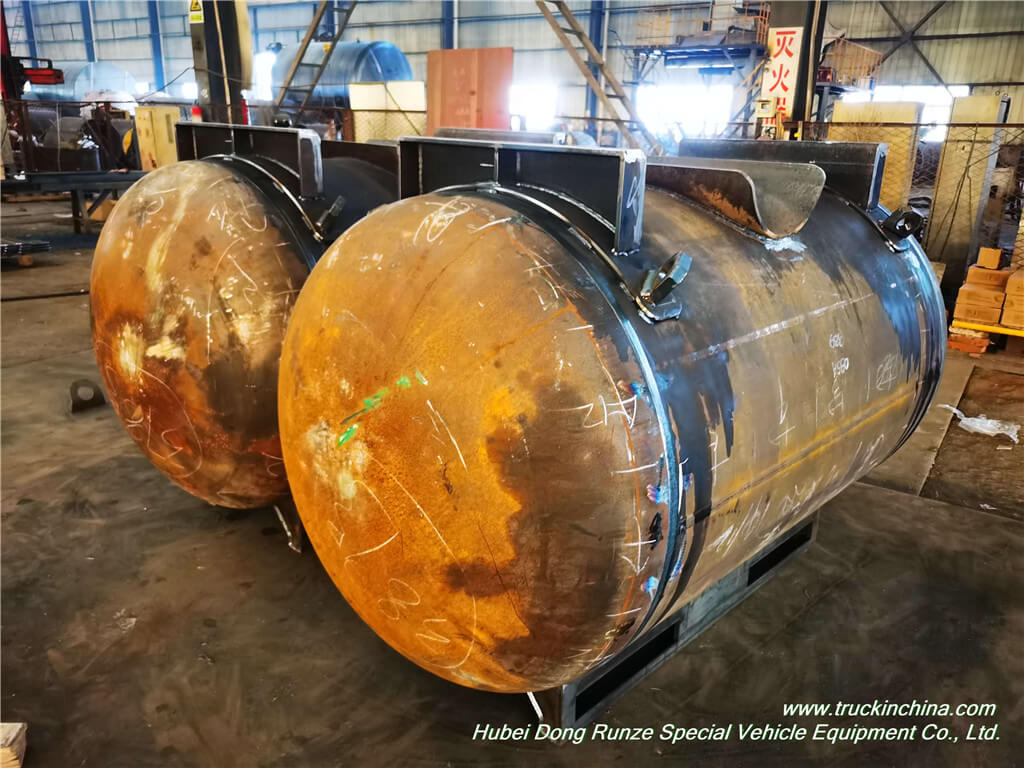

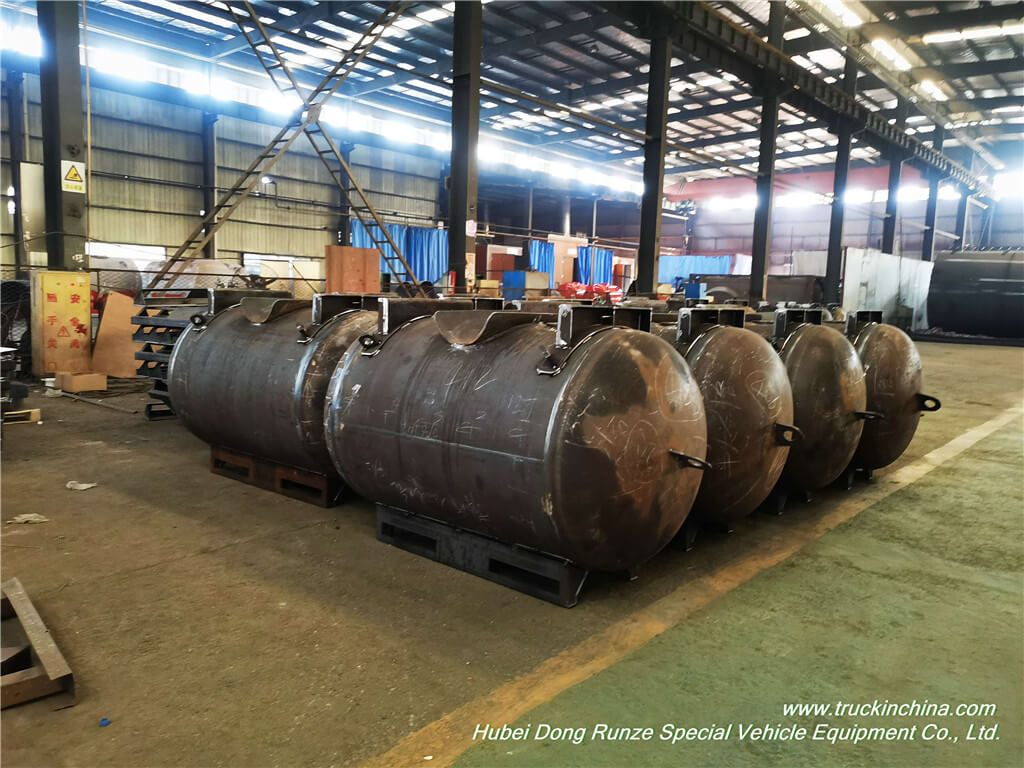

Tecnimont New order 10Units T21 TEAL Portable Tank Containers For Metal Alkyls C-430 saddle type
Views:2134 Author:Tom Publish Time: 2020-12-07 Origin:Dong Runze
Tecnimont New order 10Units T21 TEAL Portable Tank Containers For Metal Alkyls C-430 saddle type with fusible plug
After 6 months communication Tecnimont finally send us this New PO
T21 TEAL tank
Triethylaluminum (TEAL) Alky Portable Tank Container
tank capacity 1880L
FOR UN3394 ,UN3399 HS code :8609009000
with fusible plug in addition to the Relief valve
ADR/RID BV ASME CERTIFICATE
All Gaskets firms Klingersil, UK Brand the same as Nouryon company chosed
With Rotatable Liquid Vavles And Gas Vavles ,With China Made High Quality Strong Safty Valve
Triethylaluminum (TEAL) Alky Portable Tank Container C6h15al Un3399, Un3394 Capacity 1880liters Adr/Rid Organometallic Substance, Liquid, Water- Reactive

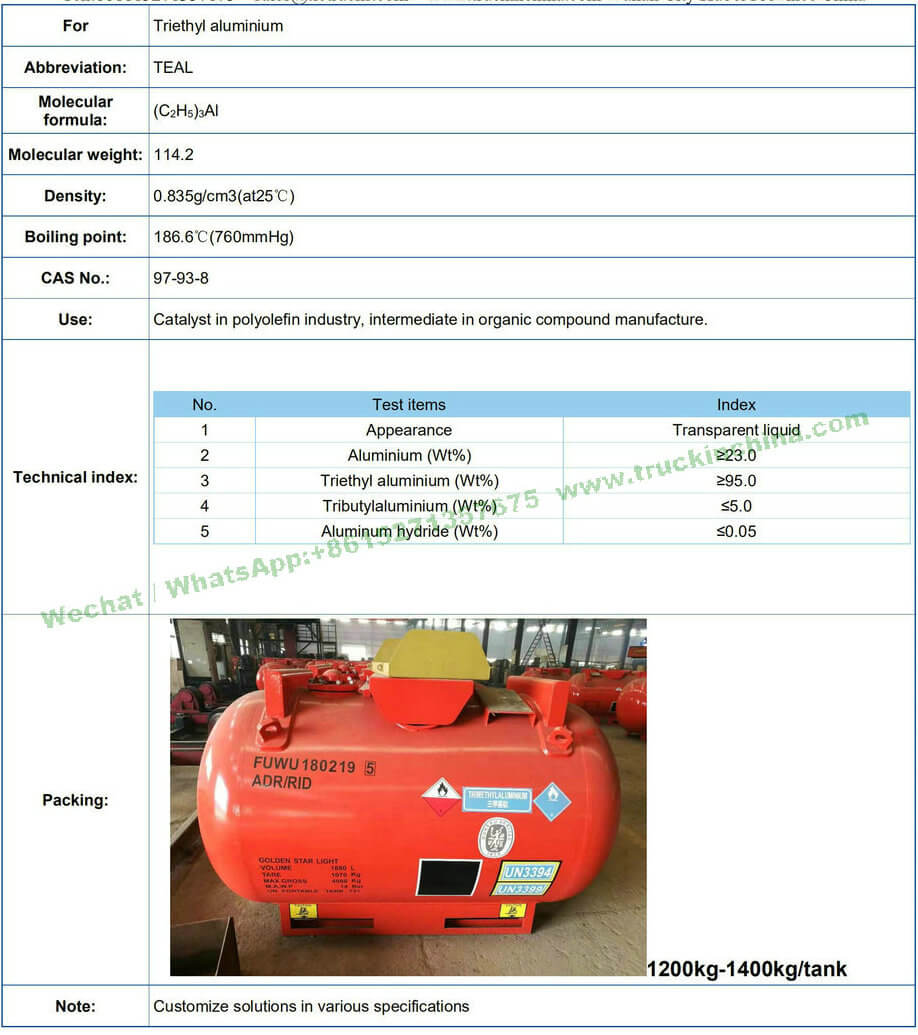

Triethylaluminum (TEAL)
WATER CAPACITY | 1880L |
MAX GROSS MASS | 4000kg |
MAX TARE MAS | 1070kg |
EXTERNAL DIMENSIONS | 2128mm*1148mm*1388mm |
WORKING PRESSURE | 5bar 0.667Mpa |
DESIGN TEMPERATURE | -40C to +65C |
MATERIAL | SA-516M Gr.485 / 16MnDR |
SHELL THICKNESS | 12mm,14mm |
PRESSURE VESSEL CODE | T21 UN ,IMDG，ADR/RID，49CFR，TIR，USDOT，ASME，BV |
APPLICABLE CARGOS | TRIETHYL ALUMINUM UN3394 UN3399 |
Chemicals |
CAS # |
Characteristics |
Unit |
Specification | Packaging Type | |
Teal C-1980 |
97-93-8 | Aluminium | % | > 22.7 |
C-1980 Container | |
Tri-ethylaluminium | % | > 94 | ||||
Tri-n-butylaluminium | % | < 6 | ||||
Tri-iso-butylaluminium | % | < 0.1 | ||||
Hydride< 0.1% | % | < 0.1 | ||||
Appearance | Colourless liquid | |||||
Teal Iso Portable Tank |
97-93-8 | Aluminium | % | > 22.7 |
20 m3 Isocontainer | |
Tri-ethylaluminium | % | > 94 | ||||
Tri-n-butylaluminium | % | < 6 | ||||
Tri-iso-butylaluminium | % | < 0.1 | ||||
Hydride< 0.1% | % | < 0.1 | ||||
Appearance | Colourless liquid | |||||
Teal C-430 (Saddle Type) |
97-93-8 | Aluminium | % | > 22.7 |
C-430 Saddle Type Container | |
Tri-ethylaluminium | % | > 94 | ||||
Tri-n-butylaluminium | % | < 6 | ||||
Tri-iso-butylaluminium | % | < 0.1 | ||||
Hydride< 0.1% | % | < 0.1 | ||||
Appearance |
Colourless liquid | |||||
Tank containers for transporting metal alkyls
