T21 TEAL TANK Portable Containers For Transporting Metal Alkyls 1880L UN3394 ,UN3399

Views:2035     Author:Tom     Publish Time: 2020-05-09      Origin:Dong Runze

T21 TEAL TANK Portable Containers For Transporting Metal Alkyls 1880L UN3394 ,UN3399

T21 TEAL TANK Portable Containers For Transporting Metal Alkyls 1880L UN3394 ,UN3399

Triethylaluminum (TEAL) Alky Portable Tank Container C6h15al Un3399, Un3394 Capacity 1880liters Adr/Rid Organometallic Substance, Liquid, Water- Reactive

Triethylaluminum (TEAL)

Alky Portable Tank Container

- tank capacity 1880L

- FOR UN3394 ,UN3399

- complete set with valves

- full set ADR/RID BV INSPECTION  CERTIFICATE

BIC Number

- Nameplate  with individual tank    serial number for each tank

Product: UNT21 Portable Tank  Specifications

PORTABLE TANK WAS SUITALE FOR ORGANOMETALLIC SUBSTANCE, LIQUID, PYROPHORIC,WATER-REACTIVE, ETHYLALUMINUM SESQUICHLORIDE, DIETHYLALUMINUM CHLORIDE,TRIETHYL ALUMINUM ONLY UN3394 UN3399

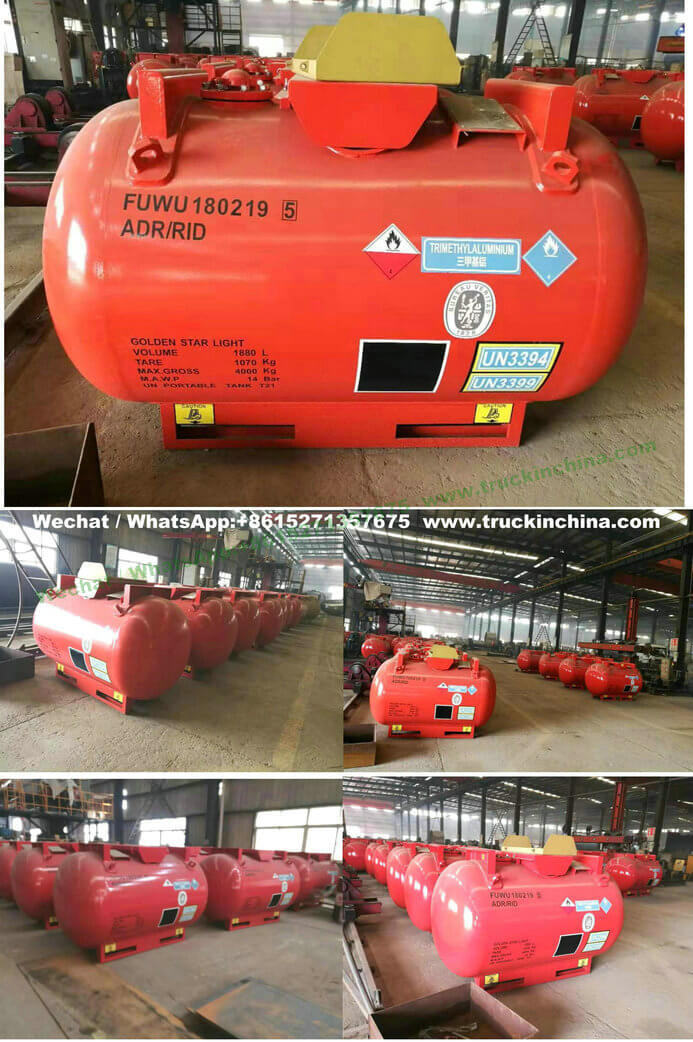

 TEAL Tank 1880L ASME BV T21 ST.PETERSBURG_03

WATER CAPACITY

1880L

MAX GROSS MASS

4000kg

MAX TARE MAS

1070kg

EXTERNAL DIMENSIONS

2128mm*1148mm*1388mm

WORKING PRESSURE

5bar  0.667Mpa

DESIGN TEMPERATURE

-40C to +65C

MATERIAL

SA-516M Gr.485 / 16MnDR

SHELL THICKNESS

12mm,14mm

PRESSURE VESSEL CODE

T21 UN ,IMDG,ADR/RID,49CFR,TIR,USDOT,ASME,BV

APPLICABLE CARGOS

TRIETHYL ALUMINUM UN3394 UN3399

TEAL Tank 1880L ASME BV T21 ST.PETERSBURG_04TEAL Tank 1880L ASME BV T21 ST.PETERSBURG_05TEAL Tank 1880L ASME BV T21 ST.PETERSBURG_07TEAL Tank 1880L ASME BV T21 ST.PETERSBURG_06TEAL Tank 1880L ASME BV T21 ST.PETERSBURG_08TEAL Tank 1880L ASME BV T21 ST.PETERSBURG_01

 Tank containers for transporting metal alkyls
