T14 Sulfuric Acid Tank Container Steel Lined LDPE

T14 Sulfuric Acid Tank Container Steel Lined LDPE
20 Feet T14 Chemical ISO Tank steel lined LLDPE
for UN1830 Sulfuric Acid 92-94%
and UN2693 Sodium hydrogen sulphite solution tank

Quantity:
  • T14
  • DongTE
  • 8609001200
  • Shanghai, China
  • 3000
  • T/T

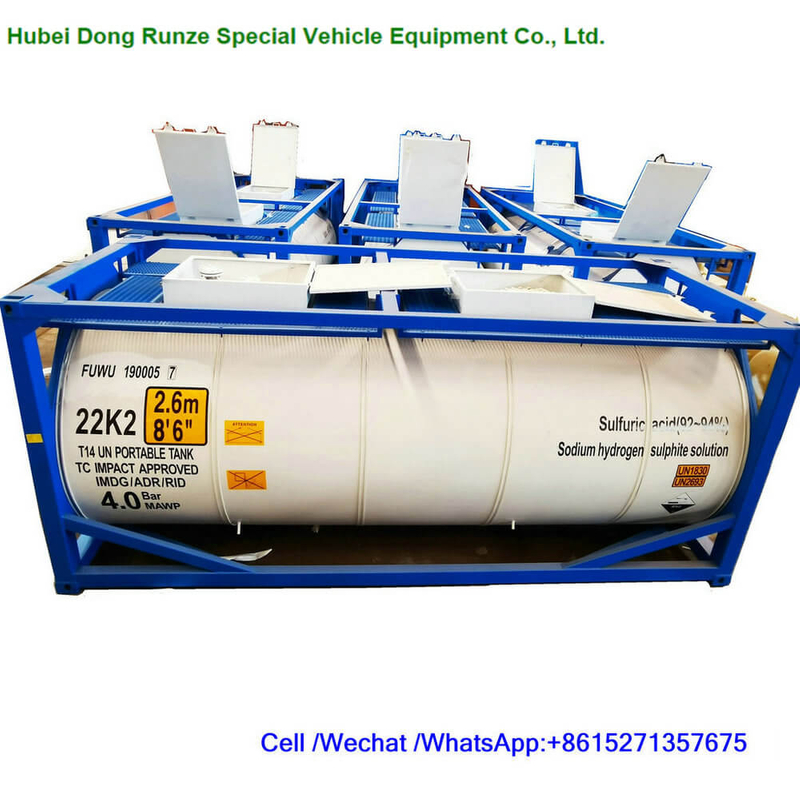

T14 Sulfuric Acid Tank Container Steel Lined LDPE

ISO Tank Container 20 FT For Hazardous Liquids

ISOTANK Sulfric tank container
Sodium bisulfite tank container
20 Feet T14  Chemical ISO Tank steel lined LLDPE
for UN1830 Sulfuric Acid 92-94%
 UN2693 Sodium hydrogen sulphite solution tank
SODIUM BISULFITE SOLUTION Tank

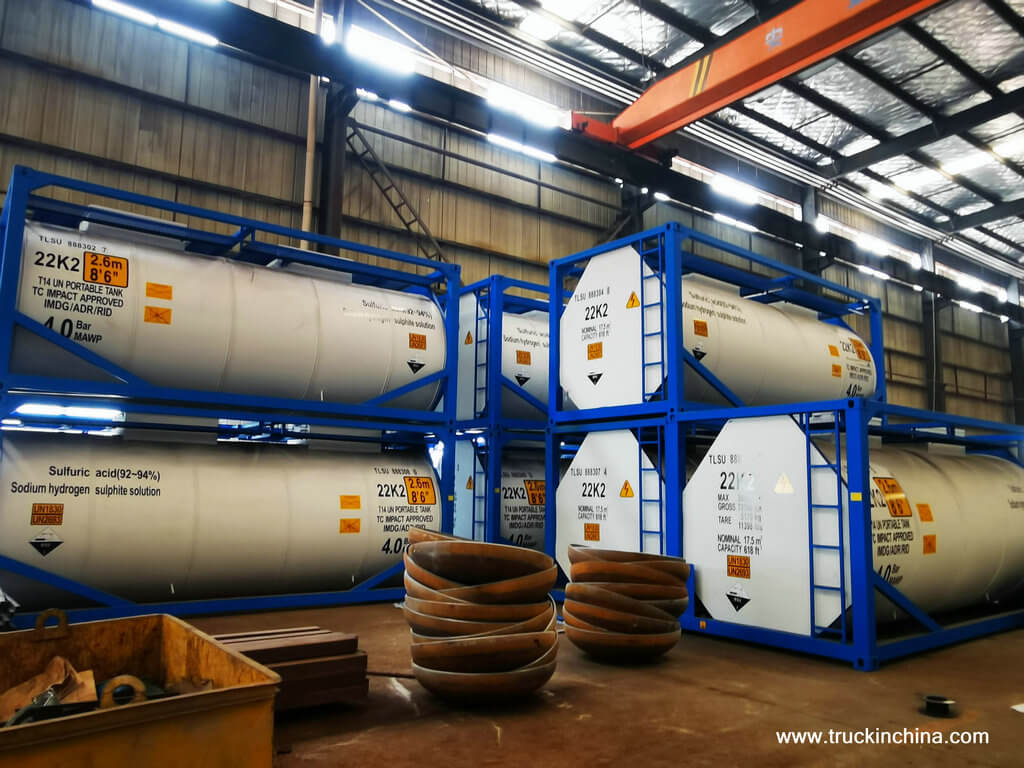

 T14 ISOTANK sulfirc acid tank container (27)_1_1

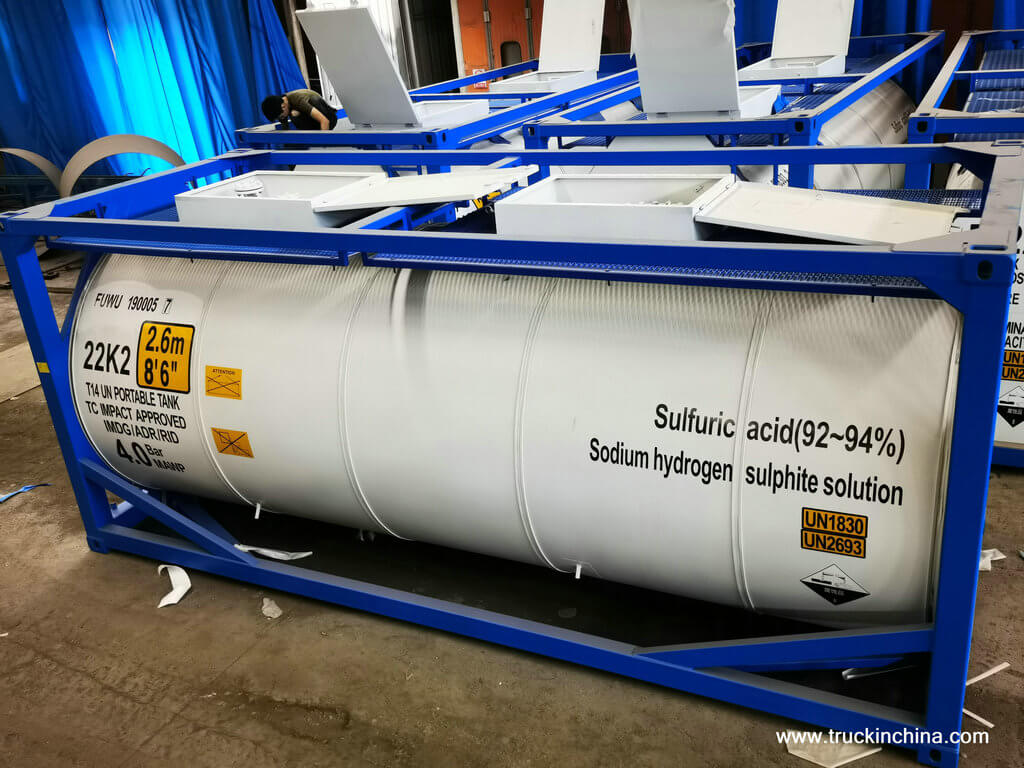

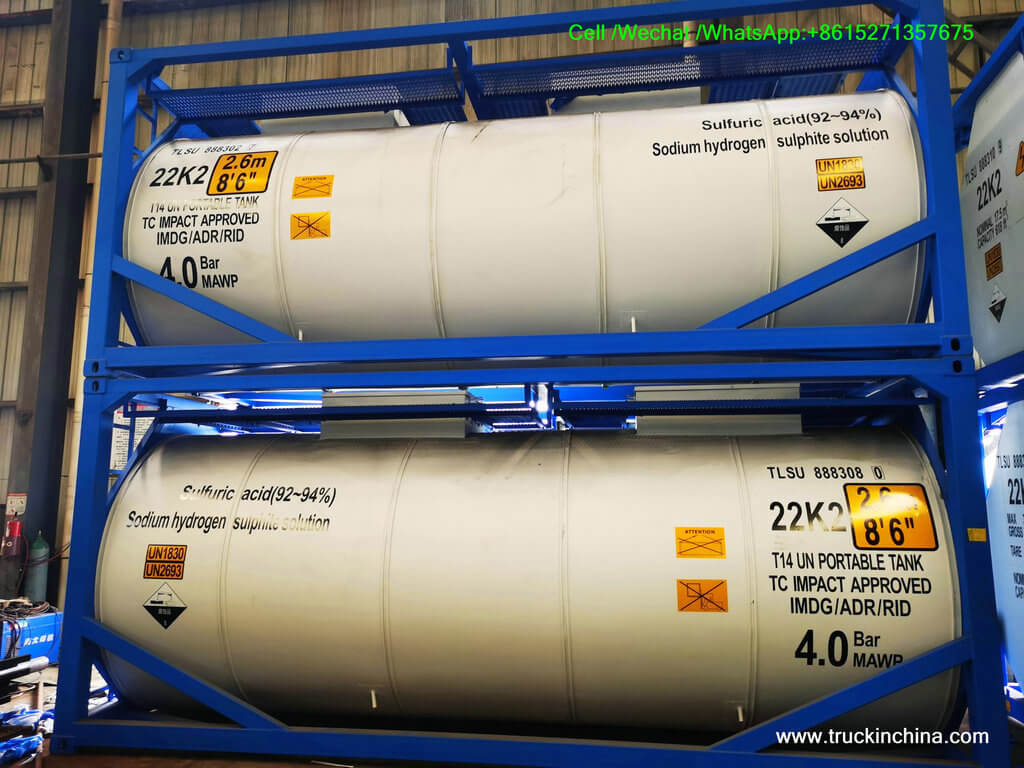

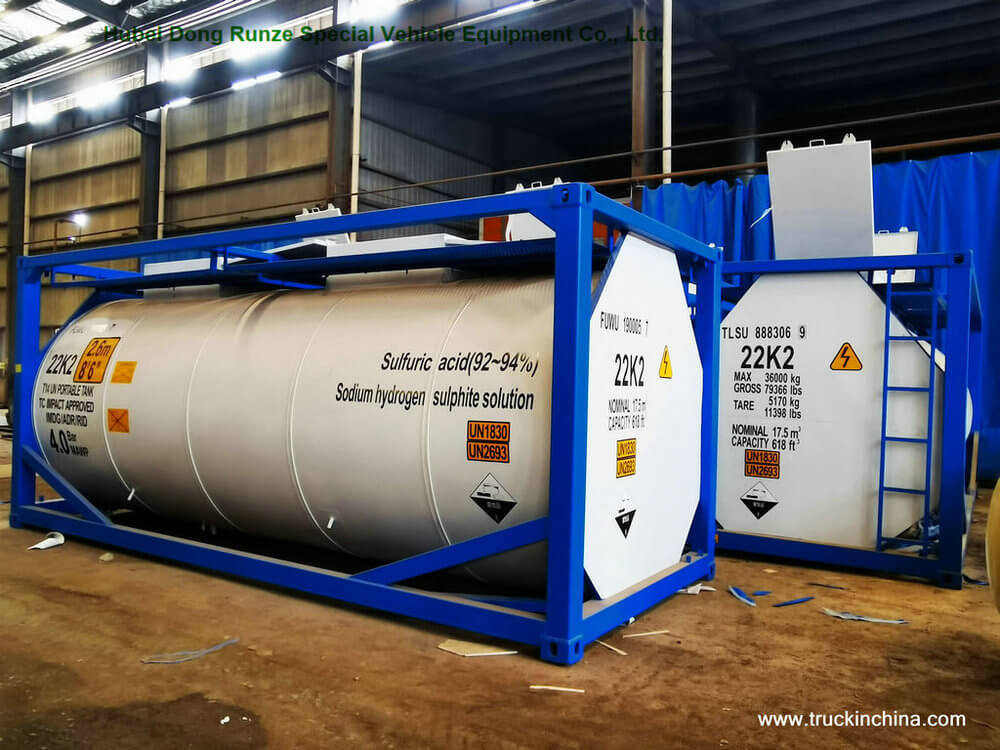

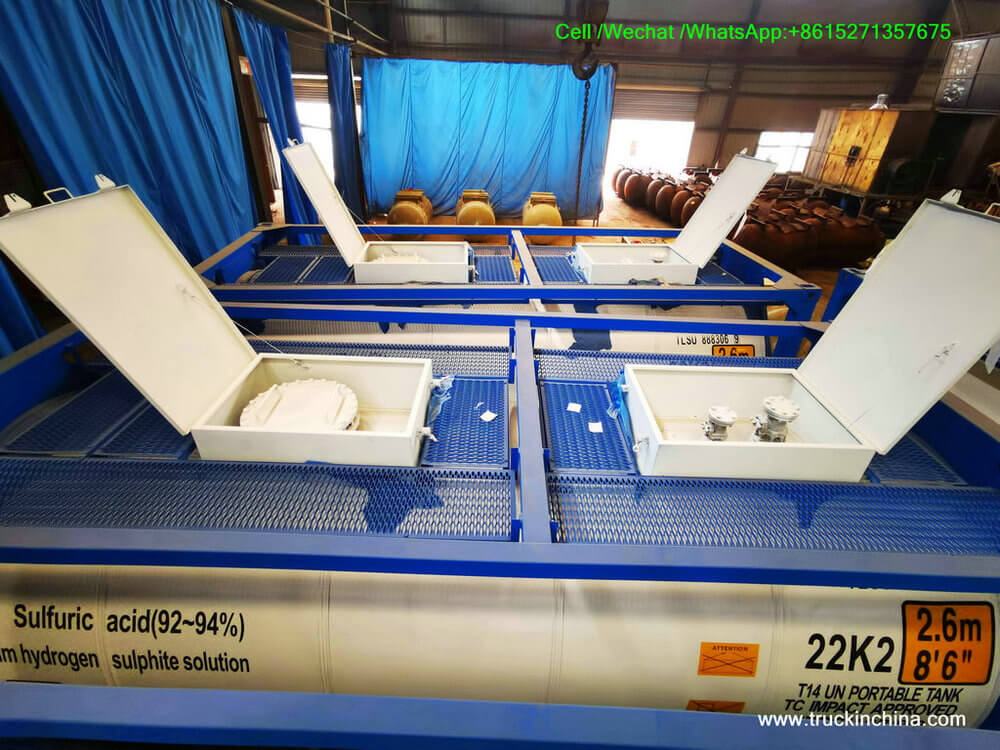

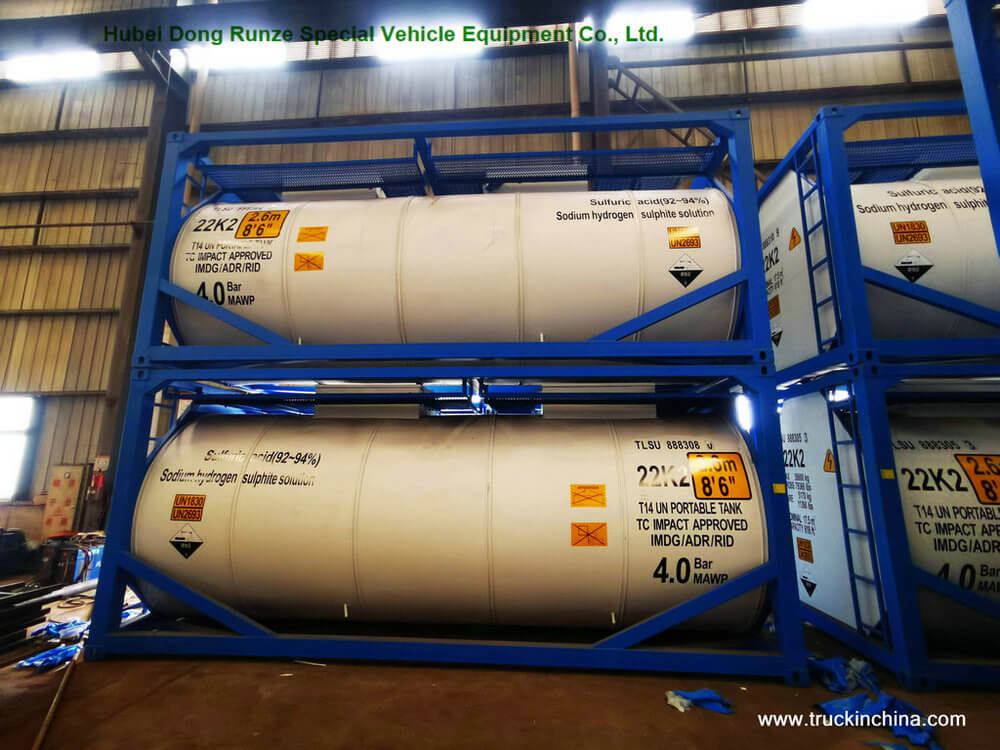

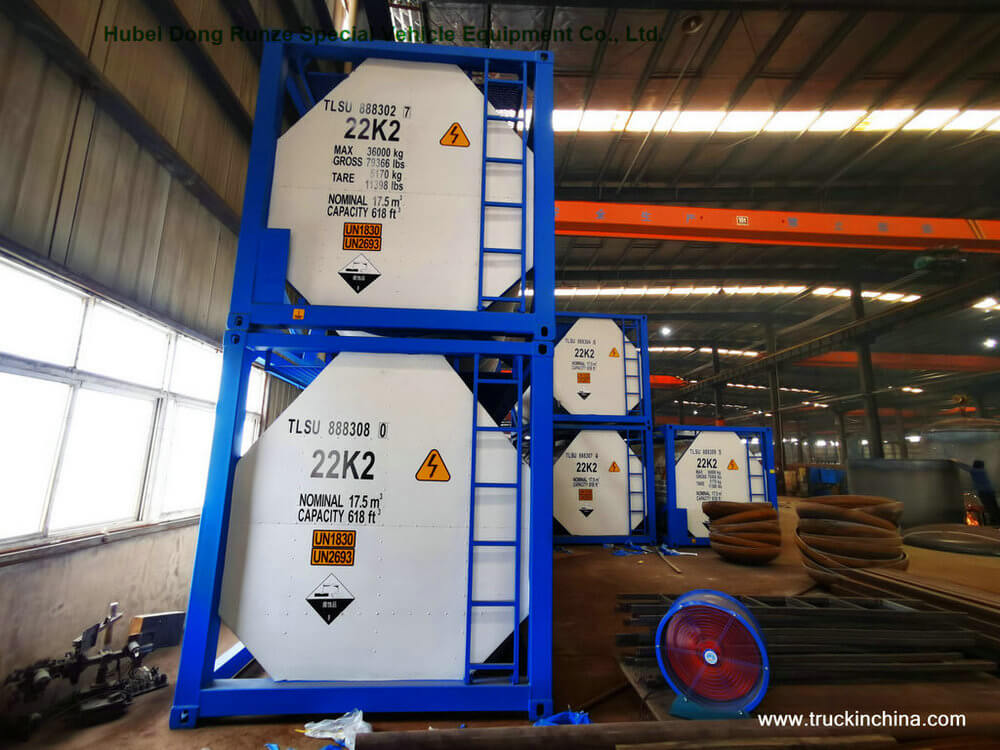

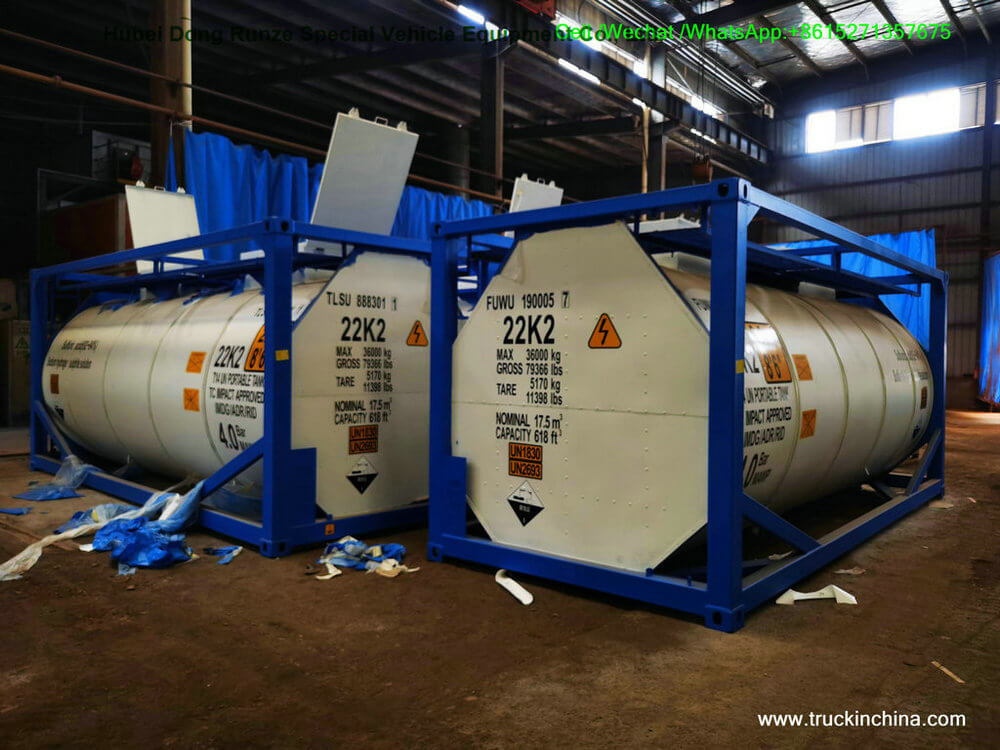

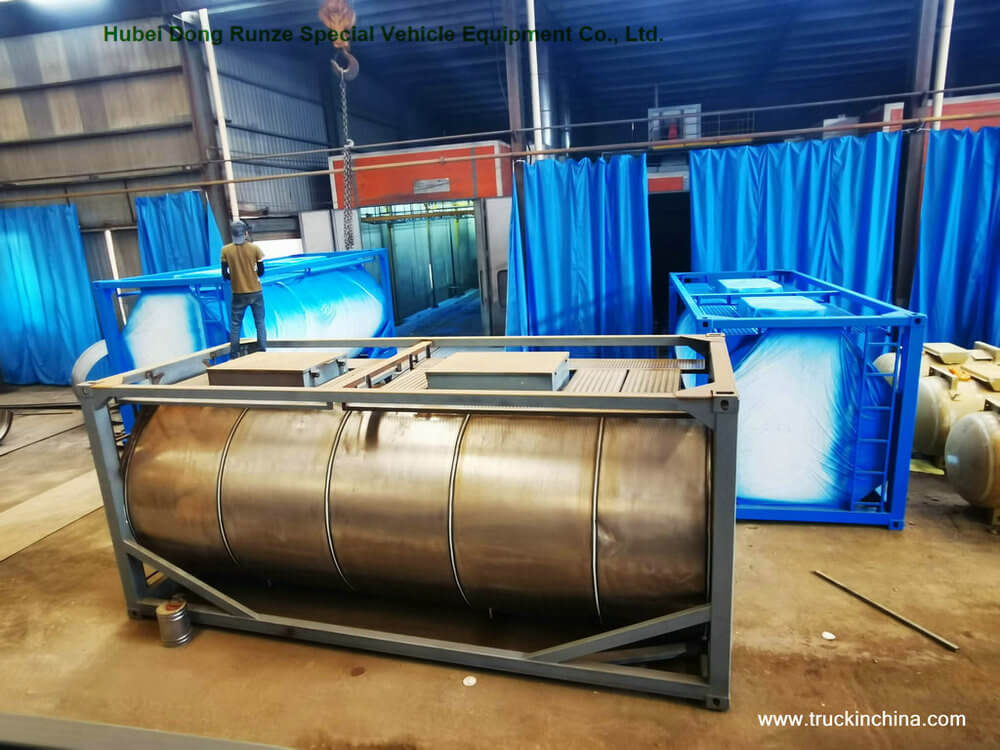

T14 ISOTANK sulfirc acid tank container (49)_1_1T14 ISOTANK sulfirc acid tank container (20)_1_1T14 ISOTANK sulfirc acid tank containers (14)T14 ISOTANK sulfirc acid tank container (47)_1_1T14 ISOTANK sulfirc acid tank containers (2)T14 ISOTANK sulfirc acid tank containers (17)T14 ISOTANK sulfirc acid tank containers (19)T14 ISOTANK sulfirc acid tank containers (21)T14 ISOTANK sulfirc acid tank container (28)_1_1T14 ISOTANK sulfirc acid tank containers (5)T14 ISOTANK sulfirc acid tank containers (18)T14 ISOTANK sulfirc acid tank containers (11)

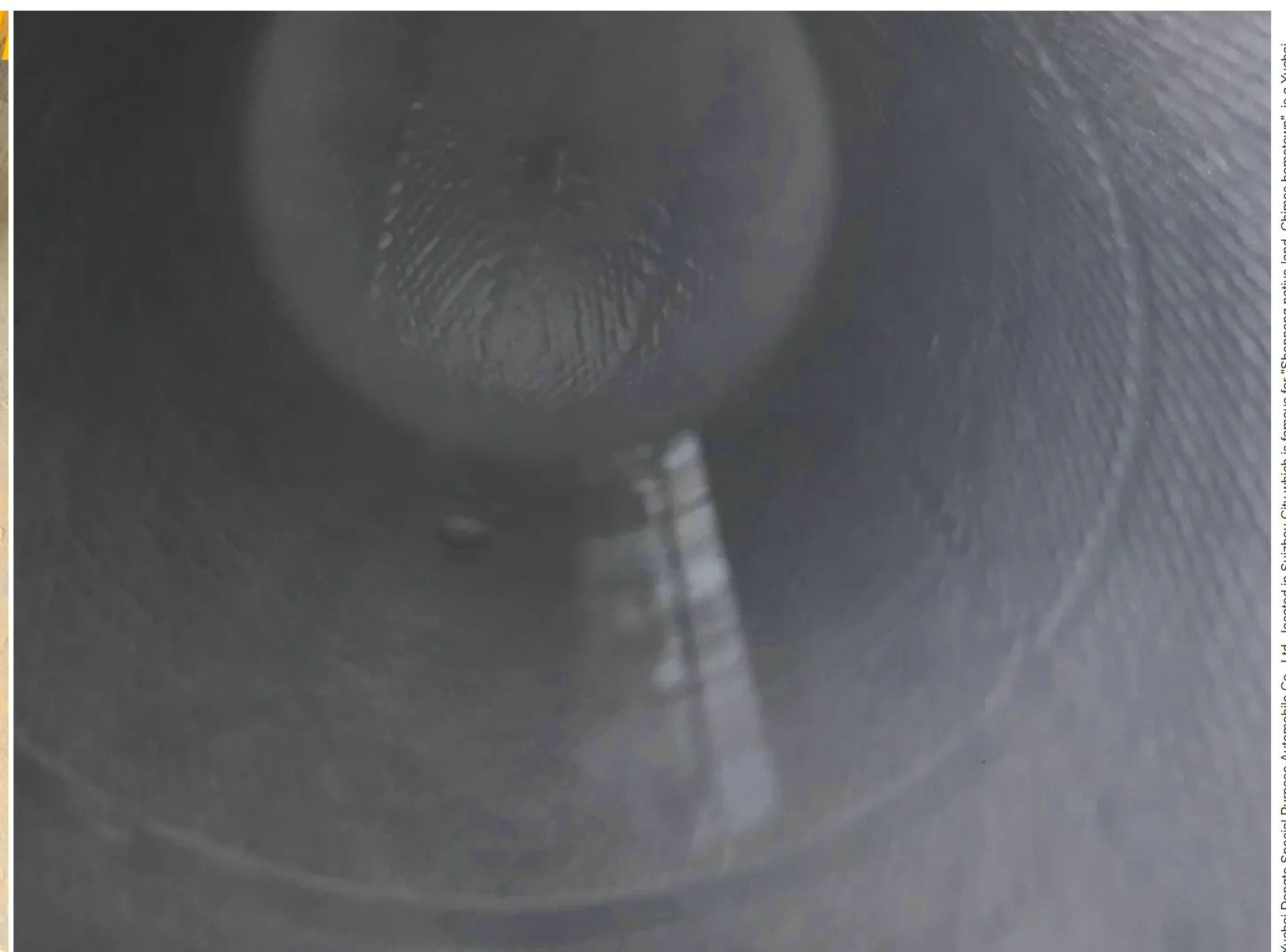

 T14 Sulfuric Acid Tank Container - China T14 Sulfuric Acid Tank Container, T14 ISO Tank_

T14 Sulfuric Acid Tank Container

China T14 Sulfuric Acid Tank Container

T14 ISO Tank


racteristics Specification
model T14
appointment UN1830 Sulfuric acid with 92~94% acid
volume 17.5
external dimensions 6058*2438*2438
maximum loading capacity 36000
operating pressure Normal
design pressure 0.4
pressure at test 0.6
design temperature -40~ +50 ºC
tank material Carbon steel SA-516M
the shell materat cases 6
eead material thickness 8
internal protective insert LLDPE7042 16mm
frame material Q345D
Baffle None
heat-insulating material 50mm thick mineral wool covered 1.0 carbon steel plate clading.
heating None
walkway one
loading type top outlet and top loading .Загрузка и выгрузка через верхний люк.

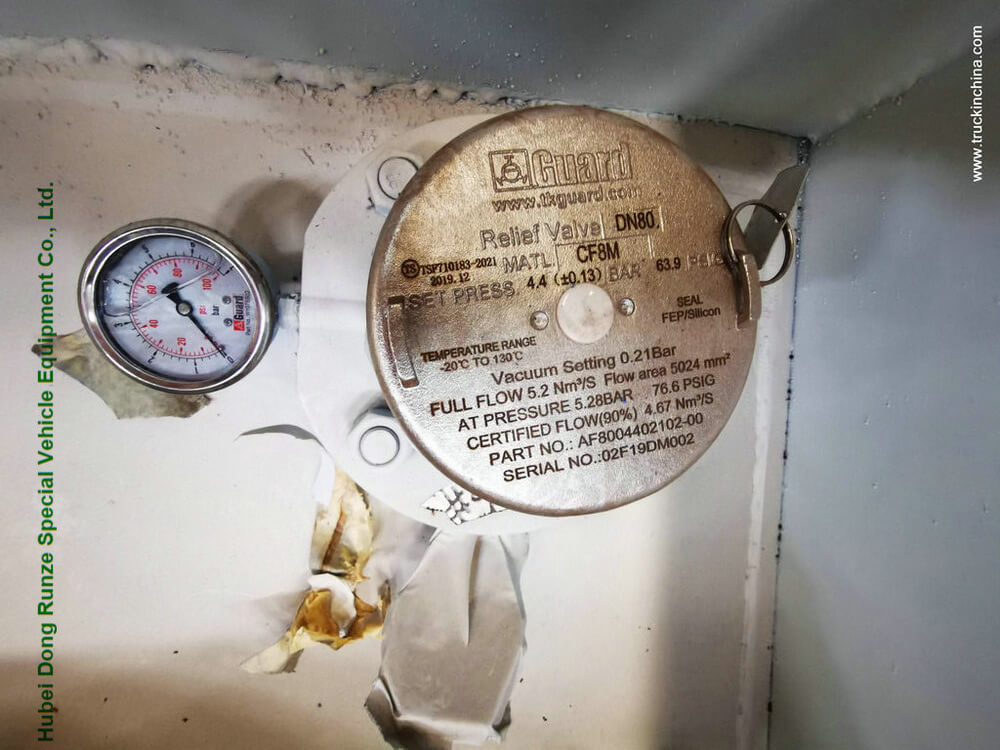

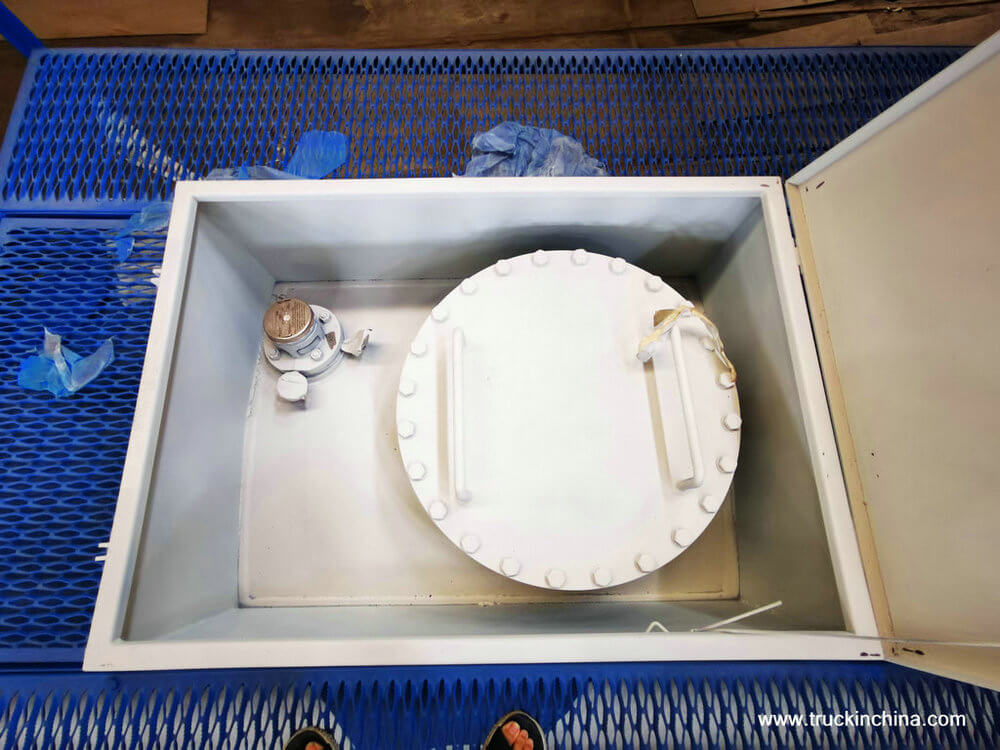

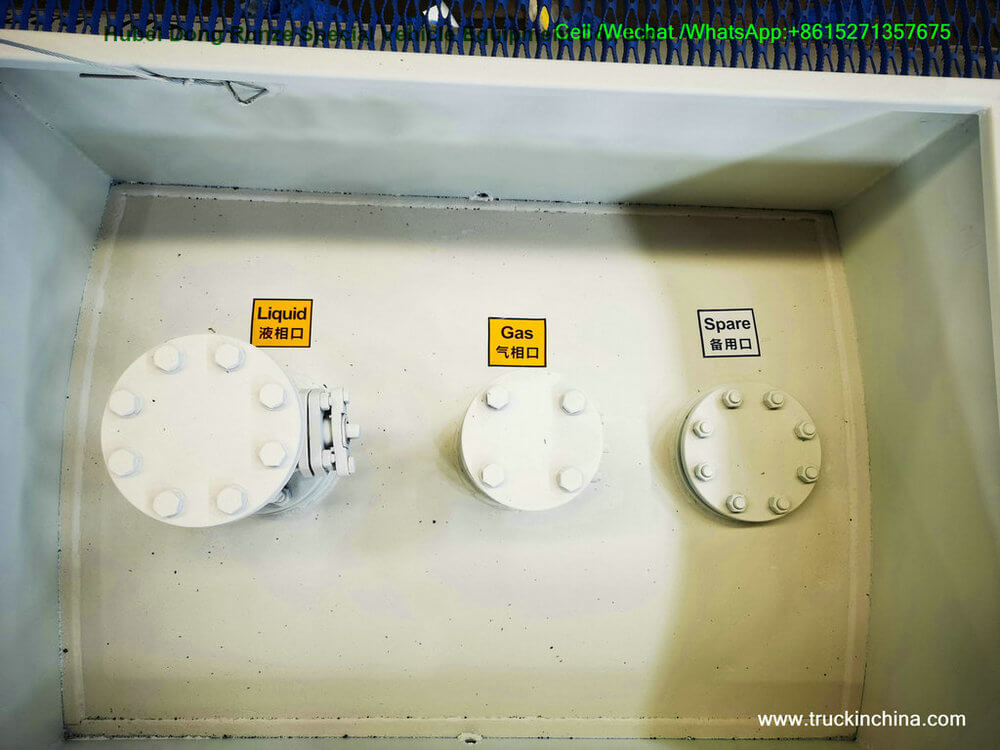

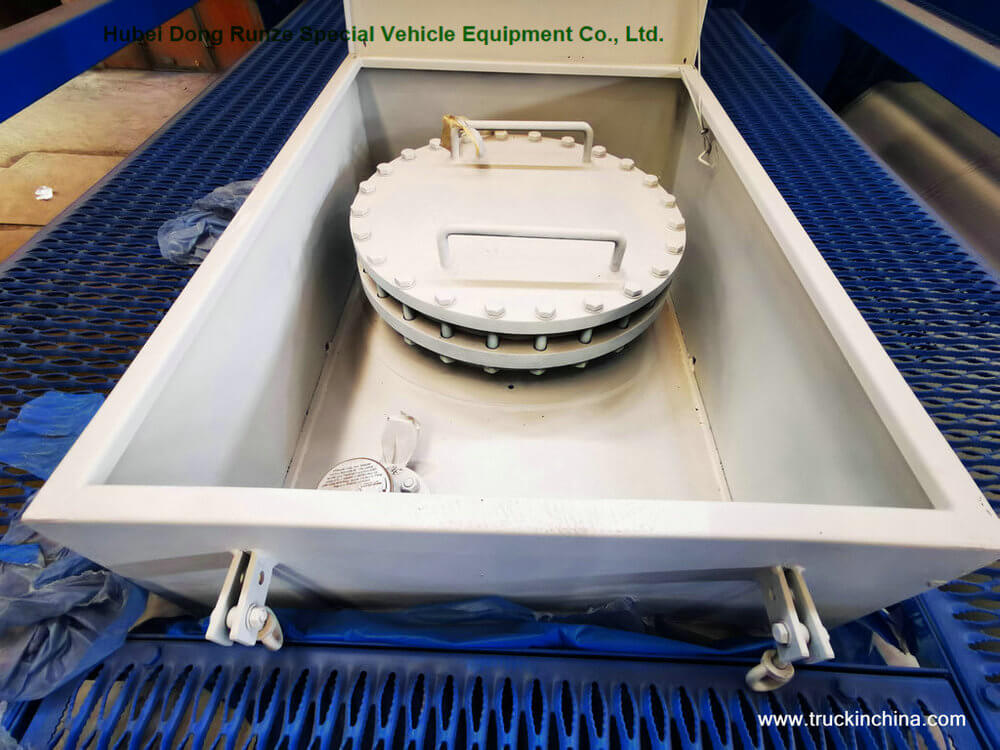

Fittings 1 * DN500 lined with PE bolted manhole,1* relief valve with adaptor and bursting disc ,1* DN25 PTFE lined ball valve for air inlet ,1*DN50 PTFE lined ball valve for liquid discharge, 1*DN50 spare provision with blind flange. 1 * DN500,
Others
Painting Acrylic acid and alkali resistant paint, total paint color 120um, color can be specified
Design code ASME VIII Div.1 where applicable and IMDG UN T8 CSC ISO RID/ADR TIR /Customs UIC
Classification Society BV

The UN numbers range from UN1801 to UN1900

UN Number Class Proper Shipping Name
UN 1801 8 Octyltrichlorosilane
UN 1802 8 Perchloric acid with not more than 50 percent acid by mass
UN 1803 8 Phenolsulfonic acid, liquid
UN 1804 8 Phenyltrichlorosilane
UN 1805 8 Phosphoric acid
UN 1805 8 Phosphorsäure, fest
UN 1806 8 Phosphorus pentachloride
UN 1807 8 Phosphorus pentoxide
UN 1808 8 Phosphorus tribromide
UN 1809 6.1 Phosphorus trichloride
UN 1810 8 Phosphorus oxychloride
UN 1811 8 Potassium hydrogendifluoride, solid or Potassium hydrogendifluoride, solution
UN 1812 8 Potassium fluoride
UN 1813 8 Potassium hydroxide, solid
UN 1814 8 Potassium hydroxide, solution
UN 1815 3 Propionyl chloride
UN 1816 8 Propyltrichlorosilane
UN 1817 8 Pyrosulfuryl chloride
UN 1818 8 Silicon tetrachloride
UN 1819 8 Sodium aluminate, solution
UN 1823 8 Sodium hydroxide, solid
UN 1824 8 Sodium hydroxide solution
UN 1825 8 Sodium monoxide
UN 1826 8 Nitrating acid mixtures, spent with more than 50 percent nitric acid or Nitrating acid mixtures, spent with not more than 50 percent nitric acid
UN 1827 8 Stannic chloride, anhydrous
UN 1828 8 Sulfur chlorides
UN 1829 8 Sulfur trioxide, inhibited or Sulfur trioxide, stabilized
UN 1830 8 Sulfuric acid with more than 51 percent acid
UN 1831 8 Sulfuric acid, fuming with 30 percent or more free sulfur trioxide or Sulfuric acid, fuming with less than 30 percent free sulfur trioxide
UN 1832 8 Sulfuric acid, spent
UN 1833 8 Sulfurous acid
UN 1834 8 Sulfuryl chloride
UN 1835 8 Tetramethylammonium hydroxide
UN 1836 8 Thionyl chloride
UN 1837 8 Thiophosphoryl chloride
UN 1838 8 Titanium tetrachloride
UN 1839 8 Trichloroacetic acid
UN 1840 8 Zinc chloride, solution
UN 1841 9 Acetaldehyde ammonia
UN 1843 6.1 Ammonium dintro-o-cresolate
UN 1845 9 Carbon dioxide, solid, also called Dry ice
UN 1846 8 Carbon tetrachloride
UN 1847 8 Potassium sulfide, hydrated with not less than 30 percent water of crystallization
UN 1848 8 Propionic acid
UN 1849 6.1 Sodium sulfide, hydrated with not less than 30 percent water
UN 1851 4.2 Medicine, liquid, toxic, n.o.s.
UN 1854 4.2 Barium alloys, pyrophoric
UN 1855 2 Calcium, pyrophoric or Calcium alloys, pyrophoric
UN 1858 2 Hexafluoropropylene, compressed or Refrigerant gas R 1216
UN 1859 2 Silicon tetrafluoride, compressed
UN 1860 3 Vinyl fluoride, inhibited
UN 1862 3 Ethyl crotonate
UN 1863 3 Fuel, aviation, turbine engine
UN 1865 3 n-Propyl nitrate
UN 1866 3 Resin solution, flammable
UN 1868 4.1 Decaborane
UN 1869 4.3 Magnesium or Magnesium alloys with more than 50 percent magnesium in pellets, turnings, or ribbons
UN 1870 4.1 Potassium borohydride
UN 1871 5.1 Titanium hydride
UN 1872 5.1 Lead dioxide
UN 1873 6.1 Perchloric acid with more than 50 percent but not more than 72 percent acid, by mass
UN 1884 6.1 Barium oxide
UN 1885 6.1 Benzidine
UN 1886 6.1 Benzylidene chloride
UN 1887 6.1 Bromochloromethane
UN 1888 6.1 Chloroform
UN 1889 6.1 Cyanogen bromide
UN 1891 6.1 Ethyl bromide
UN 1892 6.1 Ethyldichloroarsine
UN 1894 6.1 Phenylmercuric hydroxide
UN 1895 6.1 Phenylmercuric nitrate
UN 1897 6.1 Tetrachloroethylene
UN 1898 8 Acetyl iodide

Steel Lined LDPE aslo for HCL(max 35%)NaOH (max 50%), NaCLO (max 10%), PAC (max 17%),H2SO4(60%,98%) ,HF ( 48%),H3PO4 (10%-85%),NH3. H2O,H2O2 (30%)

Compounds, cleaning liquid, UN1760,
Corrosive liquid, acidic, inorganic, n.o.s., UN3264,
Corrosive liquid, acidic, organic, n.o.s., UN3265,
Corrosive liquid, basic, inorganic, n.o.s., UN3266,
Hypochlorite solutions, UN1791,
Hydrochloric acid solution, UN1789,
Sulfuric acid, UN2796,
BATTERY FLUID, ALKALI UN 2797,

ISOTANK

ISO 40' LNG Tank Container

Bitumen tank container

ISO 20' Tank Container

IMO 1
Shell made from 316 Stainless Steel
Capacity of 12,000 - 26,500 litres nominal
MAWP of 4 bar
For transport of: Hazardous liquids
Available in 7.65, 10, 20, or 30 foot sizes
Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
Heating by steam or electric heating (optional)

IMO 0
Shell made from 316 Stainless Steel
Capacity of 12000 - 26500 litres nominal
MAWP of 4 bar
For transport of
Wine
Fruit Juices
Vegetable Oils
Mineral Oils
Non-hazardous Oils
Available in 20 foot / 6 metres
Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
Heating by steam or electric heating (optional)



IMO 2
Shell made from 316 Stainless Steel
Capacity of 12,000 - 26,500 litres nominal
MAWP of 1.75 bar
For transport of:Low Hazardous liquids
Available in 7.65, 10, 20, or 30 foot sizes
Swap-bodies 7.65m and 7.82 (30,000-35,000 L)
Heating by steam or electric heating

Bitumen Tank Containers
Shell made from Carbon Steel
Capacity of 20,000-25,000 litres nominal
MAWP of 1.75 bar
Low Hazardous liquids
Available in 20 or 30 foot sizes
Heating by direct flame, hot oil or electric heating

Cement Containers
Capacity of 17.5 - 25 cubic metres
Pressure discharge
Road transport tank container
T4,T6,T7,T8,T9, T10,T11,T14,T50 portable tank;

PE Lined steel tanks for hydrofluoric acid liquid ,hydrochloric acid ,sodium hypochlorite HCl,NaOH,NaClO liquid etc.

IMO 5
Shell made from 316 Stainless Steel
Capacity of 15,000 - 25,500 litres nominal
MAWP of 1.75 bar
For transport of gases, including:
Propane
Butane
Refrigerants
Available in 20, 30 or 40 foot sizes
IMO 7
Shell made from 316 Stainless Steel or Carbon Steel
Capacity of 20,000 - 24,000 litres nominal
MAWP of 8 bar
For transport of cryogenic gases, including:
LNG
Available in 10, 20, 30 or 40 foot sizes
Offshore
Shell made from 316 Stainless Steel
Capacity of 2,000 - 10,000 litres
MAWP of 5 bar
For transport of gases, including:
Hazardous chemicals
Acid
Petroleum
Available in 8 x 8 x 10 sizes

 Highly Hazardous UN Portable ISO Tank Containers 14,600 - 24,000 Liters ,
