Strong Acid Sulfuric Acid Tanker Trailer Dish Round SHAPE 19000L<Customization>
| Quantity: | |
|---|---|

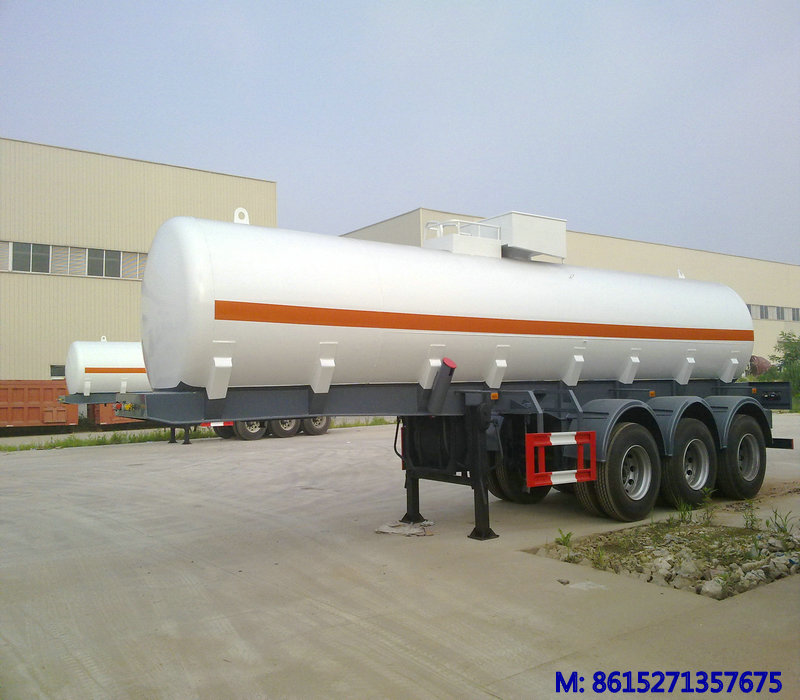

Sulfuric acid strong acid tanker trailer dish round SHAPE 19000L <Customization>
$20000~39000
Sulfuric acid strong acid tanker trailer dish round SHAPE 19000L <Customization> Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
DTA9401GFWA rare sulfuric acid tanker trailer Tanks effective volume: 19.95 cubic meters , medium name: rare sulfuric acid, the density: 1.63 tons/cubic meters dish round STRAIGHT SHAPE cylinder shape cylinder shape and V shape
V SHAPE
Specification 18000---19,000 liter
tanker trailer
specifications just for reference
| DIMENSIONS | |
| Tare Weight | 8500kg |
| Payload | 31500 kg |
| Total Weight | 40000kg |
| Overall Length | Refer drawing 10000mm |
| Overall Width | Refer drawing mm (maximum 2500mm) |
| Overall Height | Refer drawing 3500mm |
| Wheel track | Refer drawing mm |
| Wheel base | Refer drawing mm |
| STANDARD SPECIFICATION | |
| Main Frame | Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes 505mm Height, Top Flange 14mm,width 140mm; Middle Flange 6mm ;Bottom Flange 16mm,width 140mm
|
| Axle | Three Units of BPW axles. |
| Suspension | 3-axle spring Suspension |
| Landing Gear | Two-speed ,manual operation, heavy duty landing gear |
| Wheel Rim | Twelve units of 8.25or9.0wide x 10 stud (tubeless rim) |
| Tyre | Twelve units of 12R-22.5 tyres (tubeless) |
| Spare Wheel Carrier | two sets of spare wheel carrier including a riser |
| Pneumatic Braking System | 30/30 spring brake chamber (S Cam); eliable local brand 40L air tank ; reliable local brand standard coppery air-connector. With ABS |
| Electrical System | 24V 7-pin socket; reliable local brand standard red rear lights, orange turning lights, red rear reflectors, 3 orange side lights and 3 orange side reflectors each side 6, standard Cable. |
| Tank | 19,000 litres capacity |
| Shell baffles 6 mm carbon steel | |
| Walkway and top tank; ladder end or side of tank | |
| Tank fittings | Manhole covers top filler and with spillbox, Bottom coupling DN80 discharge system |
| Painting | Sand blasting before painting; two coats of primer, anti corrosion, two coats of finish painting; (black chassis, blue tank or as client requirement) |
| Accessory | One trailer tool box , One 200L water tank. |
