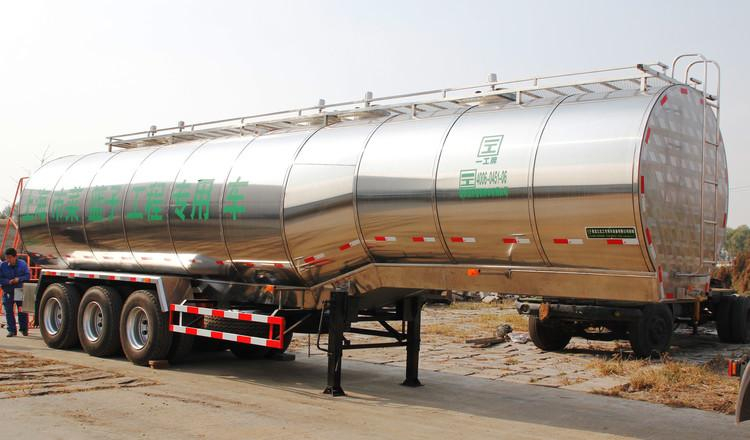

Stainless Steel Round Milk Tankers Trailer
| Quantity: | |
|---|---|
Stainless Steel Road Milk Tankers PUF Insulated Road Milk Tank
Specification:
Stainless Steel Road Milk Tankers are of double wall construction with 100mm PUF Insulation between the inner tank and the outer tank.
The inner tank will have high degree of polish finish for Milk storage and transportation.
The tank will be elliptical in shape with single or multi compartment construction.
Each compartment will have independent manhole assembly, complete with manhole lid, Pressure vacuum relief valve, air vent and CIP cleaning arrangement. The manhole shall be additionally covered with a Stainless Steel dust cover.
The milk discharge from the tank will be at the bottom through a discharge cup, pipe line and butterfly valves. Valve box will be located at the rear platform.
The tank will be having ladder, catwalk, and side protection rail and side protection channels.
The tank rear shall be provided with a Skirting and a platform arrangement.
PUF insulated tank is capable of transporting chilled milk at 3°C to 4°C and the average temperature drop of milk in a fully filled tank in a day will be less than 2°C.
The insulated tank will be integrated with the chassis with a trapezoidal frame and will have adequate slope towards the rear for complete drainage of milk.
CIP cleaning arrangement will be provided for regular water cleaning and maintenance of the tank.
Road Milk tanker can be supplied with single/double/triple compartments and capacity in the range of 4000L to 21000L based on the rigid chassis selected，capacity in the range of 21000L to45000L based on detachable head tractor the trailer chassis selected.
