Speed 5 km Pneumatic Control Block Intelligent Control System Of Emergency Shut-Off Valve
Pneumatic Switch Controller Fuel Tank Truck Aluminum Pneumatic Control Block Push Button For 2 -6 Compartments Oil Tanker

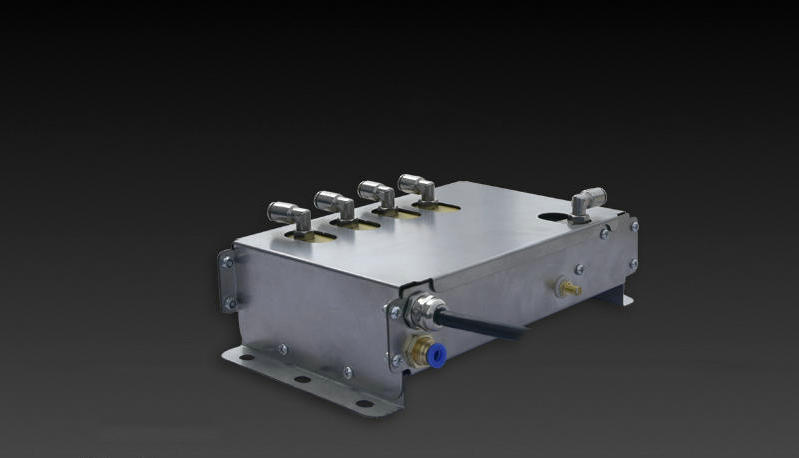

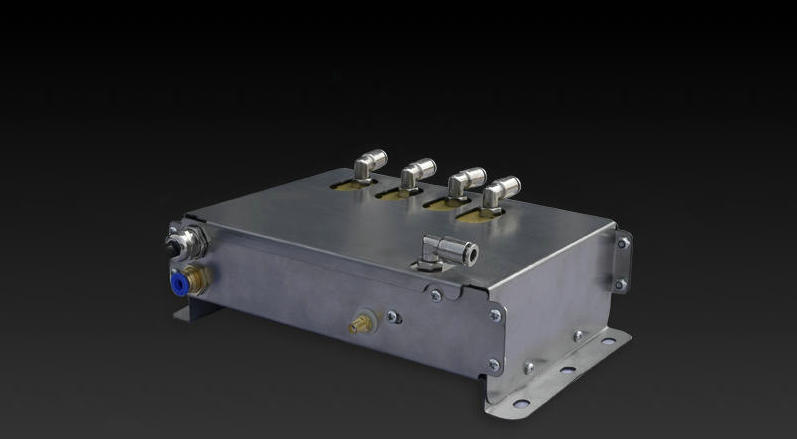

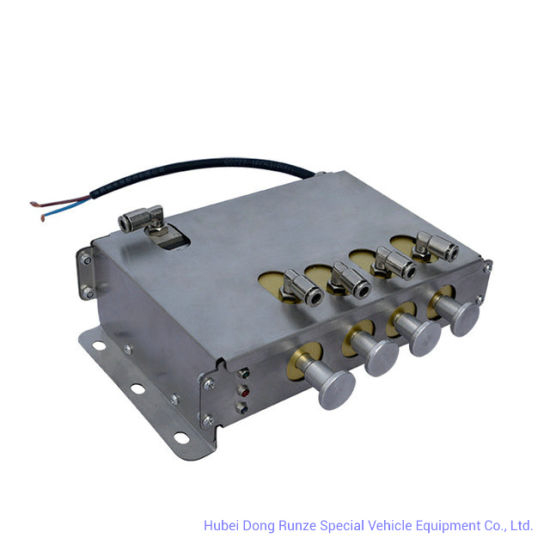

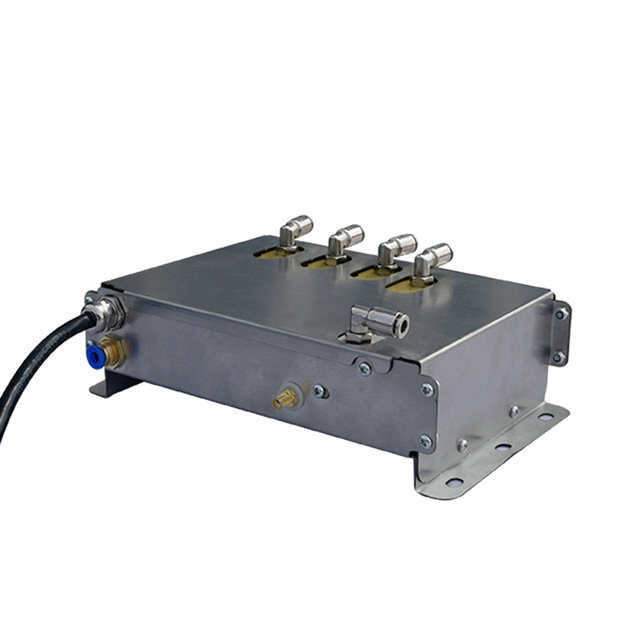

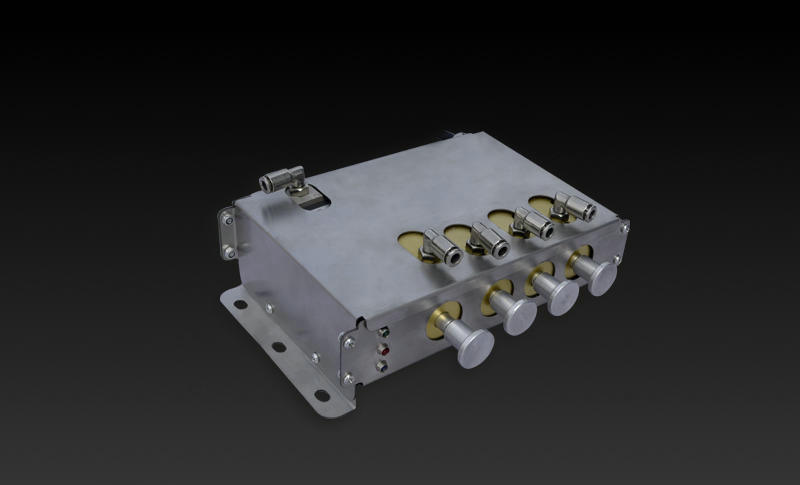

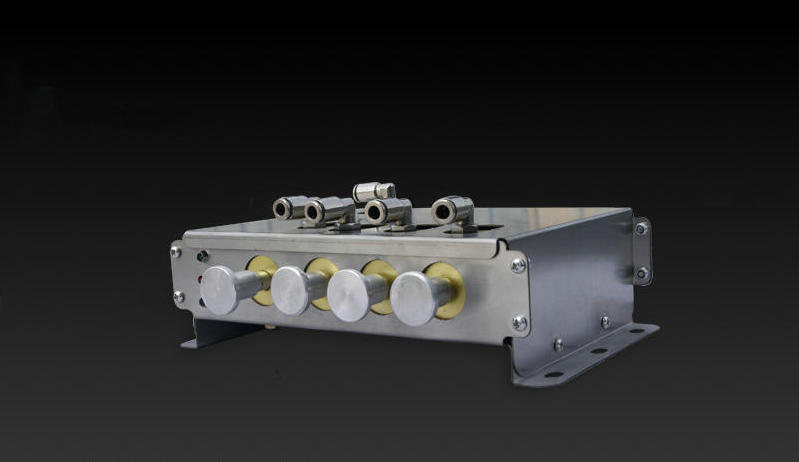

Speed 5 km Automatic Pneumatic Control Block Intelligent Control System Of Emergency Shut-Off Valve (Fuel Tank Truck Aluminum 2-4 Compartments With GPS)
5KM emergency shut-off valve automatic control system is used for road transport of dangerous goods tank vehicles to automatically close emergency shut-off valve. When the vehicle travels faster than 5KM/h, the emergency shut-off valve automatic shut-off system automatically closes all air sources to realize the closure of emergency shut-off valve. This product is suitable for all kinds of emergency cut-off valves of air route control, without changing any original vehicle products, reducing the use cost of customers. This product is equipped with GPS system, which generates test signals automatically, and it is not connected with the main vehicle, and can be replaced at will, which is quite convenient to use.
Product performance and characteristics

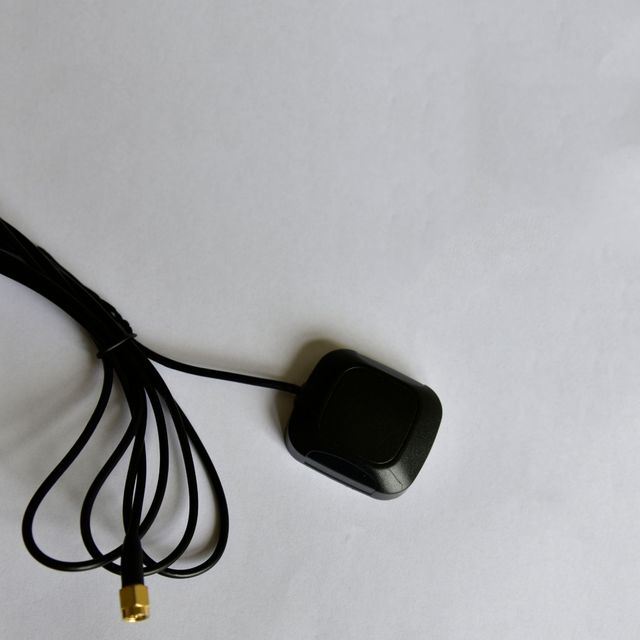

1, easy to use the product comes with GPS system, self-generated detection signal, not connected with the main car, you can replace the main car, quite easy to use.
2. Strong practicability: it is applicable to all kinds of emergency cut-off valves for air route control without changing any original products, thus reducing the use cost of customers.
3. Intelligent safety when the vehicle's driving speed is greater than 5Km/h, the emergency shut-off valve automatic closing system automatically closes all air sources to realize the shutdown of emergency shut-off valve
Iii. Connection mode

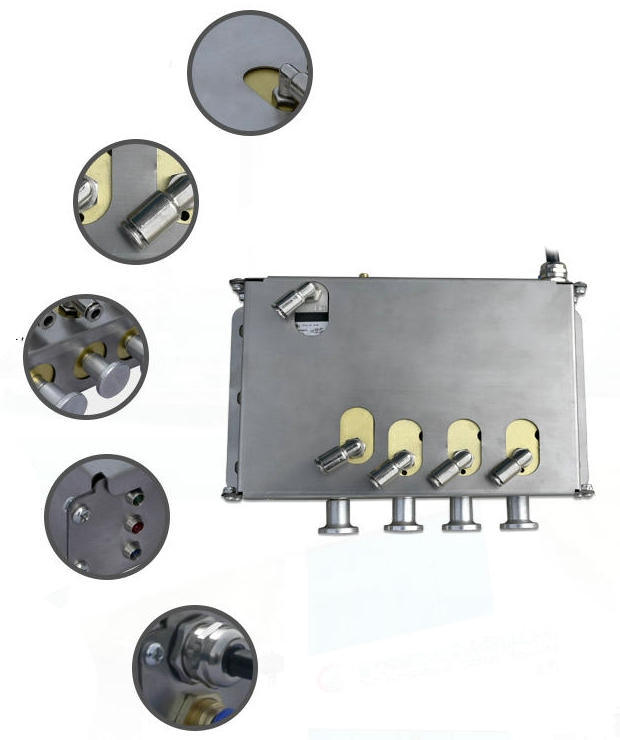

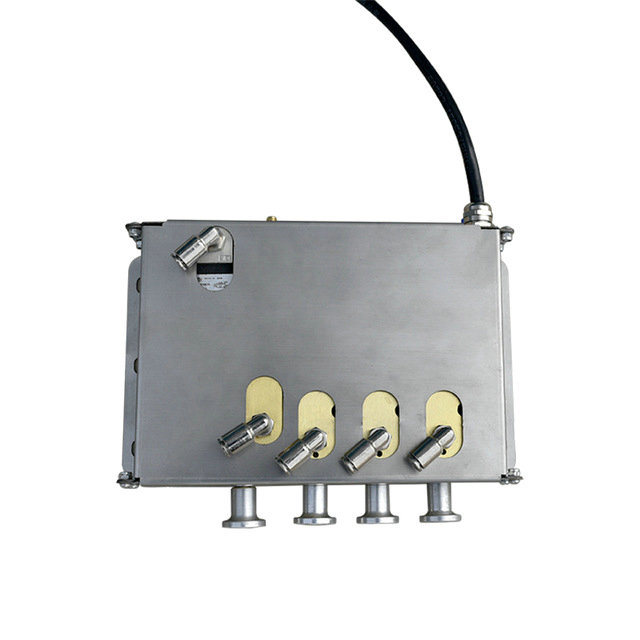

Emergency cut-off valve automatic system installed in the default of the toolkit, and fixed screw, plugged into a power supply, DC12V DC24V - all can use, ABS 1 foot often electric red, black meet ABS 3 feet (cathode), 2 (1 and 2) respectively connected to the intake oil-water separator (1), emergency shut down (3) connected to the tail emergency stop valve (3), the main valve opening (4) , access to oil and gas recovery joint (4)control valve connected to the corresponding emergency cut-off valve
Method of use

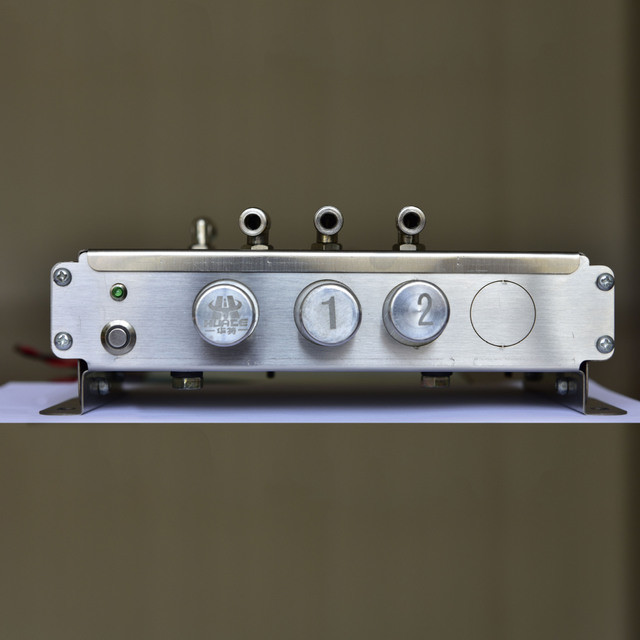

Put the car key in the open state. After the automatic control system of emergency cut-off valve is energized, the indicator light of the reset button flashes for 3 times and keeps flashing. When the reset key is pressed, the indicator light stops flashing. When the vehicle speed is greater than 5KM/h, the emergency cut-off valve will be automatically closed. When the vehicle speed is 0, press the reset button for 3 seconds, and when the exhaust sound is heard, all control switches can be opened at this time, and the fully closed state will be handled during the driving process.

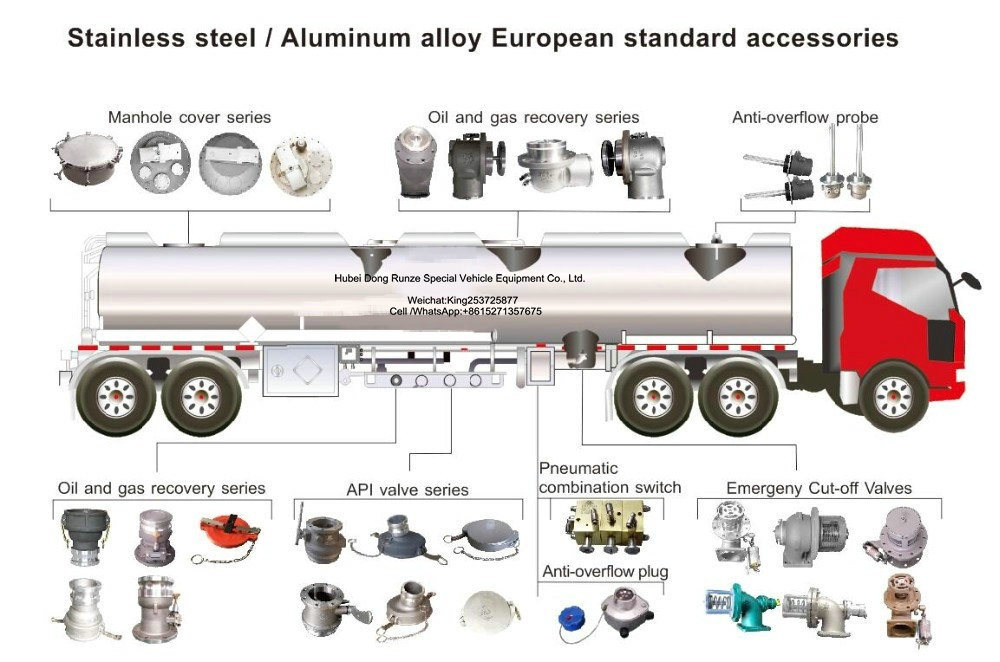

Manhole cover of Tank Truck
