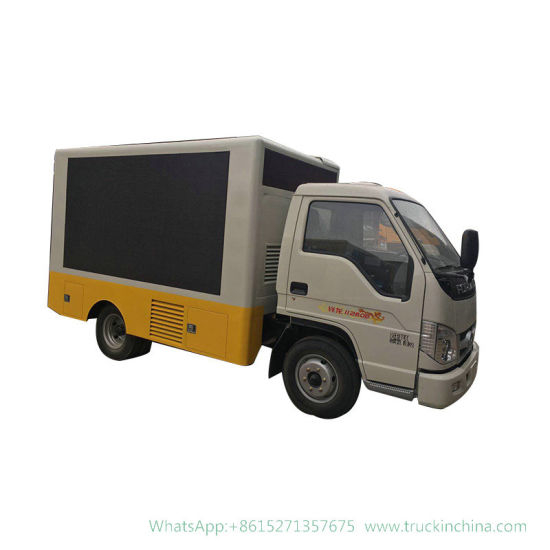

Small Forland LED Truck for Outdoor LED Mobile Billboard (LED Advertising Display Truck)

Quantity:
  • Shanghai, China
  • 5000
  • T/T, Western Union
  • Forland LED Truck
  • IV
  • Self-powered
  • PH16
  • Own Generator-powered
  • Both Side or Single Side Optional
  • Temperature: -20c ~+60c
  • 3.84m X2.24m X 2PCS
  • Electrically Hydraulic Control
  • 3360
  • 6.50r16lt
  • 24V
  • 90
  • 5995X2025X2995
  • 5 Speed Forward and 1 Reverse
  • DRZ
  • Nil
  • EDM
  • China
  • 8705909090
  • LED Advertising Truck
  • Public Service
  • 3.5L
  • Large Screen System
  • 3
  • Diesel Oil

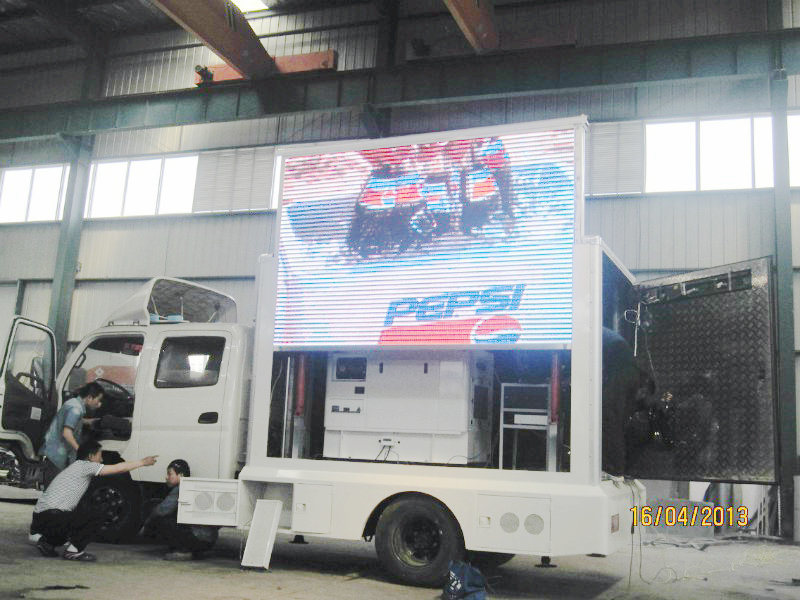

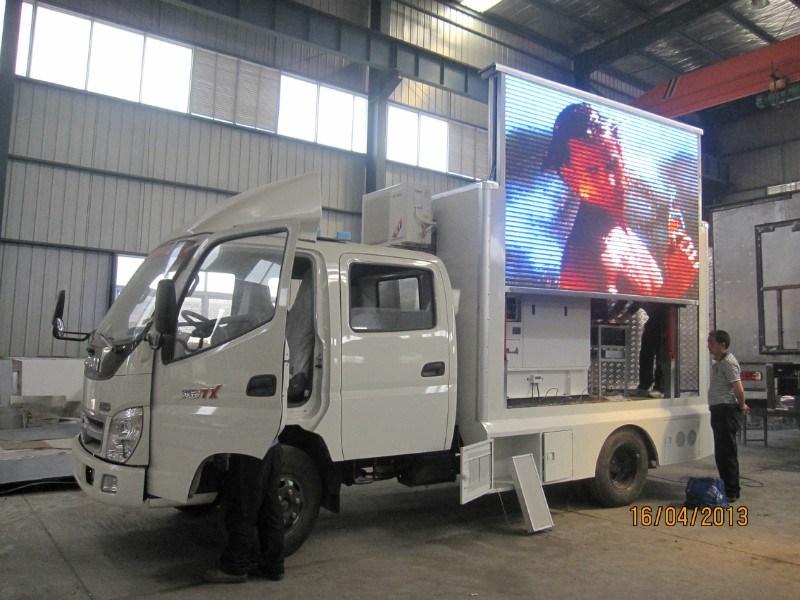

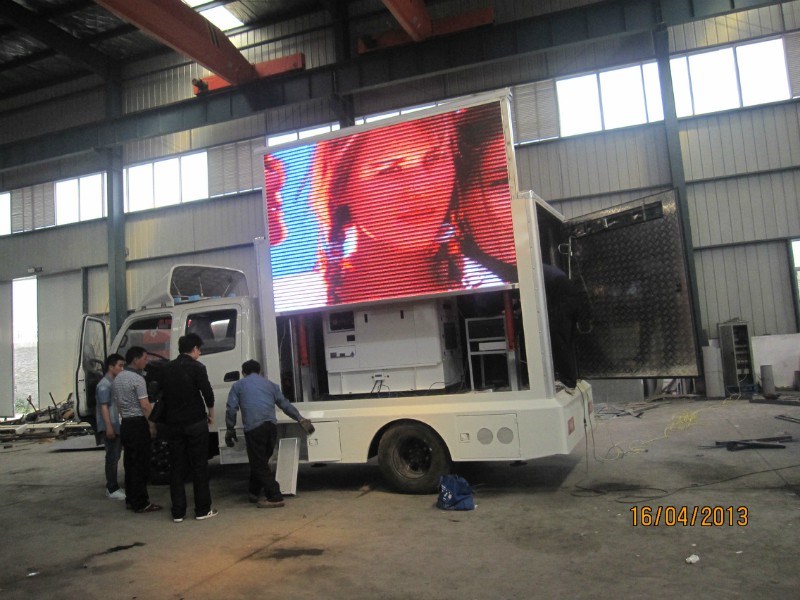

Small Forland LED Truck For Outdoor LED Mobile Billboard (LED Advertising Display Truck)



Advertising Truck with Two Side LED Screen LED BOARD: HIGH QUALITY SCREEN ,WITH HIGH ANTI-SEISMIC AND HIGH RESOLUTION RATIO;
SINOTRUK CHASSIS: First CLASS STEADY CHASSIS,NO.1 SALES WITH BEST SERIVE.
LESS NOISE;
CUSTOMIZED DESIGN Mobile LED Screen Truck Pitch 10mm Vehicle Mounted LED Screen / Moblie Advertising Trucks for Sale

Small Forland LED Truck for Outdoor LED Mobile Billboard (LED Advertising Display Truck)
Small Forland LED Truck for Outdoor LED Mobile Billboard (LED Advertising Display Truck)
Small Forland LED Truck for Outdoor LED Mobile Billboard (LED Advertising Display Truck)
Small Forland LED Truck for Outdoor LED Mobile Billboard (LED Advertising Display Truck)
Small Forland LED Truck for Outdoor LED Mobile Billboard (LED Advertising Display Truck)
Small Forland LED Truck for Outdoor LED Mobile Billboard (LED Advertising Display Truck)
Small Forland LED Truck for Outdoor LED Mobile Billboard (LED Advertising Display Truck)
Small Forland LED Truck for Outdoor LED Mobile Billboard (LED Advertising Display Truck)
Small Forland LED Truck for Outdoor LED Mobile Billboard (LED Advertising Display Truck)
Small Forland LED Truck for Outdoor LED Mobile Billboard (LED Advertising Display Truck)
Small Forland LED Truck for Outdoor LED Mobile Billboard (LED Advertising Display Truck)
Product Description
DRZ Brand New LED advertising truck
Vehicle Parameters
General Vehicle Model DRZ5049XXC-A2
Vehicle Brand DRZ
Chassis Brand FOTON
Overall Dimension(mm) 5995*2025*3030mm
GVW/Curb Weight(kg) 4495/4250
Chassis Parameters
Cab Cab Seat 2
Air Conditioner Optional
Engine Fuel Type diesel
Engie Model F3.8s3141
Engine Brand Cummins
Emmission Standard Euro 4
Chassis Drive Type 4*2
Wheelbase(mm) 3600
Tyre Specification 7.00-16LT 8PR
Tyre No.(pcs) 6
Max Speed(km/h) 99
Leaf Spring 3/6+7
Axle Load 1850/2645kg
F/R Tread 1665/1525kg
F/R Overhang 1095/1540mm
Super structure
Standard equipment 1. one side waterproof P10 or P6 LED panel
2 one computer system and one sound equipment
3. Lifting-up1.5m system is optional
4. 4 hydraulic legs
5. The other side advertising light box with LED subtitle

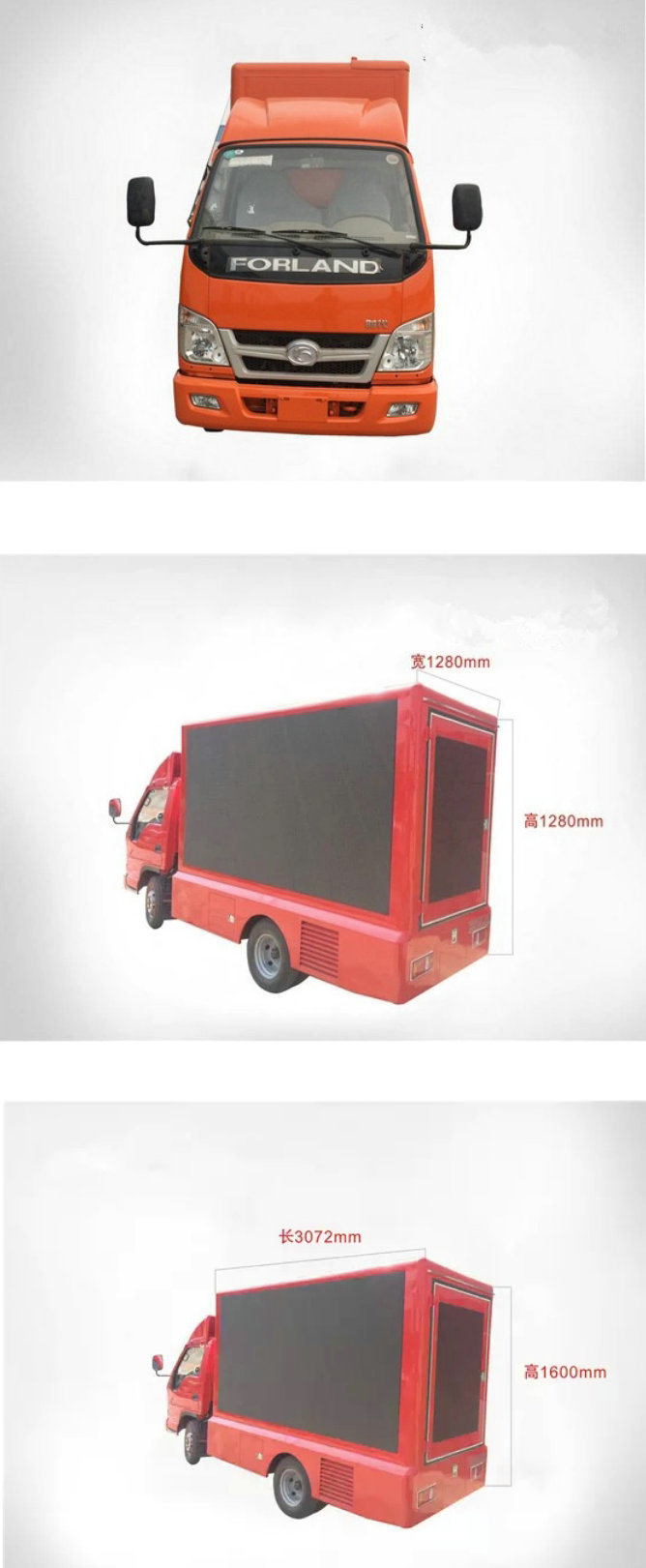

LED Truck Dimensions wheelbase LED Billboard Body Size
5995×2030×2980 3300

P8 :3840*1792=6.88m2

P6 : 3840*1728=6.65m2

Rear Screen :1280*1440=1.84m2

5995×2050×3100 3308
5595*2025*2995 3360
5995×2100×3050 3300
5995×2000×2900 3360
5995*2040*2990 3360
5595*2025*2995 3360
5990*1990*2950 3300
5995*2030*3050 3360
5995*2150*2900 3360
8760*2365*3675 4700

P8:5376*2304=12.38m2

P6: 5376*2304=12.38m2

Rear Screen 1600*1600=2.56m2

7290*2330*3350 3800

P8:4864*2048=10m2

P6: 4800*2112=10.13m2

Rear Screen 1600*1600=2.56m2

5250*1900*2750 2800

P8:2560*1536=3.93m2

P6:2496*1536=3.83m2

Rear Screen 960*1280=1.64m2

5100*1710*2640 3070

P8:2304*1536=3.54m2

P6:2496*1536=3.83m2

Rear Screen 960*1280=1.64m2

5000*1960*2590 2900
4650*1700*2400 2765

P8:2304*1408=3.14m2

P6:2304*1345=3.1m2

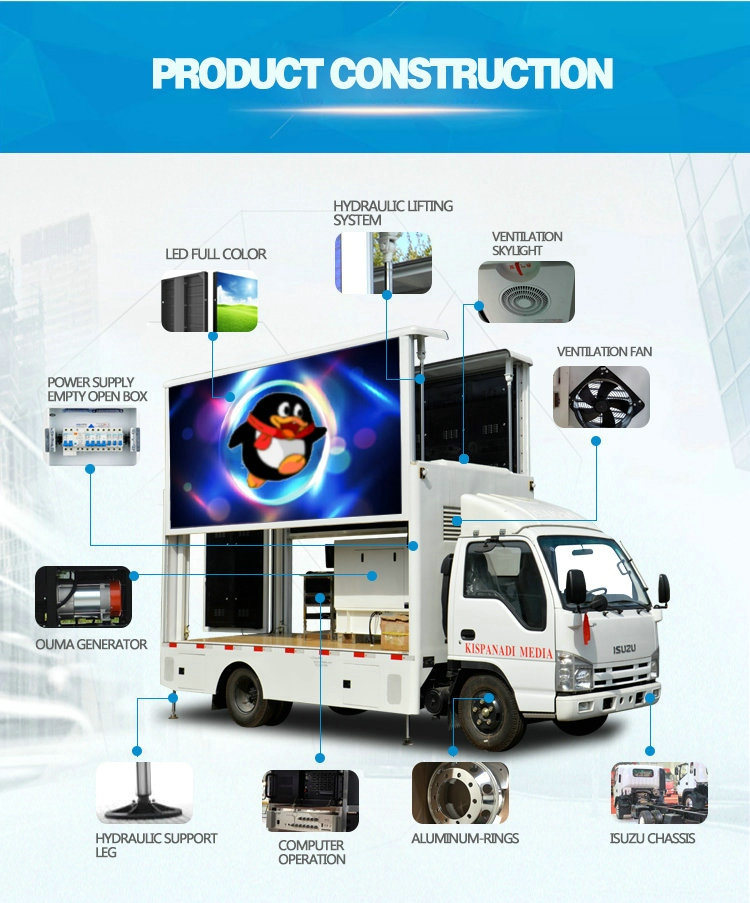

Equipment configuration
  1. All 3-sides(right, left, rear side) waterproof P5/P6 full color led screen

2> 5cm composite steel box, wooden floor;

3> Inside and outside the electric distribution box;

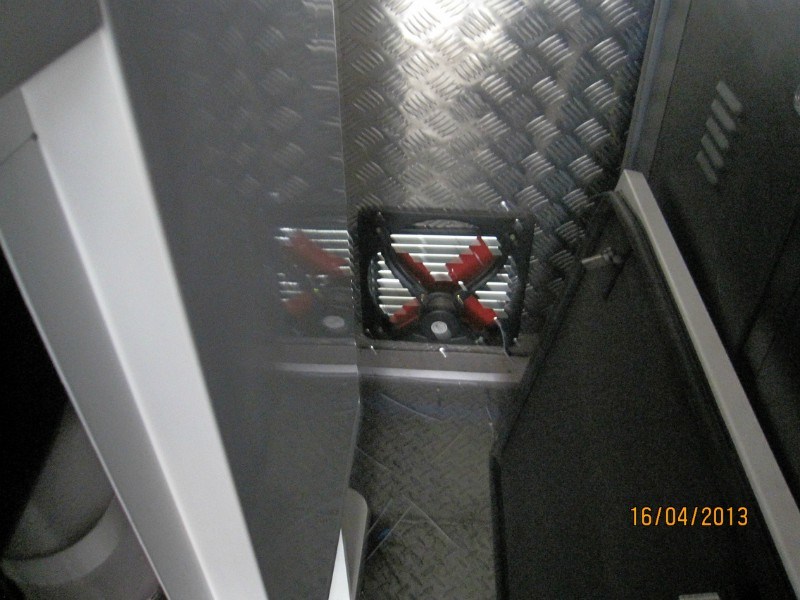

4> Loop ventilation cooling system;

5> Ouma silent diesel generator;

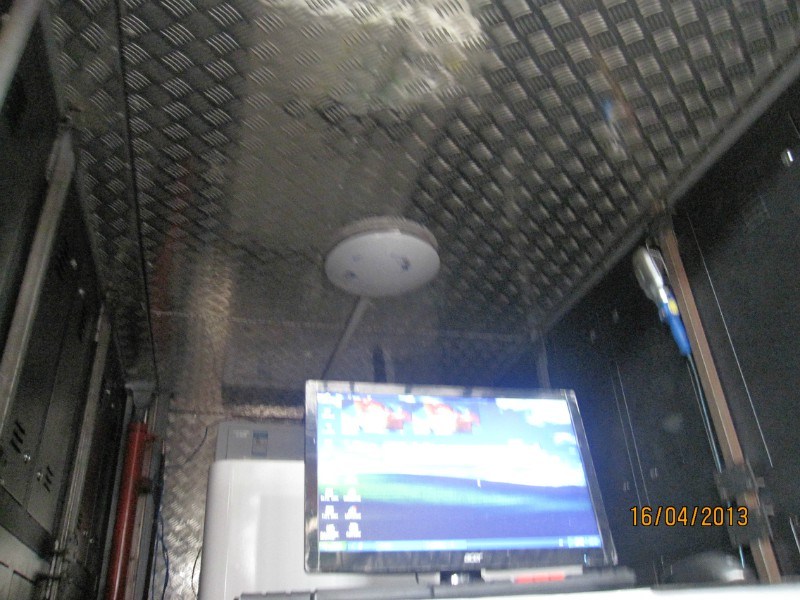

6>1 industrial computer with control system, 4 waterproof speakers, 1 amplifier, 1 console.

Color & painting According to customer's requirements

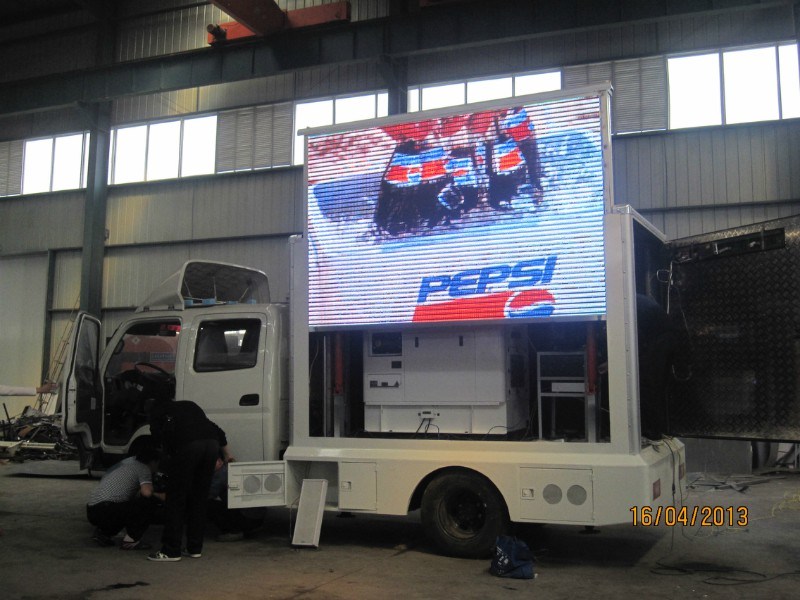

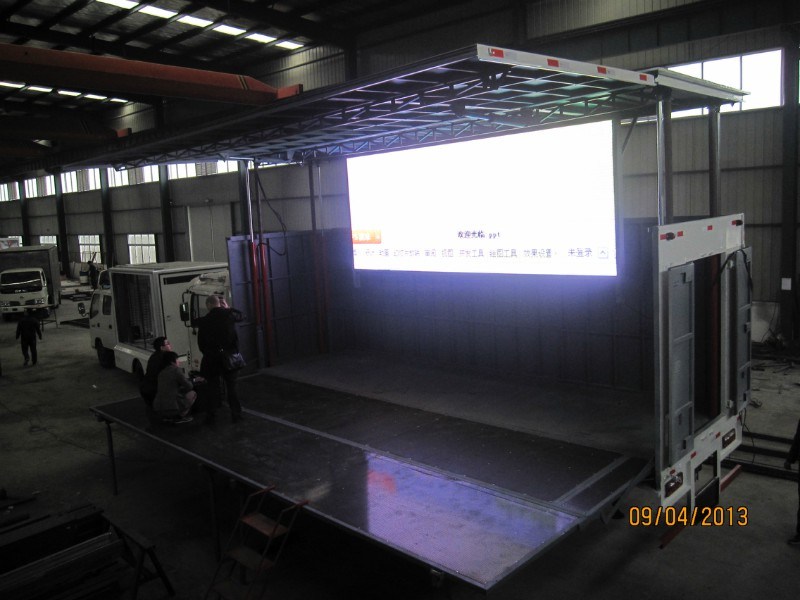

1.One side 12SQM LED(can be lifted up 2m)
2.Another side a LED strip screen & scrolling light box
3.a full color LED screen at the rear
3.A negotiation room inside
4.Equipped multimedia playing system
5.Inside generator can supply powers
6.With ISUZU chassis

1
Weight 8700Kg
2 External dimension 7.1m*2.3m*3.85m
3 LED screen dimension 4.8m*2.4m
4 Scrolling light box dimension 3.91m*1.5m
5 Strip screen dimension 5.44m*0.48m
6 Rear full color screen dimension 1.22m*1.83m
7 Horizontal angle of view 110° (±55°)
8 Vertical angle of view 50° (±25°)
9 LED display system P10 full-color outdoor LED display
10 Multi-media system IPC+ 15-inch display + professional sound system
11 Power supply system outer power or built-in generator power
12 Input voltage AC380V±1% 47~64Hz
13 Average power consumption 0.5KW/m²/H
14 Total power consumption 9KW/H
15 Generator KIPOR KED16SS-15.5KW
16 Electric system Standard section:Button control and operate system (standard)
Deluxe section: CPU control and operate system (optional)
VIP section: touch screen, wireless,upper computer control and operate system(optional)
17 Mechanism operates system lifting up & down (1900mm)
18 Lifting system power driven screw rod lifting system, afford: 5000Kg
19 Chassis Isuzu (Europe IV)
20 Security system overheat protection + two fire extinguishers

Small Forland LED Truck for Outdoor LED Mobile Billboard (LED Advertising Display Truck)


Mobile Video Truck Mobile LED Promotion Truck

Applications
Press release news conferences, product launches, channel investment activities, press appearances , etc
Activities road show promotions, public relations activities, product marketing, branding promotion, draft activities, live shows and other sales
Live sporting events, live events, concerts, etc.
Parade display product buildings parade promotion, exhibitions, fairs, shows, etc
Forum lecture forums, conferences and seminars
Celebration &ceremony real estate opening, anniversary celebration, the opening ceremony, festivals, ribbon-cutting ceremony, award ceremonies.
Election promotion for election, policy promotion
Other applications wedding live, auction, etc

www.truckinchina.com

Related Cases :Specifications
BJ1049V8ADA-1 BJ493ZLQ3 5995×2000×2860 2720*1760 4.8 2.56
BJ1046V9JB5-H1 4A1-68C40 5130×1900×2750 2800*1600 4.6 2.56
ZZ1047C3414D145 4B2-95C40 5995×2025×2995 3840*1760 6.8 2.6
BJ1043V9JEA-A 4B2-95C40 5995×2025×2990 3840*1760 6.8 2.6
HFC1041K7T 4D25F 5995×2030×2900 3840*1760 6.8 2.6
BJ1049V9PD6-FE ISF2.8s4129T 5995×2000×2860 3520*1760 6.8 2.56
BJ1049V9PD6-FE CY4102-CE4F 5995×2000×2900 3840*1760 6.8 2.56
BJ1089VDPFG-SD YC4E140-31 7970×2190×3730 4800*2240 10.8 2.56
Small LED Truck chassis
Vehicle model Cabin Wheel base(mm) Model Details
BJ1036V4JV5-K1(2T gasoline and gas truck) 1640single row 3000 BJ486EQV4 Click for more
BJ1010V0JA3-2 1475 single row (right hand drive) 2456 LL480QB(Euro I) Click for more
BJ1022V3JA2-S 1540 single row 2300 QC480Q (DI) (Euro I) Click for more
LED Vehicle model Cabin Wheel base(mm) Model Details
BJ1063VCJEA-S2(4T diesel truck) 1900single row 3360 YZ4DB1 Click for more
BJ1029V3JA2 1540 single row(right hand drive) 2400 N485QA(Euro I) Click for more
BJ1032V3JB3-S 1580 single row 2600 N485QA(Euro I) Click for more
BJ1039V3JD3-B 1695 single row 2490 BJ493ZQ(Euro II) Click for more
BJ1069VCJEA-A (right hand drive) 1900 single row 3450 phaser135Ti(Euro II) Click for more
BJ1039V3JD3(RHD) 1695 single row 2490 BJ493Q(Euro I) Click for more
BJ1039V3JD3-B 1695 single row 2490 BJ493ZQ(Euro II) Click for more
BJ1049V8JD6-B 1780 single row 3000 BJ493ZQ(Euro II) Click for more
BJ1059VCJD6-C 1695 single row 3360 BJ493ZLQ(Euro III) Click for more
BJ1049V9JE6-A 1780 single row 3360 BJ493ZLQ3(Euro III) Click for more
BJ1069VCJEA-A 1900 single row 3800 phaser135Ti(Euro II) Click for more
Medium LED Truck
Vehicle model Cabin Wheel base(mm) Model Details
BJ1142V5PDB-F1 2100 one and half row 4500 YC4D130-33(Euro II) Click for more
BJ1163VKPHK-2 2200 one and half row 5250 YC6J160-33(Euro II) Click for more
BJ5122V5PDC-A1 2200 one and half row 5700 YC6J190-20(Euro II) Click for more
