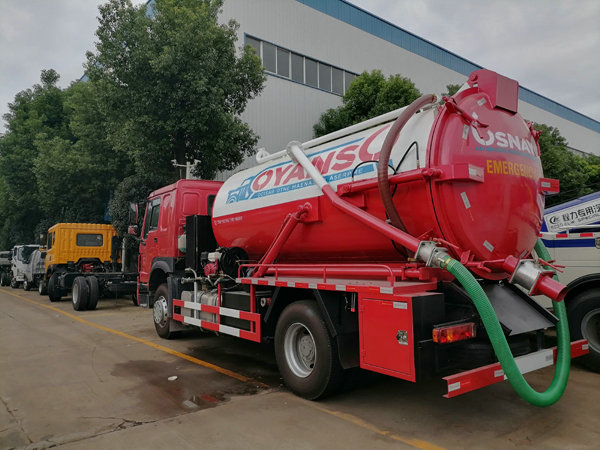

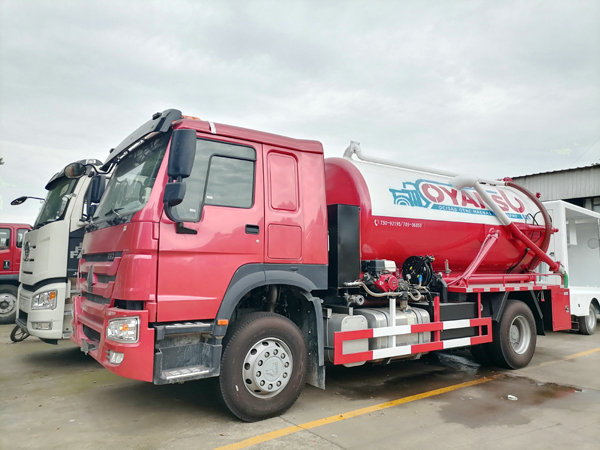

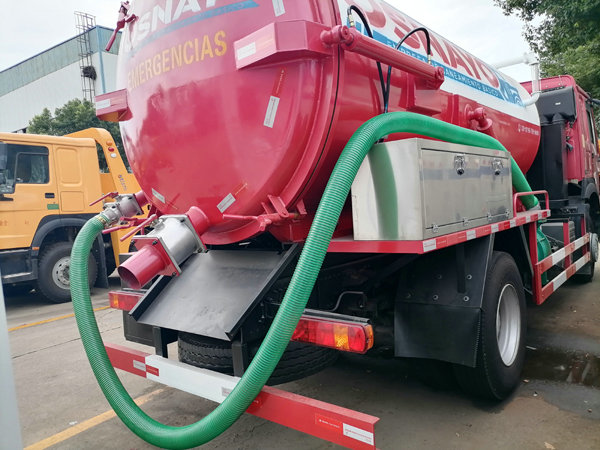

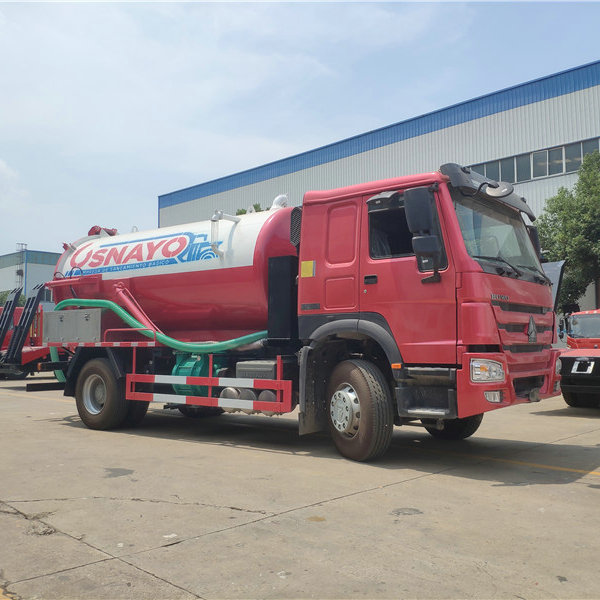

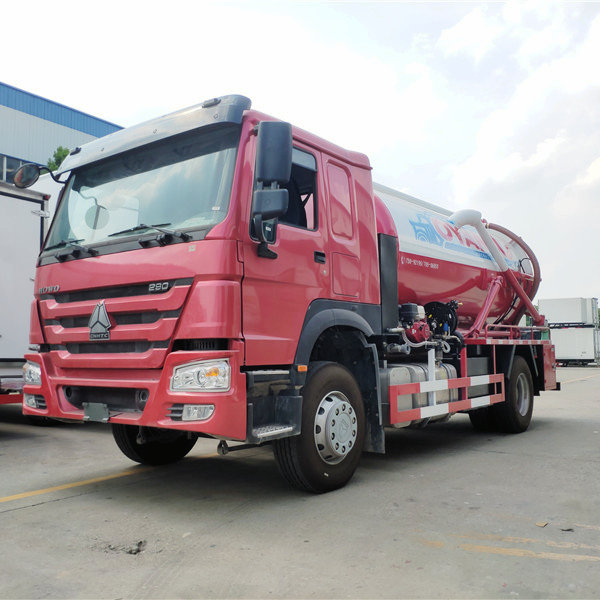

Sinotruk HOWO Septic Tank vacuum Sewage Suction Trucks 12m3-15CBM
Views: 834 Author: Dong Runze Special Vehicle Publish Time: 2021-10-20 Origin: Combined Vacuum And Jetting Trucks
HOWO 10-15Ton Septic Tank , Cesspit , Cesspool Sewage Suction Tanker Truck
Sinotruck HOWO 10000 Liters Vacuum Sewage Suction Septic Tanker Truck With Self Dumping System
Sewage truck Basic Equipment
Imported vacuum pump, power-take-off, hydraulic cylinders, control valves , pressure gauge,
water gas separator , oil water separator, level inspection window, suction hose,pipeline system,etc.
Sinotruk HOWO Septic Tank vacuum Sewage Suction Trucks 12m3-15CBM
sewage suction truck advantages
1.Tank can be lifted hydraulically to 40 to 45 degree.Rear door can be opened&closed
hydraulically. With full opening design, discharge can be very quick&complete.
2.Overfill system with music horn is equipped to prevent the vacuum pump damage from sewage water into vacuum pump when the tank is full.
3.Super power of vacuum pump, seamless die casted sheel cover, designing for container with high ability of pressure-resistance,double hydraulic jack system, morestrength then cesspit emptier.
Items | Descriptions | Specifications and Types |
General | Truck Name | Vacuum Sewer Tanker truck |
Drive Type | 4*2, 4*4 | |
Gross Vehicle Weight(kg) | 16000 | |
Loading Capacity (kg) | 10000 | |
Overall Dimensions L*W*H(mm) | 8480×2500×3250 | |
Engine | Engine Model | WD615.97 |
Engine Brand | SINOTRUK HOWO | |
Fuel Type | Diesel | |
Power | 290HP | |
Emission Standard | Euro II | |
Displacement(ml) | 9726 | |
Engine Type | 6 cylinders,turbo-charged diesel engine,inter-cooling,high common rail | |
Chassis | Chassis Brand | HOWO |
Front/Rear Axle | STR/ST16 | |
Tire No. | 6 | |
Tire Specification | 12.00R20 Steel tire | |
Wheelbase (mm) ; | 4600 | |
Axle No. | 2 | |
Gear Box | HW15710,10 speed forward with 2 reverse | |
Brake | Air brake | |
Steering Wheel | Left hand drive with power-assisted | |
Air conditional | Suitable for tropical climate | |
Tank and Pump | Sewage Tank Volume(L) | 8000,10000,12000,15000 |
Tank Material | 5mm carbon steel | |
Tank Shape | Cylindrical | |
Suction Depth | ≥6m | |
Vacuum pump | Double Weilong pump |
sinotruk HOWO heavy duty 10 wheels 10000liters 12000liters vacuum sewage suction truck
HOWO fecal suction truck, fecal suction truck, Septic tank truck, Septic Tanker, Sewage water suction truck, vacuum suction truck, waste water suction truck is used to collect, transport and discharge dirty water , sludge , septic , etc . such liquid stuff , It is suitable for cleaning the septic tank , cesspit , cesspool , gully , etc . It is widely used in environment and sanitation field .
